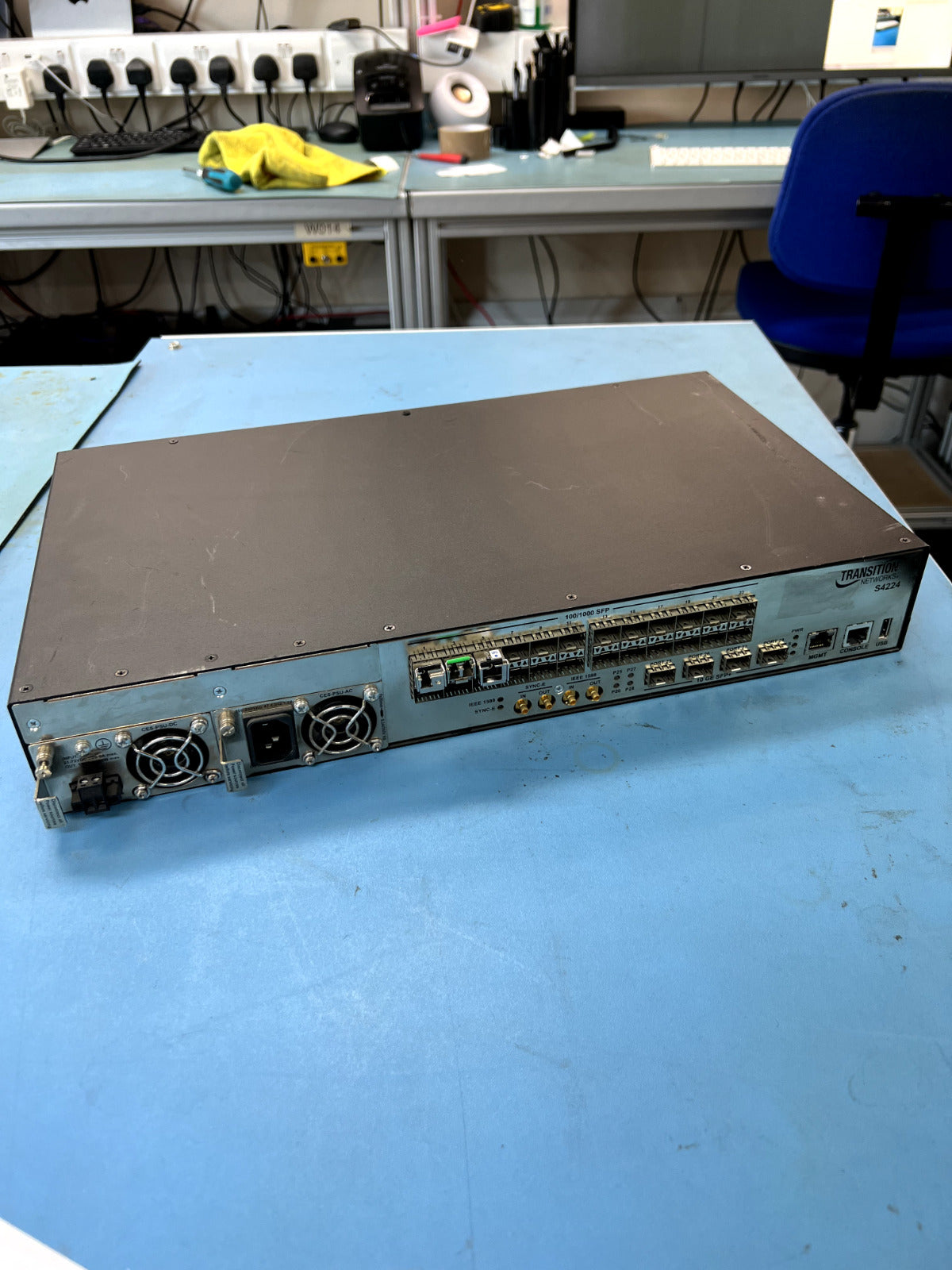

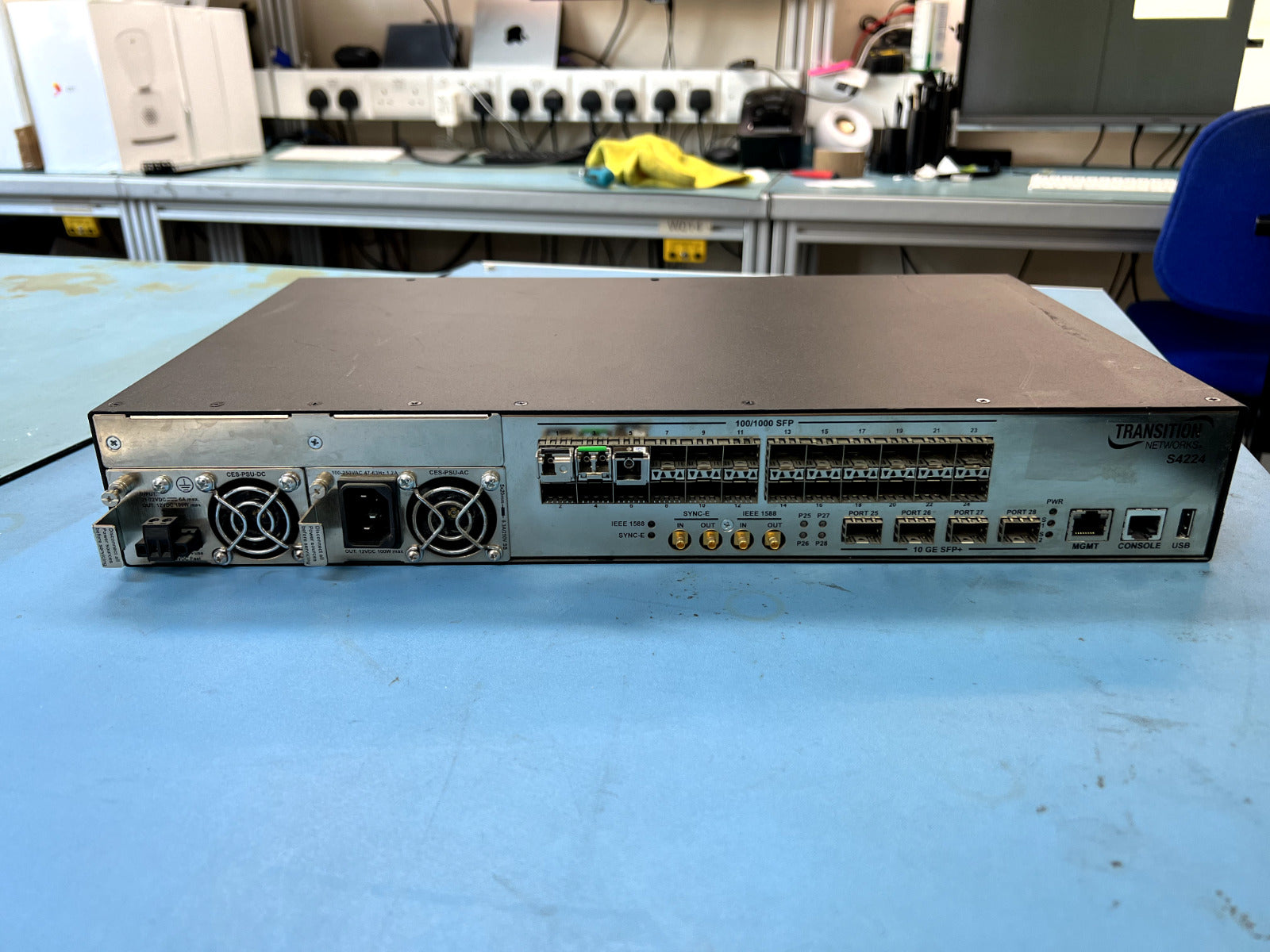

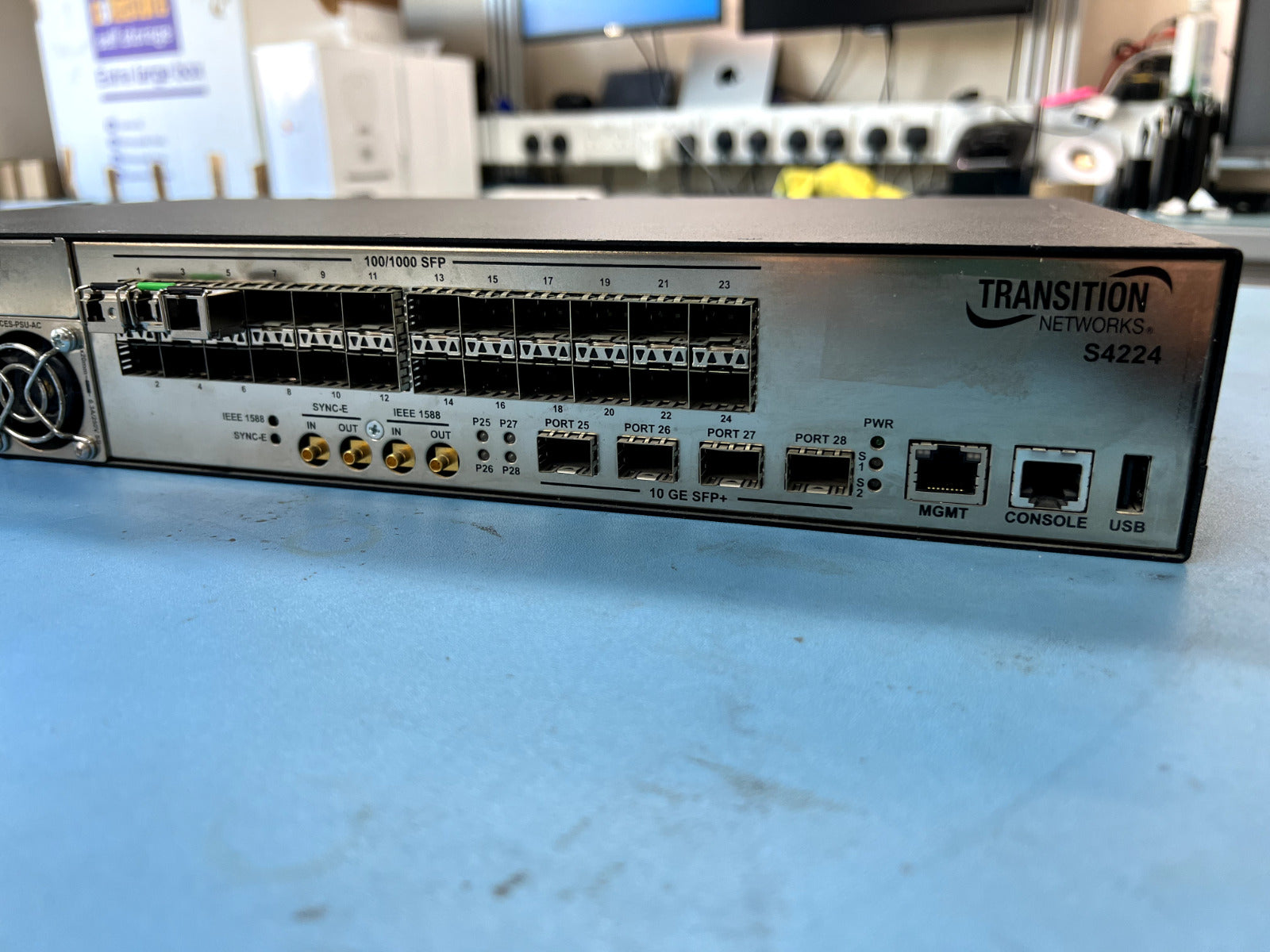

The Transition Networks S4224 is a rack-mount Carrier Ethernet switch intended for service-provider and enterprise access applications. The unit offers 24 x 100/1000Base SFP ports and 4 x 10G SFP+ uplink ports. The rear panel shows management, console and USB interfaces, Sync-E and IEEE 1588 timing connectors, and both AC and DC power input provisions (see photographs).
Description
This listing is for a single Transition Networks S4224 Carrier Ethernet switch (model S4224). The switch supports SFP-based 1G access ports and SFP+ 10G uplinks, and is intended for rack installation. The device was removed from a working environment as part of an IT decommissioning project and is offered as shown in the photographs.
Features
- 24 x 100/1000Base SFP ports for fibre or SFP copper modules
- 4 x 10G SFP+ uplink ports
- Management interfaces including RJ45 management port, console port and USB port
- Carrier Ethernet feature set (MEF-oriented functionality as described by the manufacturer)
- Timing and synchronisation support: Sync-E and IEEE 1588 (labels visible on rear panel)
- Provision for AC and DC power inputs (labels and sockets visible on rear panel)
- Rack-mount form factor suitable for standard 19-inch cabinets
Key Features
- 24 x 1G SFP access ports
- 4 x 10G SFP+ uplinks
- Management: MGMT RJ45, Console and USB ports
Specifications
- Type: Carrier Ethernet switch (managed)
- Brand: Transition Networks
- Model: S4224
- Ports: 24 x 100/1000Base SFP; 4 x 10G SFP+
- Management: MGMT RJ45, Console (RJ45) and USB port (visible on rear panel)
- Timing: Sync-E and IEEE 1588 connectors (visible on rear panel)

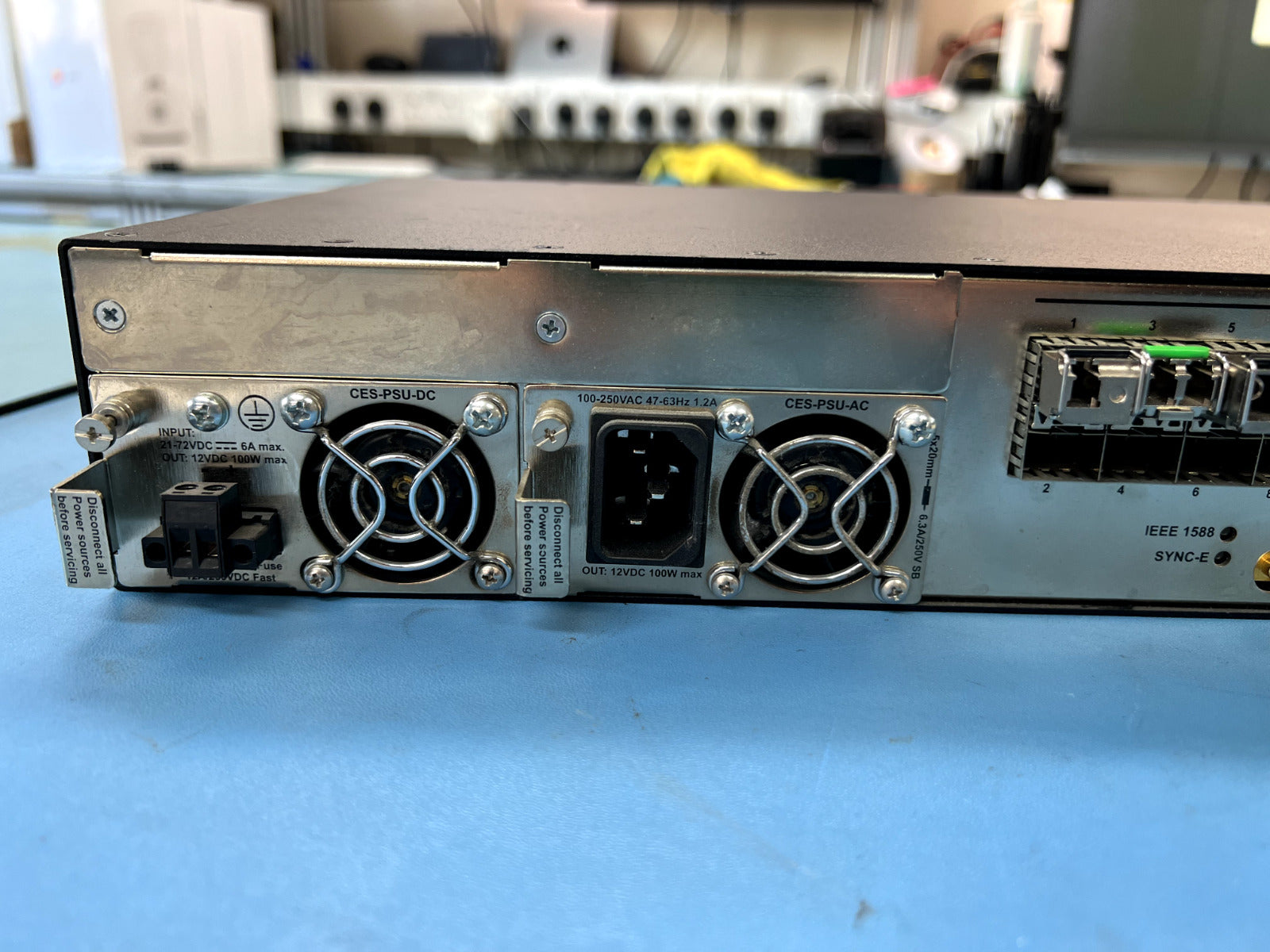

- Power: AC inlet labelled 100–250VAC 47–63Hz 1.2A (visible). DC input connector labelled 21–72VDC 6A max (visible). See photographs for details.
- Form factor: 1U rack-mount (suitable for 19-inch racks)
- Layer: Layer 3 (as listed in item attributes)
- Maximum data rate: Up to 10 Gbps on SFP+ uplinks (per port)
- Connector type: SFP / SFP+
- MPN: S4224
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Transition Networks |
| Model | S4224 |
| Part Number (MPN) | S4224 |
| Ports | 24 x 100/1000Base SFP; 4 x 10G SFP+ |
| Management | MGMT RJ45, Console RJ45, USB (rear panel) |
| Timing | Sync-E and IEEE 1588 connectors (rear panel) |
| Power | AC inlet 100–250VAC 47–63Hz 1.2A (labelled). DC input connector labelled 21–72VDC 6A max (labelled). See photos. |
| Form factor | Rack-mount (1U) |
| Network layer | Layer 3 |
| Connector type | SFP / SFP+ |
What you get
- 1 x Transition Networks S4224 Ethernet switch (unit only)
History
The device was removed from an operational network during an IT decommissioning exercise. It is offered as shown in the photographs.
VAT Charges for EU Customers
Prices displayed on the listing may include or exclude VAT depending on your selected delivery destination. Local import taxes, duties and handling are governed by the destination country and the shipping channel used by the platform.
Returns
Please review the photographs and technical details carefully before purchase. If you have specific questions about the item, ask before ordering.
Details

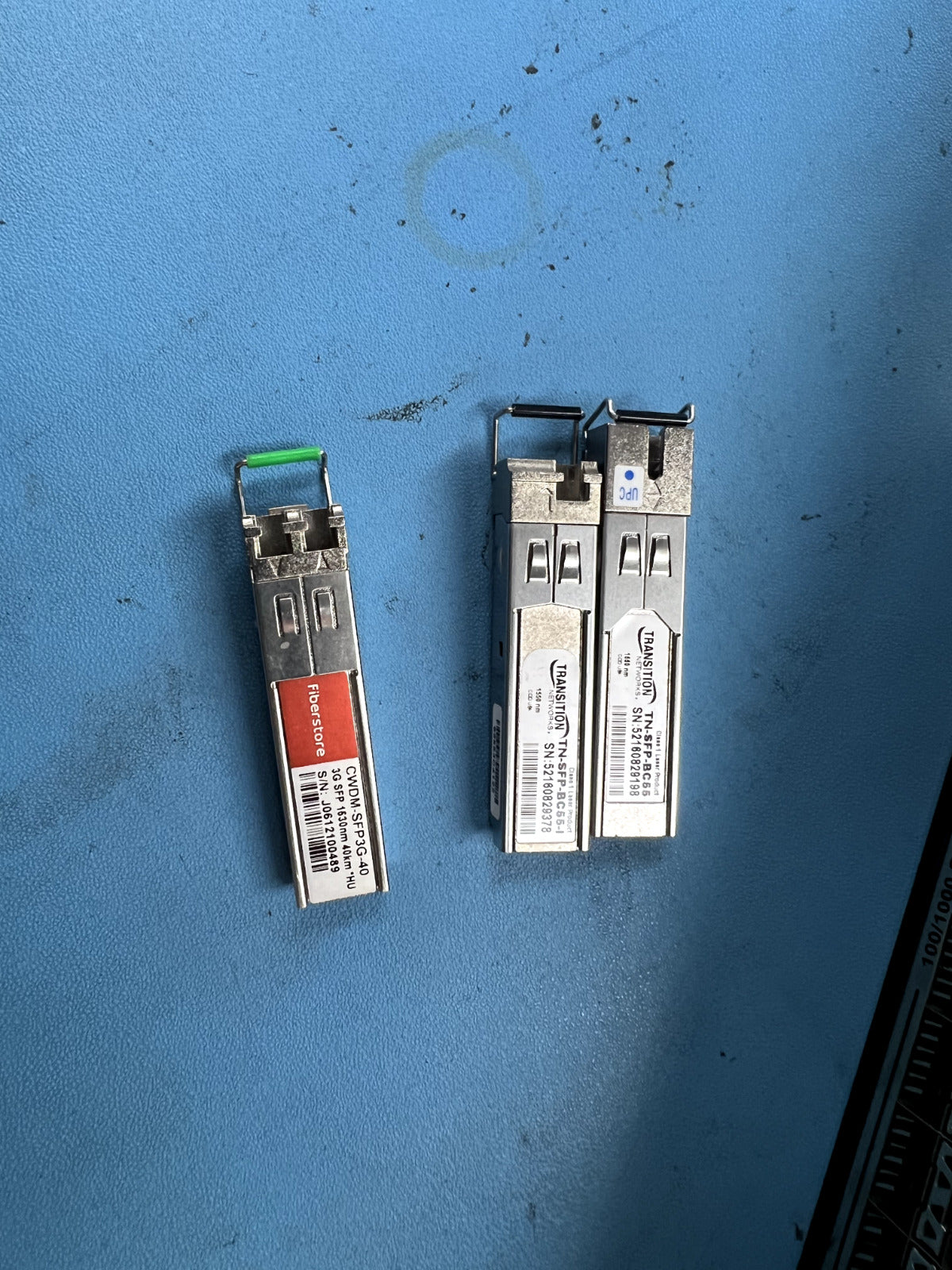

Photographs are of the actual item. SFP/SFP+ modules shown in some images are not included unless explicitly stated. No warranty is provided unless specifically stated in the listing.
