APC SBP16KP Service Bypass Panel 100-240VAC 100A 24000VA Grade-B

Robust APC service bypass panel (model SBP16KP). This unit provides a manual bypass function for a UPS, allowing the connected load to be transferred to mains supply for maintenance or service without interrupting power to the protected equipment. The panel is rated for 100 A and up to 24 000 VA and supports 100–240 VAC, 50/60 Hz installations (refer to the product label for supported wiring/phase configurations).

Features

• Service bypass panel designed for use with APC UPS systems

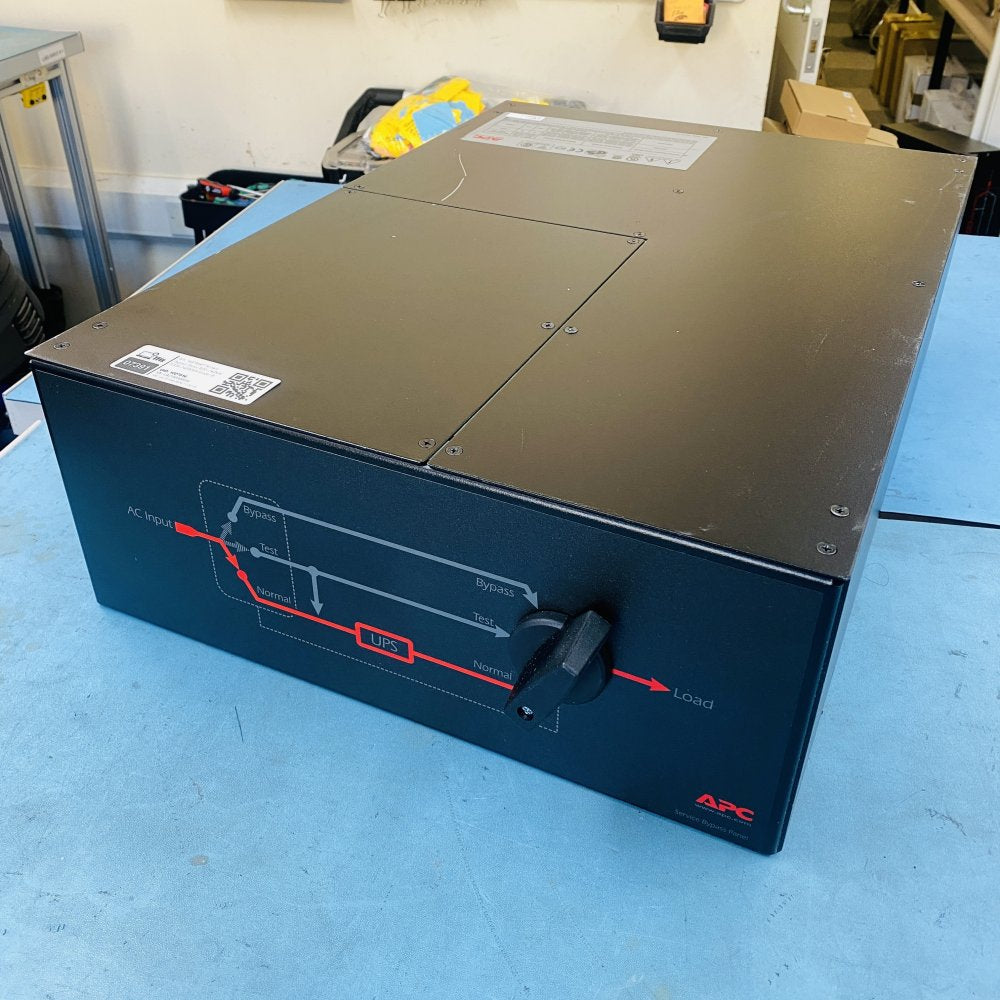

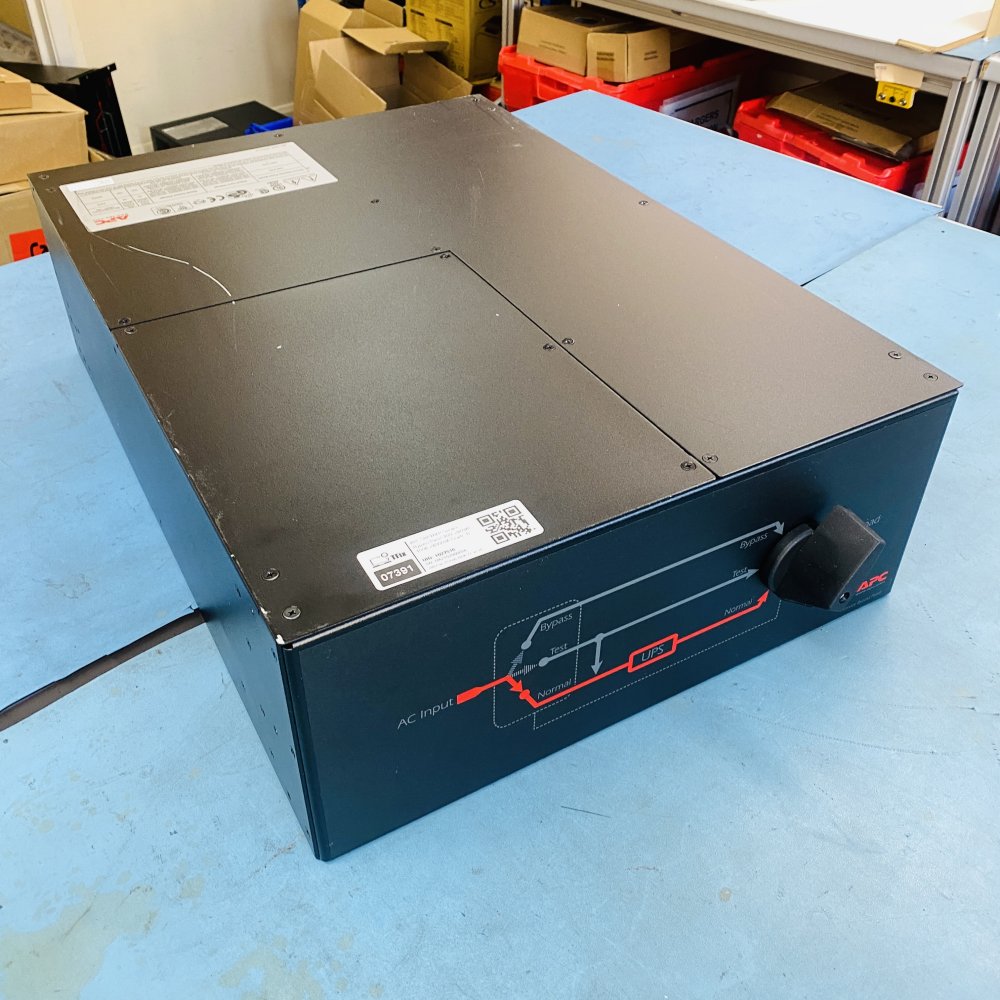

• Manual rotary three-position switch for Normal / Test / Bypass operation
• Rated for 100 A continuous input/output
• Supports 100–240 VAC, 50/60 Hz operation (see label for specific phase/wiring options)
• Maximum output power: 24 000 VA

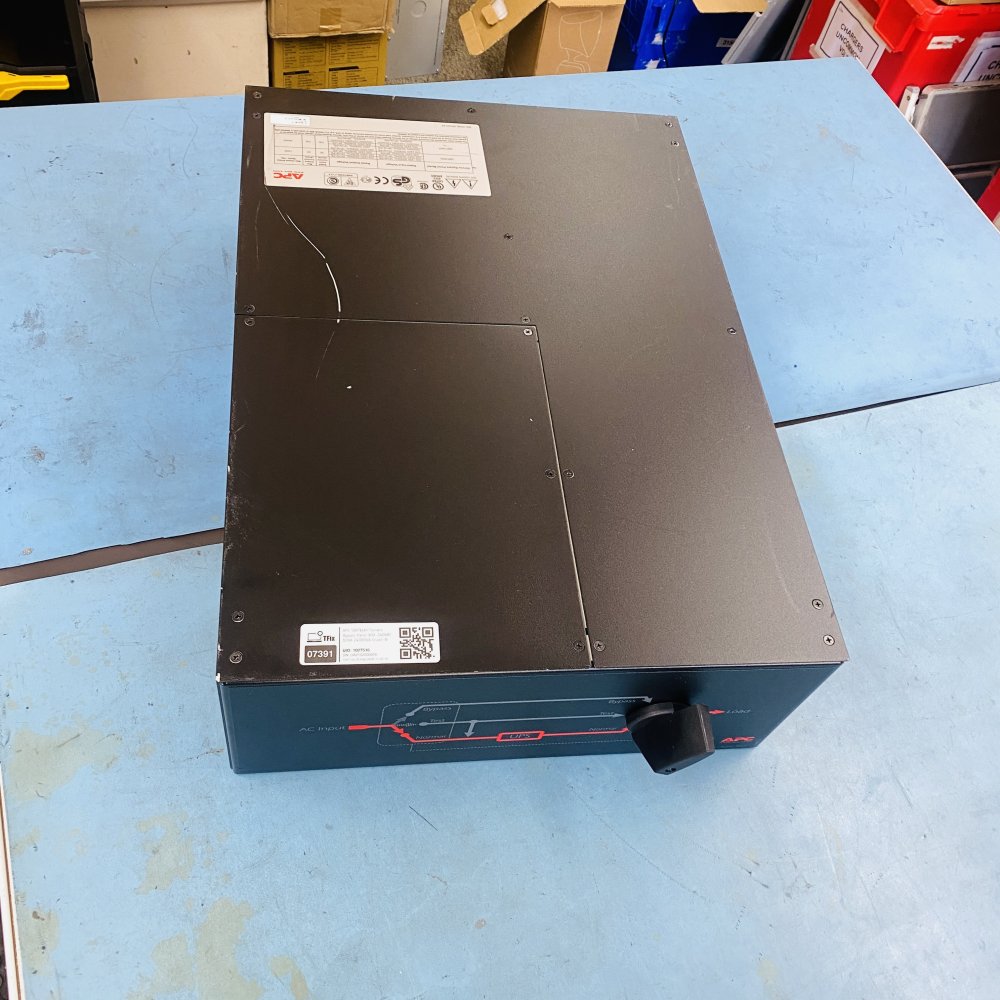

• Steel enclosure with cable entry knockouts for secure field wiring

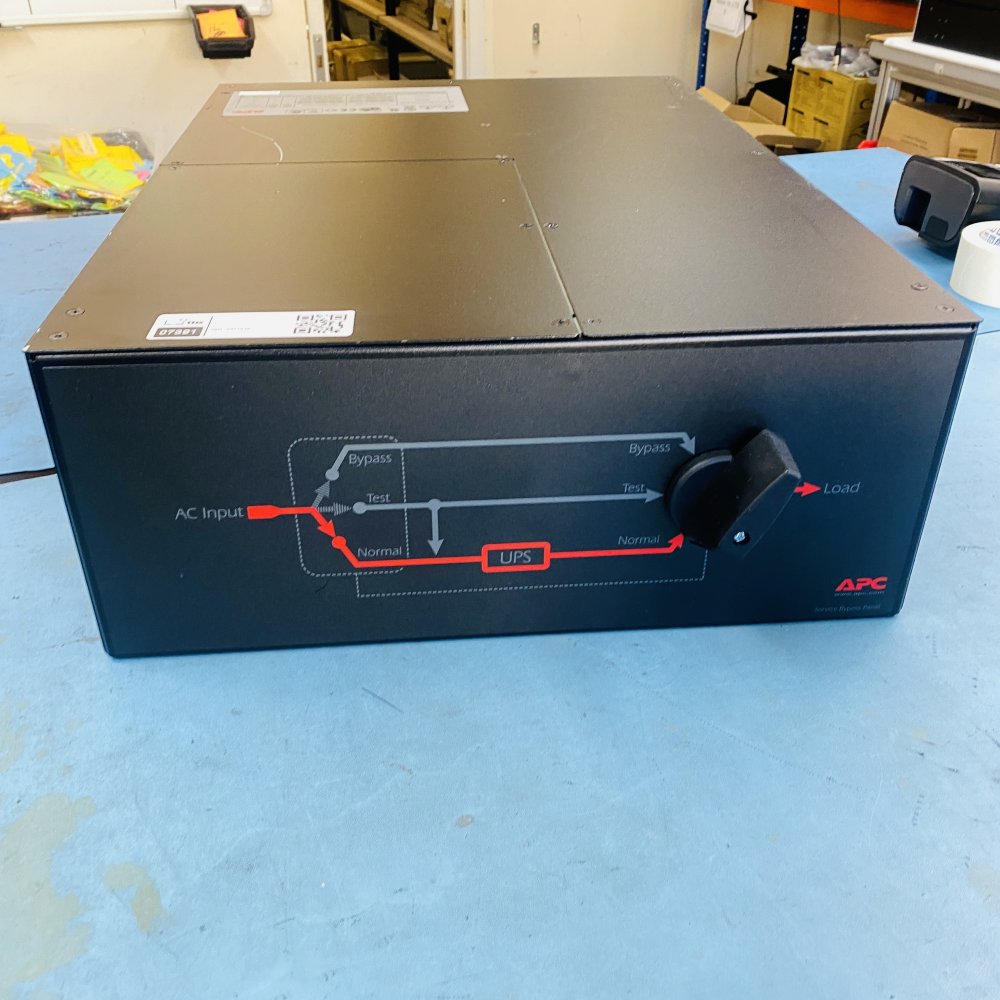

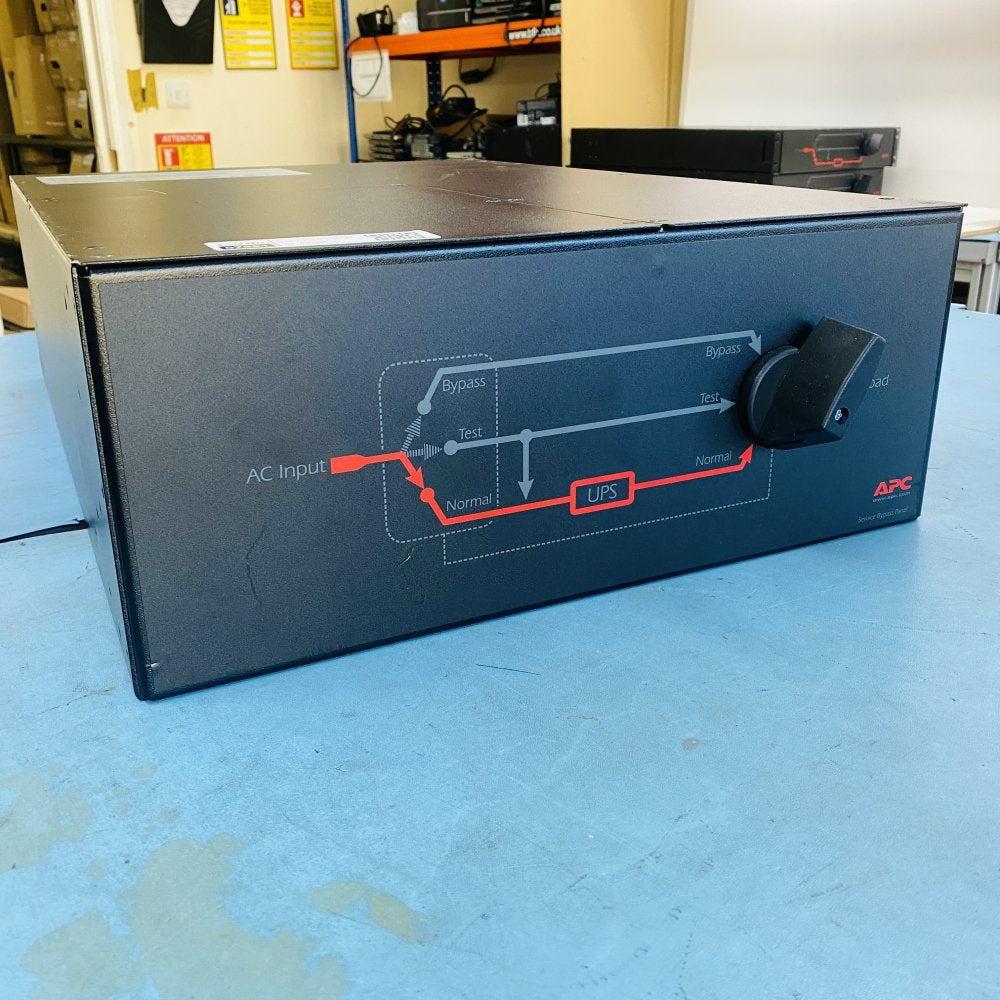

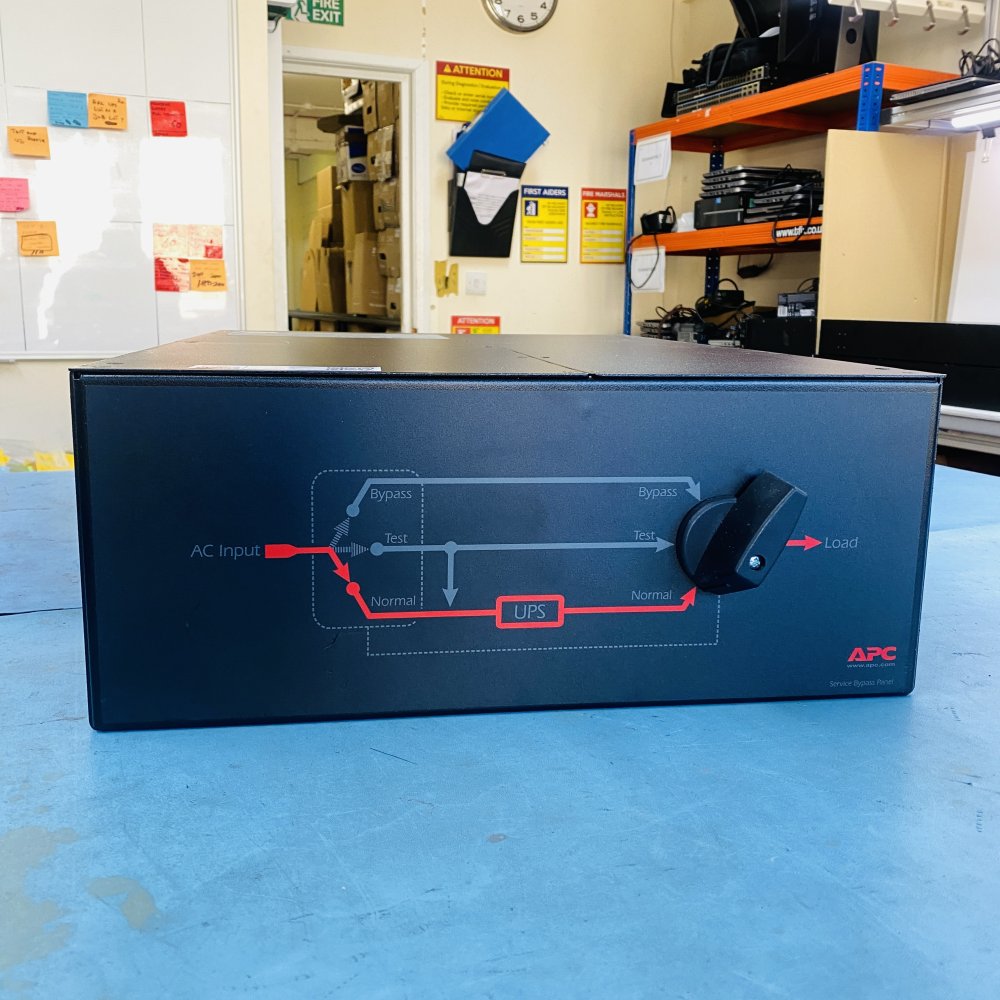

• Clear front-panel flow diagram and APC branding for straightforward operation

Specifications

• Manufacturer: APC
• Model: SBP16KP
• Item type: Service Bypass Panel

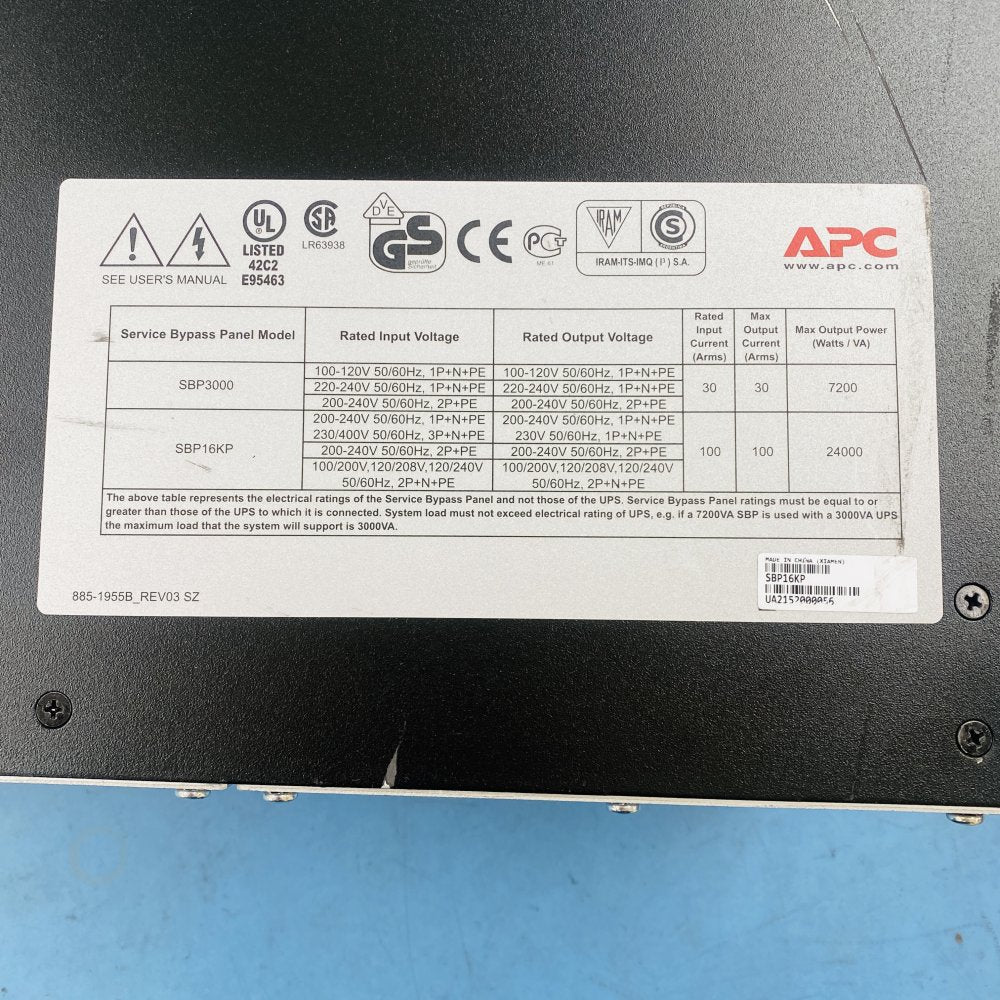

• Rated input voltage: 100–240 VAC (50/60 Hz) — see product label for supported configurations
• Rated output voltage: 100–240 VAC (50/60 Hz)
• Rated input / output current: 100 A
• Maximum output power: 24 000 VA
• Phase/wiring: Configurable for different wiring schemes (refer to the factory label and installation instructions)
• Front control: Manual rotary bypass switch (Normal / Test / Bypass)

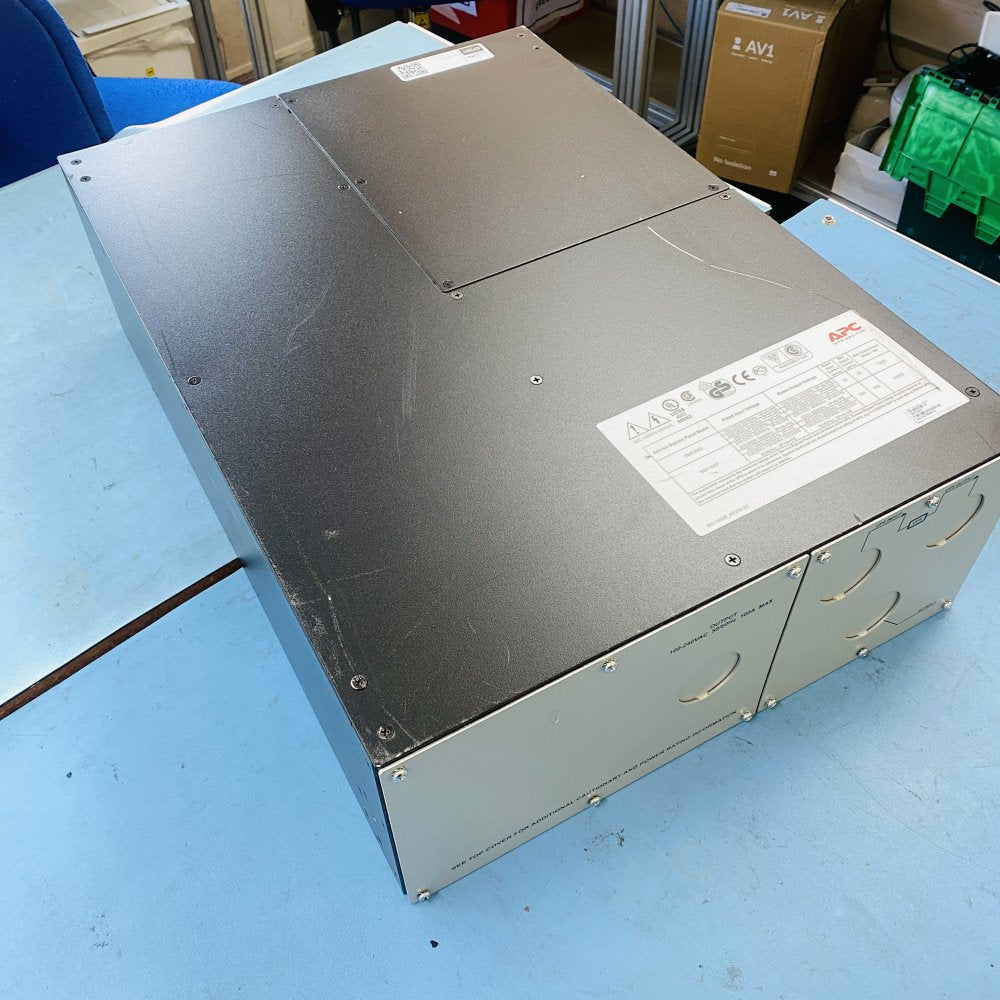

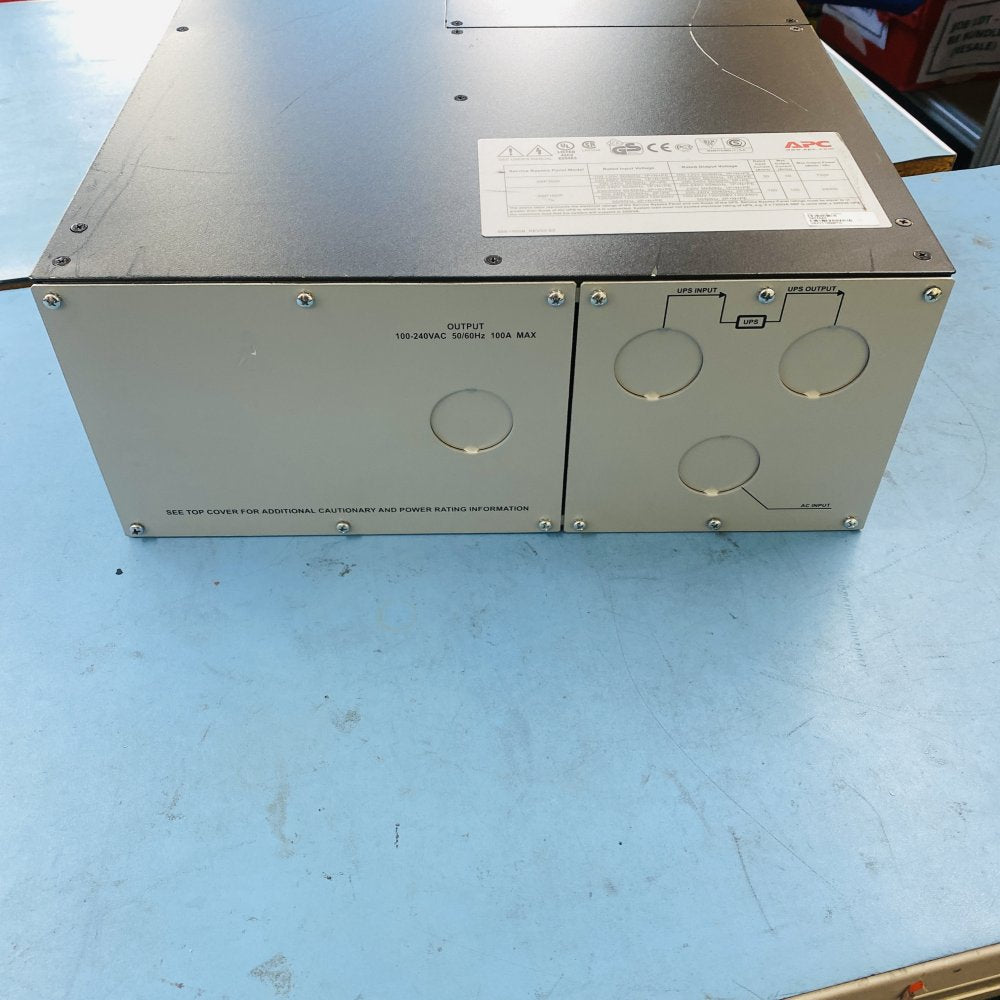

• Construction: Metal enclosure with multiple cable entry knockouts

What you get

• 1 × APC SBP16KP Service Bypass Panel
  Note: Rack mount kit not included
