APC SBP20KP Service Bypass Panel 30kVA 125A Rackmount Grade-C
£319.00
Regular price
£319.00
Sale price
£319.00
Regular price
£489.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 2 left

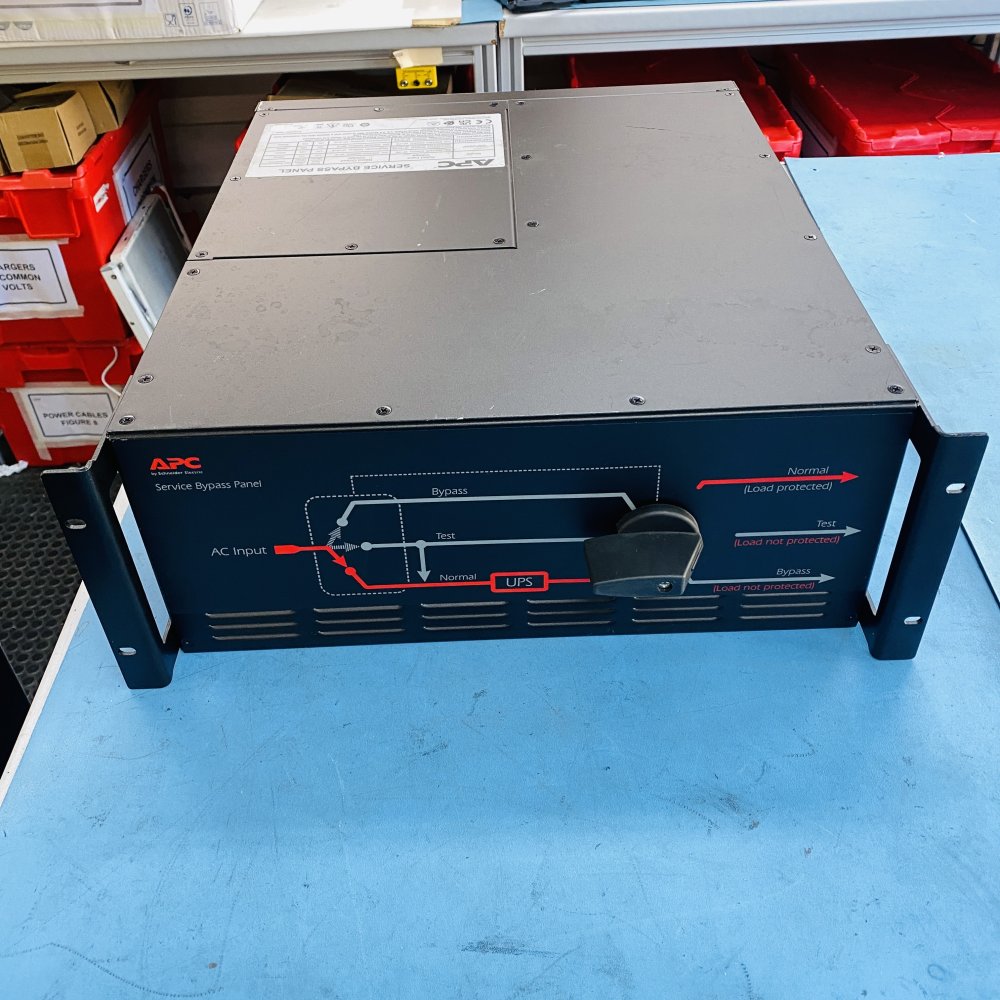

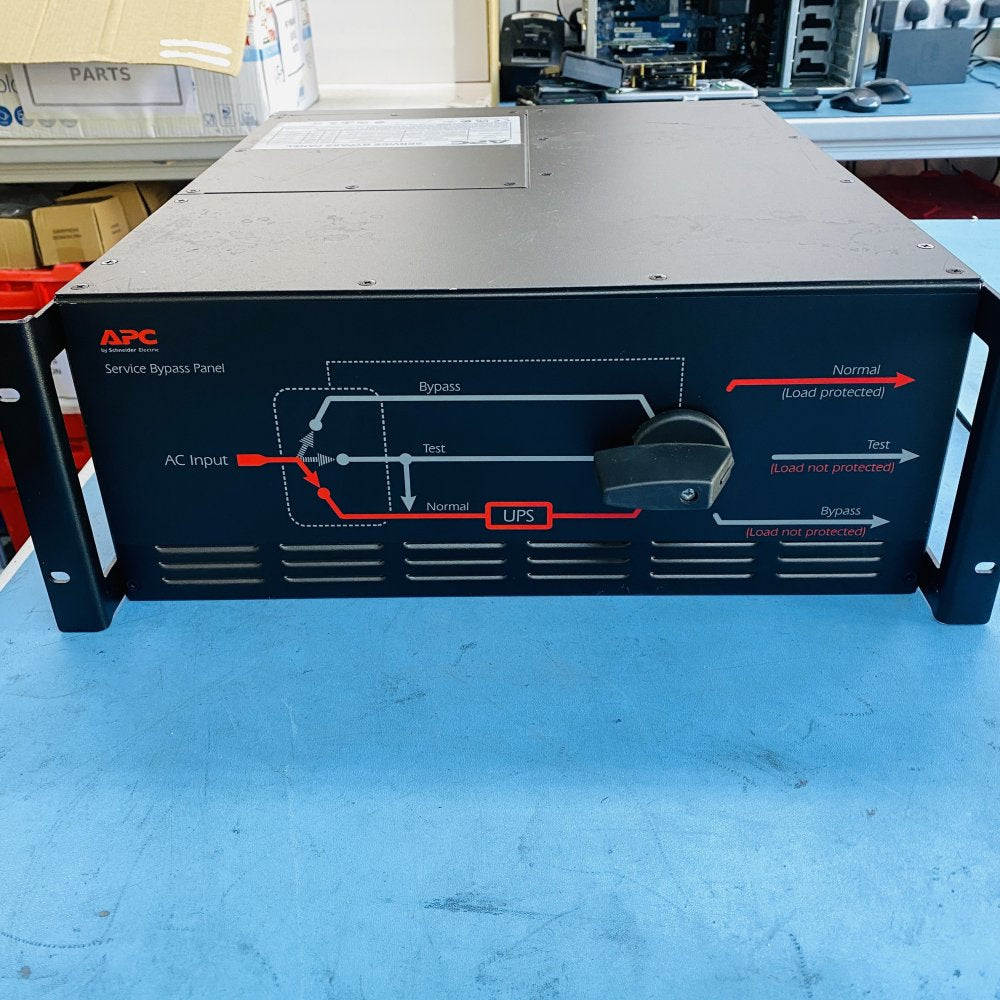

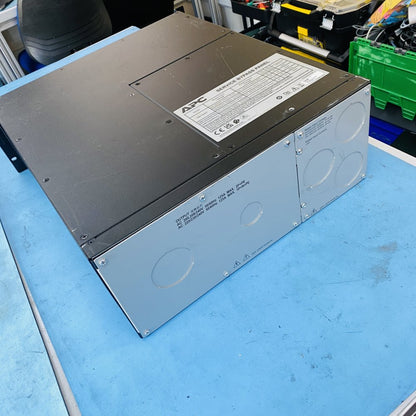

APC by Schneider Electric SBP20KP Service Bypass Panel. A rack-mountable manual bypass unit designed to allow safe maintenance or replacement of a UPS without interrupting the protected load. This unit is rated at 30 kVA and 125 A and includes a rotary transfer switch with clear front-panel labelling for Normal, Test and Bypass positions. Supplied with rack-mount brackets as shown.
Features

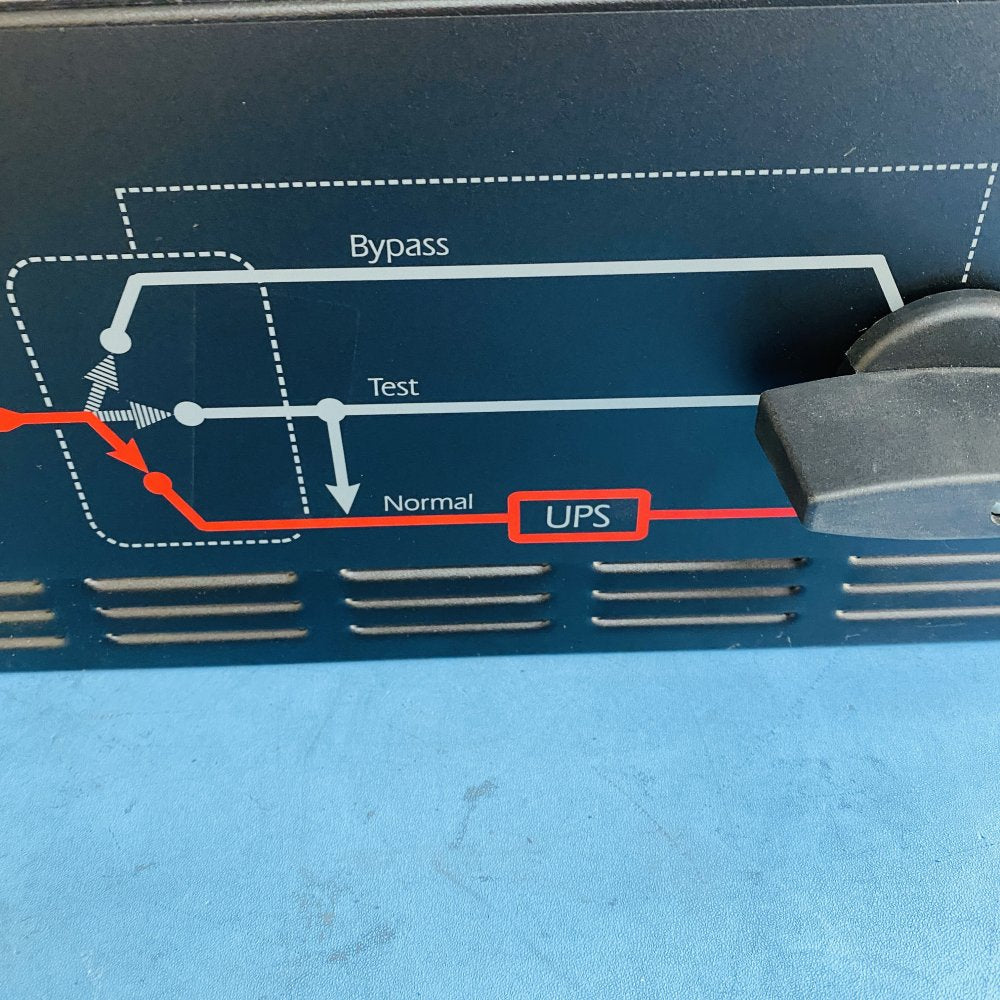

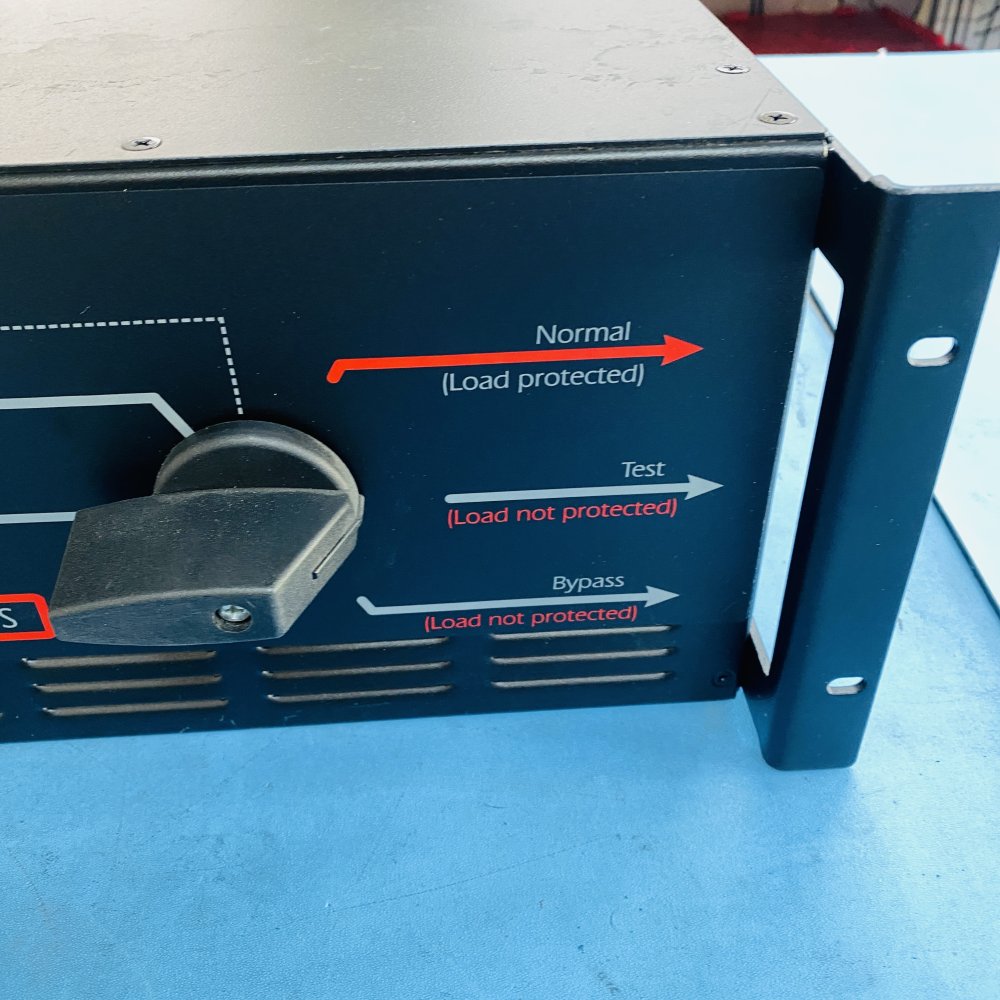

- Manual rotary transfer switch with three selectable positions: Normal (load protected), Test (load not protected) and Bypass (load not protected)
- Provides a maintenance bypass so the UPS can be serviced or replaced without removing power from the load
- Rack-mount design with mounting brackets for installation in a server rack

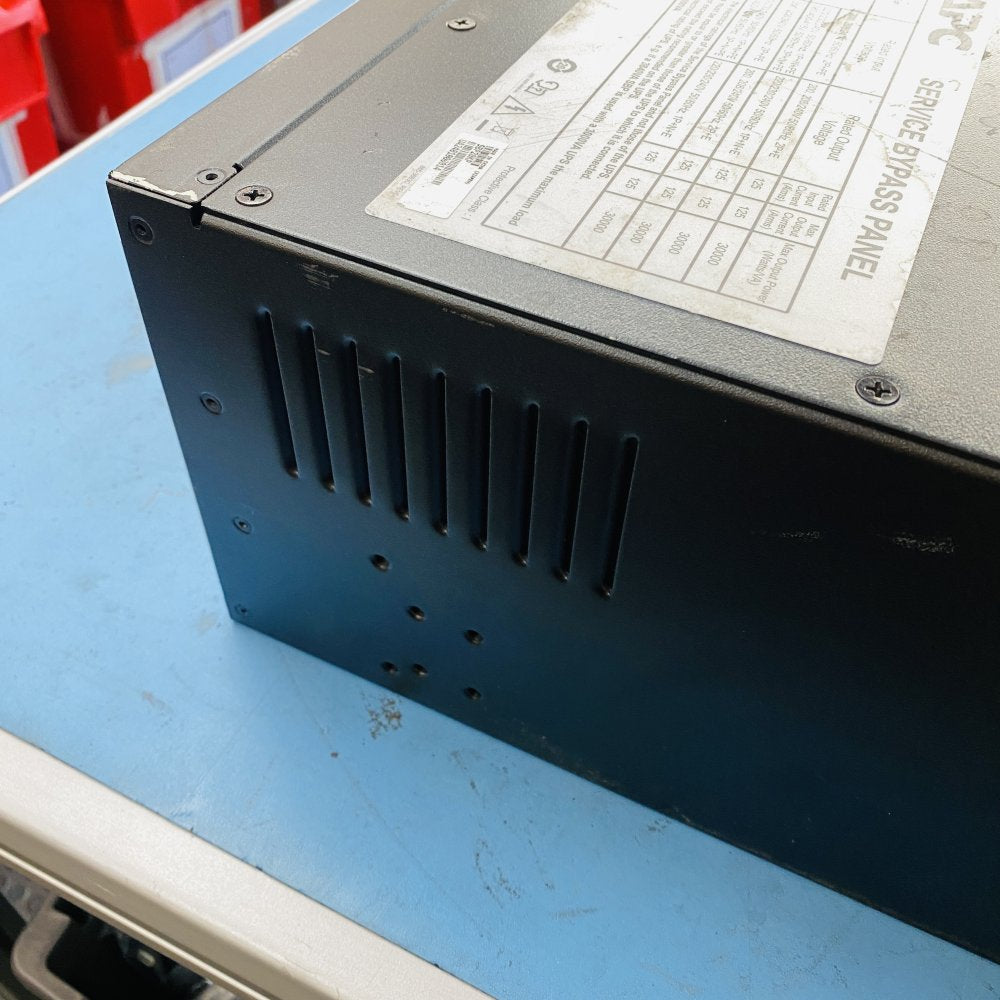

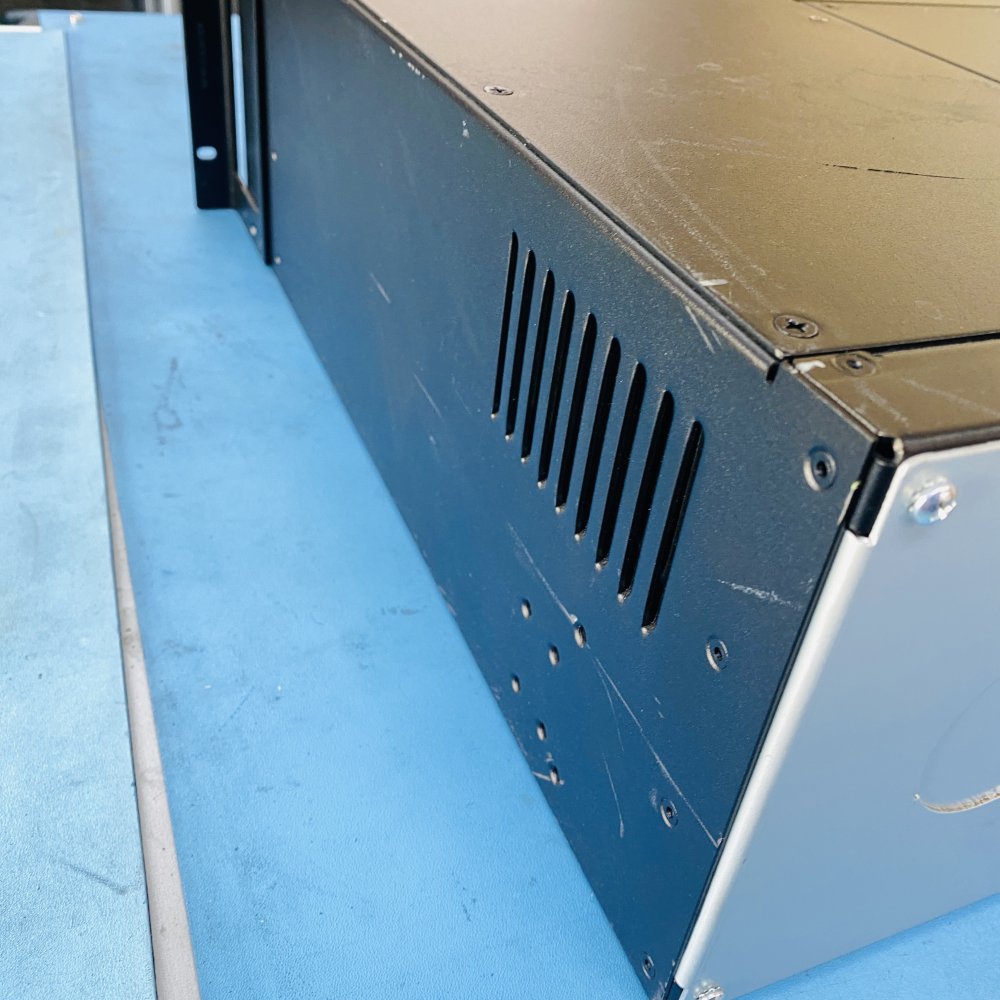

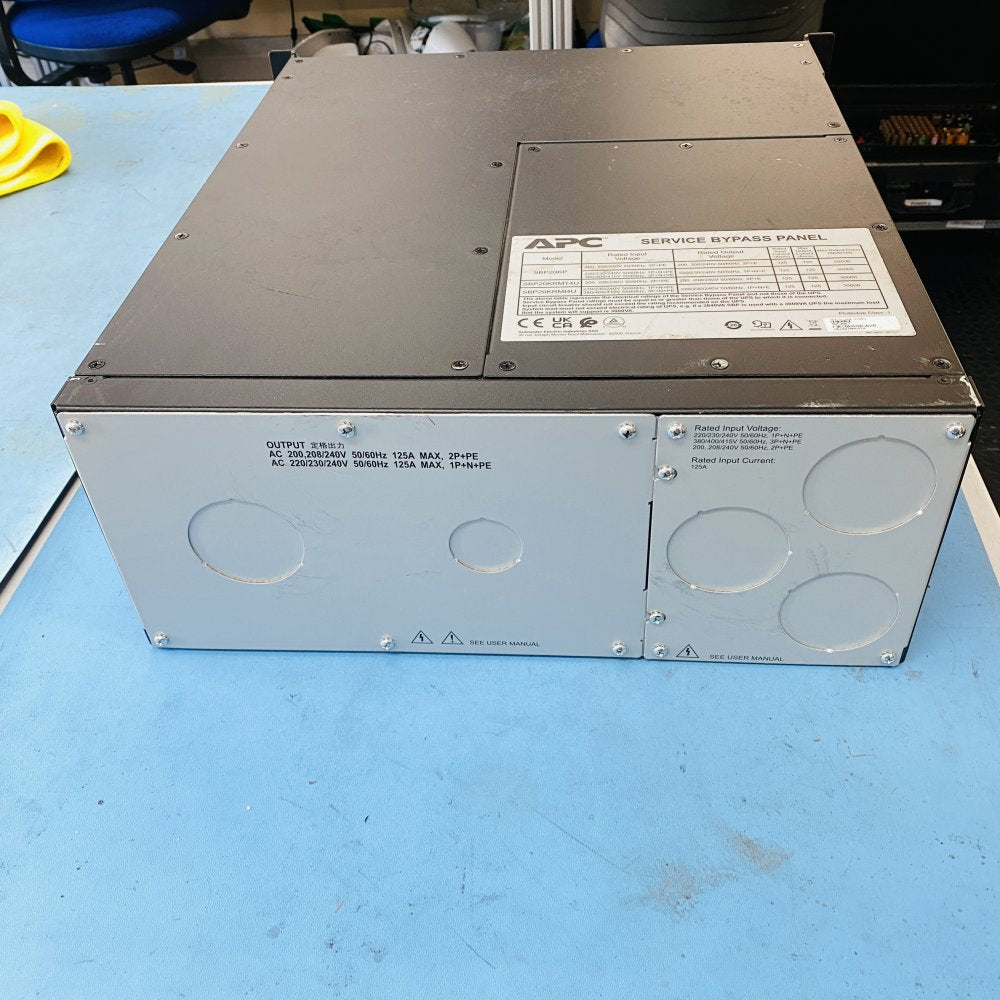

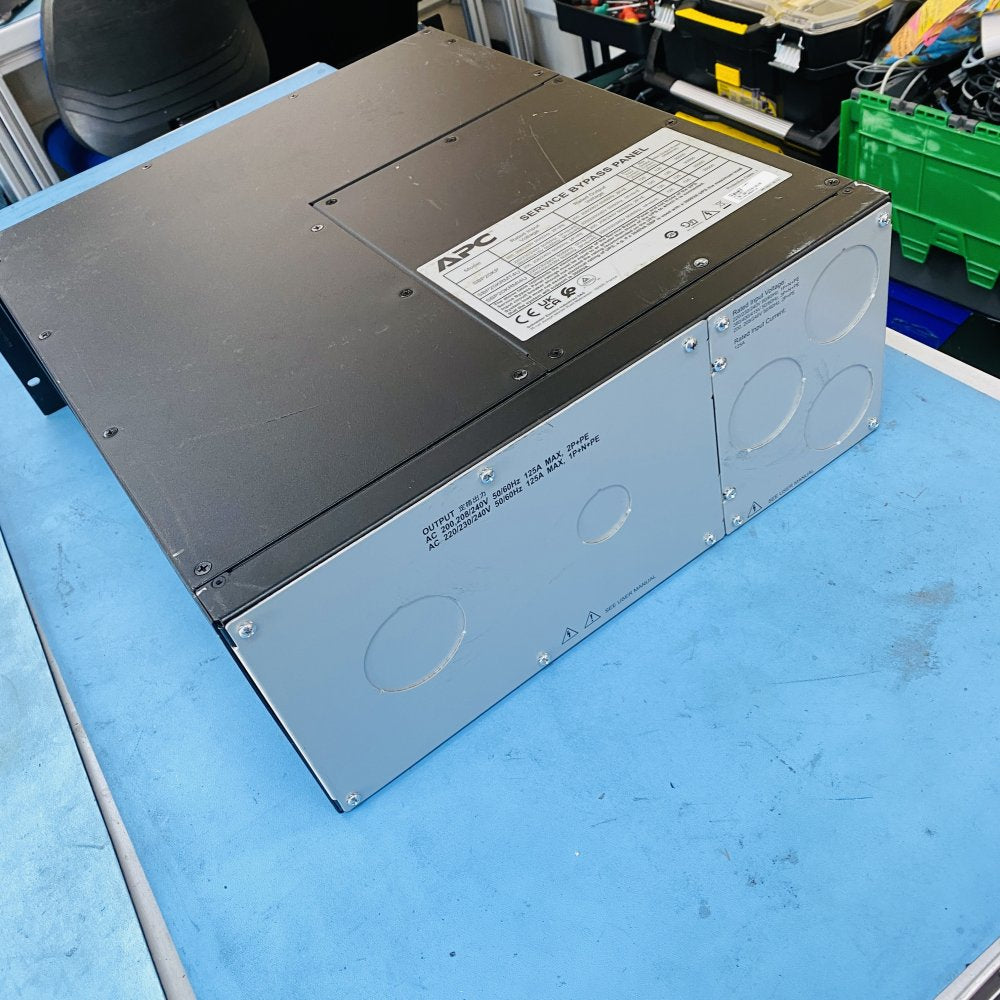

- Heavy-duty metal enclosure with ventilation slots and multiple cable knockouts for flexible installation

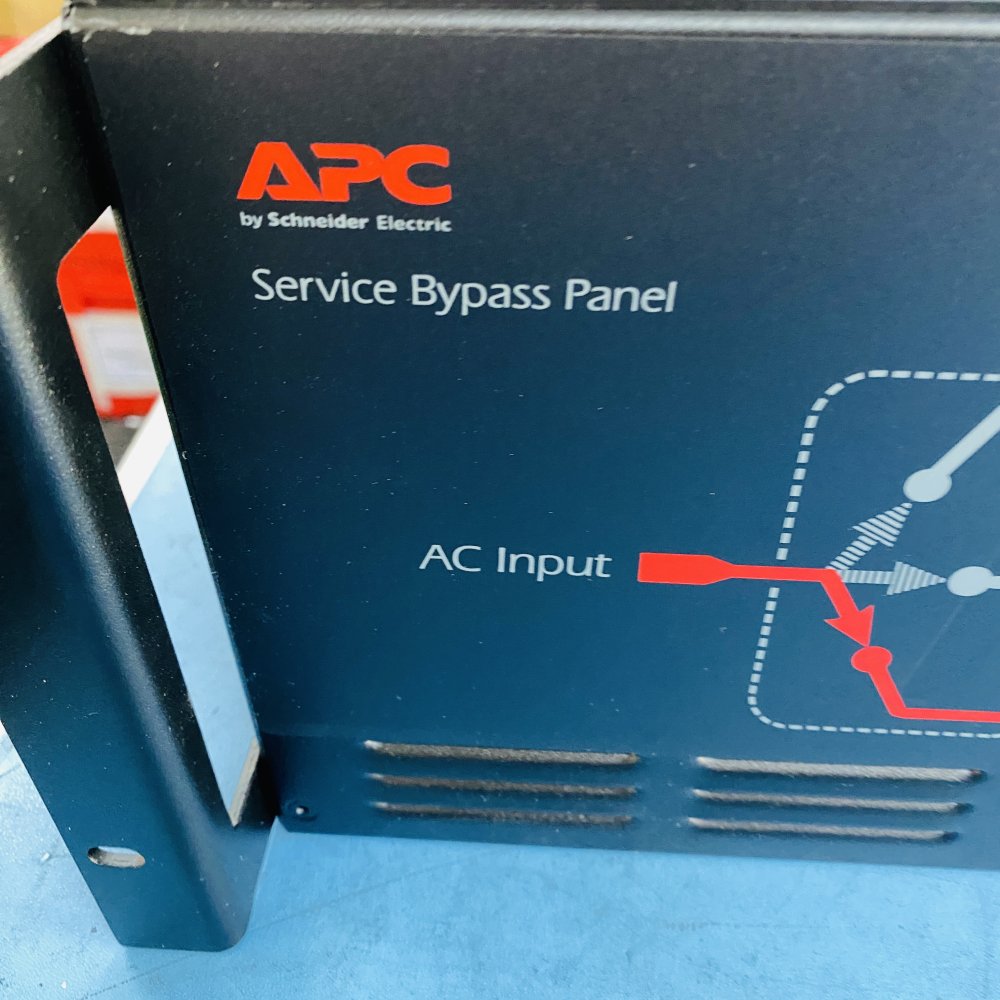

- Clear front-panel graphics and labelling for safe operation
- Protective Class I construction
Specifications
- Model: SBP20KP
- Manufacturer: APC by Schneider Electric
- Type: Service Bypass Panel (rack-mount)
- Rated input / output voltage: 200 / 208 / 240 V (50 / 60 Hz) (see label for supported configurations)
- Rated input current: 125 A
- Maximum output current: 125 A
- Maximum output power: 30,000 VA (30 kVA)
- Mounting: Rack-mount (brackets included)
What you get
- 1 x APC SBP20KP Service Bypass Panel 30kVA 125A (included rack-mount)
History

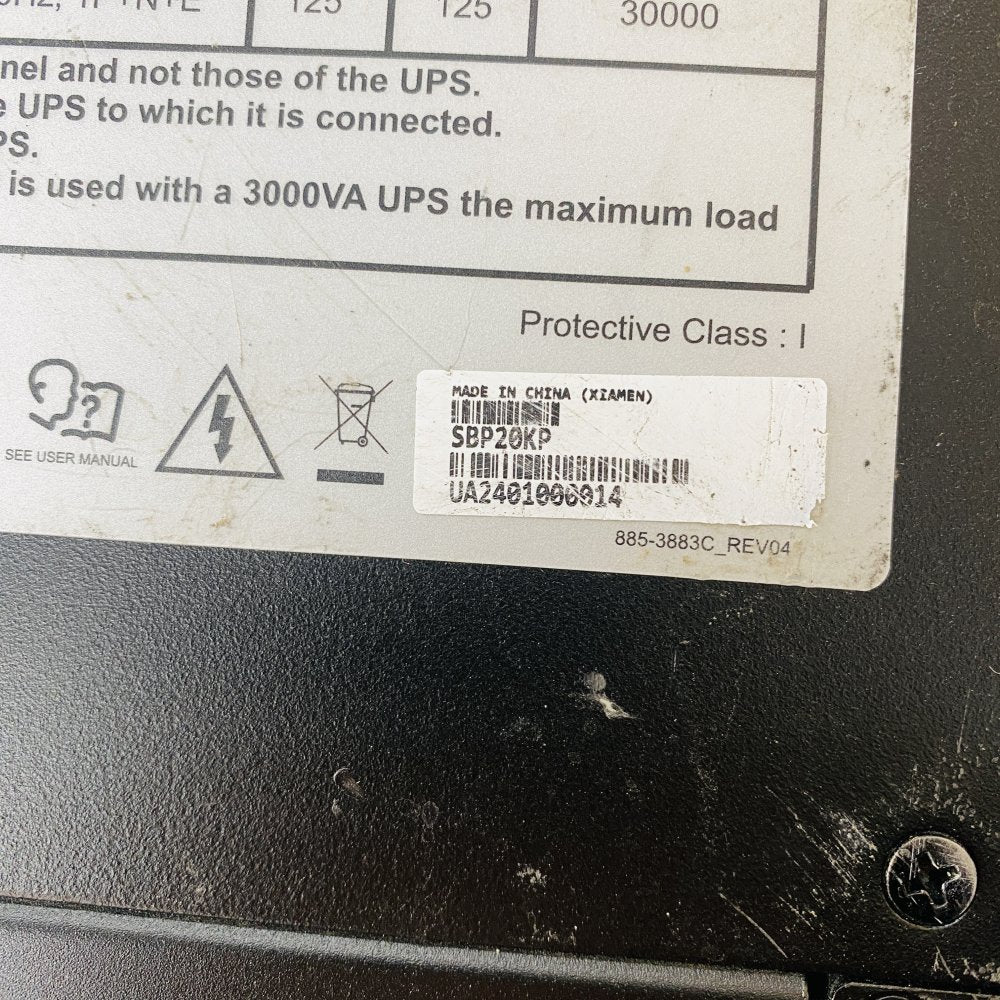

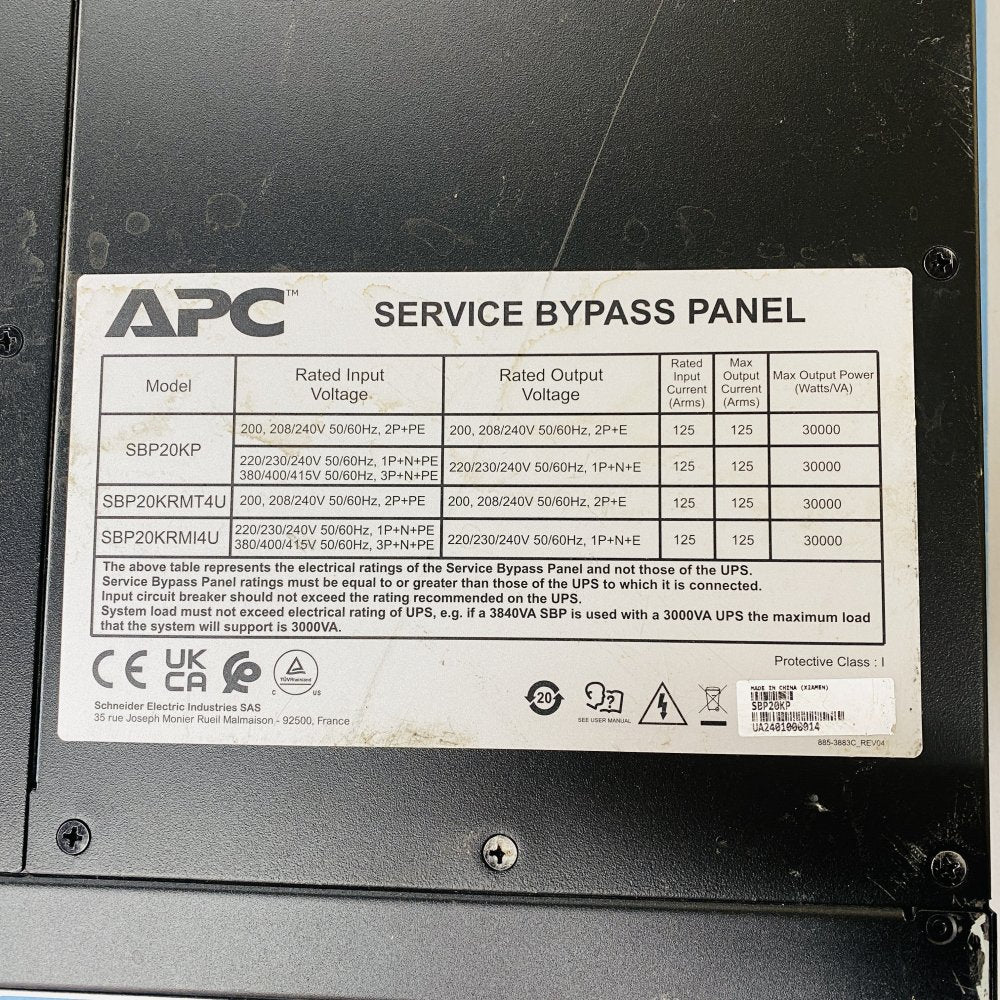

The unit was removed during an IT decommissioning project. It has been handled and stored in a working environment and is being offered as a functional service bypass panel suitable for reuse. Please refer to the pictures for cosmetic condition and the label for detailed electrical ratings.
