Broadcast Audio De-embedder HD/SD-SDI AES/EBU Axon DBD08 Synapse Module

Broadcast Audio De-embedder HD/SD-SDI AES/EBU Axon DBD08 Synapse Module

£49.95
£49.95
Sale Sold out
Taxes included. Shipping calculated at checkout.

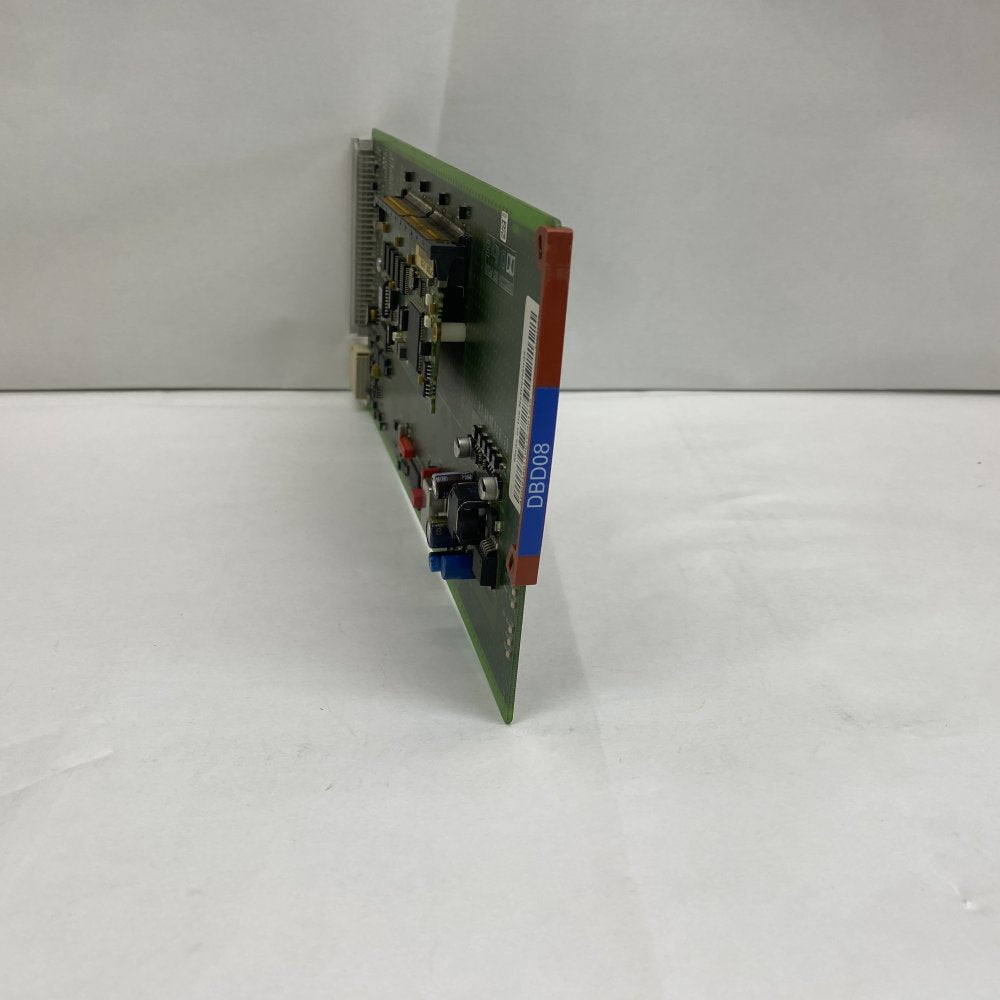

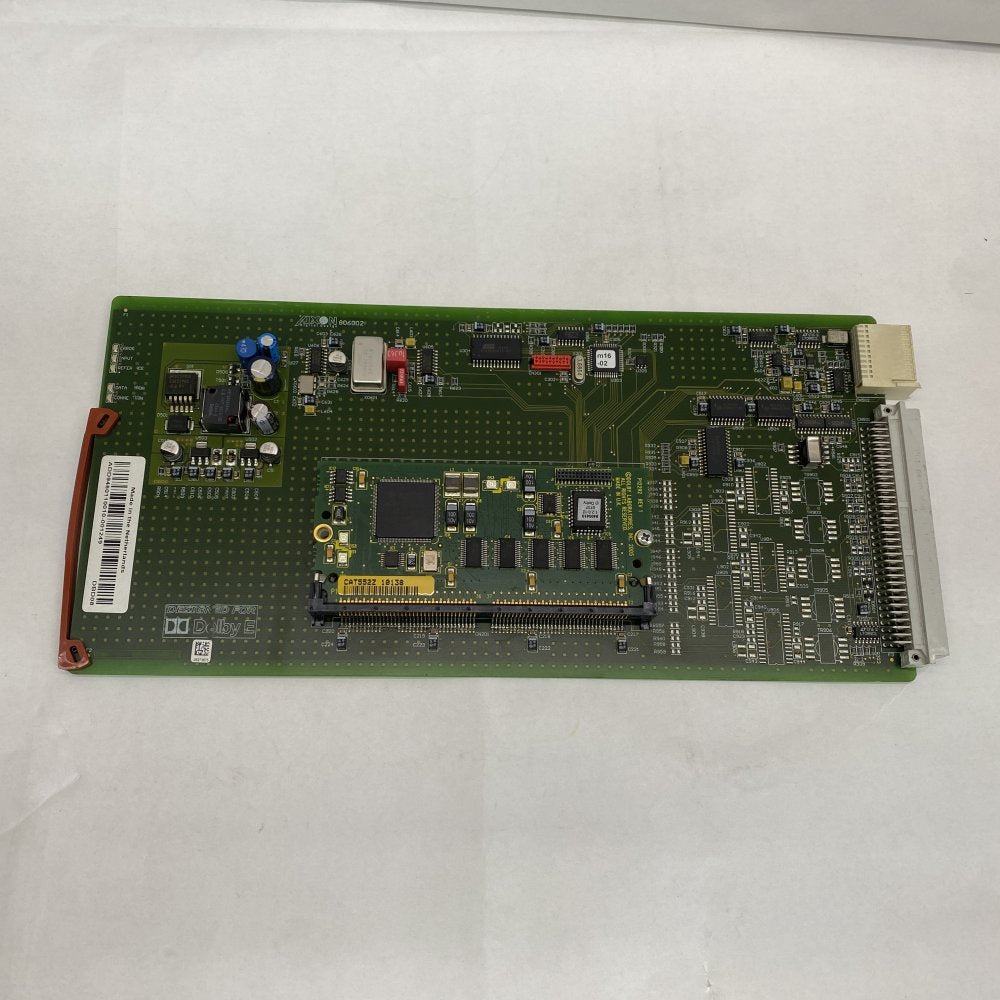

Axon DBD08
The Axon DBD08 is a high-performance HD/SD-SDI dual channel audio de-embedder designed for use in professional broadcast environments. It extracts up to 16 audio channels from two independent SDI video signals and outputs them as unbalanced AES/EBU audio. It is part of Axon's Synapse modular infrastructure platform and is ideal for applications requiring audio monitoring, redistribution, or further processing.

Features

  • Dual-channel de-embedding: Handles two separate HD/SD-SDI inputs
  • Up to 16 channels of AES/EBU audio output (8 per video input)
  • Full support for SMPTE-embedded audio standards
  • Low-latency and high-reliability for critical broadcast workflows
  • Compatible with Axon’s Synapse frame and remote control via Cortex software
  • Compact design with easy integration into modular Synapse systems

Specifications

  • Connections: SDI and AES/EBU interfaces.
  • Compliance: HD and SD video standards.
  • Designed for: Frame synchronisers, embedders, de-embedders.
  • Compatibility: Axon Synapse broadcast modules.
  • Dimensions: Optimised for dense rack installation.

What you get

  • 1 x Axon DBD08 Audio De-embedder Module

History

The device came as part of the IT decommissioning project and was removed from a working environment.

Details

VAT of 20% is included in the price (No VAT for international customers).
