Broadcast 3G-SDI to HDMI Converter Gefen 1080p 60Hz USB Upgradeable

Broadcast 3G-SDI to HDMI Converter Gefen 1080p 60Hz USB Upgradeable

Regular price £36.95
Regular price Sale price £36.95
Sale Sold out
Taxes included. Shipping calculated at checkout.

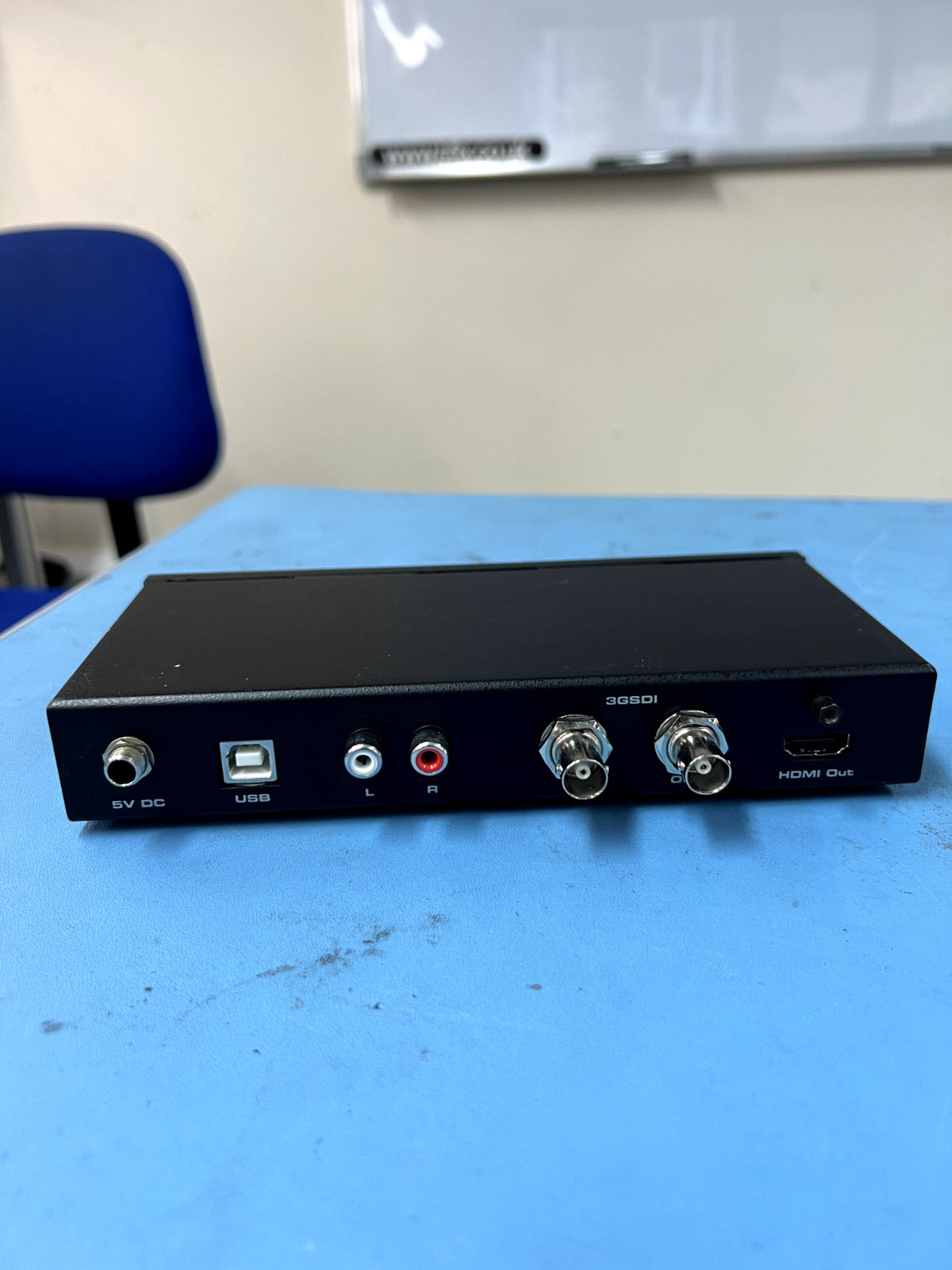

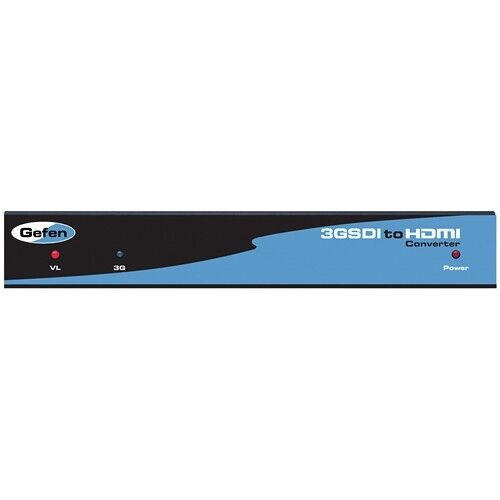

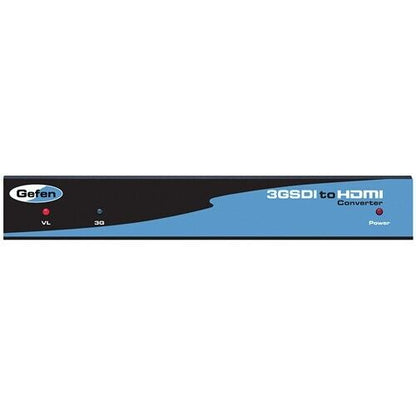

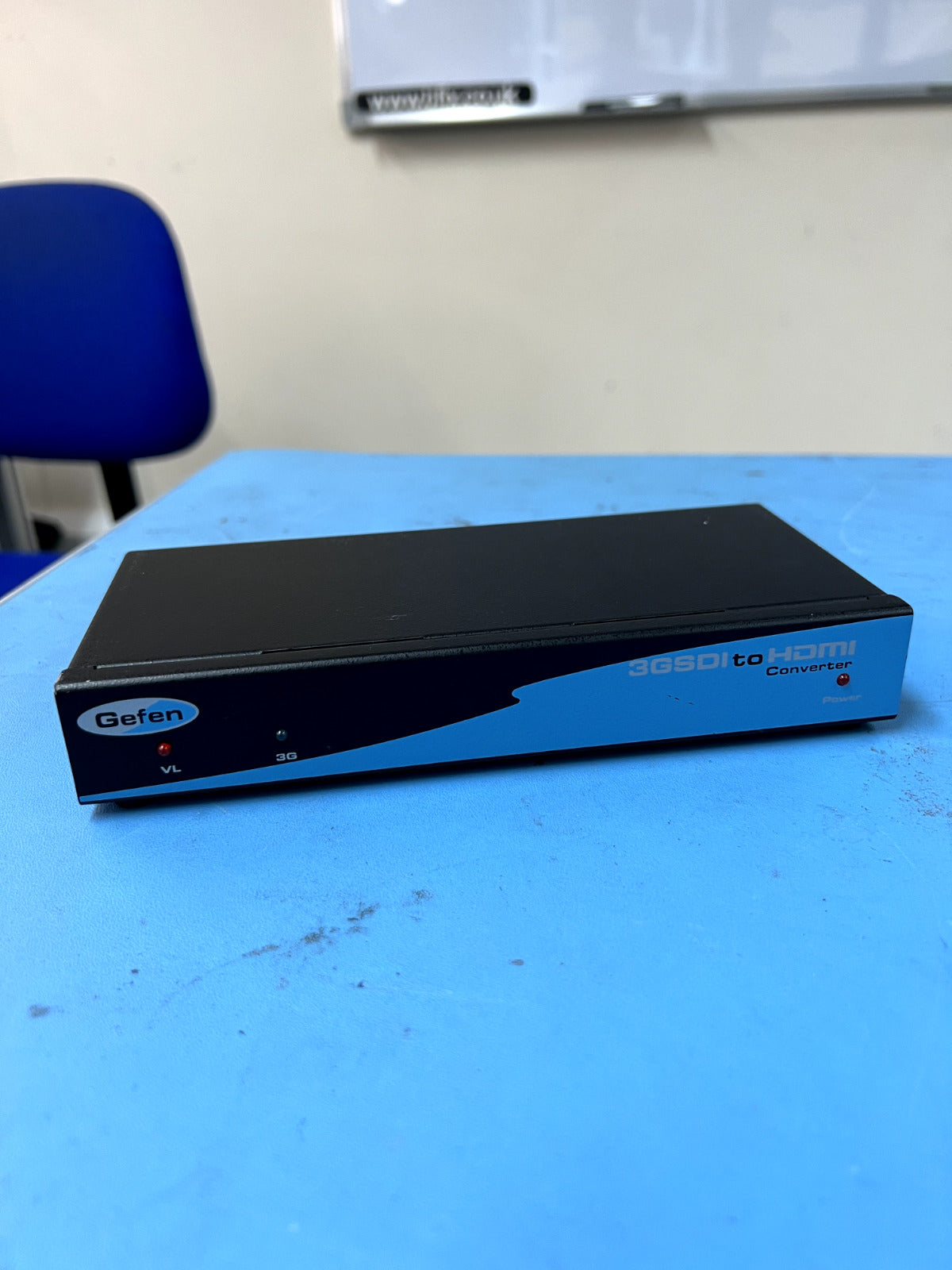

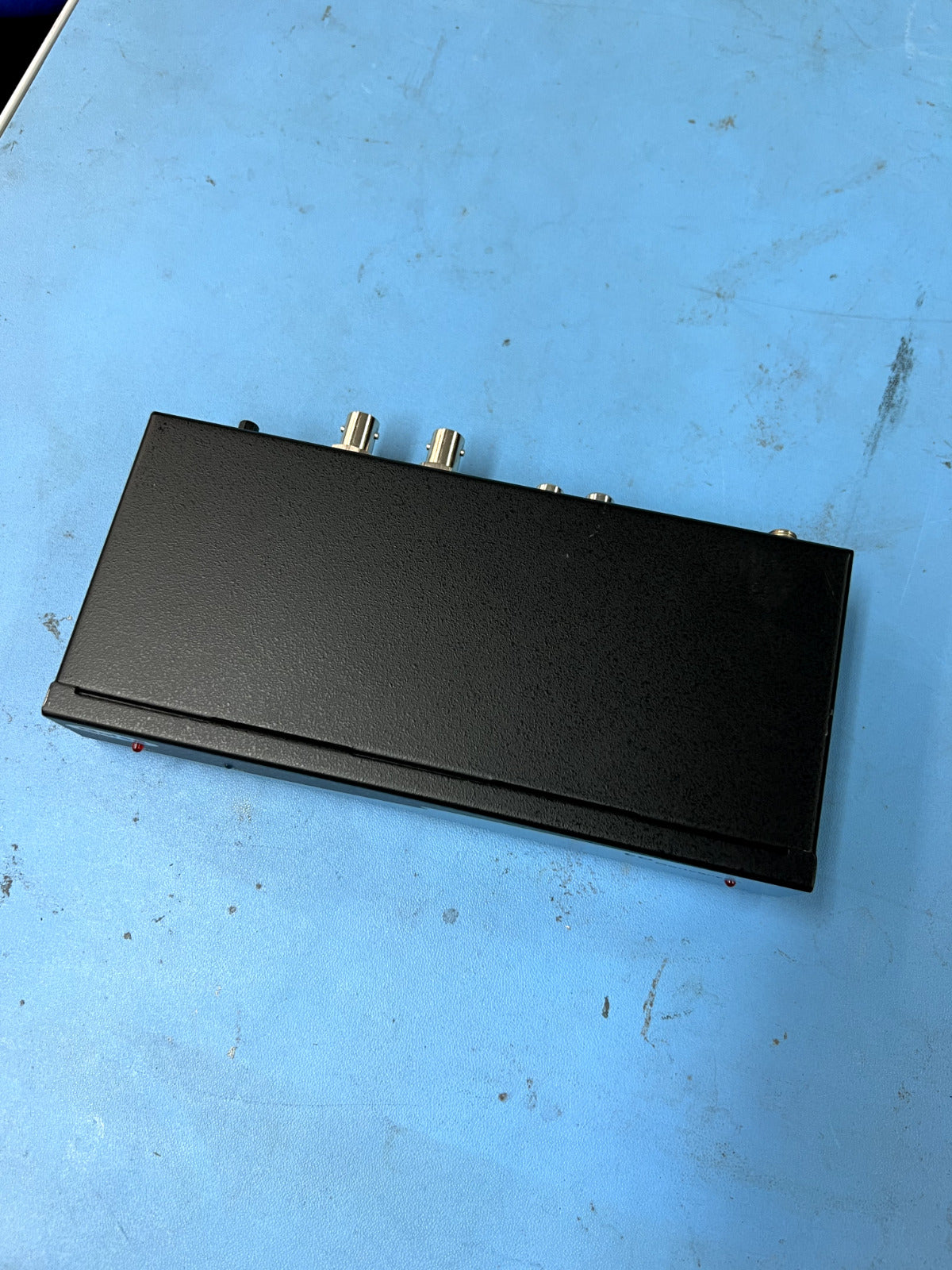

This listing is for a professionally tested Broadcast 3G-SDI to HDMI Converter by Gefen, model EXT-3GSDI-2-HDMI1.3. The converter connects a 3G-SDI or single-link HD-SDI signal to an HDMI 1.3 output, supporting resolutions up to 1080p @ 60Hz. Although the item shows minor cosmetic wear, it remains fully functional. Please note, images are for illustration purposes and the actual product may have slight cosmetic imperfections.

Features

  • 3G-SDI to HDMI 1.3 signal conversion
  • Supports output resolutions up to 1080p @ 60Hz
  • Loop-through 3G-SDI output
  • L/R RCA analogue audio output jacks for monitoring
  • EDID capture for automated HDMI output configuration
  • Firmware upgradable via USB
  • Reclocked and buffered SDI output
  • Automatic Level-B to Level-A conversion for 1080p @ 50/60Hz

Specifications

  • Maximum image output resolution: 1920 x 1080 or 2K (2048 x 1080)
  • 8 DIP switches for parameter settings
  • Automatic detection for all SDI, HD-SDI, and 3G-SDI input formats
  • Compliant with various SDI standards including SMPTE 292M (HD-SDI), 259M (SDI)
  • HDMI colour sampling: 4:2:2 and 4:4:4
  • Pre-programmed HDMI colour bar test pattern at 720p @ 60Hz
  • Support for YCbCr, RGB, 4:2:2, 4:4:4, and 8-10 bit depth
  • Auto-detection of optimal HDMI format via EDID
  • Support for up to 4 stereo 48KHz audio streams
  • SDI bit depths of 8 and 10 bits supported on input

What you get

  • 1 x Gefen EXT-3GSDI-2-HDMI1.3 3G-SDI to HDMI1.3 Converter
  • No power supply

History

The device came as part of the IT decommissioning project and was removed from a working environment.
