Miranda CR3232-SD 32x32 SD DVB-ASI Rackmount Video Router - Used
£53.99
Regular price
£53.99
Sale price
£53.99
Regular price
£80.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Out of stock

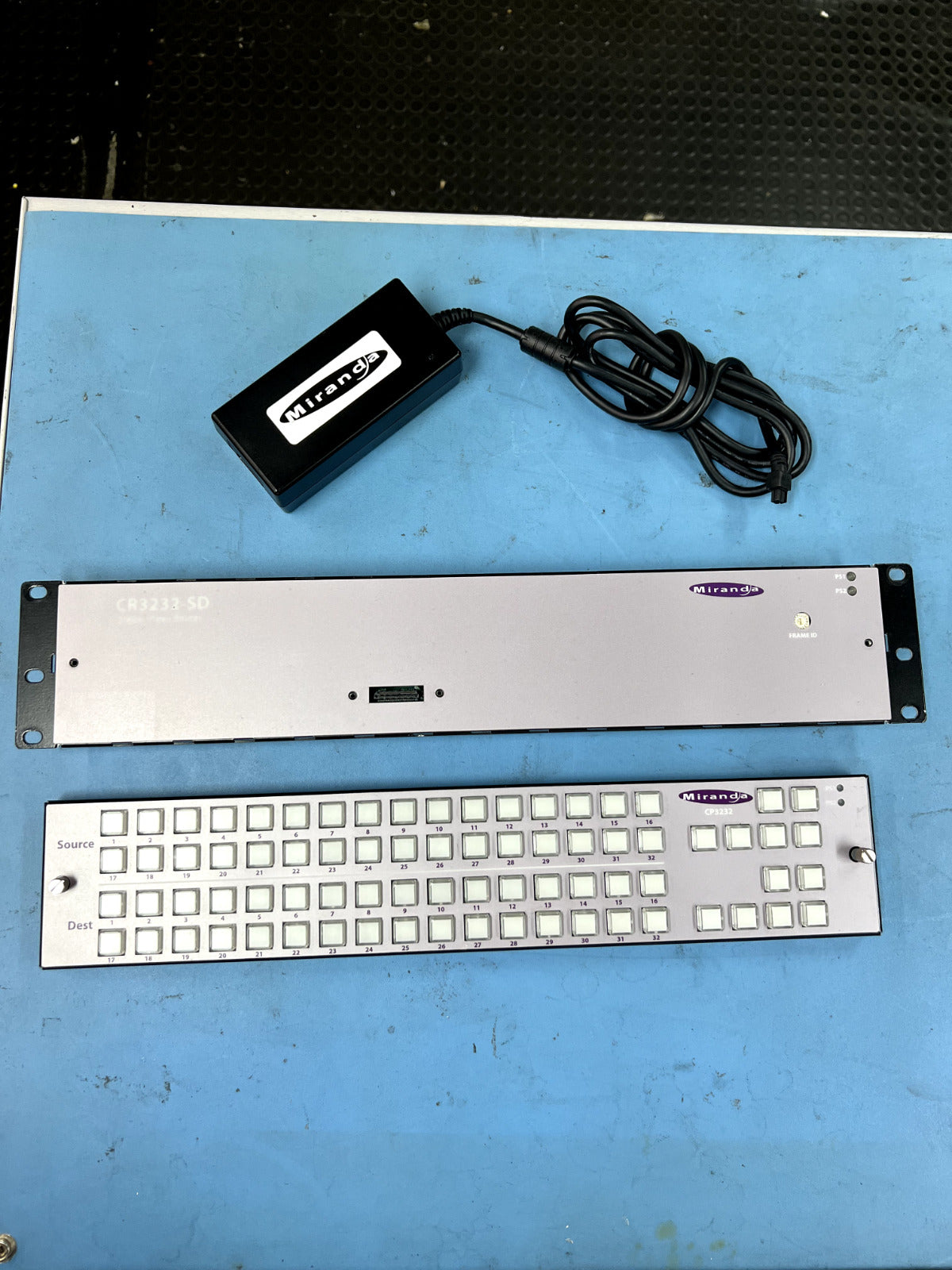

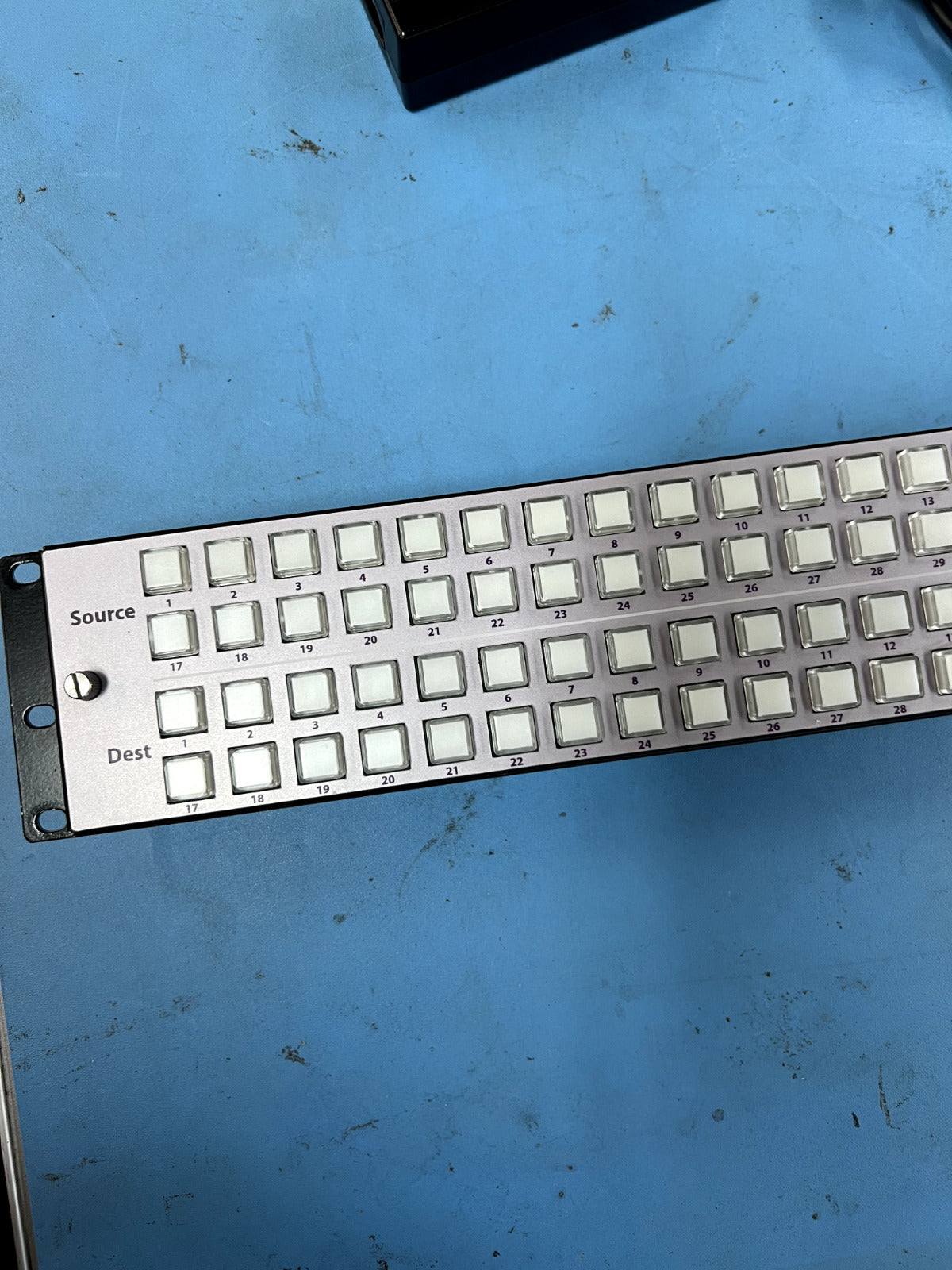

The Miranda CR3232-SD is a rack-mountable 32x32 SD video router designed for DVB-ASI signal environments. It provides front-panel switching controls and rear BNC I/O for standard-definition DVB-ASI streams, together with Ethernet and serial control ports. The unit is part of Miranda's NVISION Compact Router family and is suitable for integration into broadcast and playout systems.
Key Features
- 32 inputs and 32 outputs for SD video routing
- Supports DVB-ASI (SD) media format

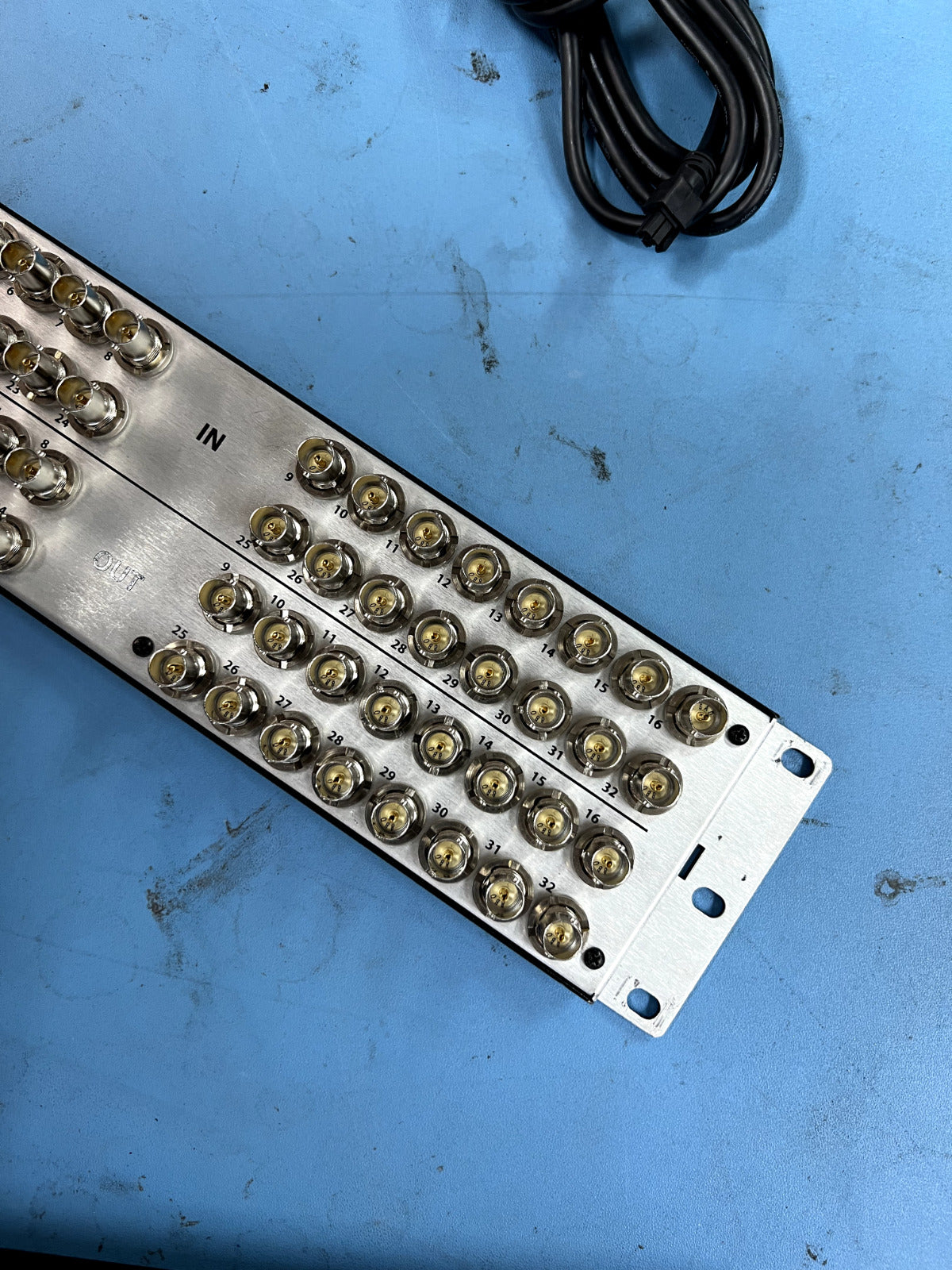

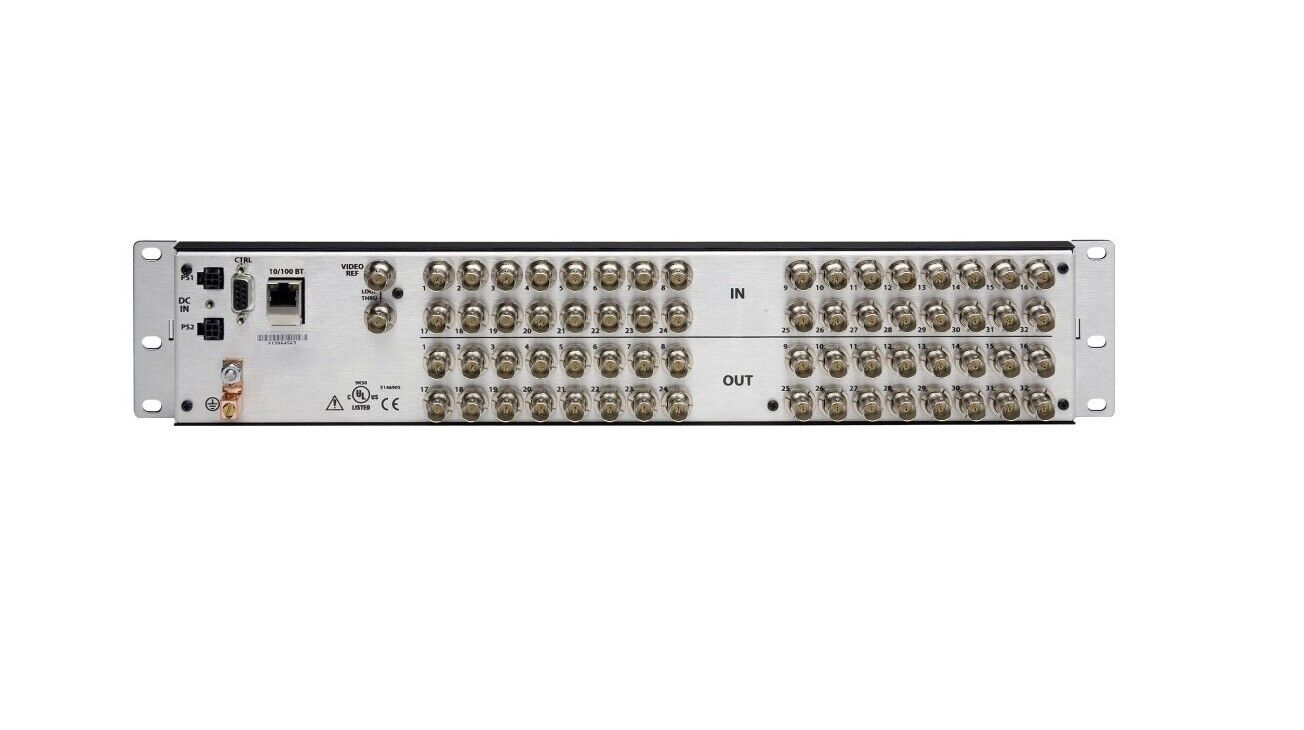

- Rear BNC connectors for IN/OUT and video reference/loop-through
- Ethernet (RJ45) and serial (DB9) control ports
- Provision for dual power inputs (PS1 / PS2) to support redundant power arrangements
- Routing functions include salvos and partitioning (control features)
- Compact rack-mount panel (NVISION Compact Router series)
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Miranda |
| Model | CR3232-SD |
| Part Number / MPN | CR3232-SD |
| Product Line | NVISION Compact Router |
| Inputs | 32 (BNC) |
| Outputs | 32 (BNC) |
| Signal / Media Format | SD Digital Video, DVB-ASI |
| Control Interfaces | Ethernet (RJ45), Serial (DB9), front-panel buttons |
| Reference / Sync | Video ref BNC and loop-through (rear) |
| Power | 12 V DC input; connectors for PS1 and PS2 (supports redundant power arrangements) |
| Form factor | Rack-mountable compact panel (NVISION series) |
| Manufacturer warranty | None |
| Functions | Routing, salvos, partitioning |
What you get

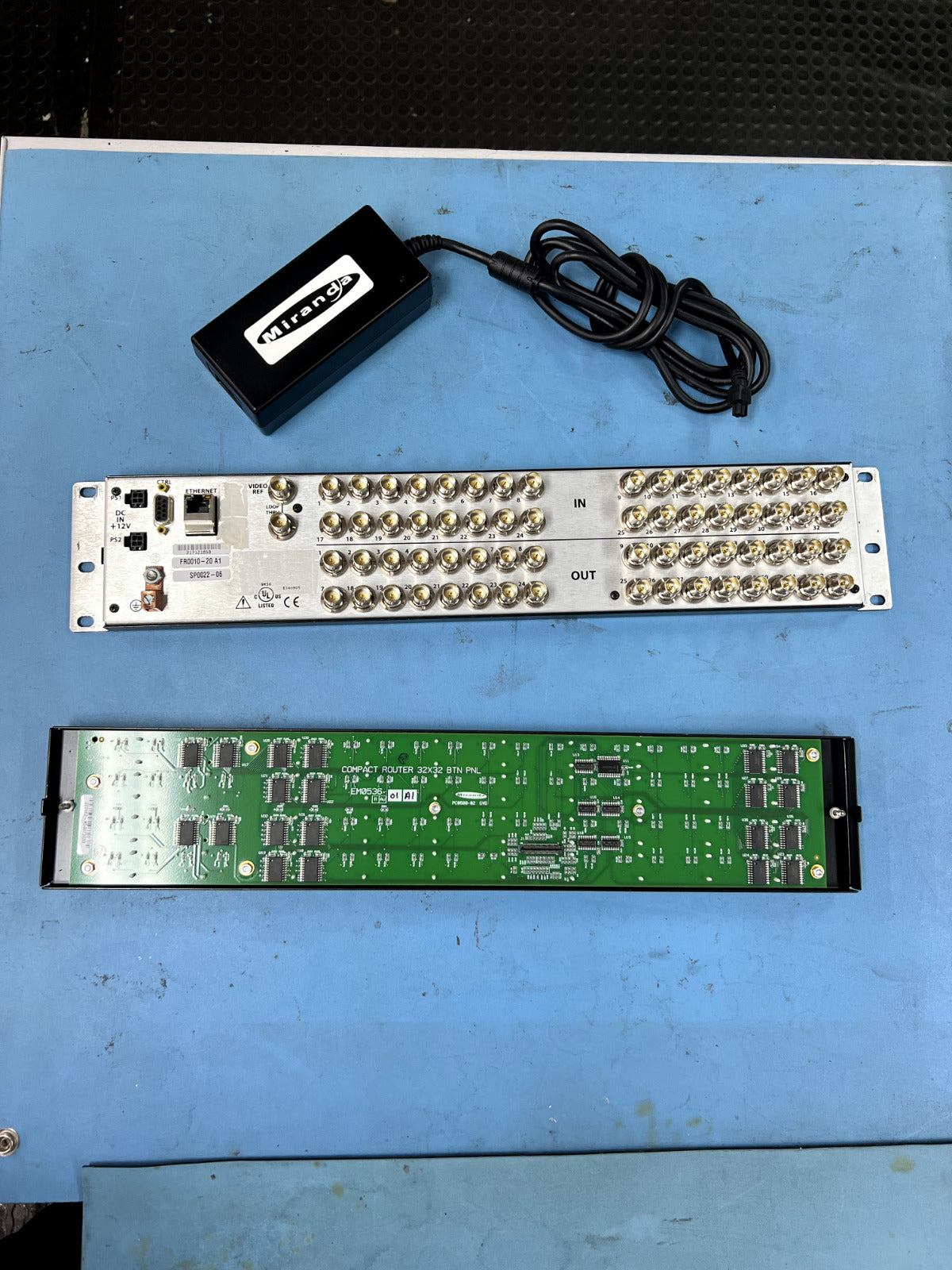

- 1 x Miranda CR3232-SD 32x32 SD DVB-ASI rack-mount video router
- 1 x Power Adapter
History
The unit was removed during an IT decommissioning exercise. It is offered as a used broadcast router; no additional items are included unless stated above.
VAT Charges for EU Customers
For buyers in the EU: applicable import duties and VAT are applied according to the delivery address and local regulations. If the Global Shipping Programme is used, fees and VAT are handled by the programme at checkout.
Returns
Please review the item description and photos carefully before purchasing. If you have any technical questions about the unit, ask before ordering.
