Lawo DALLIS 947/42 SUM-MATRIX Audio I/O Card
£97.99
Regular price
£97.99
Sale price
£97.99
Regular price
£159.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 1 left

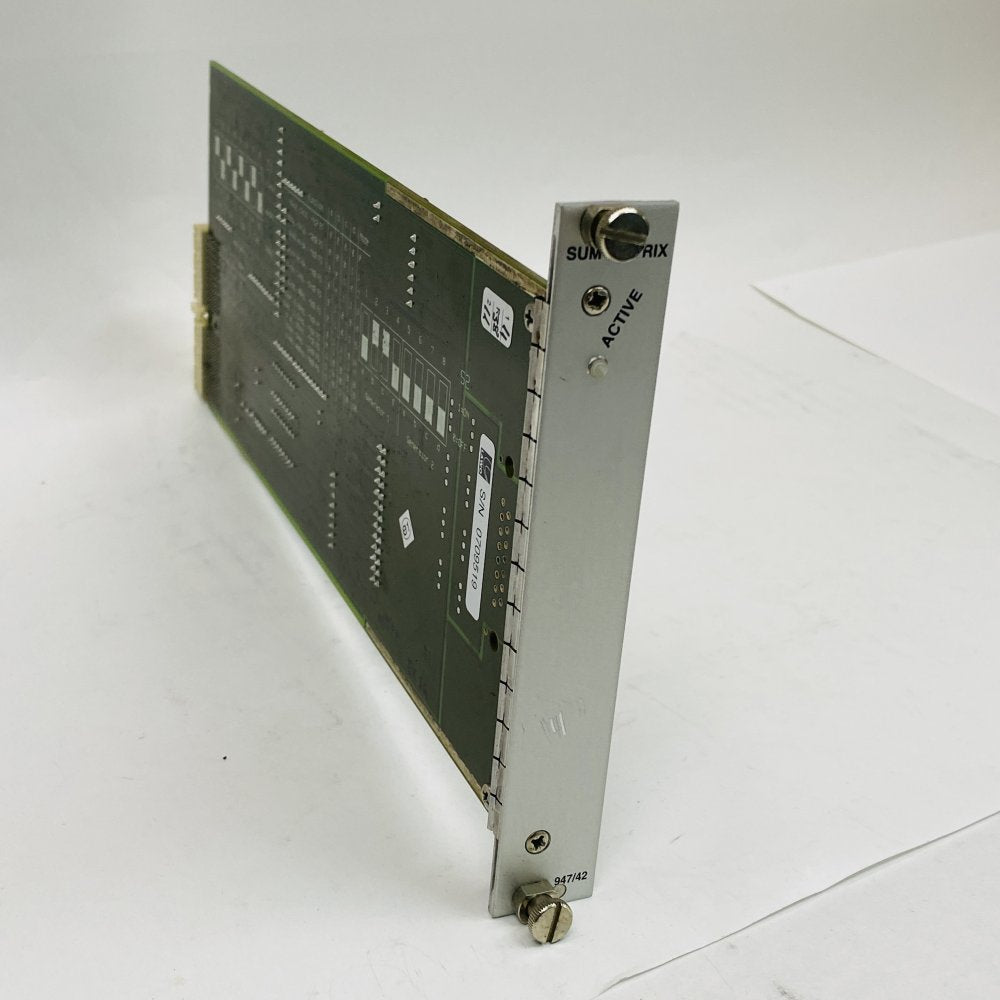

The Lawo DALLIS 947/42 SUM-MATRIX is a modular summing/matrix I/O card designed for installation in Lawo DALLIS mixing and routing frames. It provides flexible summing and matrix processing for professional broadcast and studio audio systems and is implemented with dedicated digital signal processing and FPGA resources for low‑latency, reliable operation.
Features
- Summing/matrix processing card for Lawo DALLIS systems.

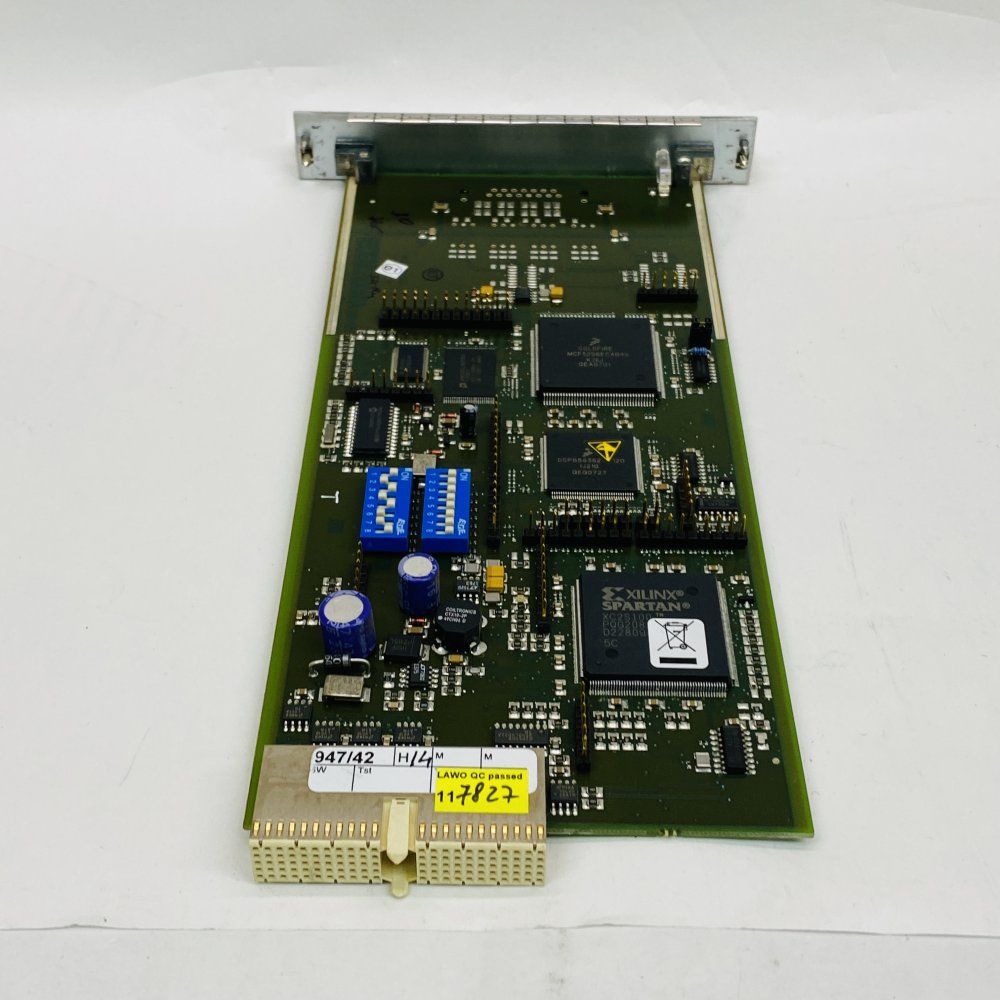

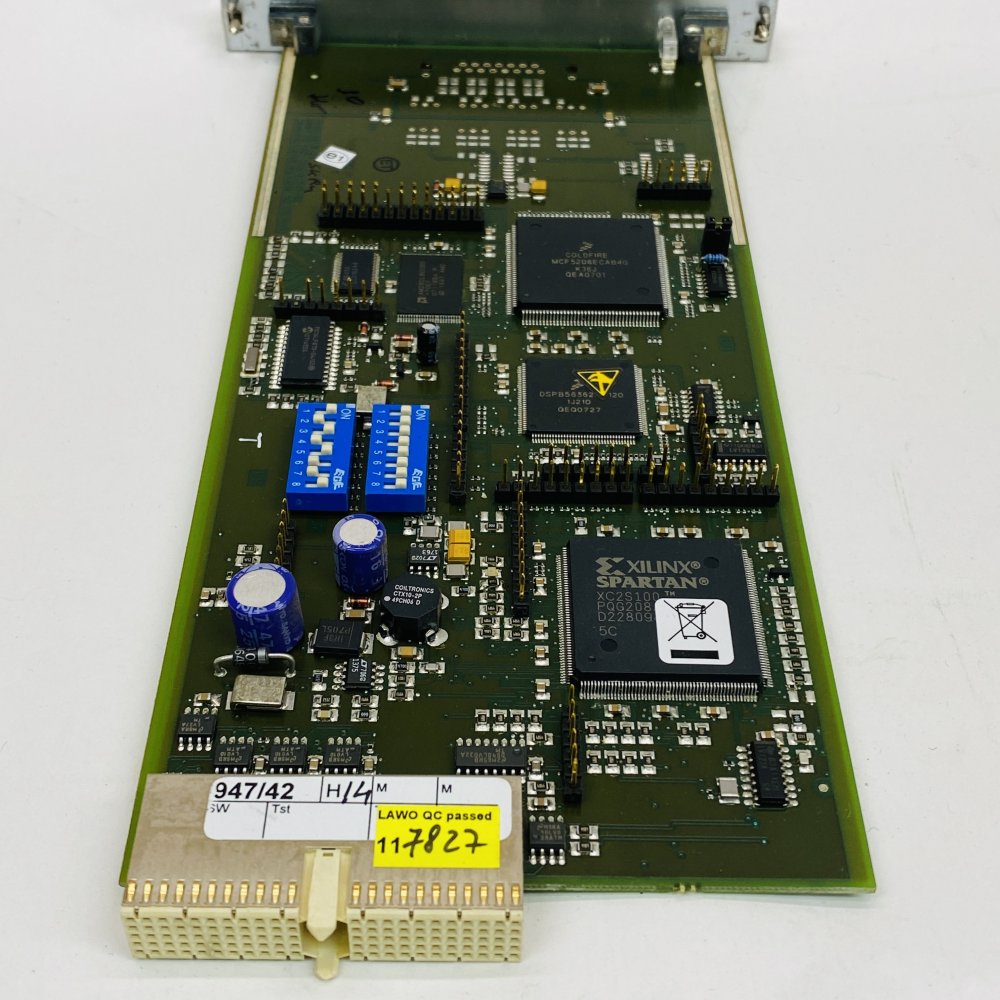

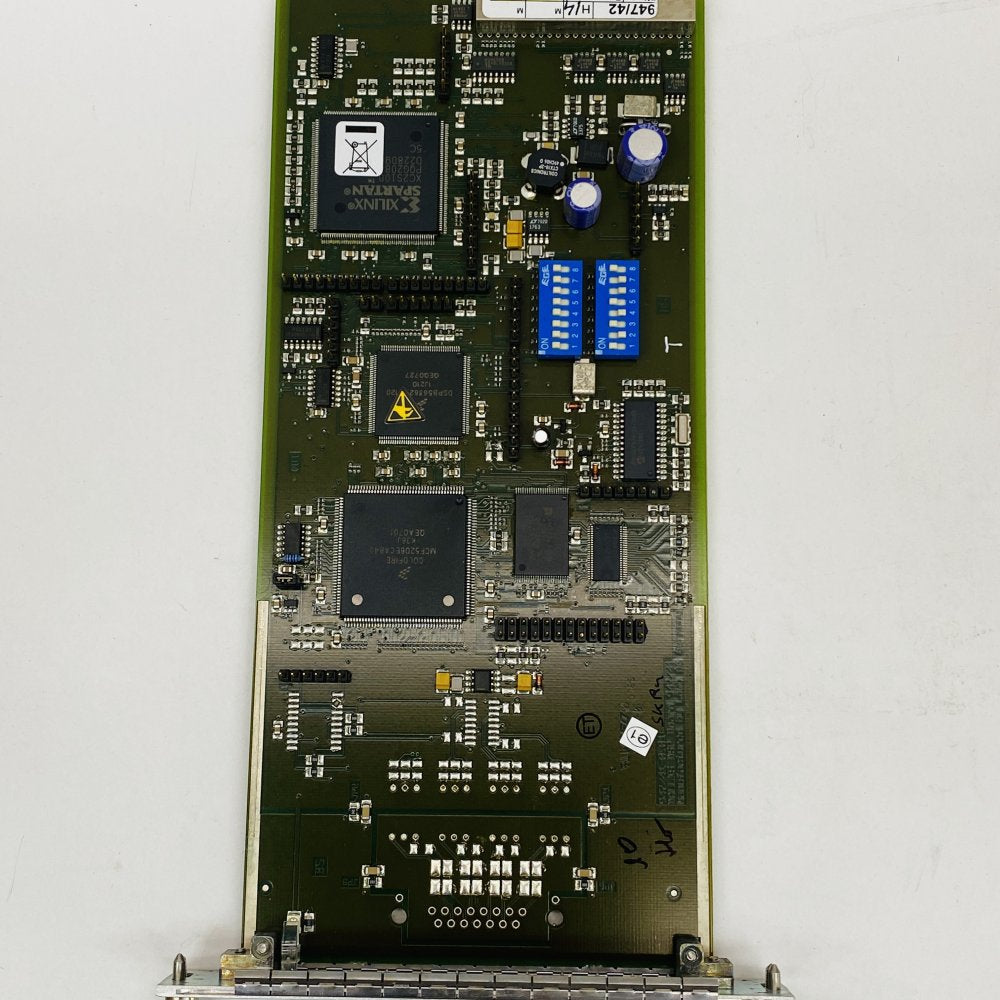

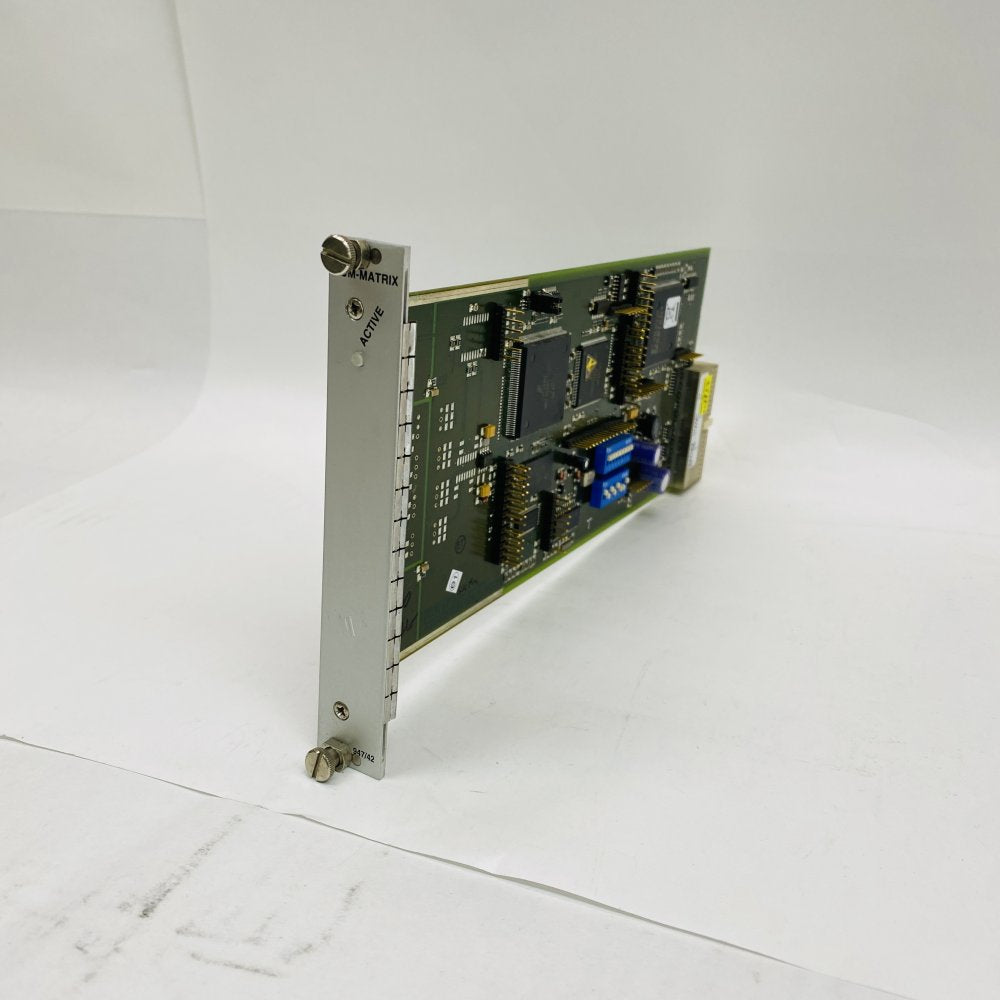

- FPGA‑based architecture (Xilinx Spartan visible on the board) for deterministic, low‑latency audio processing.
- On‑board digital signal processing and configurable logic for flexible routing and processing tasks.

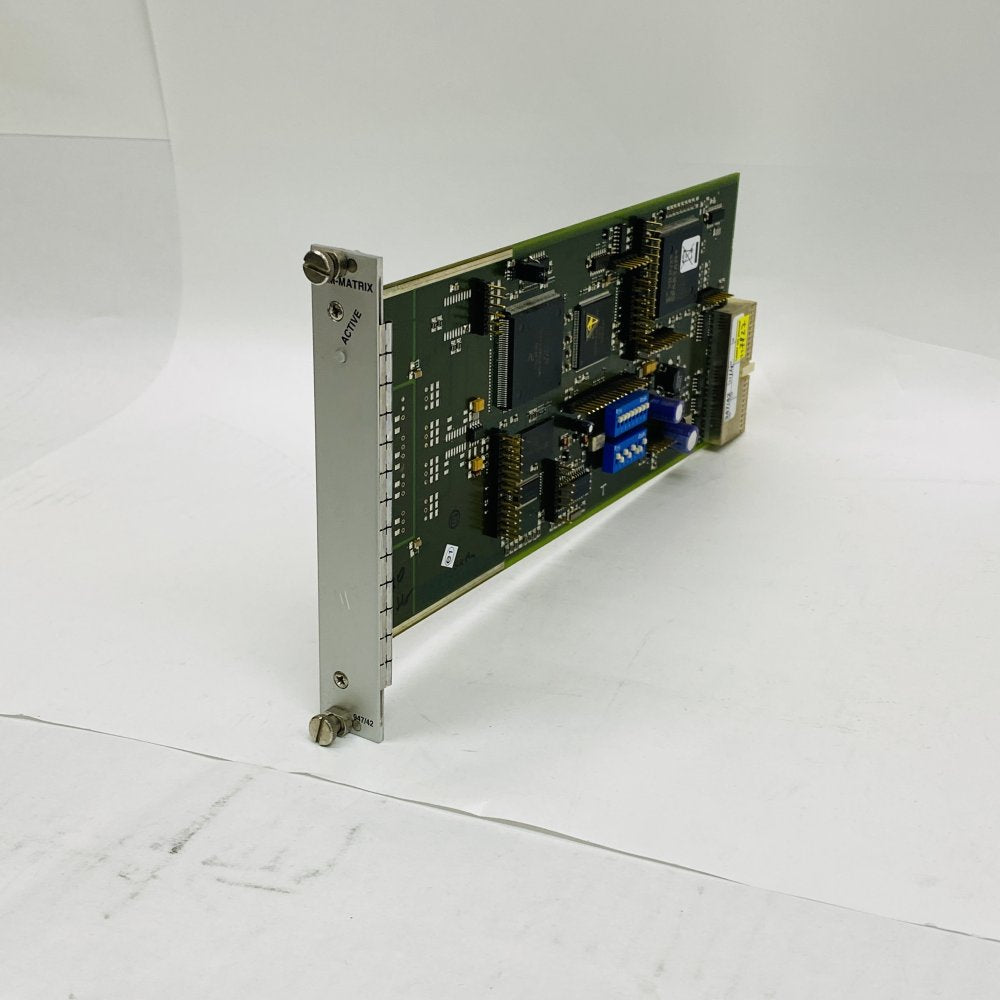

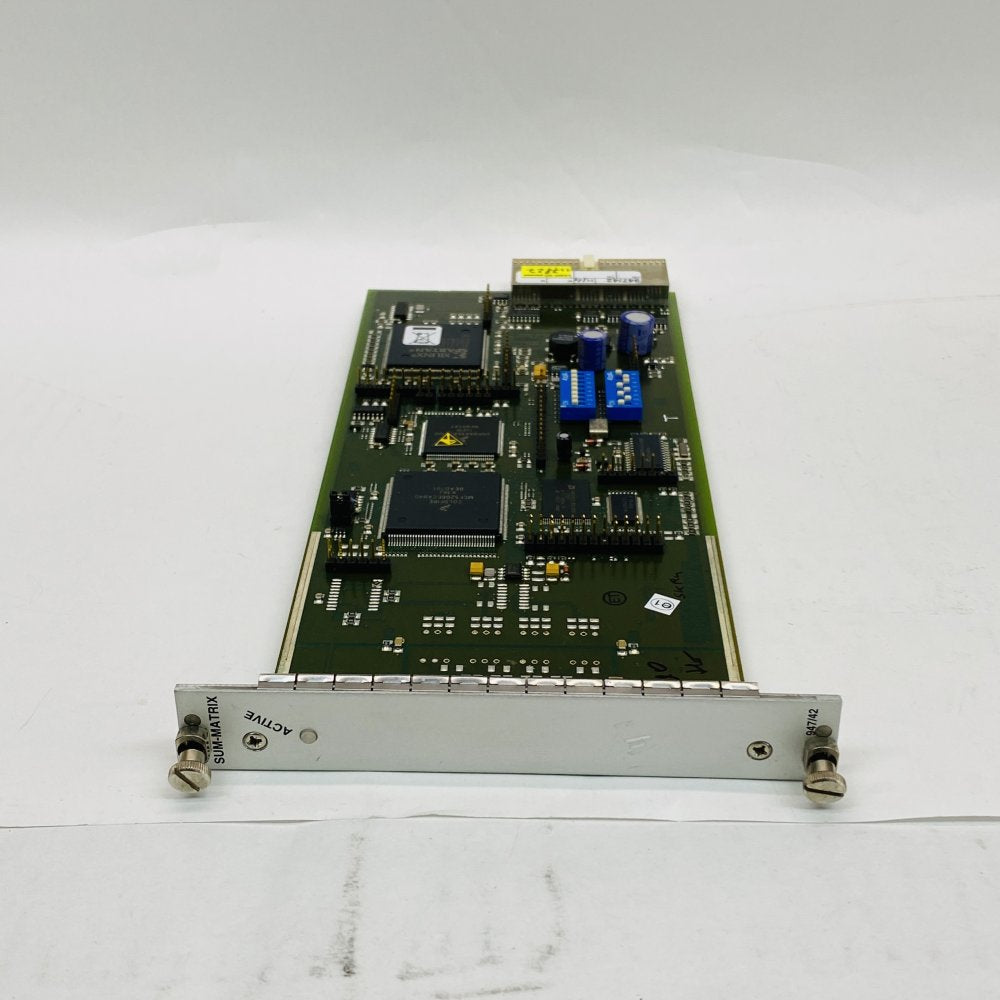

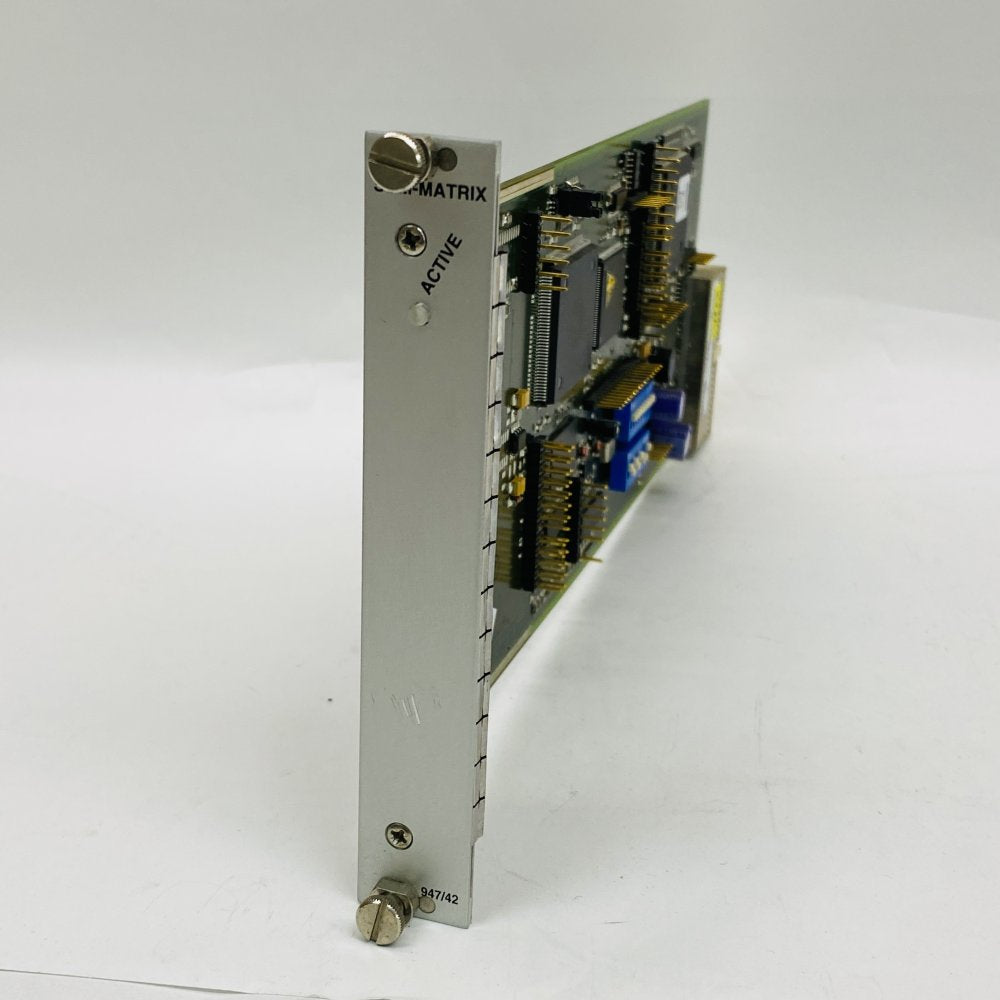

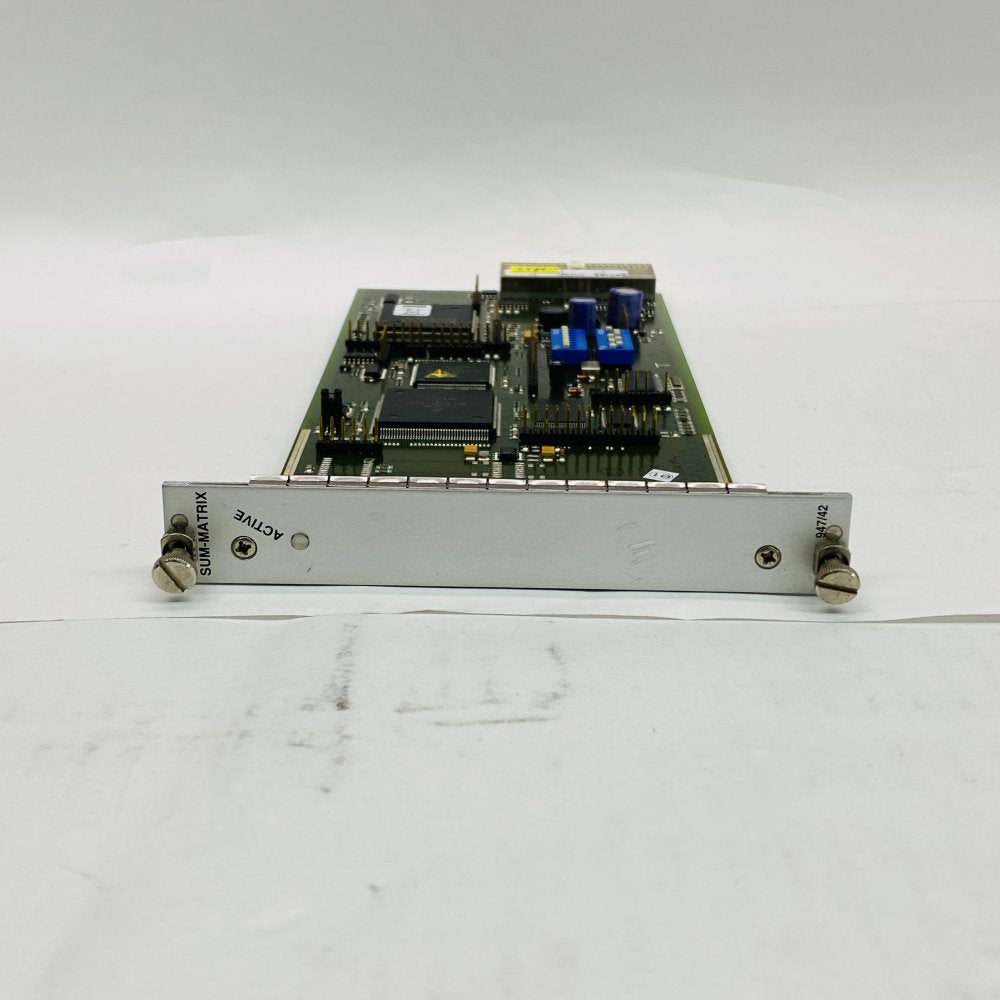

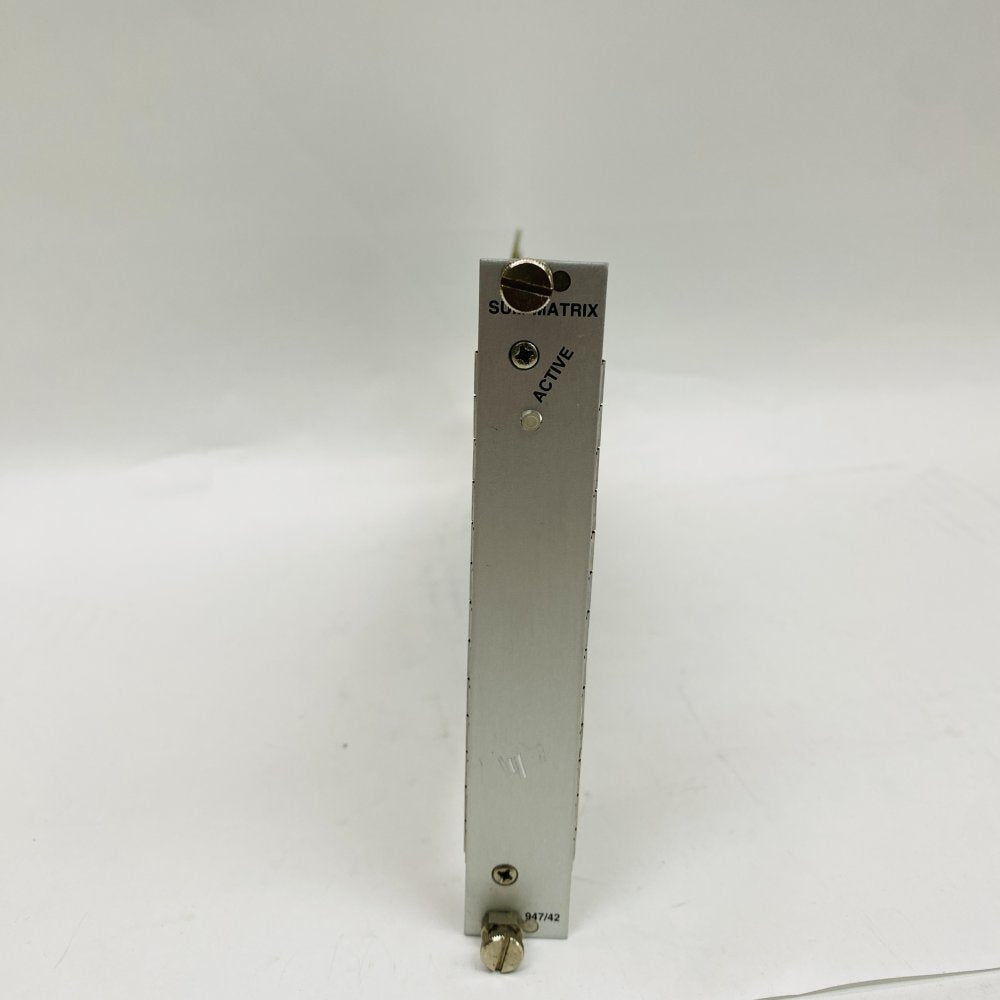

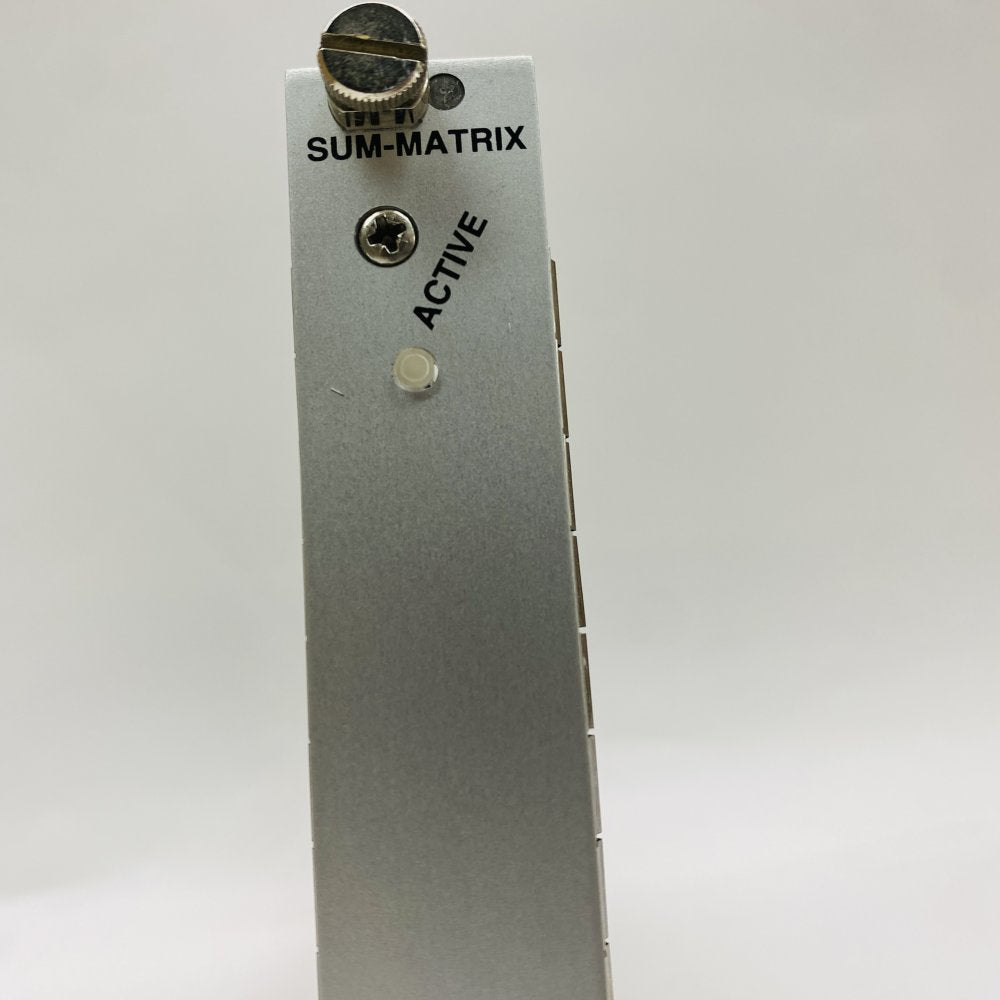

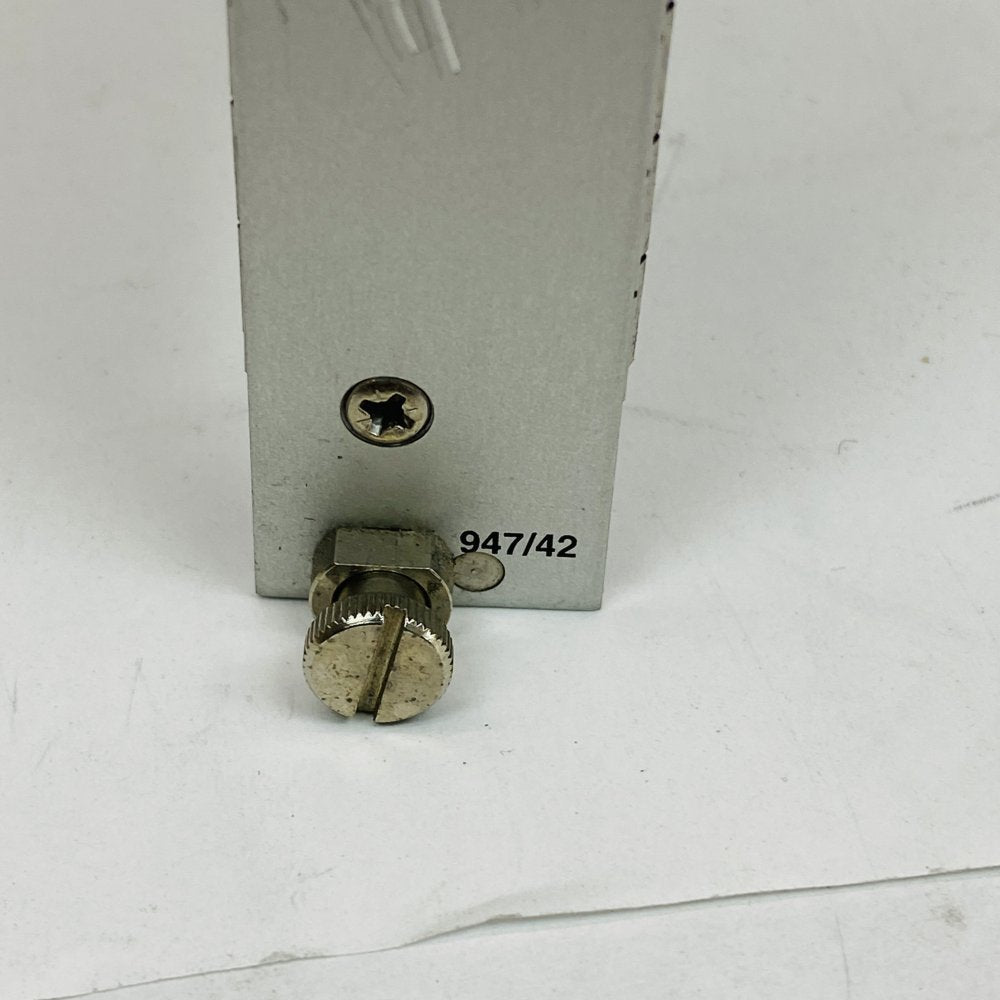

- Front‑panel Active LED for status indication and mechanical retention screws for secure mounting.
- DIP switches and jumper headers for local configuration and service settings.
- Proprietary backplane connector for direct integration into Lawo DALLIS chassis.
- Broadcast‑grade design intended for continuous operation in production environments.
Specifications
- Model: DALLIS 947/42 SUM‑MATRIX
- Brand: Lawo
- MPN: 947/42
- Function: Summing / matrix audio I/O processing card for Lawo DALLIS frames
- Form factor: Modular plug‑in card (Eurocard style) for Lawo backplane
- Processing: Xilinx Spartan FPGA (as marked on the PCB) and on‑board DSP components
- Indicators & controls: Front‑panel Active LED; DIP switches and service jumpers
- Connector: Proprietary multi‑pin backplane connector (fits Lawo DALLIS chassis)
- Country/Region of Manufacture: To be specified by the manufacturer
What you get
- 1 x Lawo DALLIS 947/42 SUM‑MATRIX audio I/O module (card only)
History
This unit was removed from an operational environment as part of an IT decommissioning exercise. It has been handled by technicians and is supplied as the single module pictured.
Details
Please review the photographs carefully: they form part of the description. The sale is for the item shown only; no additional accessories, cables or documents are included unless explicitly listed above. If you require further technical details such as chassis compatibility or wiring pinout, consult Lawo documentation or contact a Lawo‑authorised service provider.
