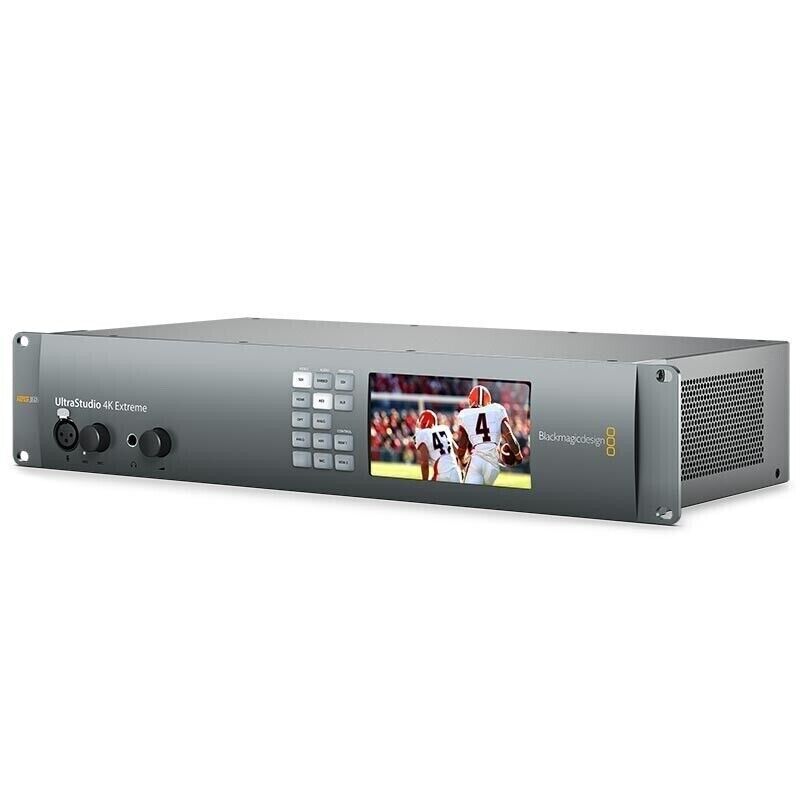

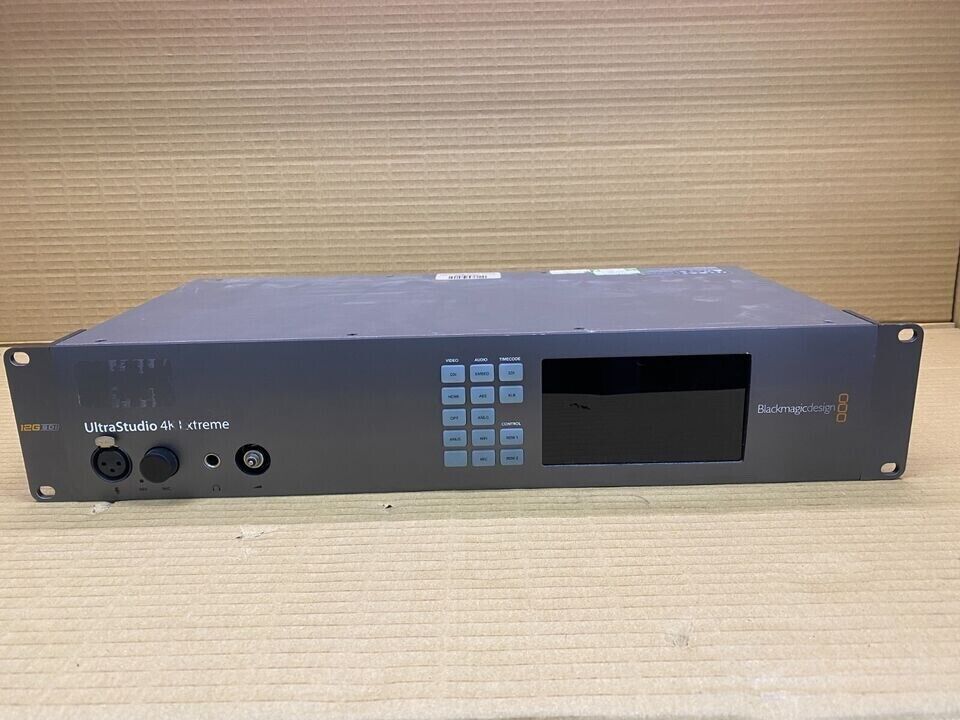

Broadcast Capture Device Blackmagic UltraStudio 4K Thunderbolt SDI HDMI

Built with blazingly fast Thunderbolt or Thunderbolt 2 technology, the UltraStudio 4K Thunderbolt SDI HDMI is a state-of-the-art broadcast capture device. This high-performance 'break out box' style capture and playback device supports the highest quality Ultra HD 60p editing as well as DCI 4K resolutions. It is ideal for professionals who work with the highest quality video resolutions up to Ultra HD 4K, offering seamless integration with all major video software like DaVinci Resolve, Final Cut Pro, Avid Media Composer, and Adobe Creative Suite. Whether you're doing on-set colour correction, editing, visual effects, or video streaming, the UltraStudio is equipped to handle your needs. Its lightweight and portable design allows easy transition from one computer to another.

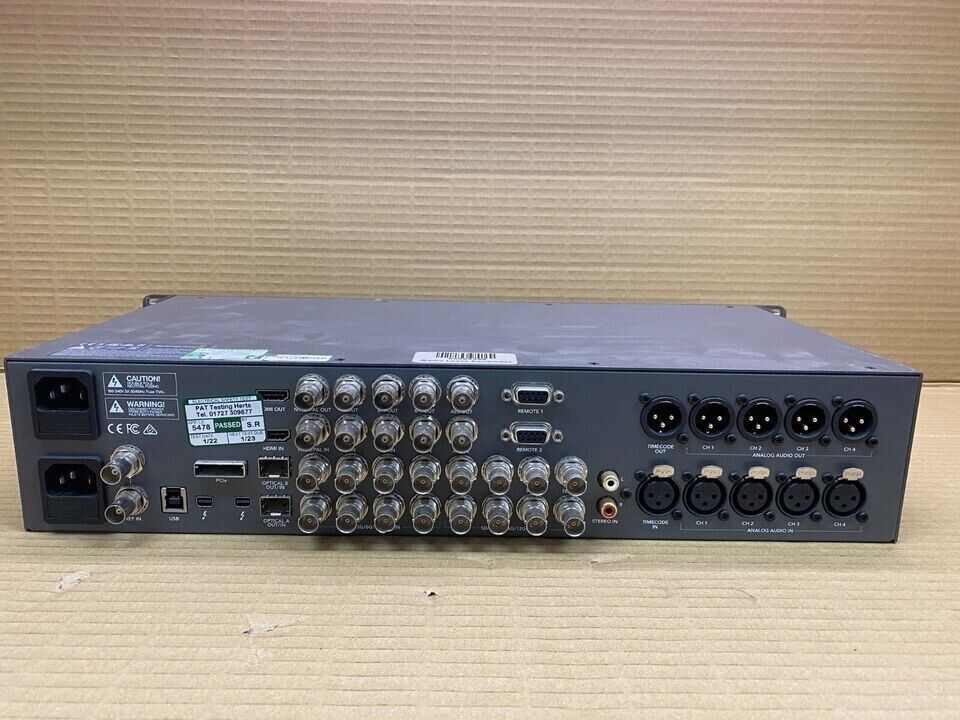

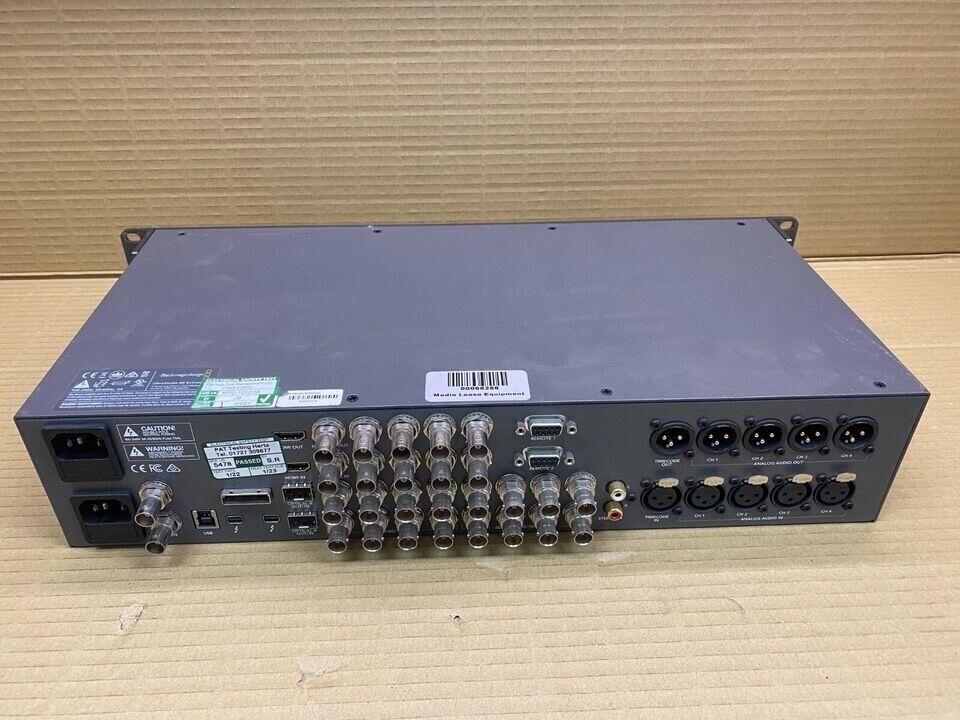

Connections

• SDI Video Inputs: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
• SDI Video Outputs: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• Optical SDI: Supports 2 optional SMPTE modules.
• Analog Video Inputs: 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.
• Analog Video Outputs: 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.
• Analog Audio Inputs: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
• Analog Audio Outputs: 4 Channels of professional balanced analog audio via XLR connectors.
• Optical Fiber Inputs/Outputs (Optional): 2 x 12Gb/s Optical Fiber.
• AES/EBU Audio Inputs: 2 Channels unbalanced with sample rate converter on BNC connector.
• AES/EBU Audio Outputs: 2 Channels unbalanced on BNC connector.
• SDI Audio Inputs: 16 Channels embedded in SD/HD/2K/4K.
• SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/4K.
• HDMI Video Inputs: HDMI 2.0 type A connector with support for 2160p60.

The device came as part of the IT decommissioning project and was removed from the working environment.

VAT or 20% is included in the price (No VAT for international customers).
