TSL MDU12-PM 12x IEC PDU Power Manager SNMP Ethernet 1U Rack (Grade B)
£47.95
Regular price
£47.95
Sale price
£47.95
Regular price
£71.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Out of stock

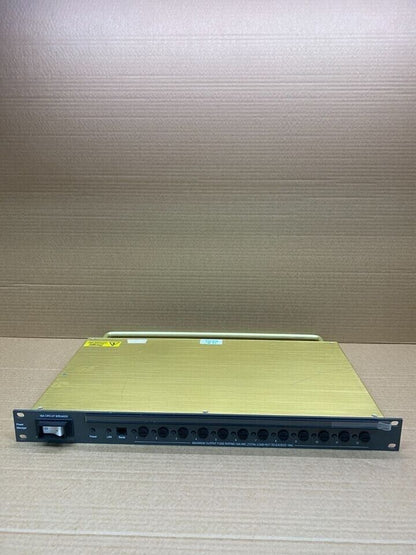

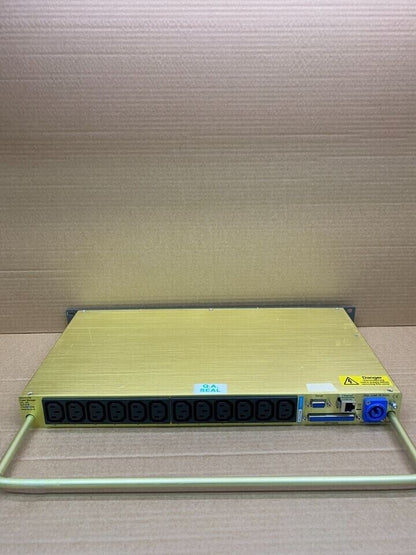

The TSL MDU12-PM Broadcast Ethernet Power Manager is a 1U rack-mount mains distribution unit designed for remote and local control of 12 IEC mains outputs. Built for broadcast, studio and data centre environments, the unit provides individual outlet control, SNMP monitoring, GPI inputs and flexible start-up sequencing. Remote management is achieved via Ethernet (web interface and SNMP) and local configuration via RS232.
Features

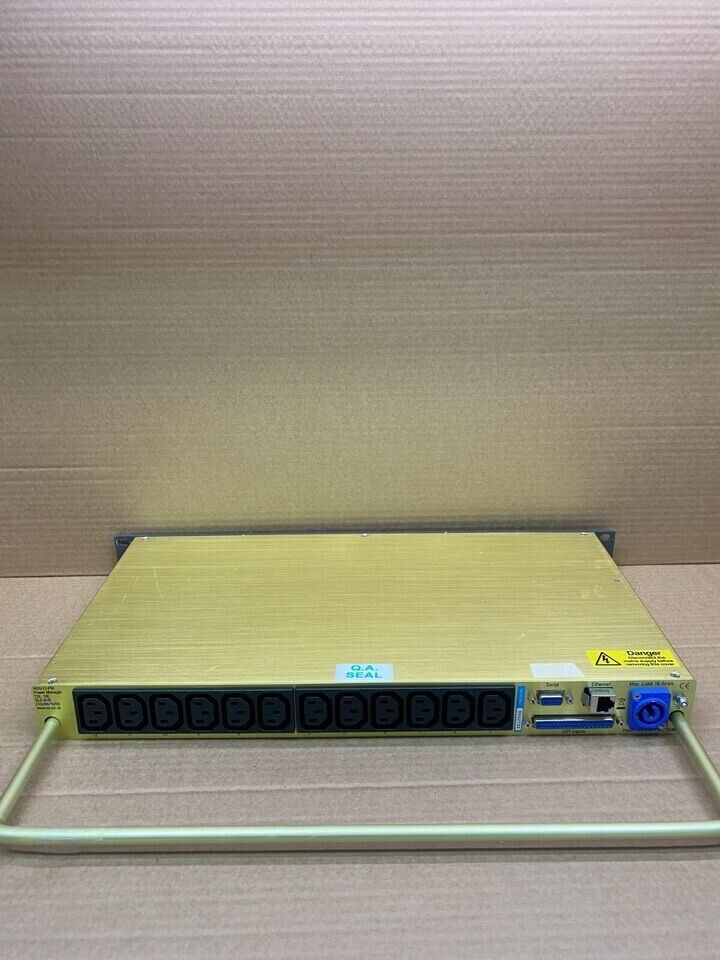

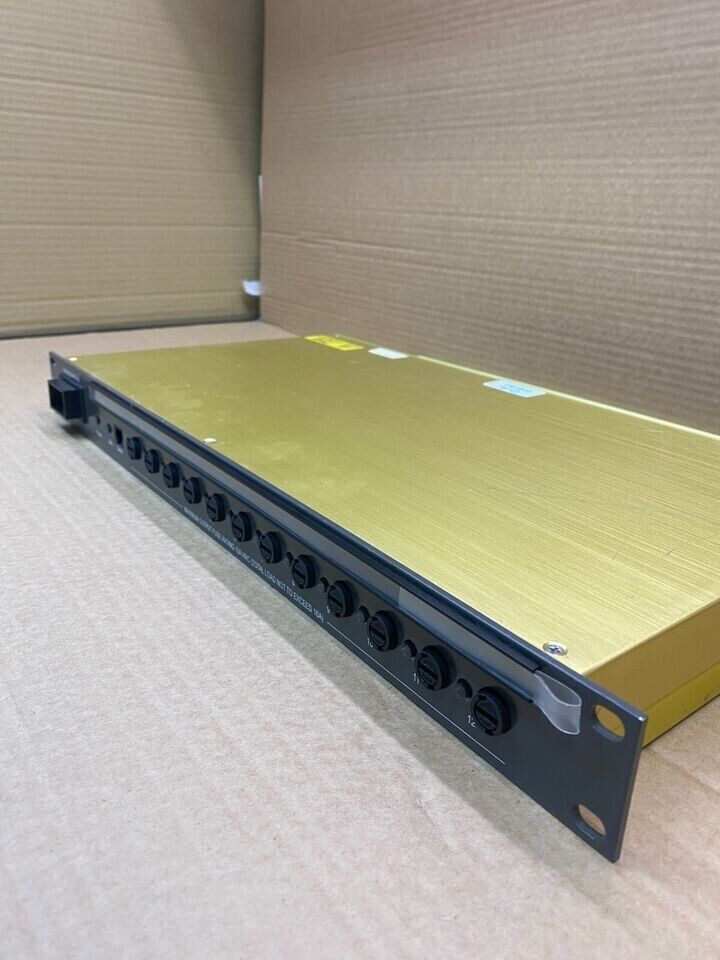

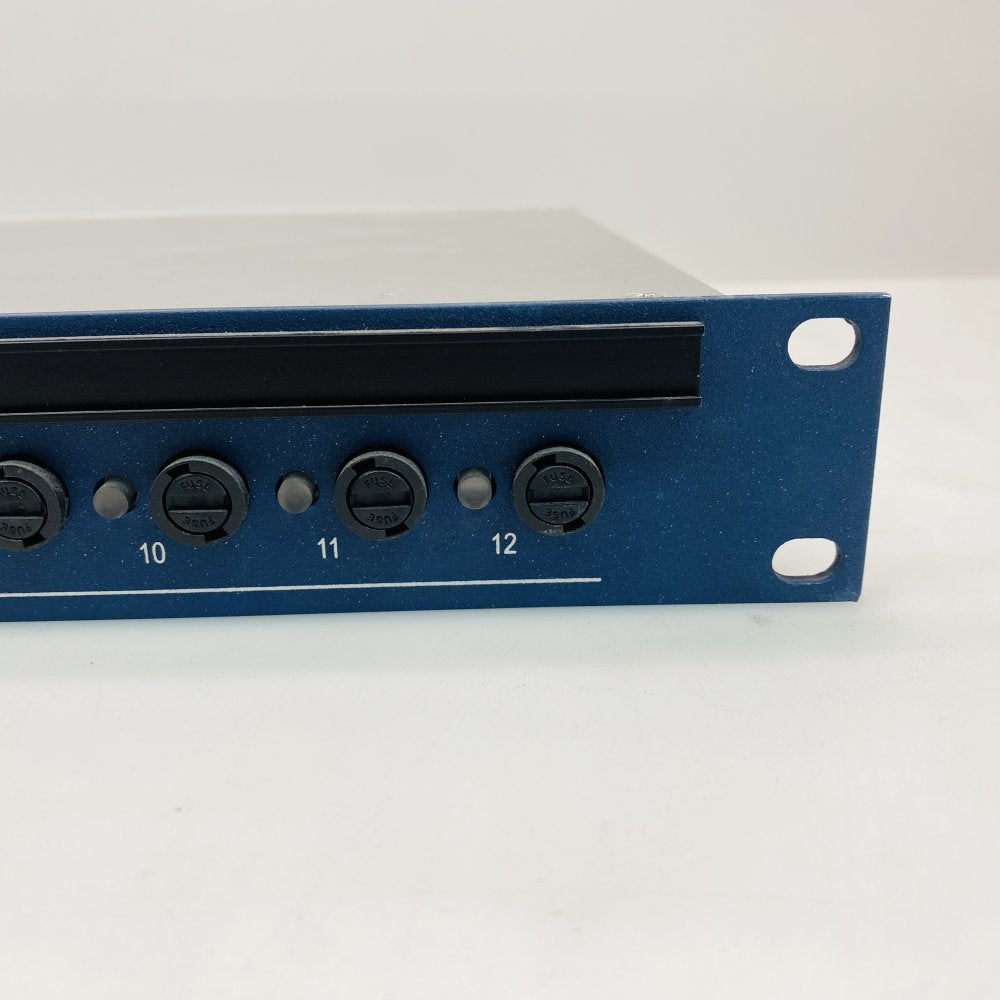

- 12 individually fused IEC C13 mains outputs, front-accessible fuse holders and numbered sockets
- Remote control of each output via Ethernet using a secure web browser interface
- SNMP support for monitoring and traps; supports email alerts for alarms
- 16 General Purpose Inputs (GPI) for external control or monitoring (rear DB25 connector)
- Configurable start-up modes: sequential, immediate or user-defined delayed start

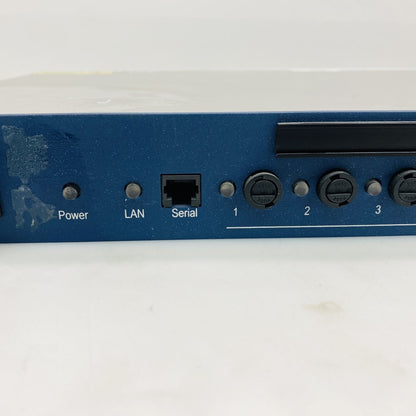

- RS232 configuration and control: front RJ11 serial connector and rear D‑9 serial port

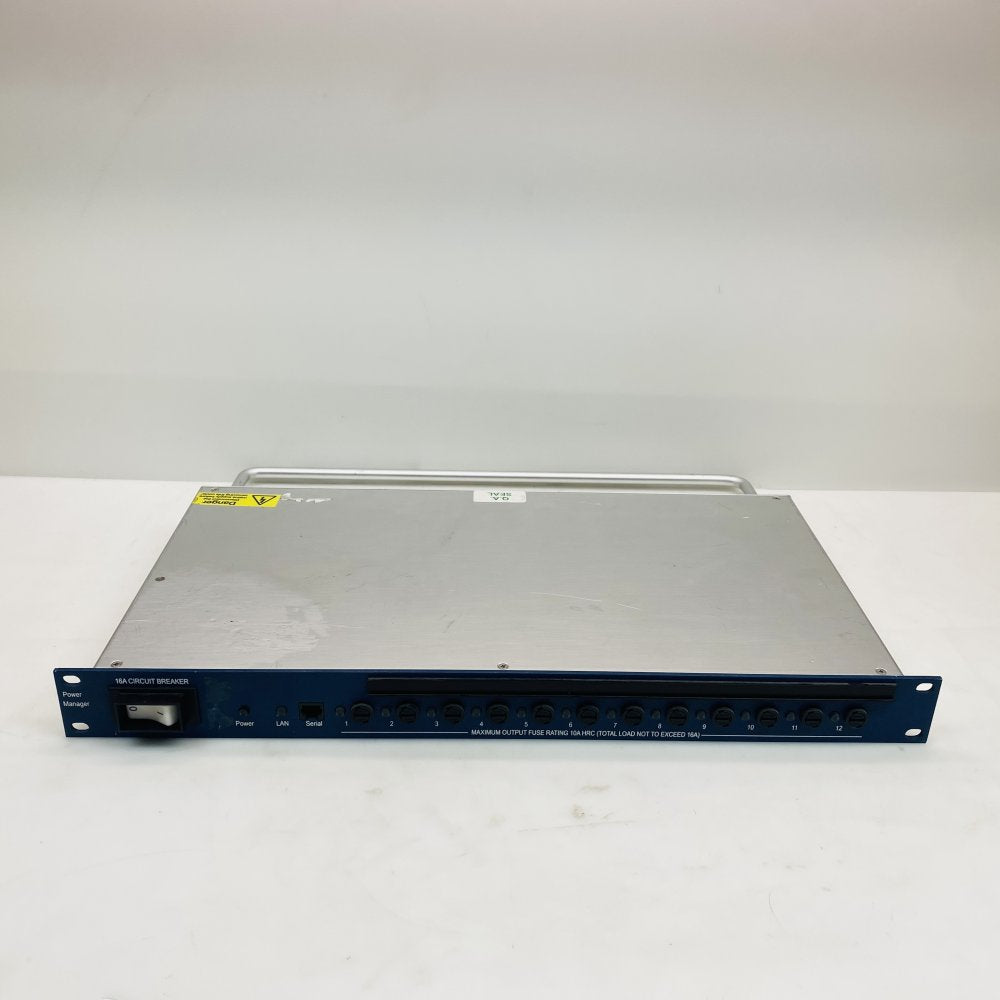

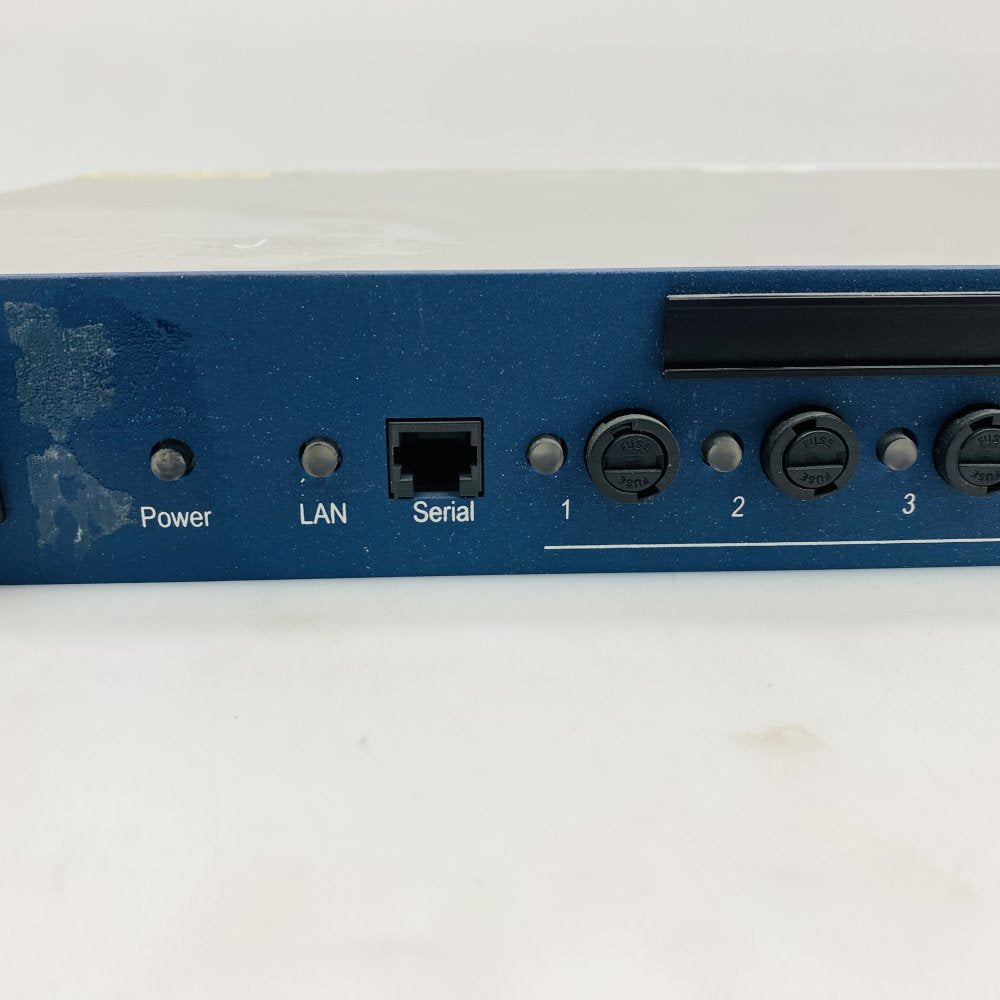

- Front and rear status indicators (Power, LAN and per‑outlet status LEDs)

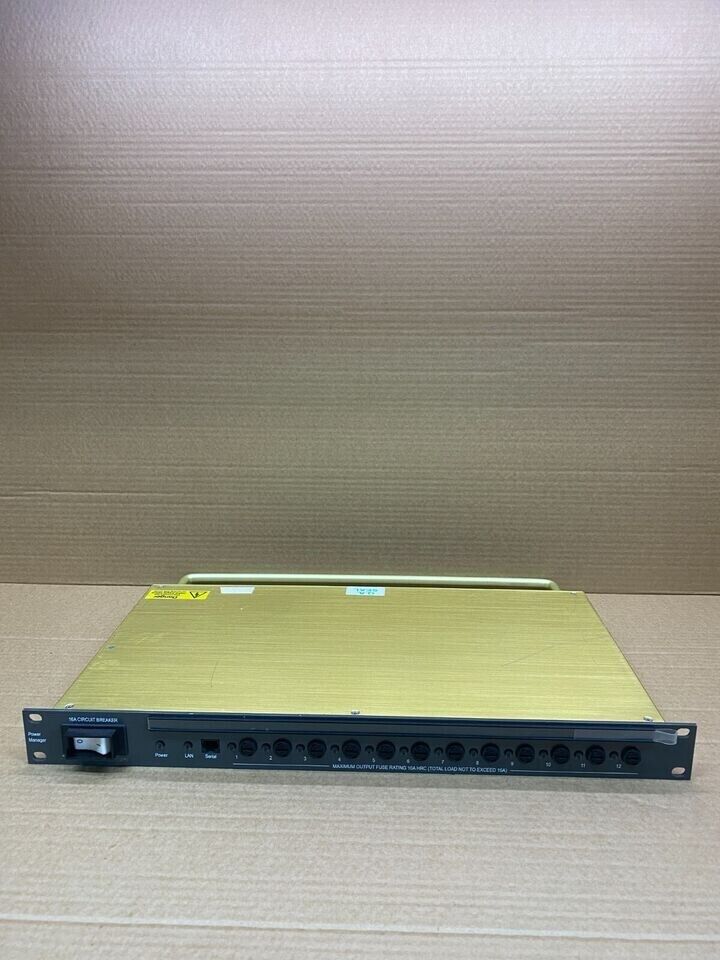

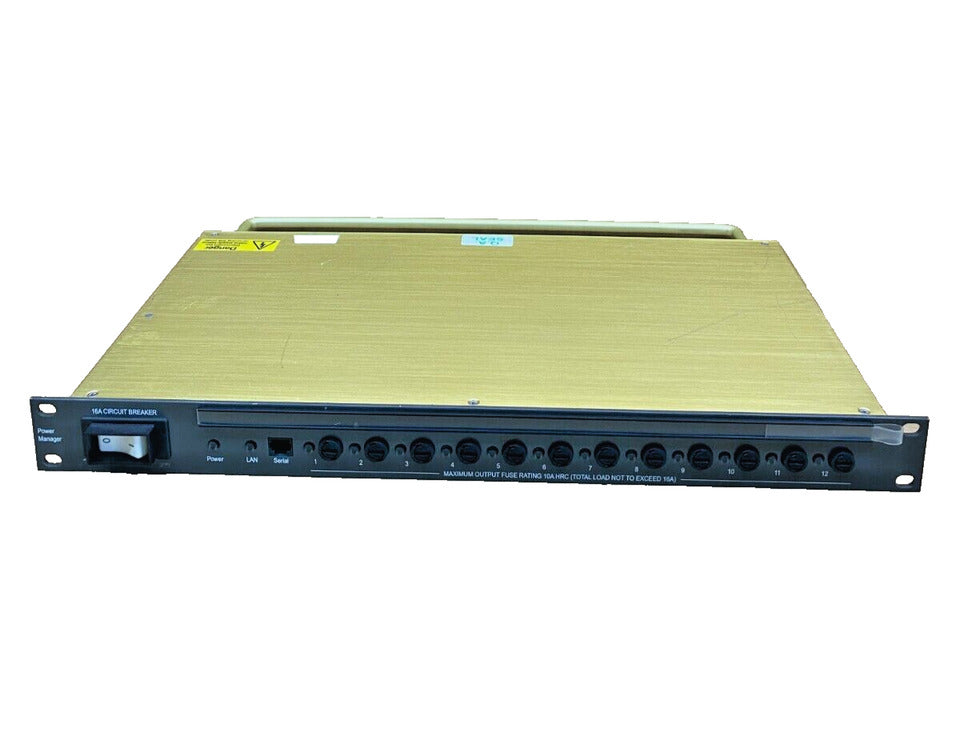

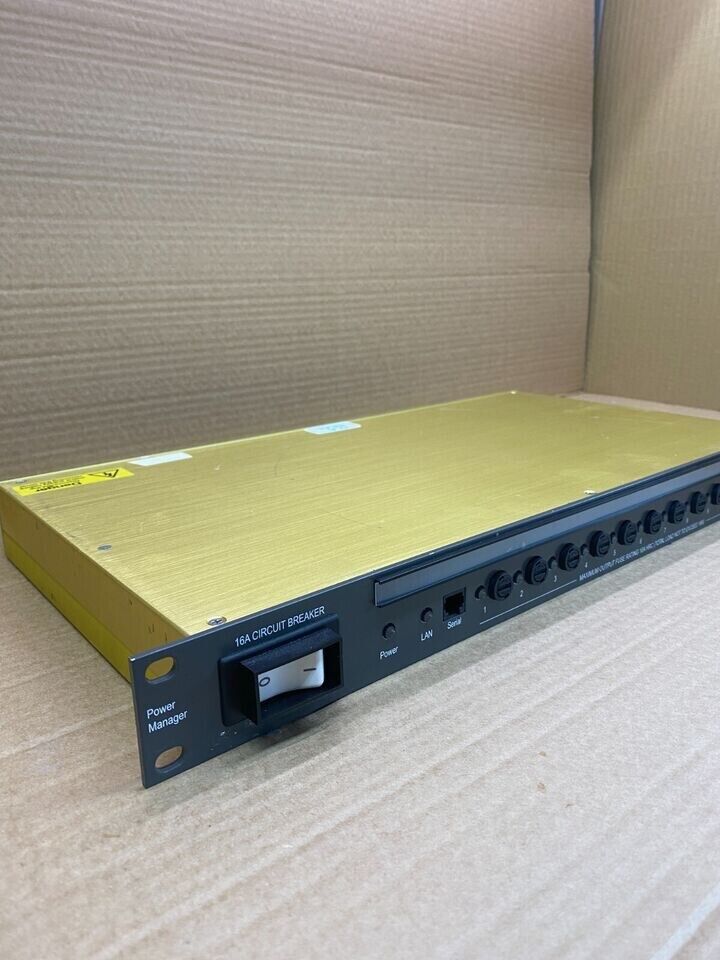

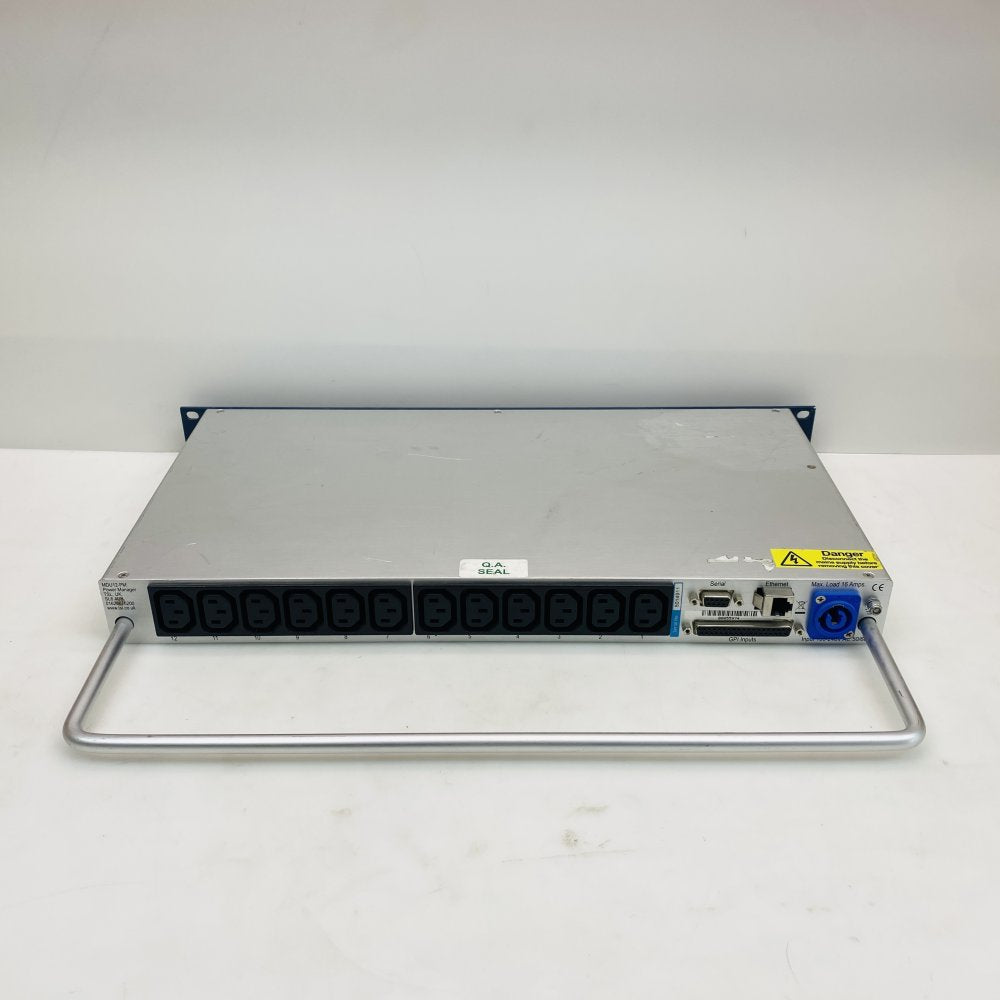

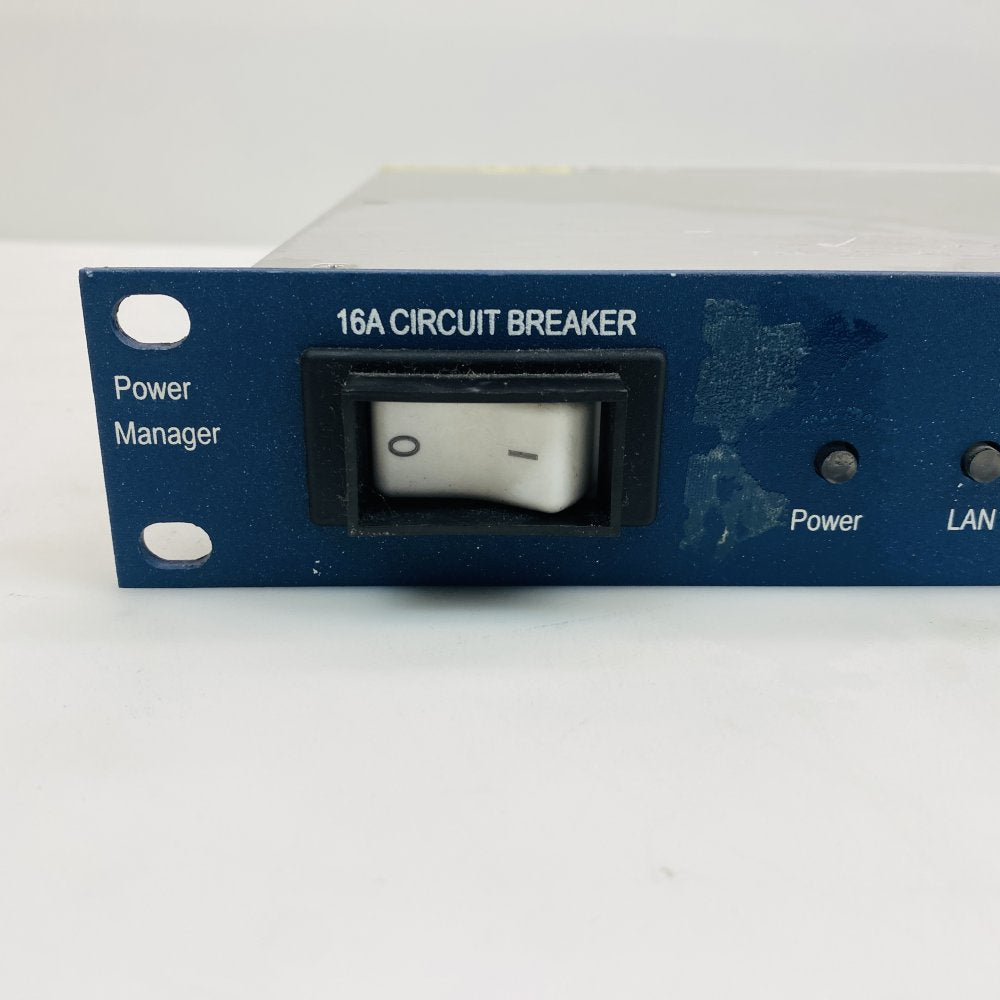

- Front 16A circuit breaker and rear PowerCon mains input (lockable style)
- Integral rounded tie bar for cable management; 1U rack-mount form factor
Specifications
- Manufacturer / Model: TSL MDU12-PM
- Input: 100–240 V AC, 50/60 Hz
- Maximum input current / total load: 16 A (front rocker circuit breaker)

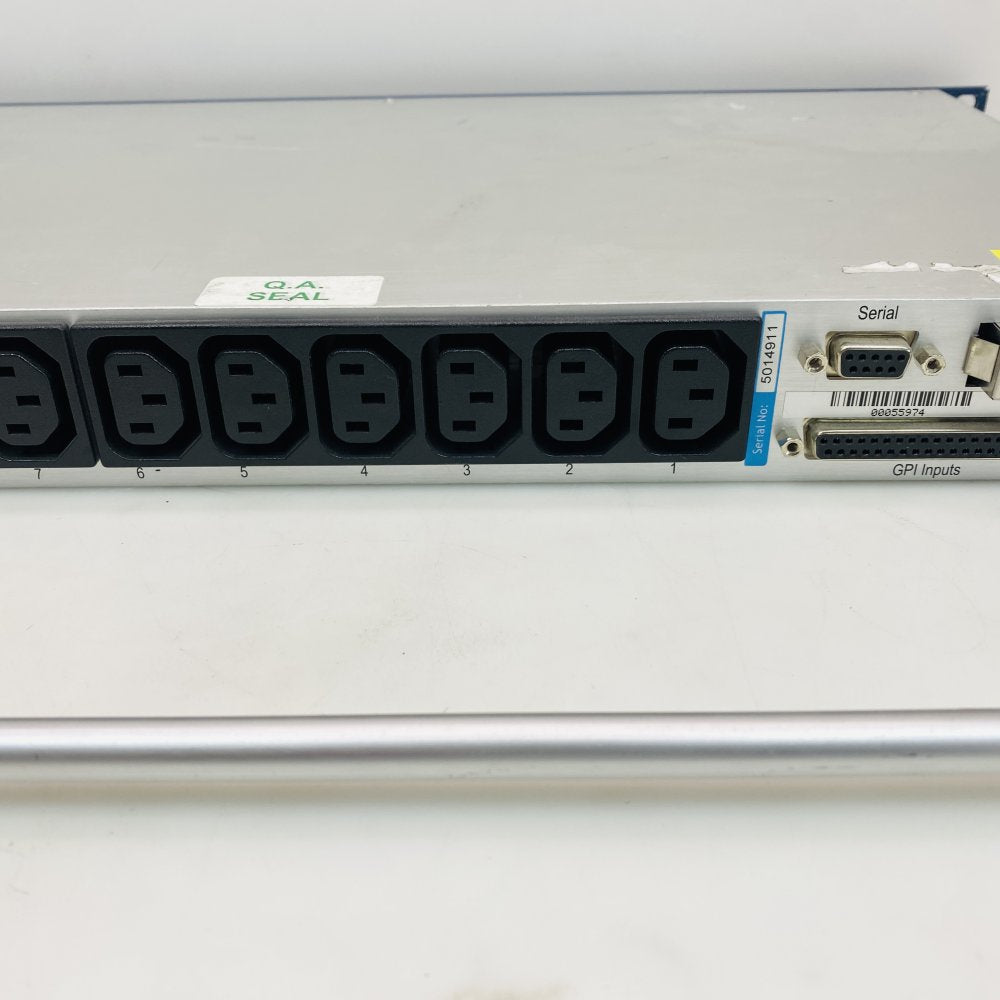

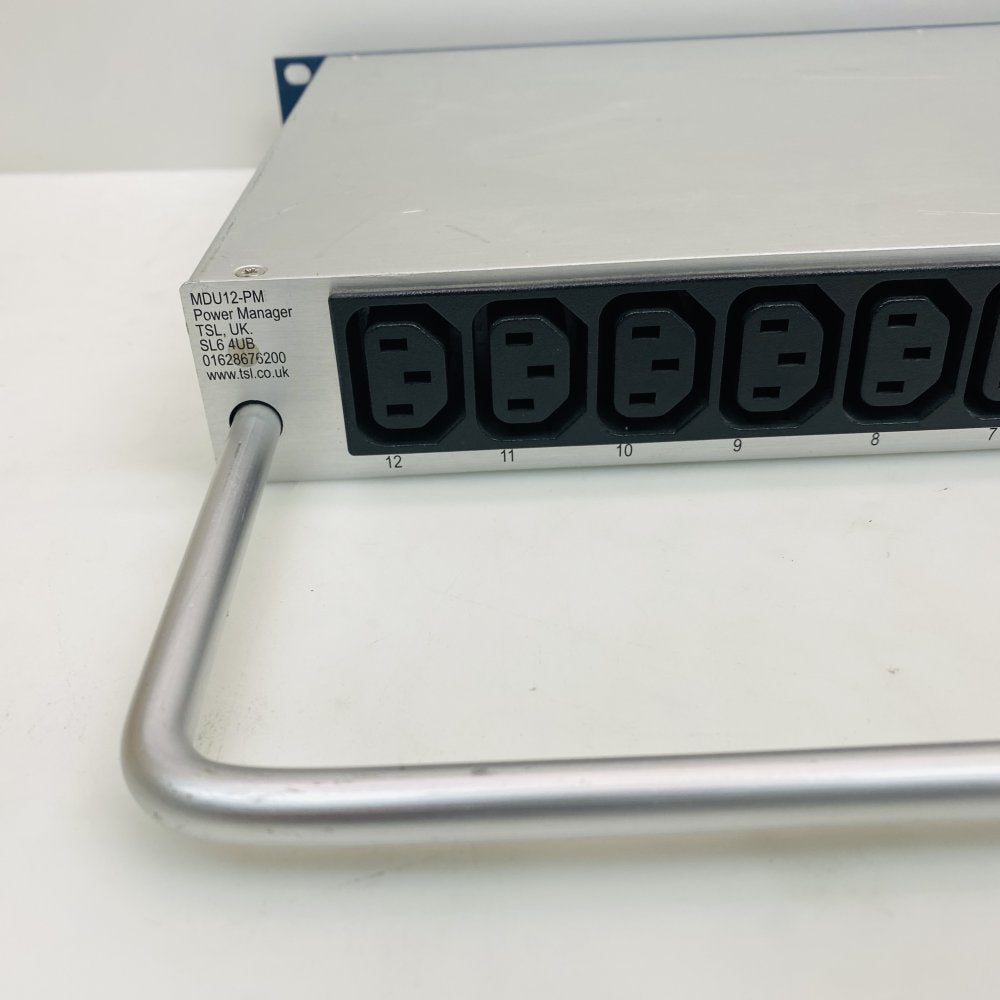

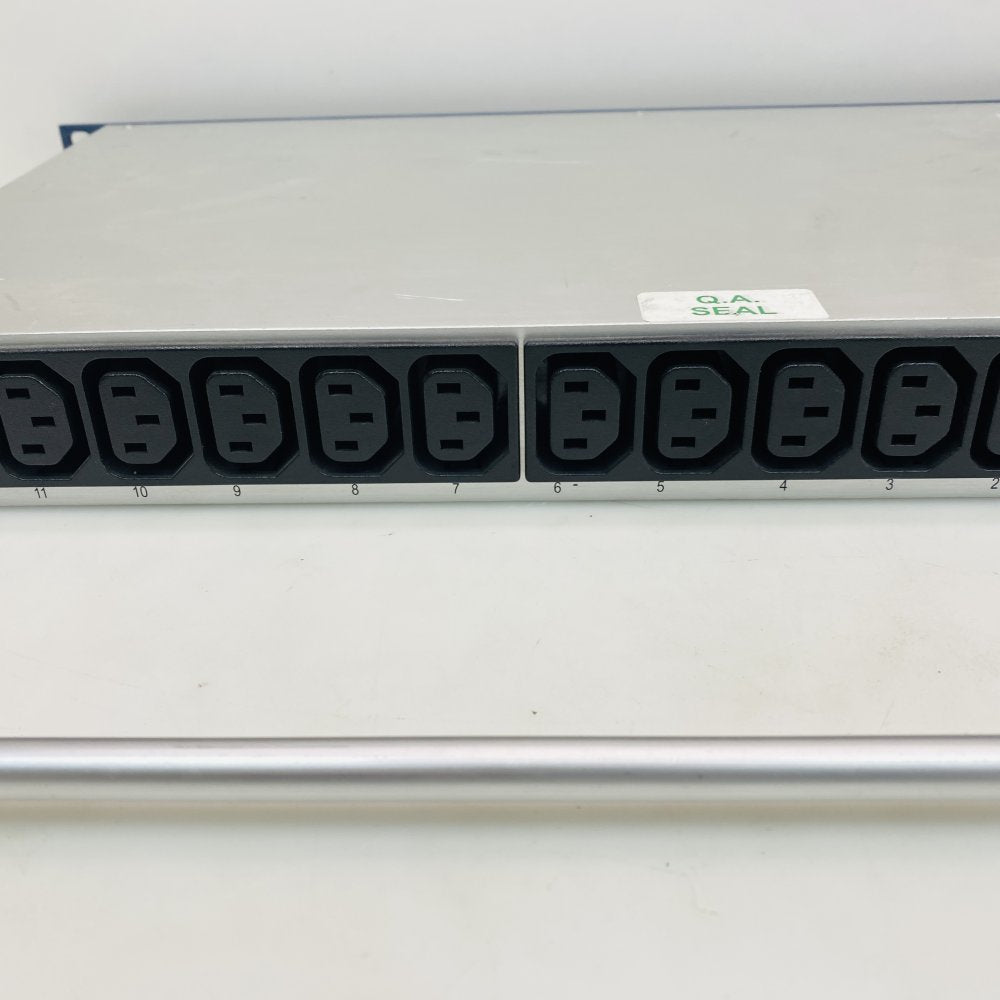

- Outputs: 12 × IEC C13 mains sockets (individually fused)

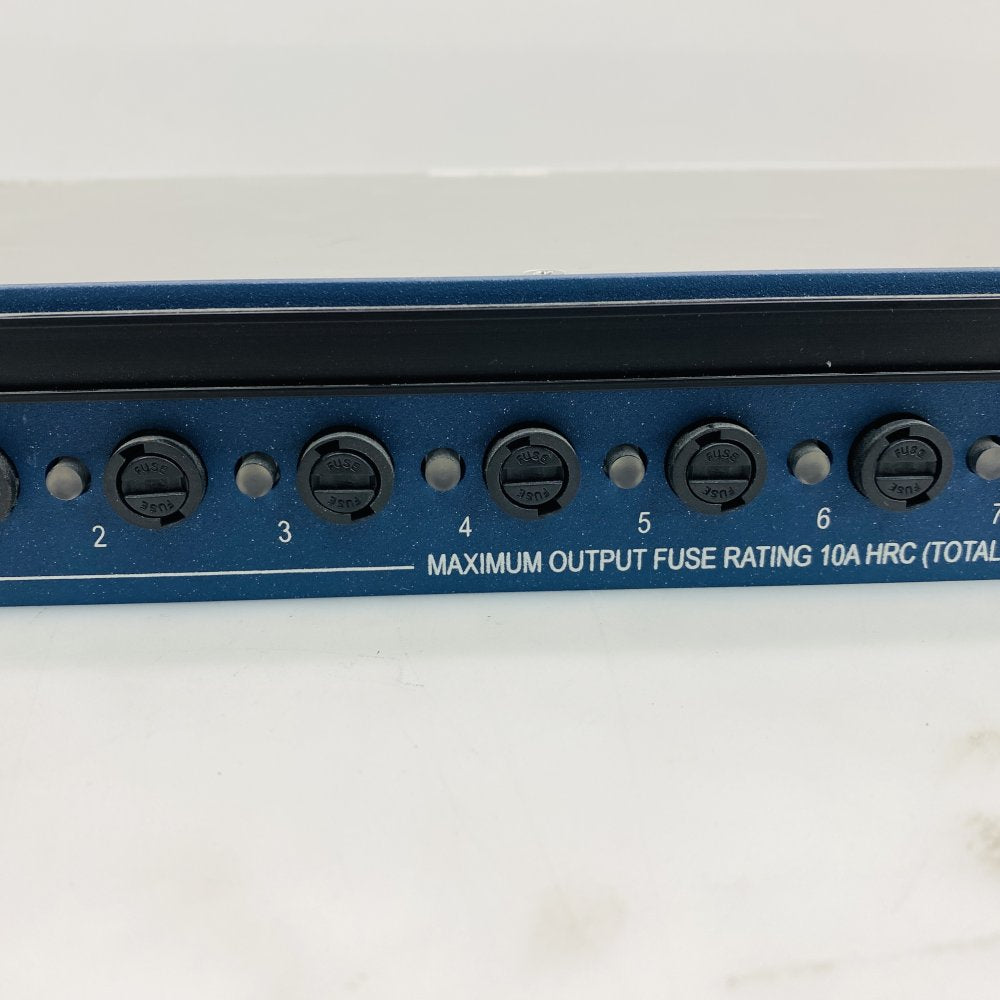

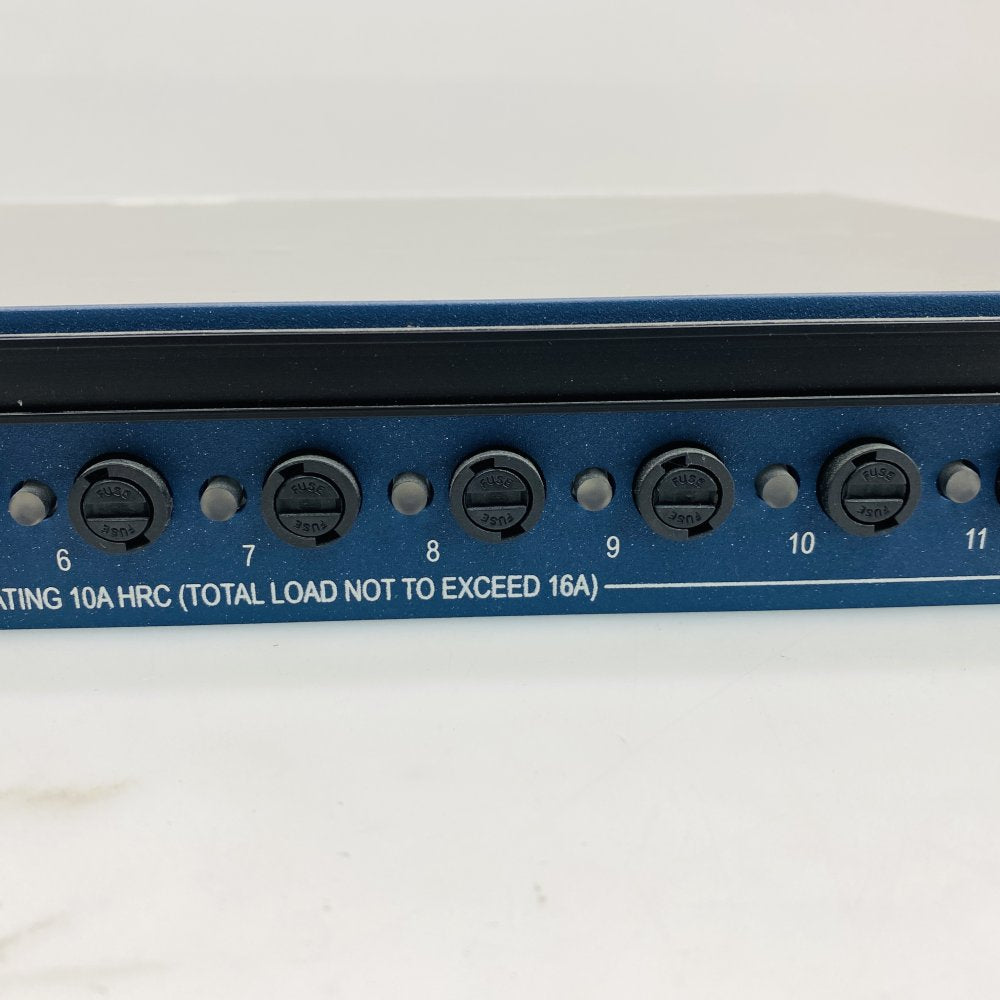

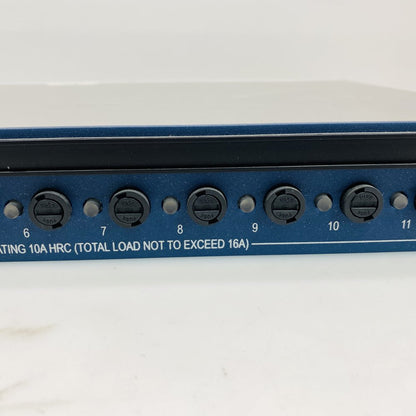

- Maximum output fuse rating: 10 A HRC per outlet (printed on unit: "MAXIMUM OUTPUT FUSE RATING 10A HRC (TOTAL LOAD NOT TO EXCEED 16A)")

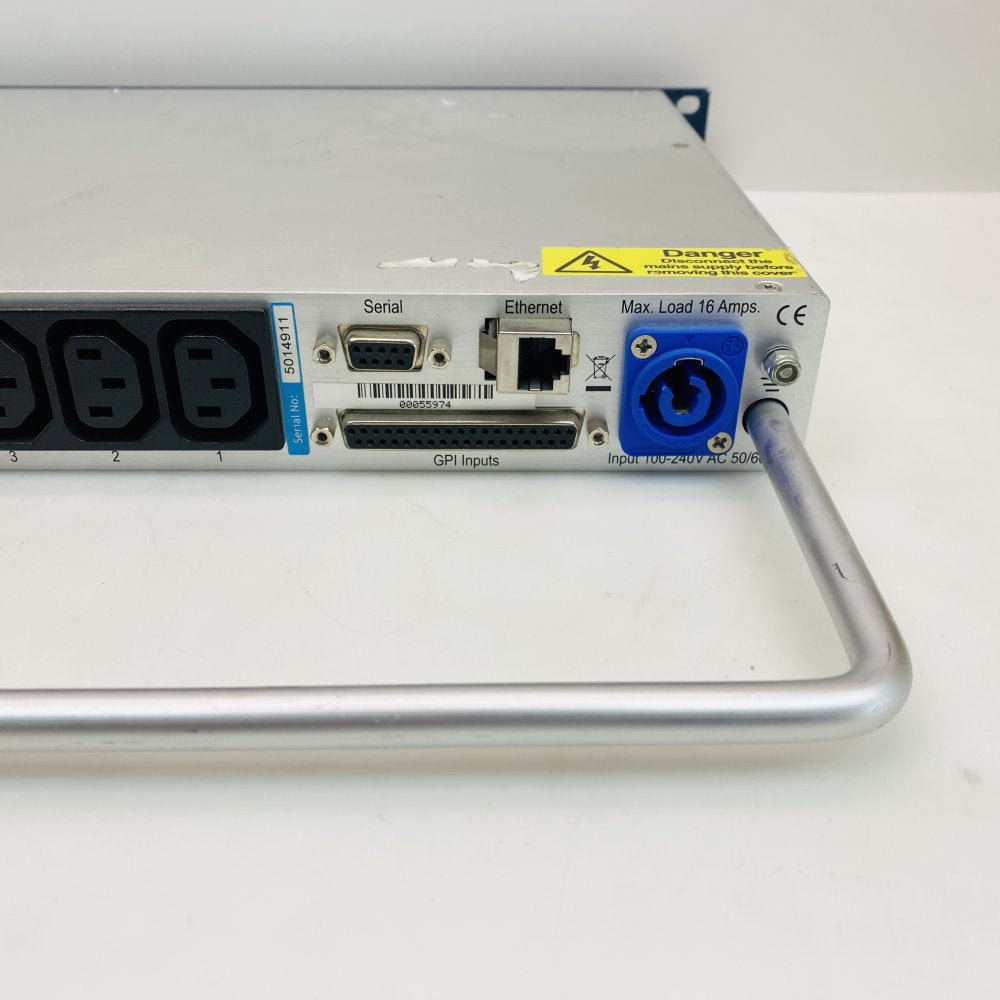

- Remote interfaces: Ethernet (RJ45) with web interface and SNMP; RS232 (rear D‑9 and front RJ11)
- GPI: Rear DB25 GPI inputs (16 inputs)
- Form factor: 1 RU rack-mountable (front mounting ears included)
- Dimensions (approx): Height 44 mm, Width 483 mm, Depth 340 mm (including tie bar)
- Weight (approx): 2.7 kg
- Colour: Blue front panel, silver rear chassis

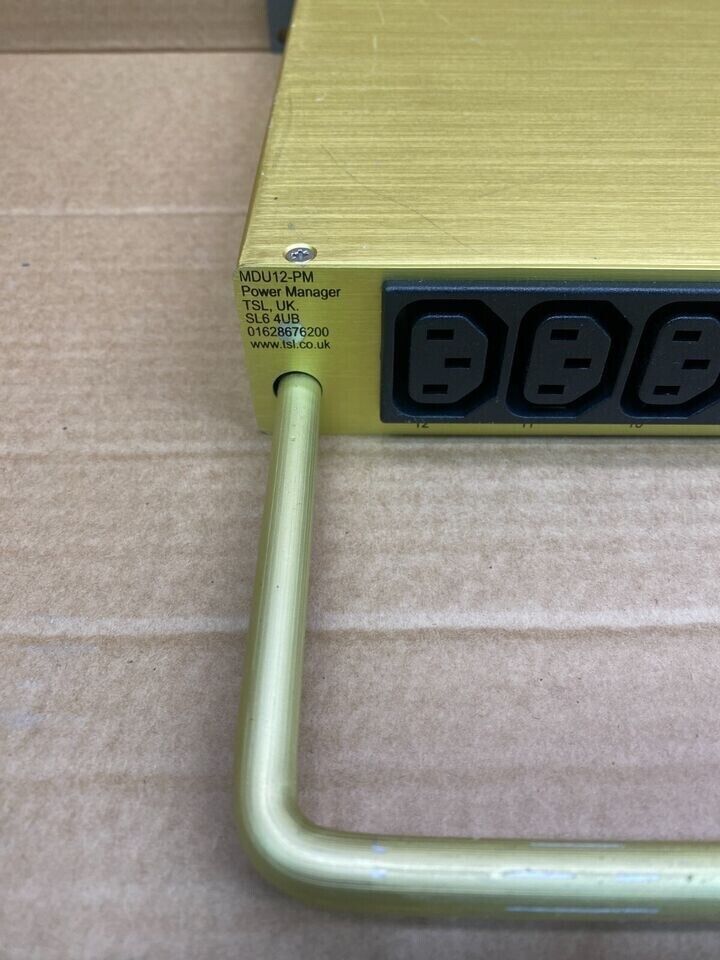

- Country / Manufacturer details: TSL, UK
- Manufacturer warranty: None stated
What you get
- 1 × TSL MDU12-PM Power Manager — 12× IEC mains outputs, Ethernet / SNMP capable
- No power lead / mains lead included
History
The device was removed as part of an IT decommissioning project and was taken from a working environment.
