Broadcast HD/SD Distribution Amplifier Leitch Harris HSE6800 1x8 SDI

Description

The Leitch Harris HSE6800 is a robust and efficient HD/SD serial digital video distribution amplifier, renowned for its excellent video performance and cost-effectiveness. As a part of the versatile 6800 series, it is acclaimed for its high-quality signal processing capabilities. This model supports cable equalisation and reclocking, ensuring dependable signal distribution in professional video environments. Users can manage, configure, and monitor the device locally via a card-edge jumper or remotely using a PC, featuring either a serial RS-232 connection or an optional ICE6800 Ethernet connection.

Key Features

• Advanced HD/SD signal processing
• Remote control capability with comprehensive diagnostic options
• Options for both local and remote management
• Optimised for professional video applications, ensuring durable and reliable performance
• Automatic cable equalisation and reclocking

Specifications

• Inputs/Outputs: One input, eight outputs for the dual-slot back module; one input, four outputs for the single-slot back module
• Signal Detection: Detects the presence of input signals
• Equalisation: Features automatic cable equalisation
• Alarms: Provides an alarm output for crucial notifications
• Reclocking: Offers automatic/manual settings at rates including 143 Mb/s, 177 Mb/s (manual only), 270 Mb/s SDI and ASI, 360 Mb/s, 540 Mb/s; and 1.485 Gb/s for HSE6800
• Status Indicators: Displays the status of reclocking
• Bypass Options: Includes automatic/enforced bypass functionality

What you get

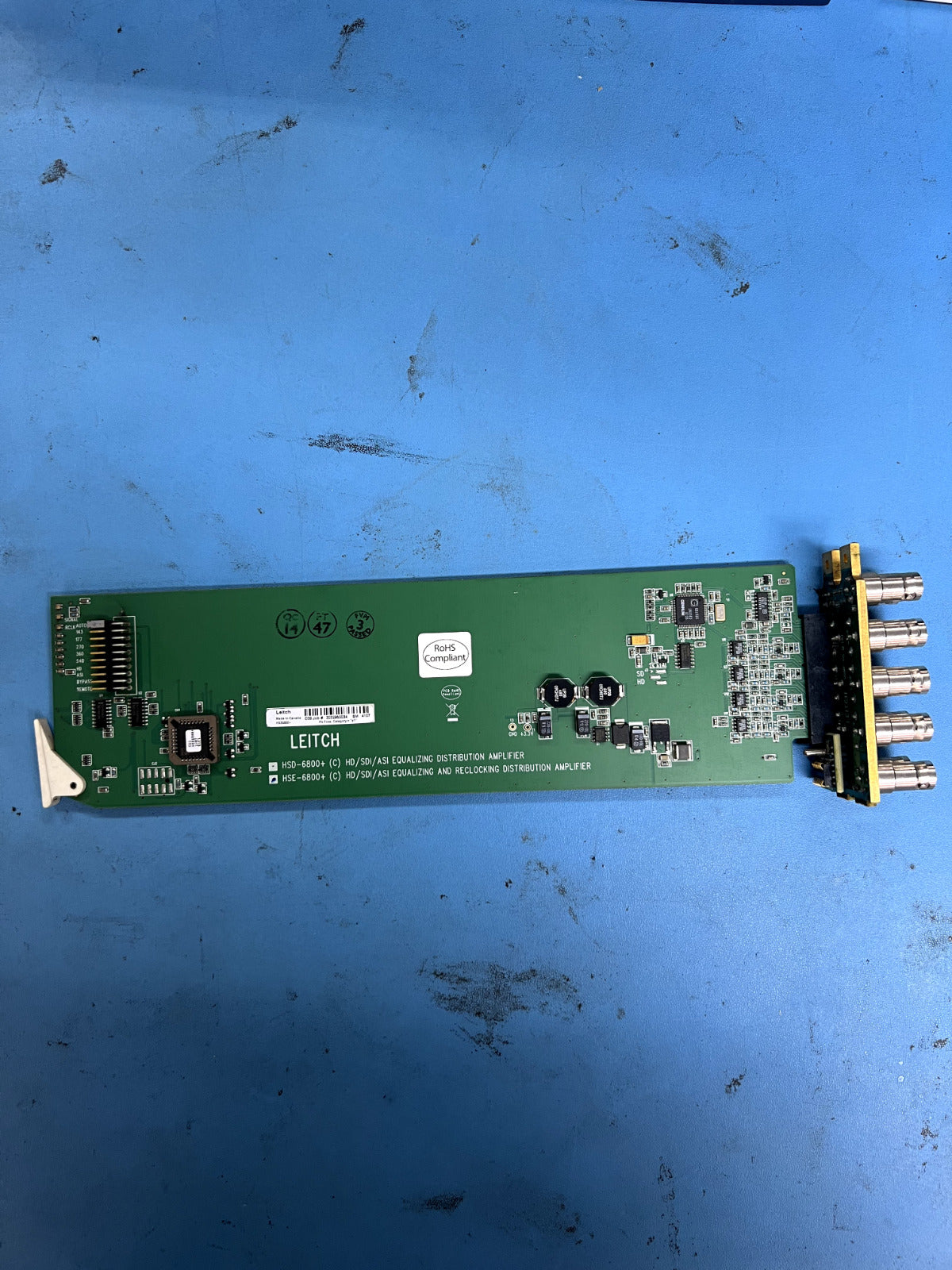

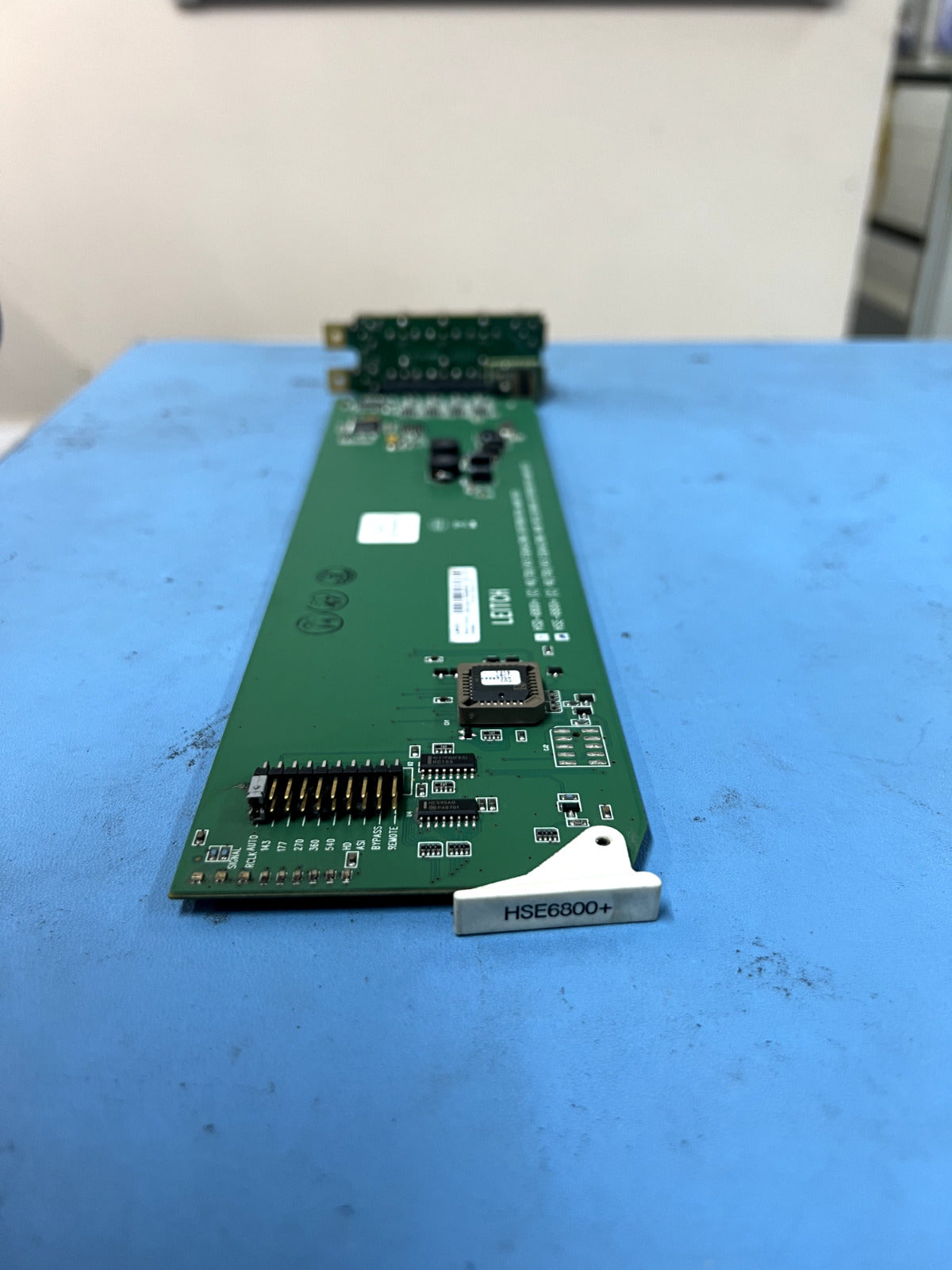

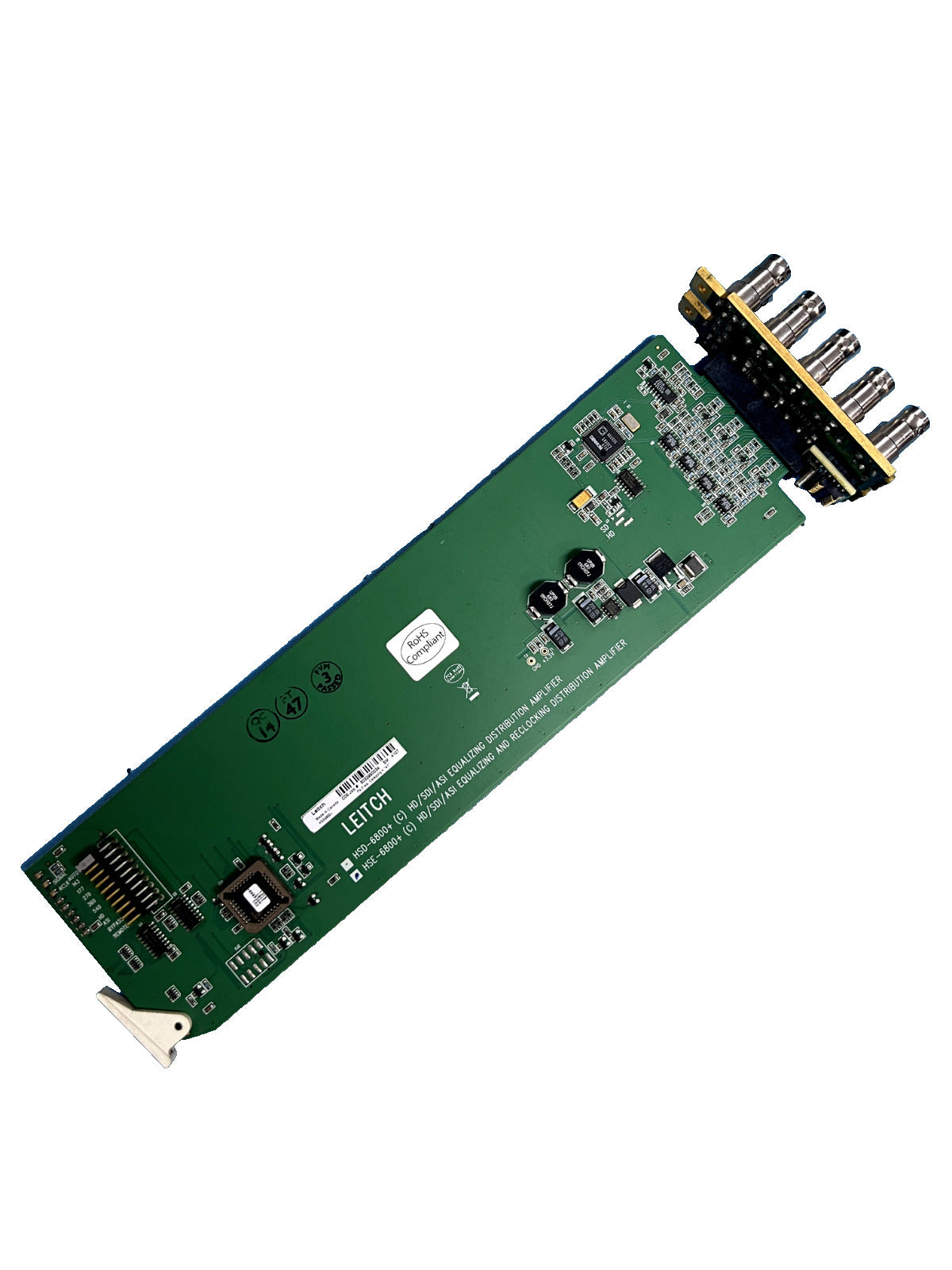

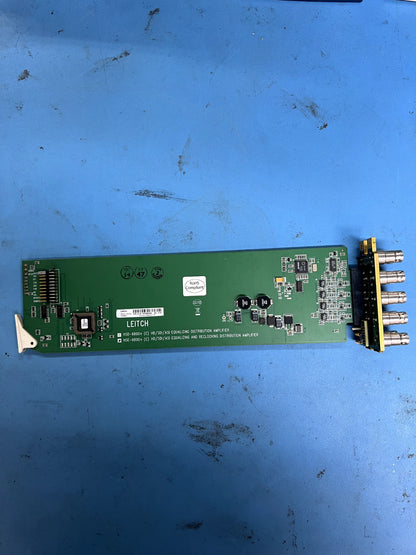

• 1 x Leitch (Harris) HSE6800 (c) HD/SD/ASI Equalising/Reclocking Distribution Amplifier Card

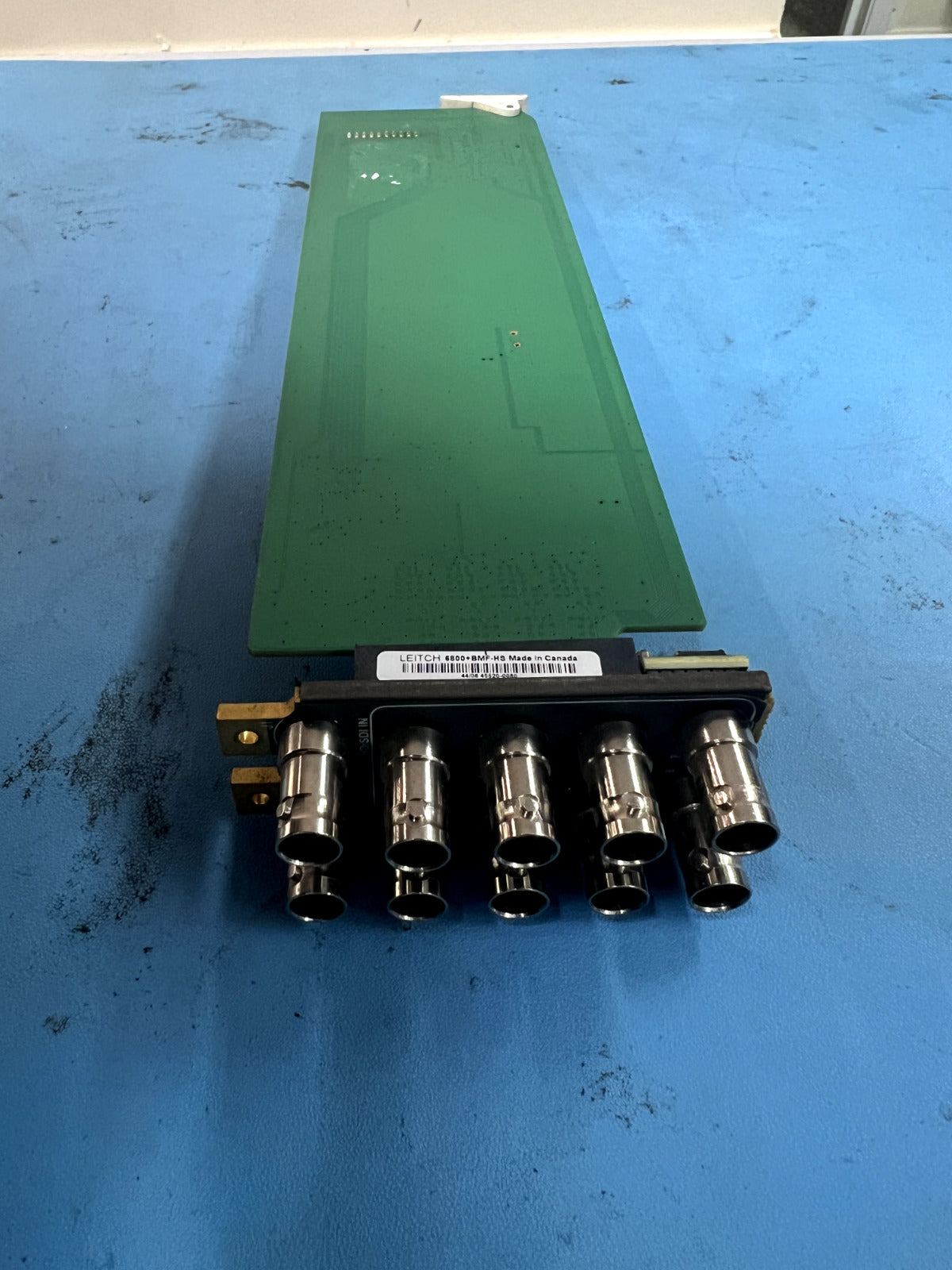

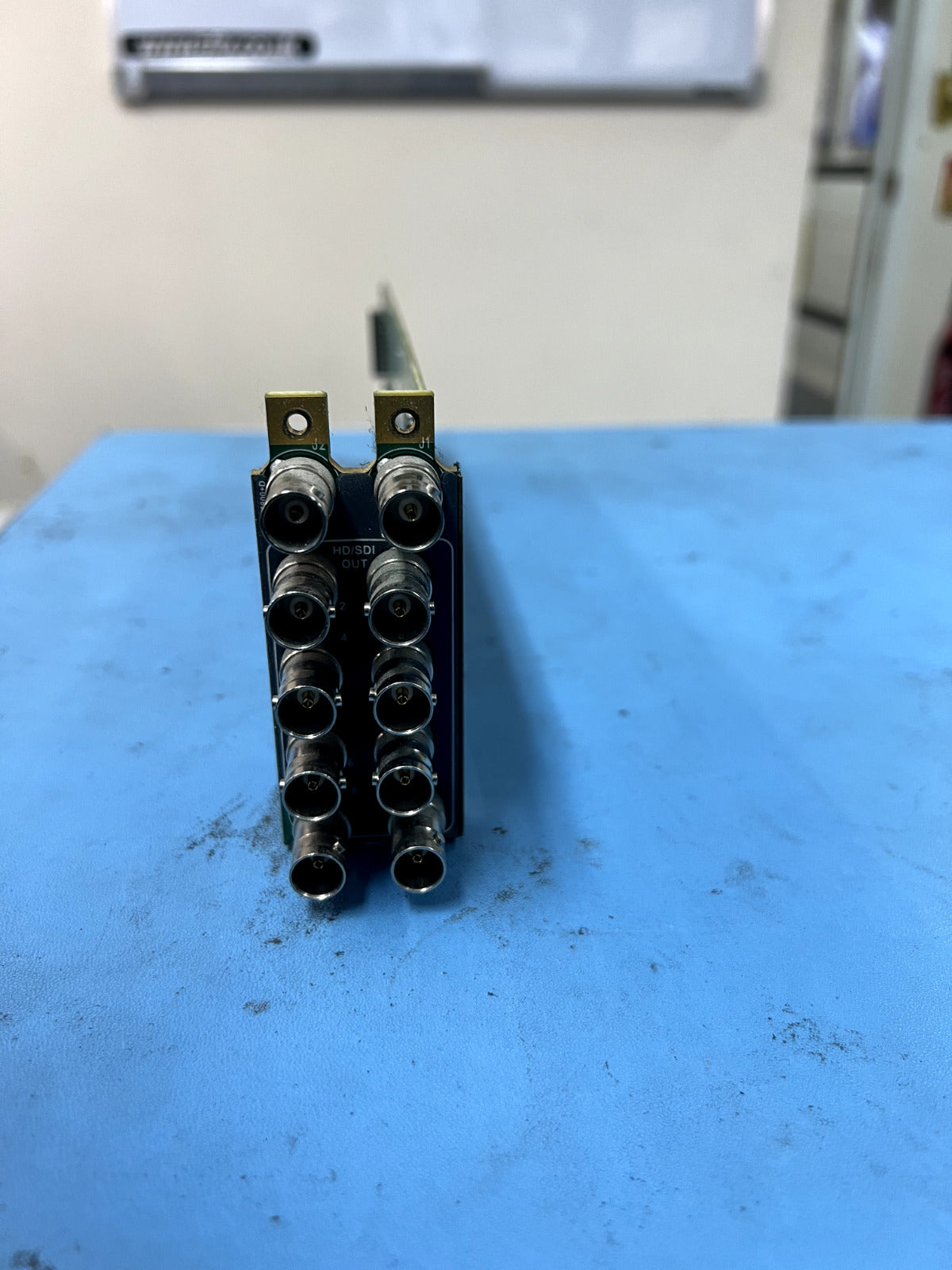

• 1 x Leitch 6800 D 1 in 8 outs module
