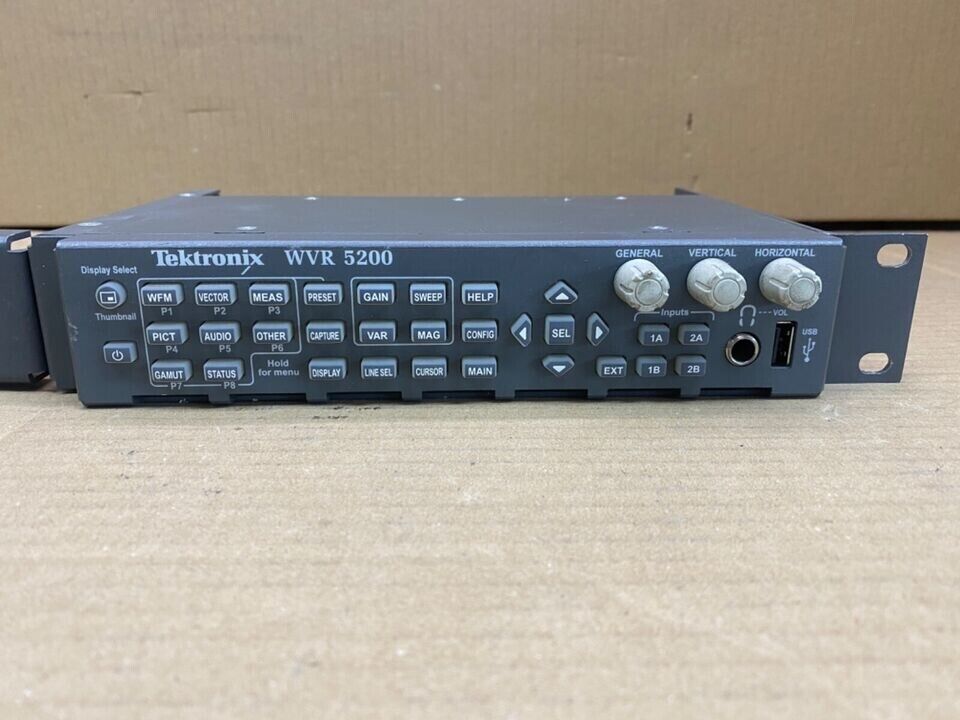

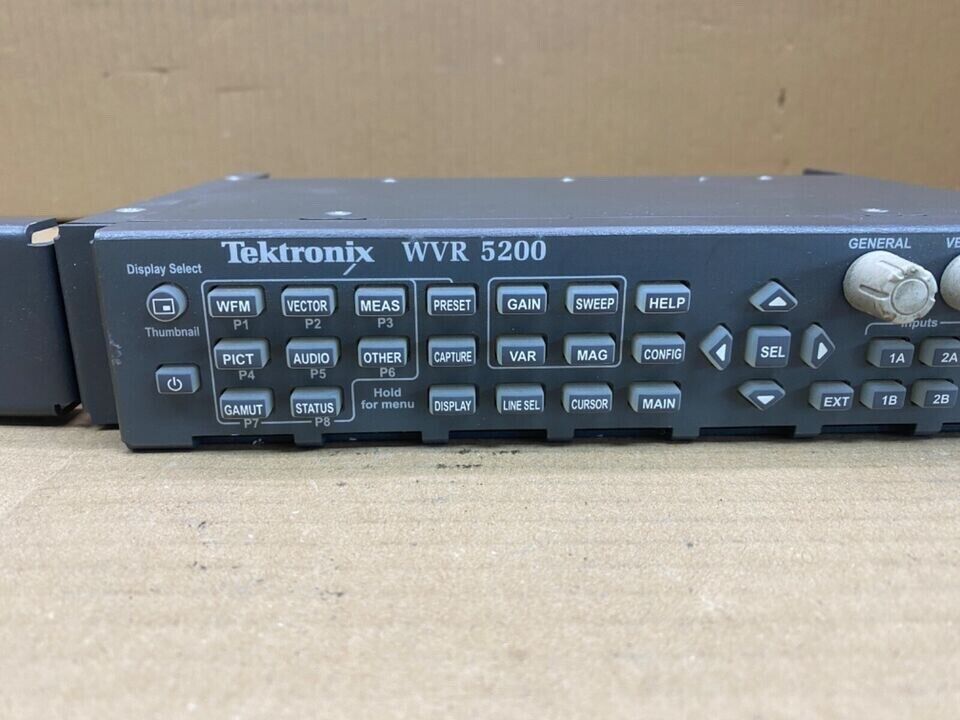

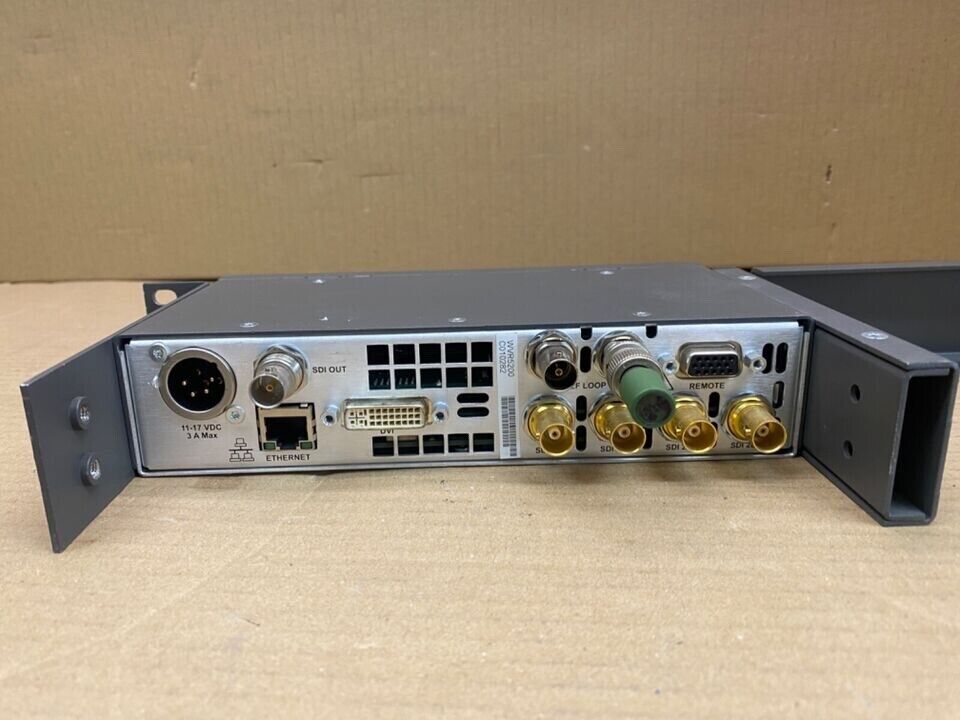

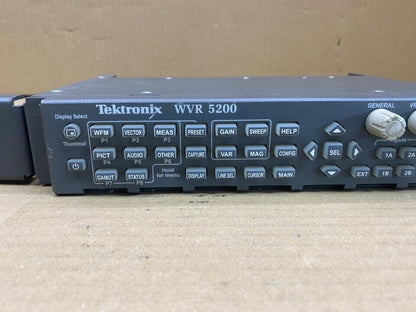

The Tektronix WVR 5200 Broadcast HD/SD Rasteriser is a compact and versatile video and audio monitoring solution, ideal for environments with space constraints. Housed in a convenient 1RU, half-rack, short-depth form factor, this device is designed to support multiple video formats including HD-SDI, SD-SDI, and Dual Link. With automatic format detection capabilities for 3G/HD/SD-SDI inputs, it ensures seamless operation across various signal formats. OPTIONAL audio monitoring for up to 16 channels of Embedded AES/EBU Audio enhances its utility for professional audio compliance verification. The front-panel headphone port offers straightforward digital audio monitoring without the need for extra equipment.
Features
Compact 1RU, half-rack form factor ideal for space-constrained setups
Supports HD-SDI, SD-SDI, and Dual Link formats
Automatic format detection for 3G/HD/SD-SDI inputs
Optional audio monitoring for 16 channels of Embedded AES/EBU Audio (Option AUD)
Waveform display and Lissajous display for audio level bar monitoring

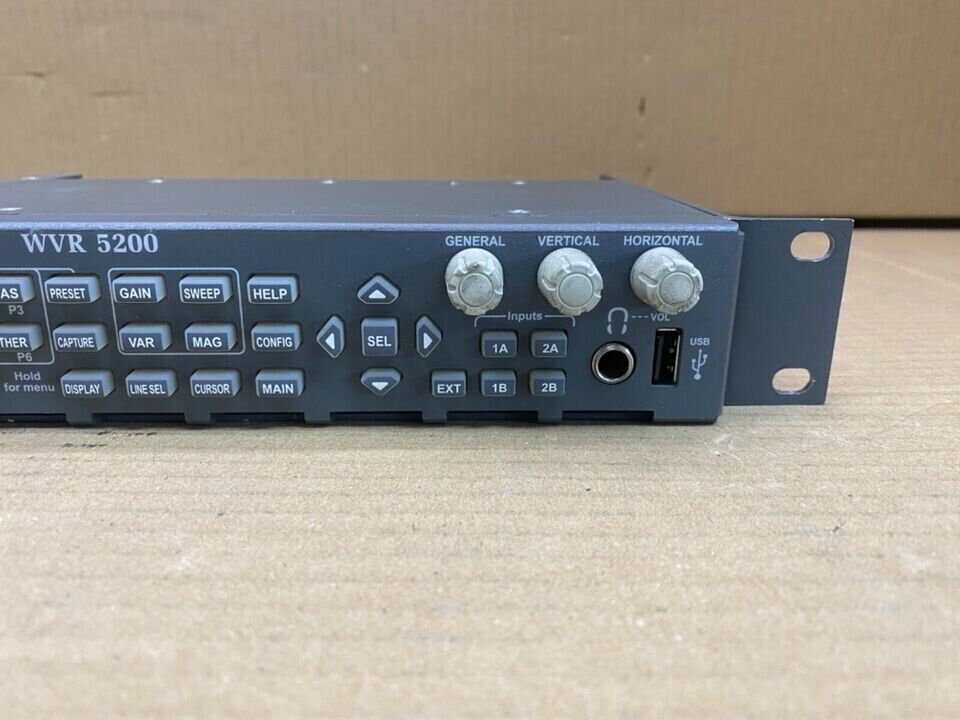

Compliance verification through front-panel headphone port
Flexible power options: 12 V DC source, battery, 100-240 V AC converter
Specifications
Brand: Tektronix
Model: WVR 5200
Type: Video Waveform Rasterizer
Connectivity: SDI, HD-SDI, 3G-SDI
Input Interfaces: HD-SDI, SD-SDI, Dual Link
Video Format: HD, SD
Color System Type: Multicolor
Signal Format Type: Digital
Protocols: SMPTE 292, ITU-R BT.601
Compatible Mount: Rack Mount
What you get

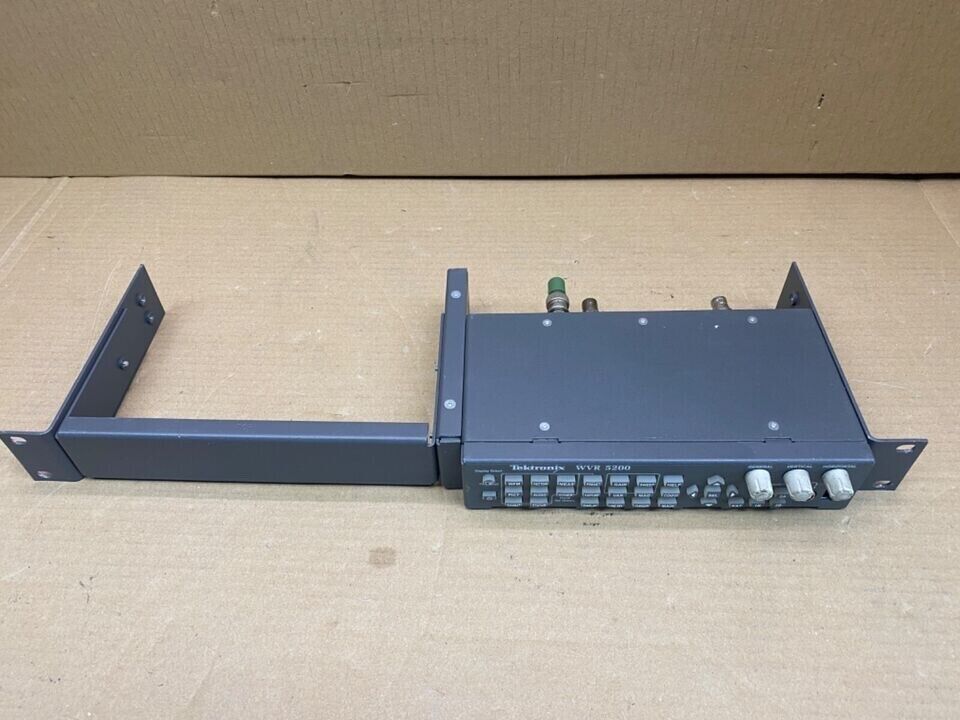

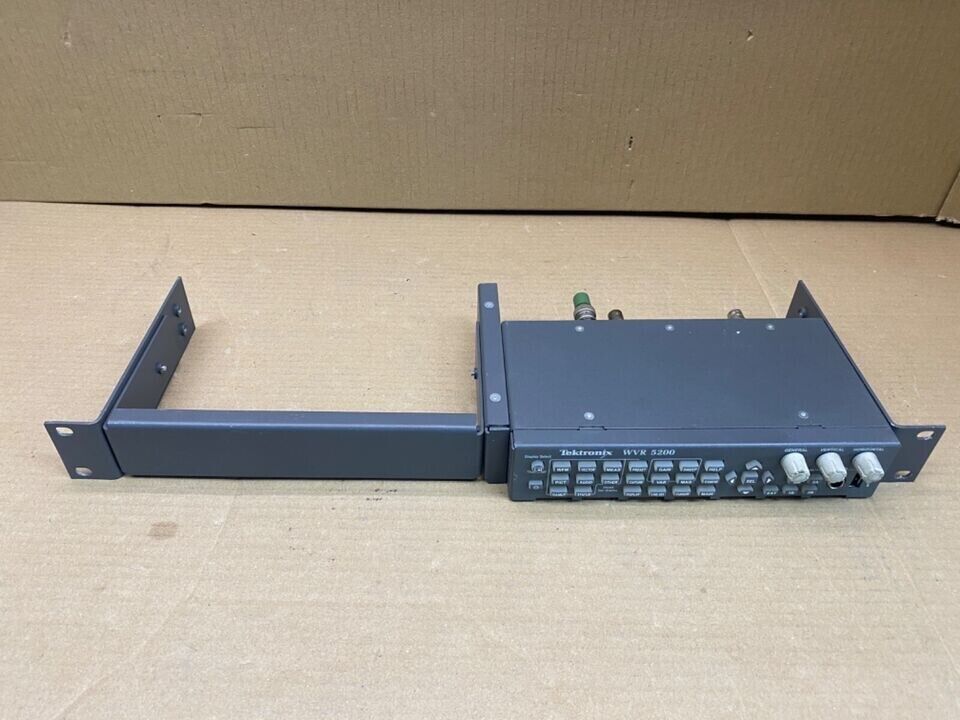

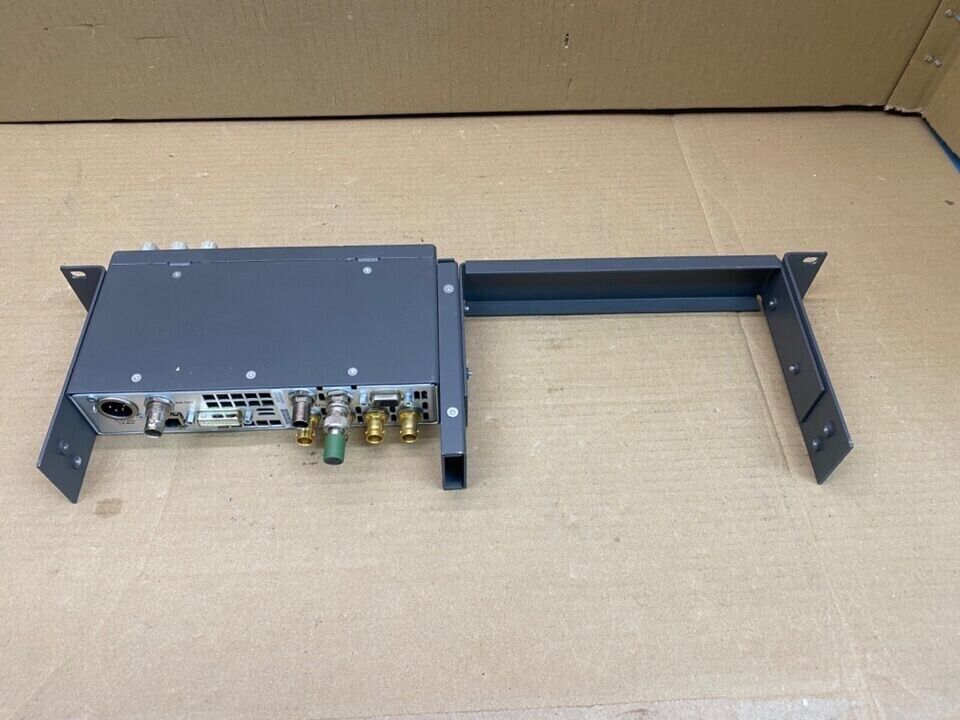

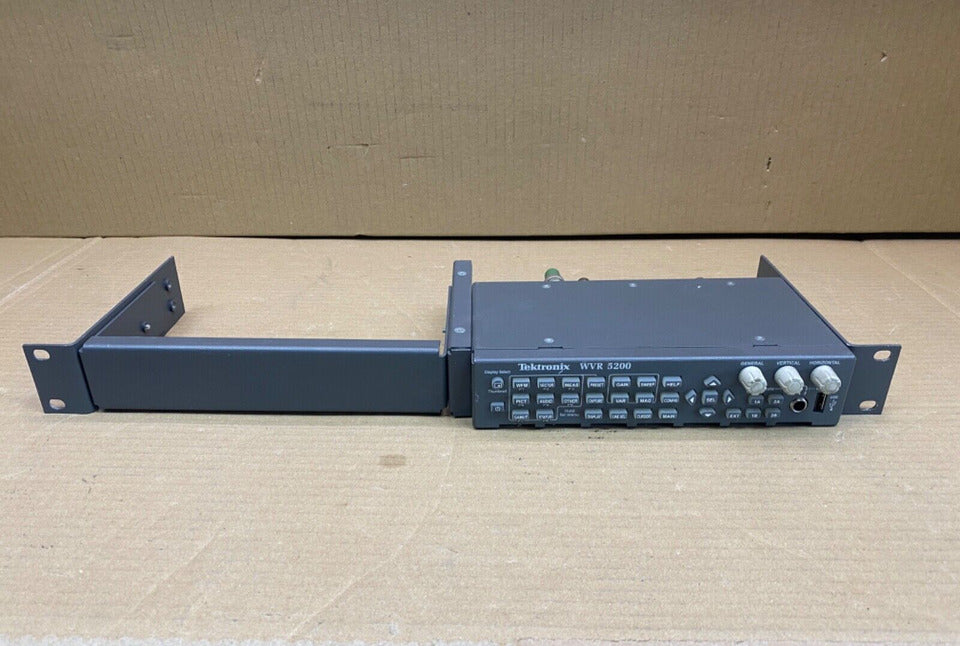

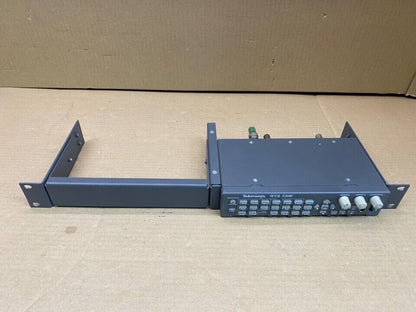

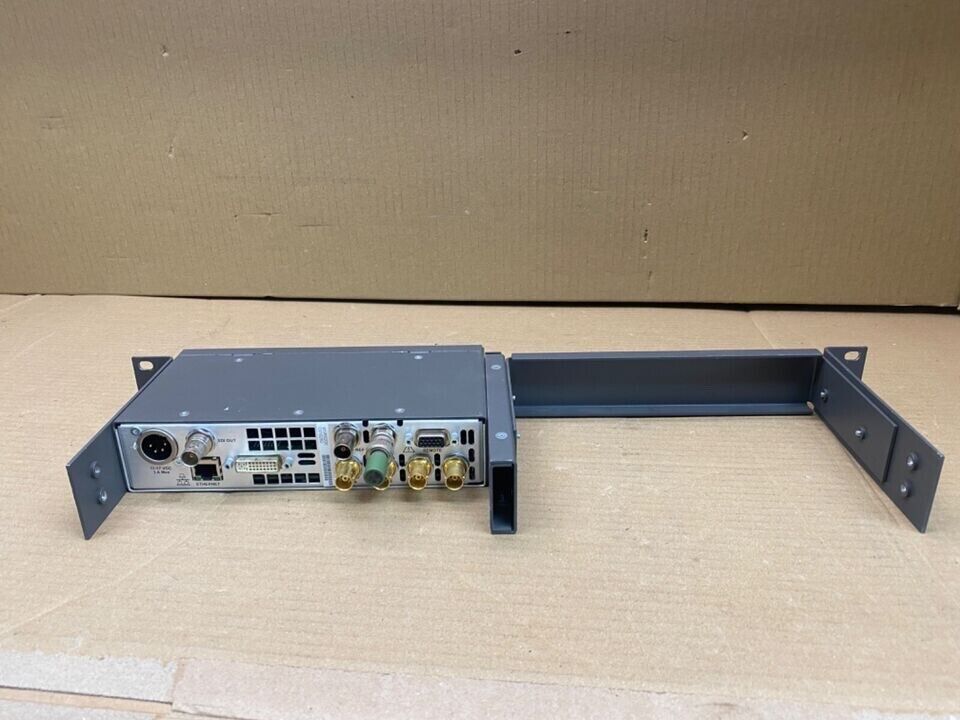

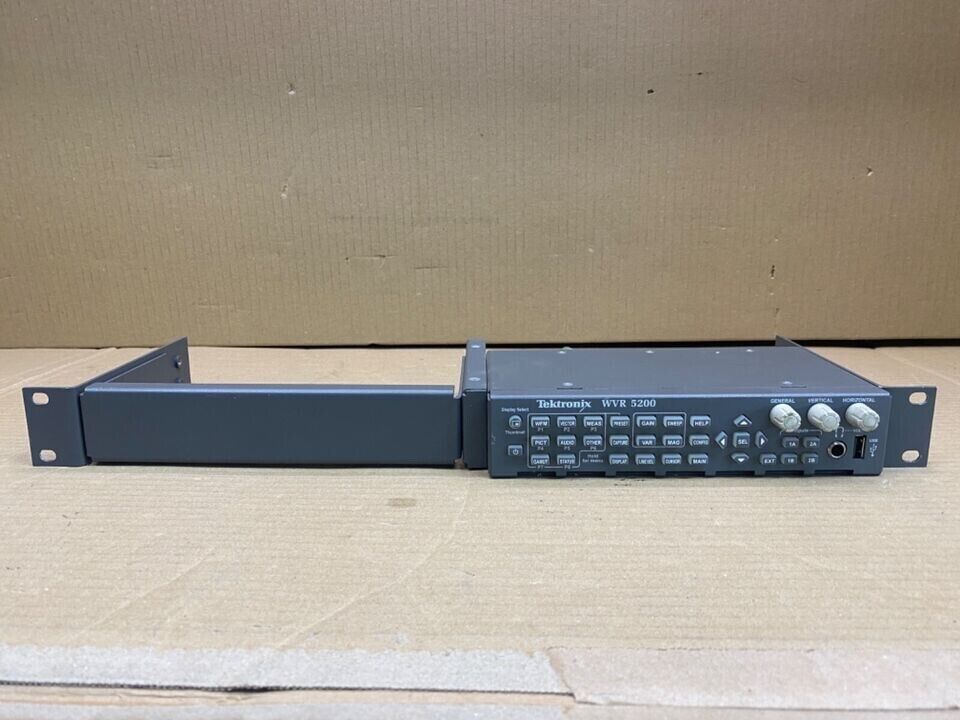

1 x Tektronix WVR 5200 HD/SD Rasteriser with Rack Mount
1 x Power Supply
1 x Power Cable
History
The device came as part of the IT decommissioning project and was removed from a working environment.
Details
VAT or 20% is included in the price (No VAT for international customers).
