Lawo PSU 960/04 Broadcast Power Supply mc2 Series - For Parts/Repair

Overview

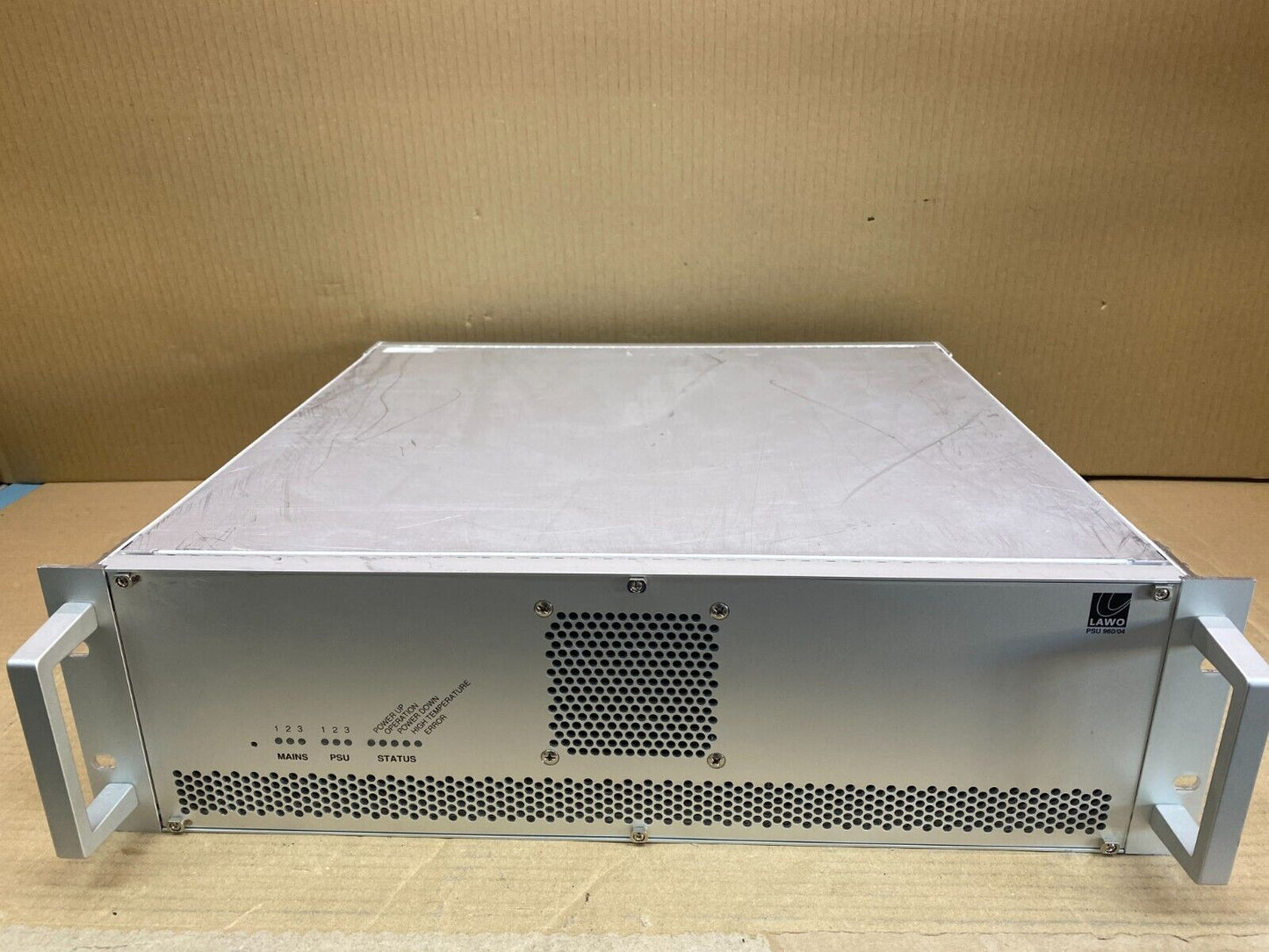

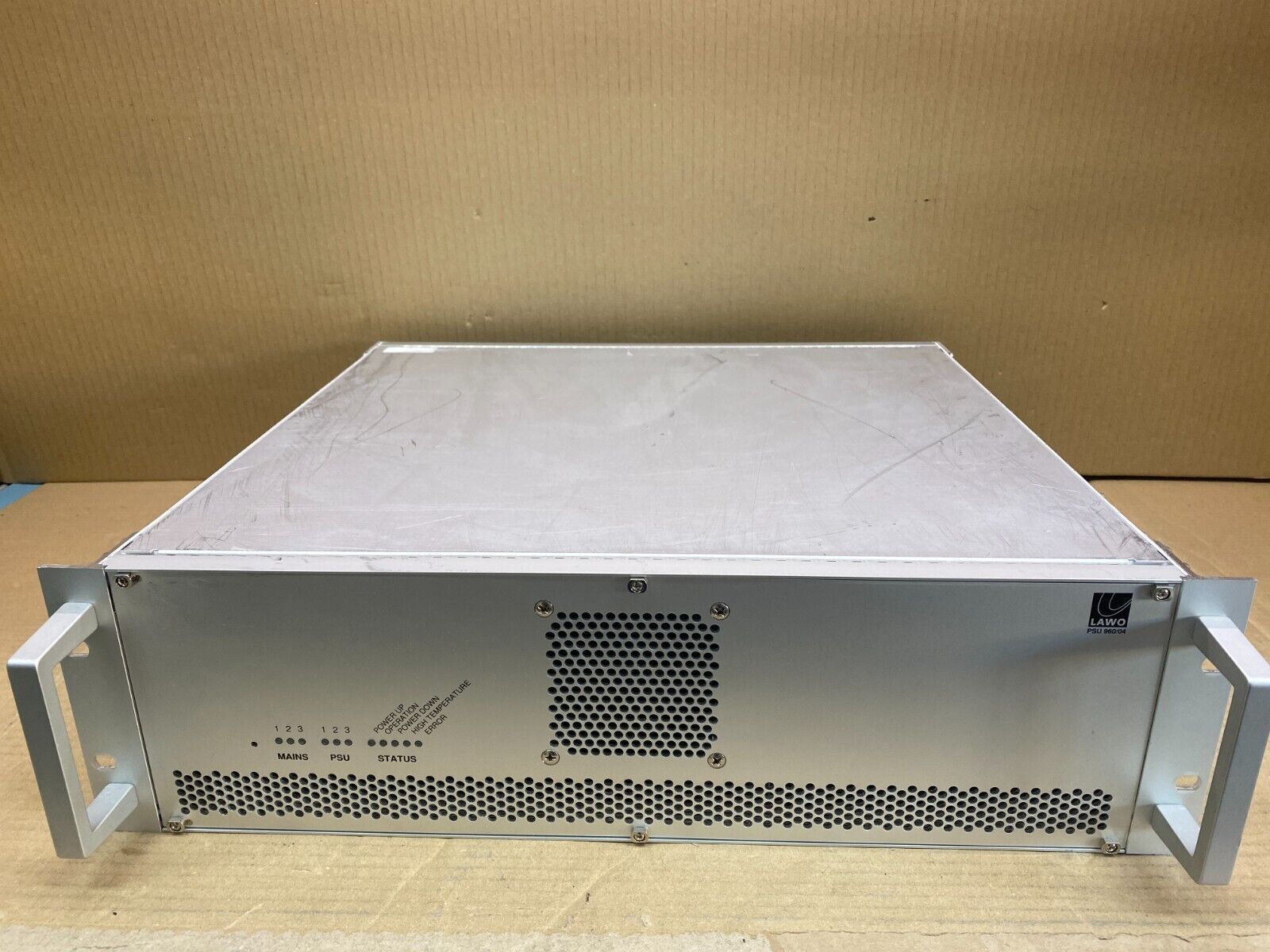

This listing is for a Lawo PSU 960/04 broadcast power supply unit for the Lawo mc² series. The PSU is intended for use with Lawo mc² mixing consoles (for example mc²66 and mc²90) and is built for high-availability broadcast environments. The unit shown powers on and its internal fans operate, however the front-panel "ERROR" LED is illuminated. No further diagnostics have been performed and the unit is therefore offered for parts or repair.

Features

• Designed for Lawo mc² series consoles — provides the primary DC power distribution for console systems.
• Multiple mains inputs (three separate mains inlets) with individual fused mains switches for redundancy and uninterrupted operation.

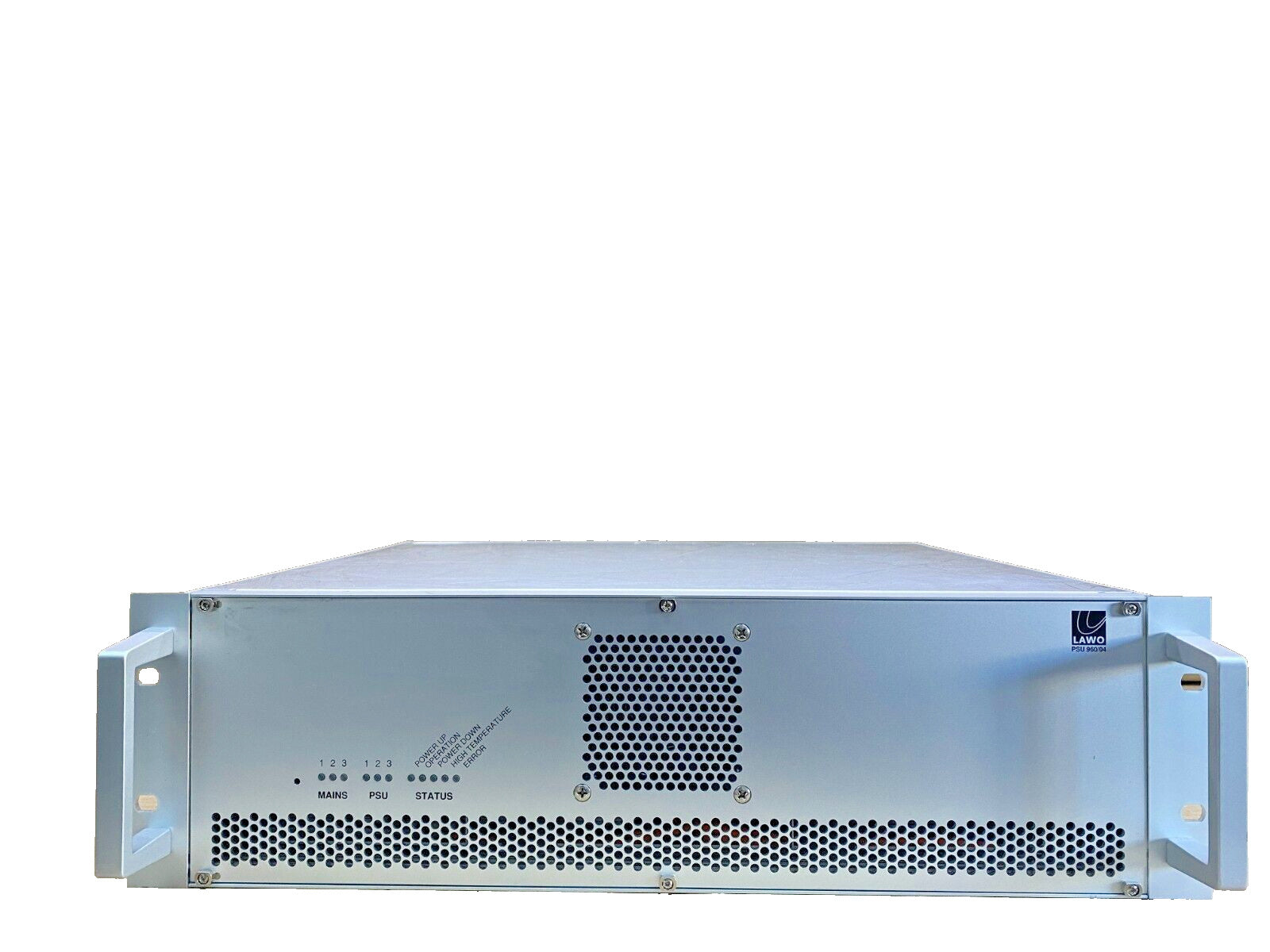

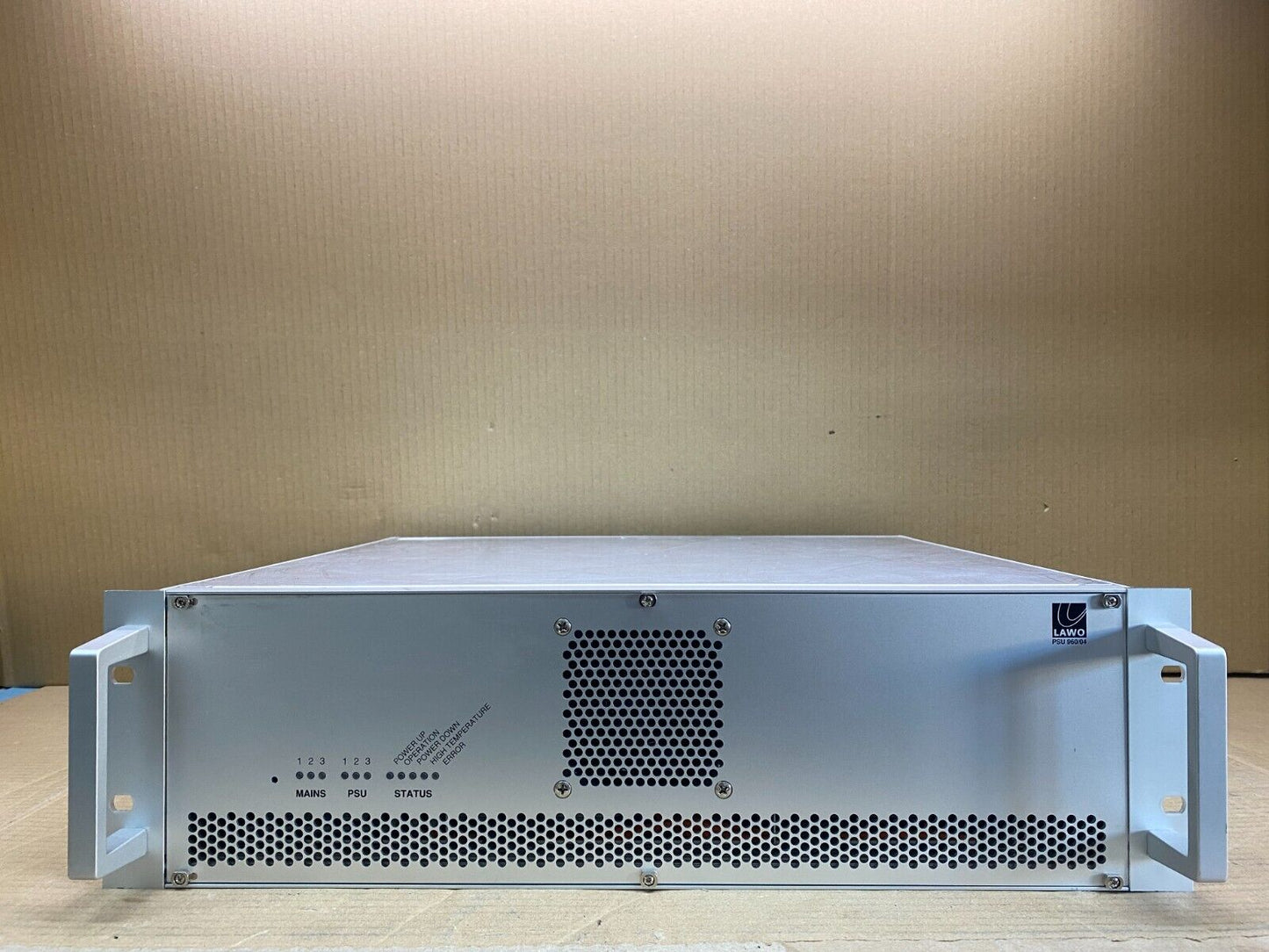

• Front-panel status LEDs for quick visual monitoring of mains, PSU and overall unit status (Power Up, Operate, Power Down, High Temperature, Error).
• Harting multi-pin console connector (robust rack-mounted connector) for the console power/interface connection.
• Integral cooling with internal fans and vented front/rear panels for airflow.
• 19" rack-mount form factor with front handles for installation in OB vans, broadcast racks or studio environments.

Specifications

• Brand: Lawo

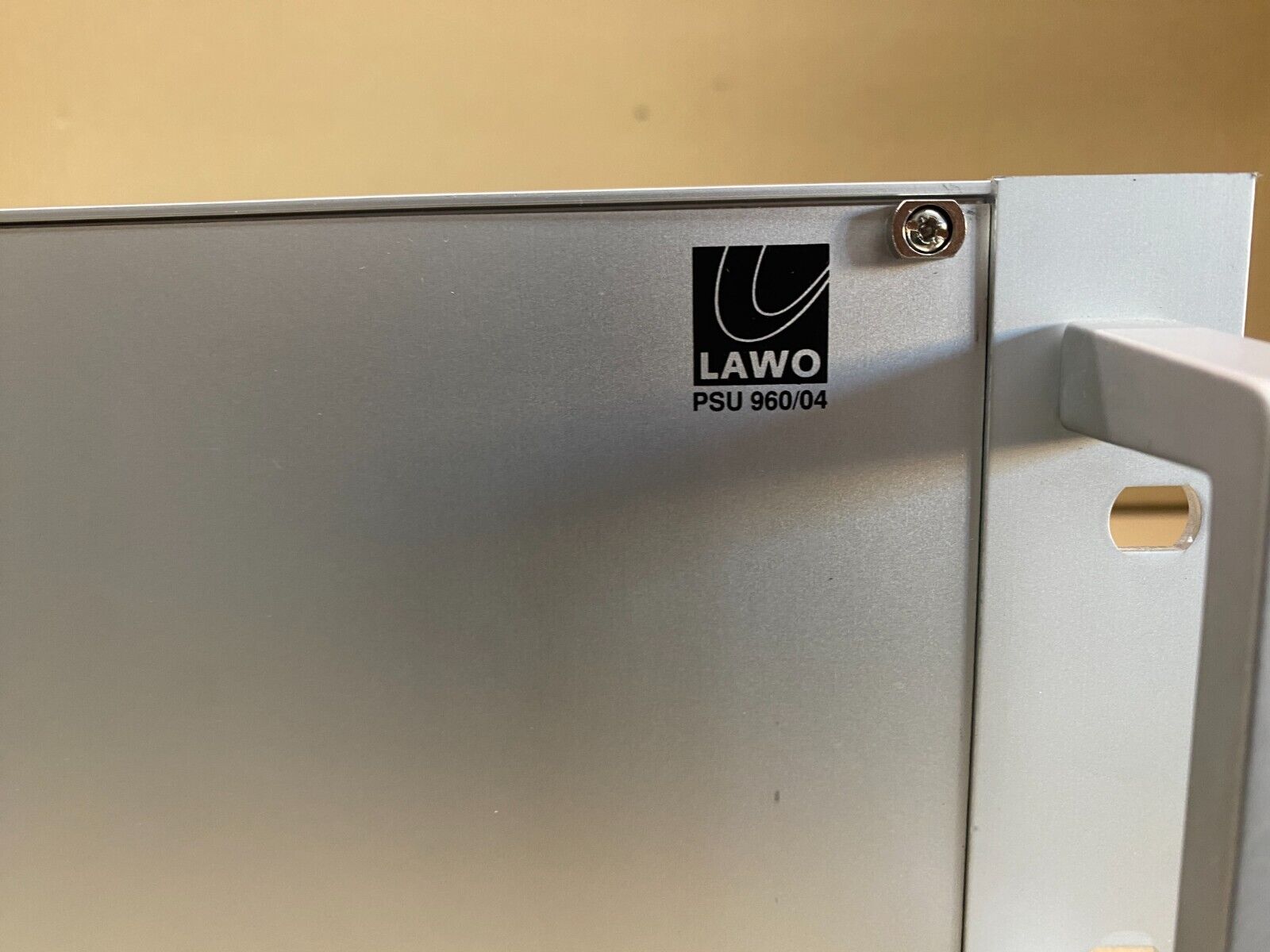

• Model: PSU 960/04
• Product line: mc² (mc2) series
• Intended application: Broadcast console power supply (mc² series)

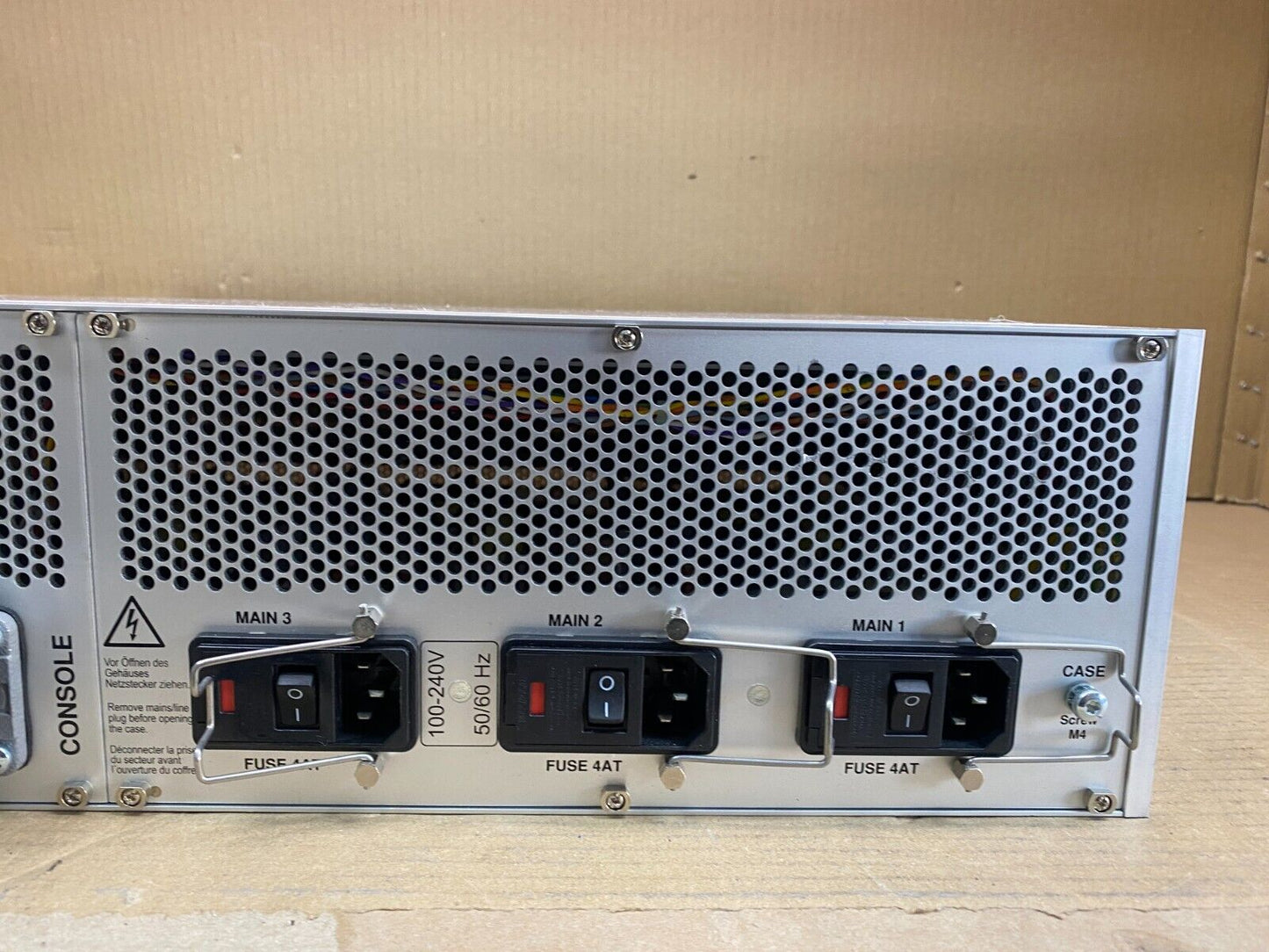

• Mains inputs: 3 × IEC mains inlets with individual on/off switches and fuse holders (labelled MAIN 1 / MAIN 2 / MAIN 3)
• Input voltage: 100–240 V AC (50/60 Hz)
• Mains fuse rating: FUSE 4AT (as marked on the rear panel)
• Console connector: Harting multi‑pin (Han style) connector for the console power/interface
• Indicators: Front-panel LEDs for MAINS, PSU and STATUS
• Cooling: Internal fans; vented front and rear panels
• Mounting: 19" rack-mountable (3U height)

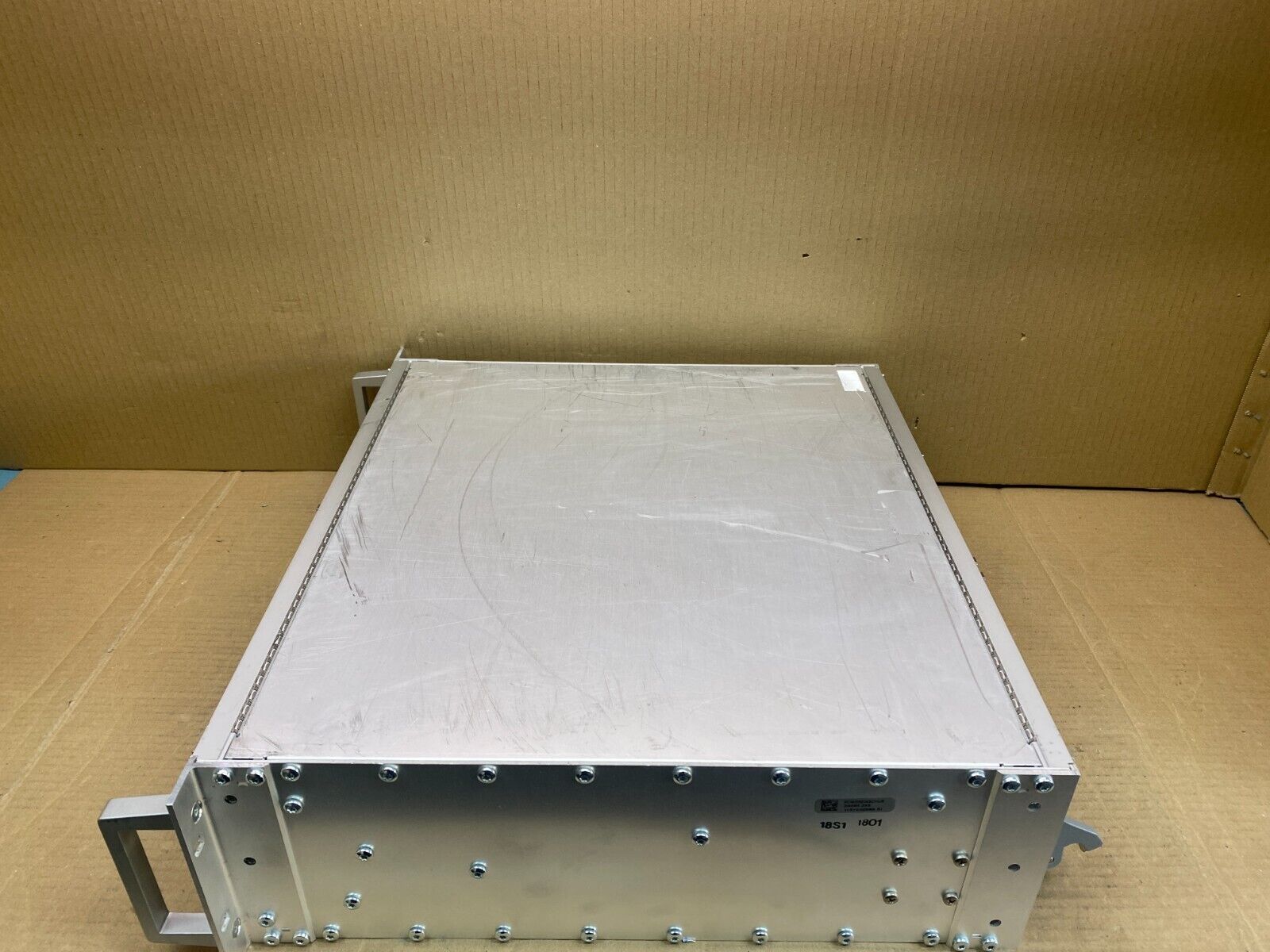

• Physical condition: Unit shows cosmetic wear consistent with installation and handling (scratches to outer panels). Sold as-is for parts or repair.

What you get

• 1 × Lawo PSU 960/04 broadcast power supply unit (for parts/repair)
• 3 × power cables (as listed in the original description)
