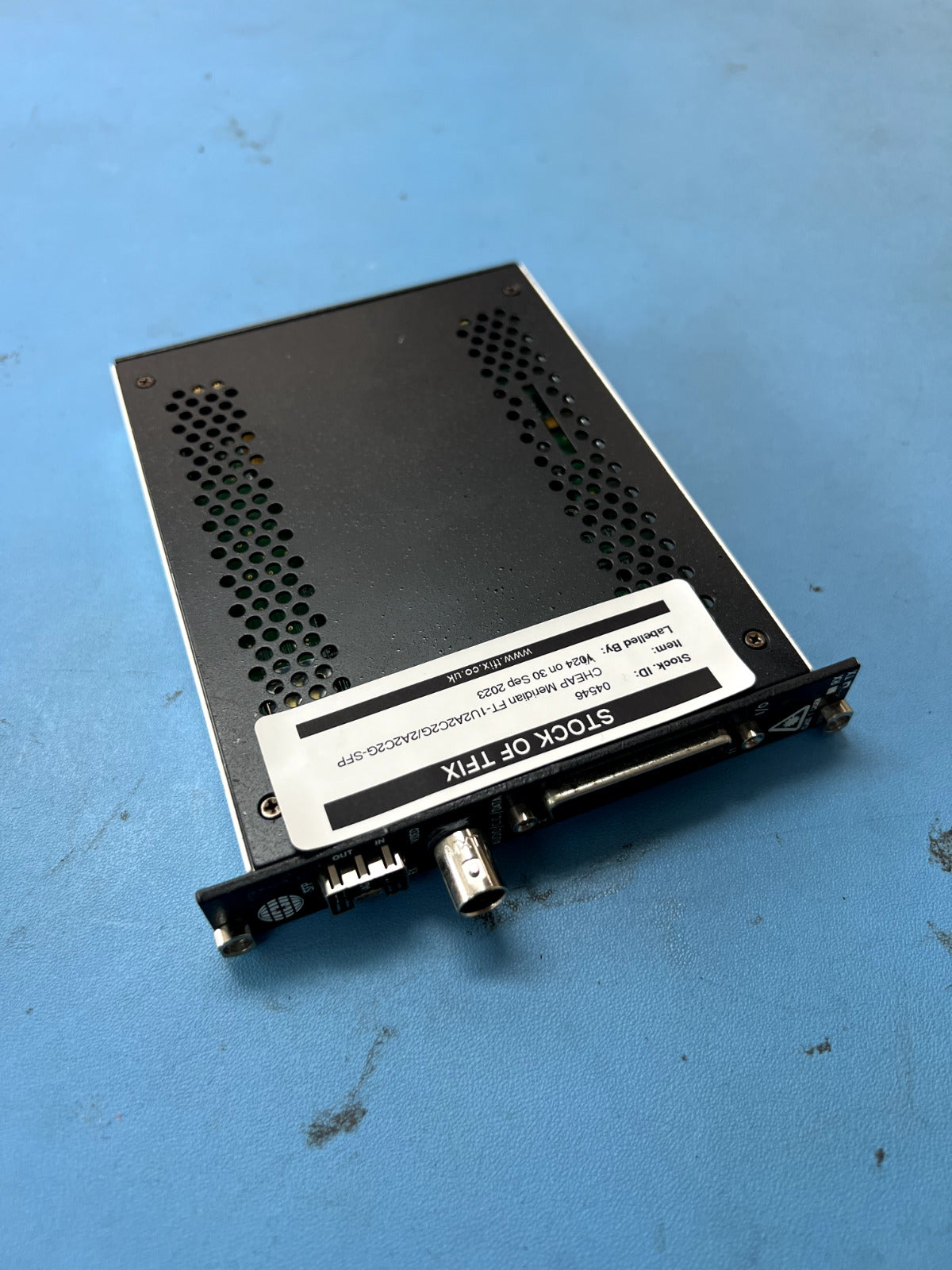

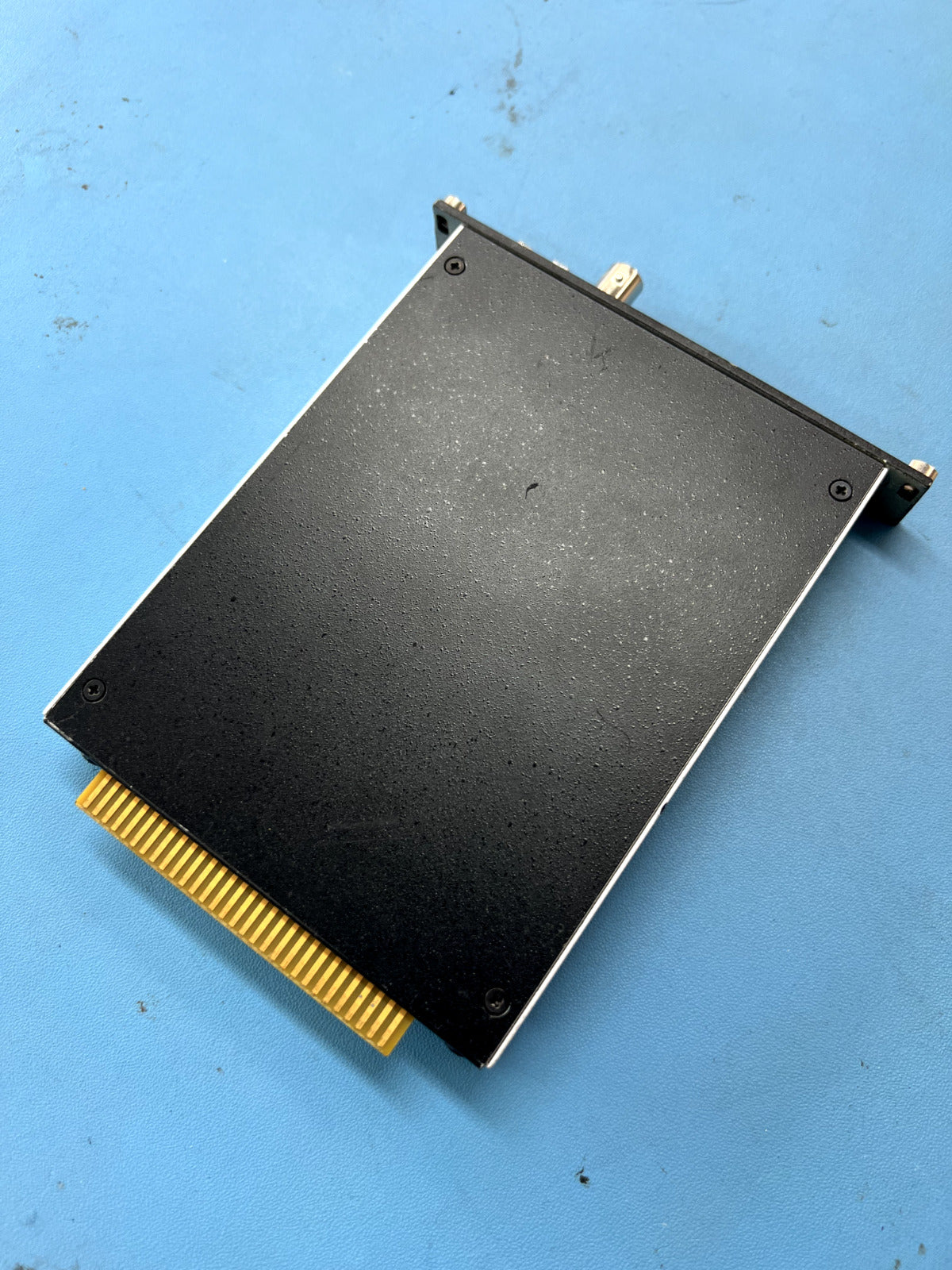

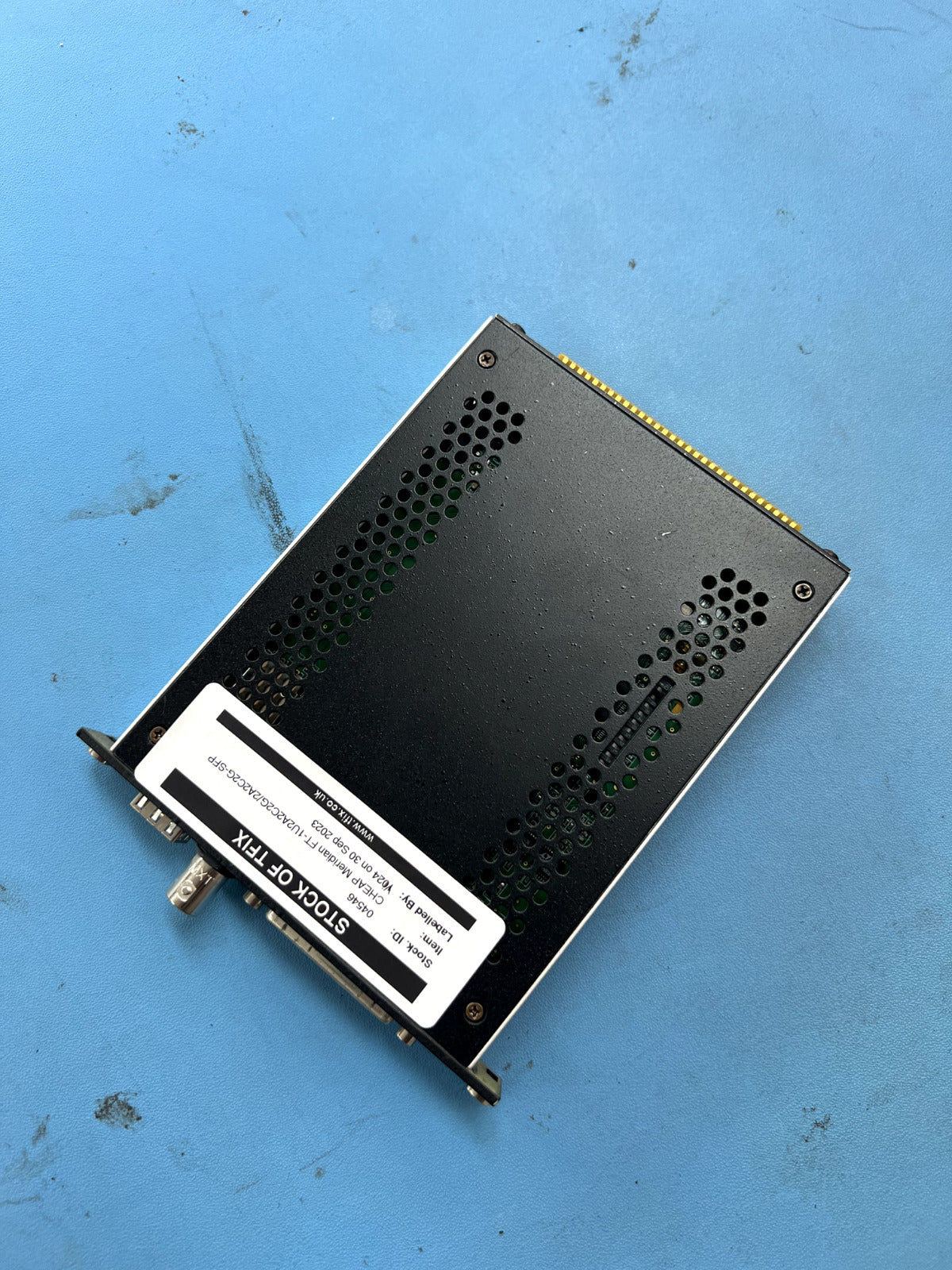

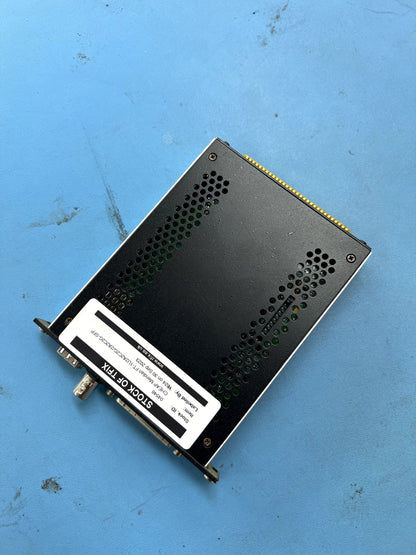

Broadcast SFP Audio Video Tx Card Meridian FT-1U2A2C2G NTSC PAL SECAM

Description

The Meridian FT-1U2A2C2G/2A2C2G-SFP is a high-quality, professional-grade broadcast SFP audio video transmitter card. This device utilises Meridian's advanced digital encoding technology to transmit a variety of signals simultaneously, providing exceptional performance and reliability. The card can manage one real-time, high-quality 10-bit 10 MHz video signal, two full duplex 24-bit audio channels, and two user-selectable full duplex data channels, which can include RS-232, RS-485, RS-422, Manchester, or Bi-Phase signals. Additionally, it includes two full duplex contact closure channels.

The product employs industry-standard Small Form Pluggable (SFP) modules, allowing flexibility in selecting singlemode, multimode, or CWDM wavelengths. The transmission system is compatible with Meridian's SpectraSmart™ Network Management and Remote Diagnostic Software, which enables supervision of system parameters like video levels, sync status, carrier detect, voltage, temperature, optical levels, and data presence.

Features

• One digitally encoded 10-bit video signal
• 10 MHz video bandwidth
• NTSC, PAL, SECAM Compatible
• Two channels of bi-directional audio, multi-protocol data, and contact closure
• Multiple fibre options via SFP modules: multimode, singlemode, and CWDM
• SpectraSmart™ PC-based network management compatibility
• Local LED status indicators for critical system diagnostics
• Hot swappable for ease of maintenance
• Surface Mount Technology (SMT) for high reliability

Specifications

• Meets RS-250C short haul transmission specifications
• Wide optical dynamic range; no need for optical attenuators
• Laser back biased photo detector for stable optical output across full temperature range
• 75 Ohm BNC video connector with gold centre pin
• EIA RS-170 and RS-343A format support
• DB 25 type connectors for audio, data, and contact closure
• LC, SC optical connectors (SFP dependent)

What you get

• 1 x Meridian FT-1U2A2C2G/2A2C2G-SFP Video Audio Transmitter Card
