Broadcast Video Job Lot Evertz Multiframe Video Amp BNC Joystick Controller

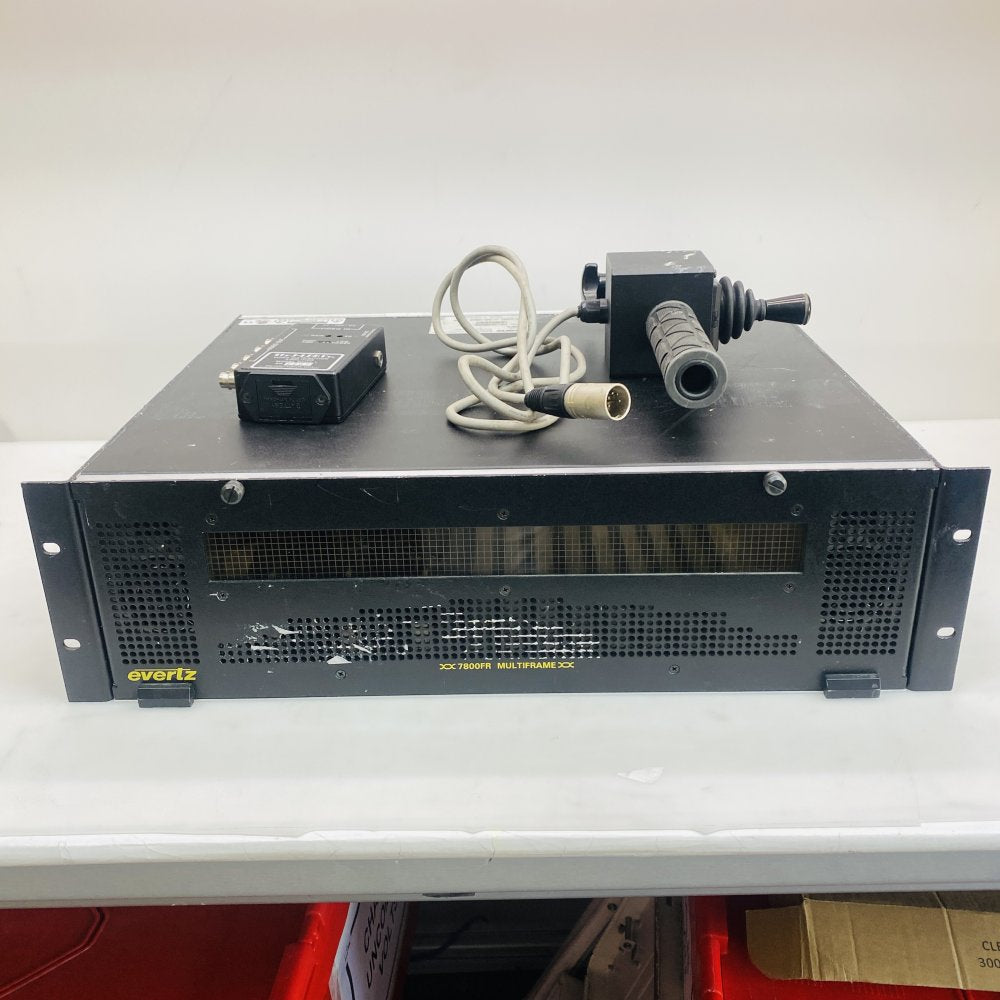

Broadcast video equipment job lot comprising an Evertz 7800FR-QT quiet multiframe chassis (3RU) populated with three Evertz 7707VR-4 receiver cards, a wired camera joystick controller with mounting clamp and a J-LAB Co. BPDA-1 video distribution amplifier. The J-LAB unit is supplied without its power supply. The Evertz chassis is a modular 16‑slot frame with network and serial management I/O and accepts Evertz 7000‑series cards (installed cards shown).

Features

• Evertz 7800FR‑QT multiframe chassis (3RU) – modular, rack‑mountable broadcast frame.

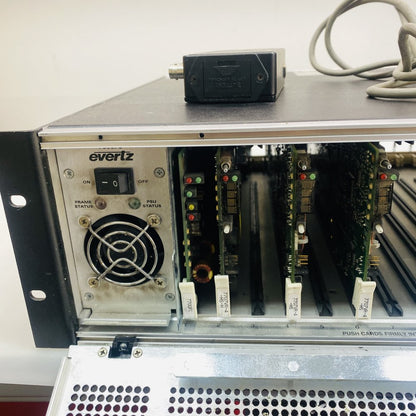

• 16 card slots (chassis accepts hot‑swappable Evertz 7000‑series cards; three slots populated).
• Front and rear ventilation with quiet fan design (QT model).

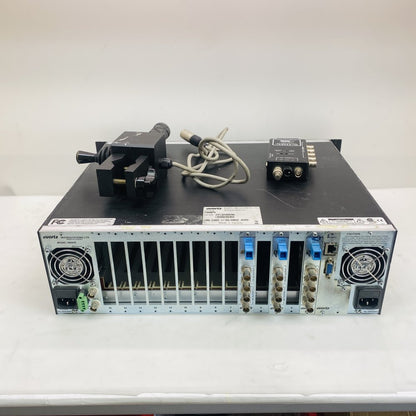

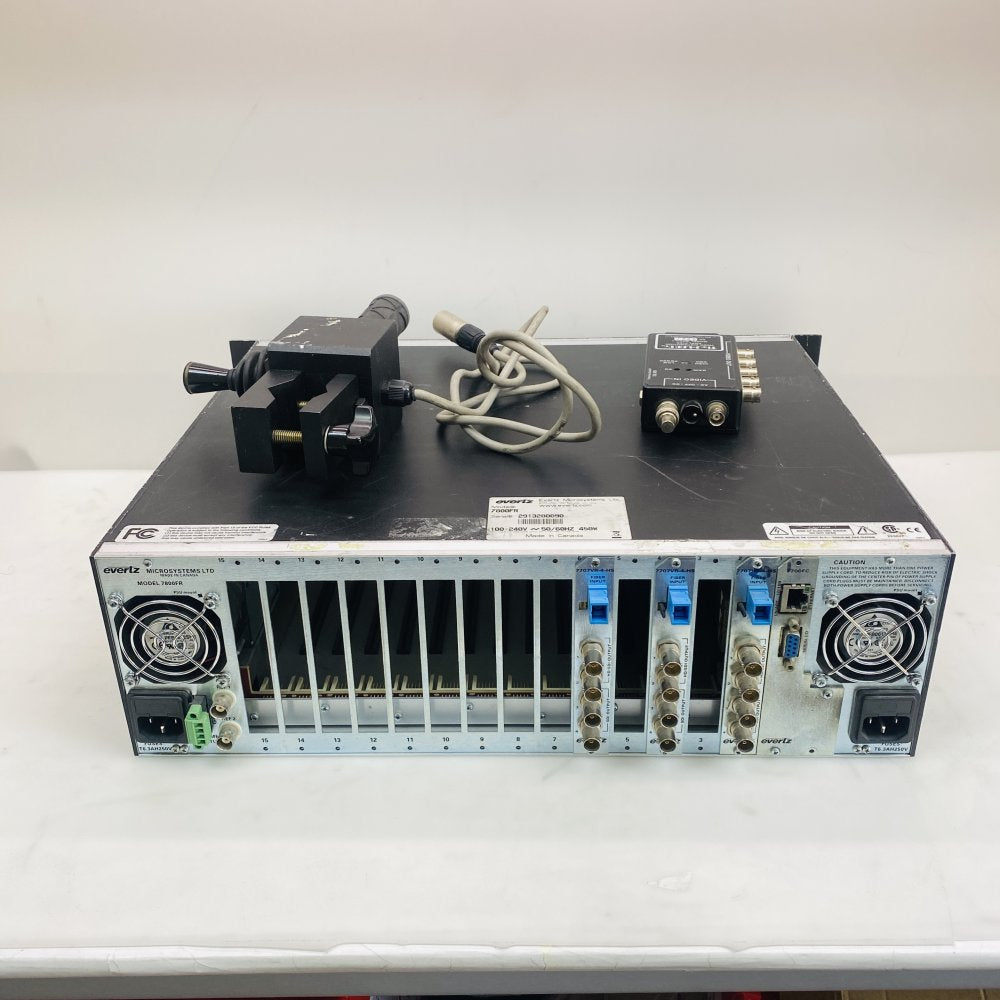

• Rear I/O includes Ethernet management port and RS‑232 serial port for control and monitoring.

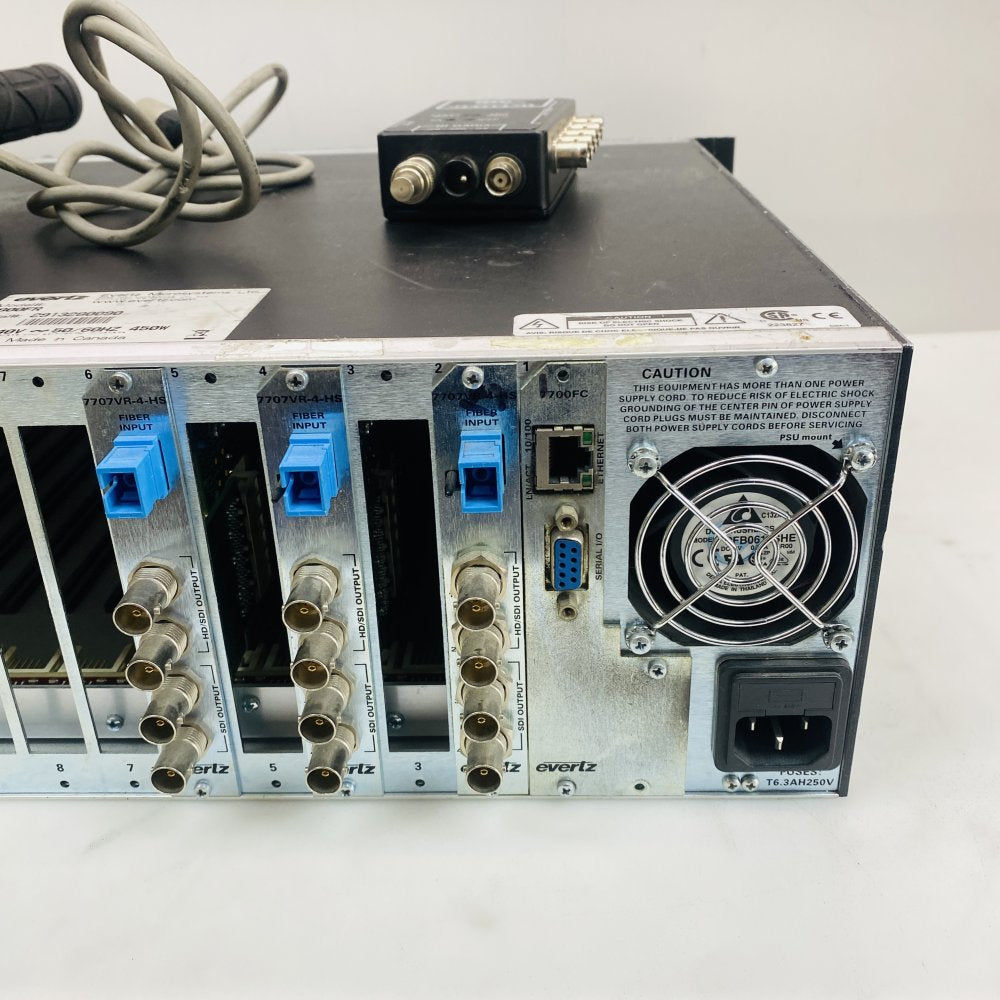

• Three × Evertz 7707VR‑4 receiver cards installed – quad SD / dual HD receiver modules (fibre input on SC connector, BNC SDI outputs).
• J‑LAB Co. BPDA‑1 video distribution amplifier – single video input with multiple BNC outputs; selectable AC/OFF/DC input modes and front panel gain/EQ controls (12 V DC centre pin negative as labelled). Power supply not included.
• Wired camera joystick controller – handheld joystick with multi‑pin cable and clamp mount for pan/tilt control (sold as pictured).

Specifications

• Chassis model: Evertz 7800FR‑QT (3RU).
• Chassis power: 100–240 V ~, 50/60 Hz, 450 W (labelled on unit).
• Card slots: 16 (three slots populated in photos).
• Installed cards: 3 × Evertz 7707VR‑4 (quad SD / dual HD receiver modules; fibre input SC, SDI BNC outputs).
• Management interfaces: RJ45 Ethernet (10/100) and RS‑232 serial I/O (DB9) on rear panel.
• Video outputs: BNC SD/HD‑SDI outputs on installed cards; distribution amplifier provides multiple BNC outputs.
• Distribution amplifier: The J‑LAB BPDA‑1 video distribution amplifier (model BPDA‑1) with front‑panel gain/EQ and a labelled 12 V DC centre‑pin negative input option. No PSU included.
• Joystick: Wired handheld camera joystick controller with multi‑pin connector and clamp mounting bracket (as pictured).
• Country of origin: Chassis labelled Made in Canada.

What you get

• 1 × Camera joystick controller
• 1 × J‑LAB Co. BPDA‑1 Video Distribution Amplifier (no power supply included).
• 1 × Evertz 7800FR‑QT Quiet Multiframe (3RU) chassis with three installed Evertz 7707VR‑4 receiver cards.
