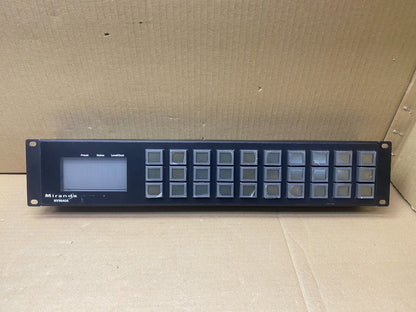

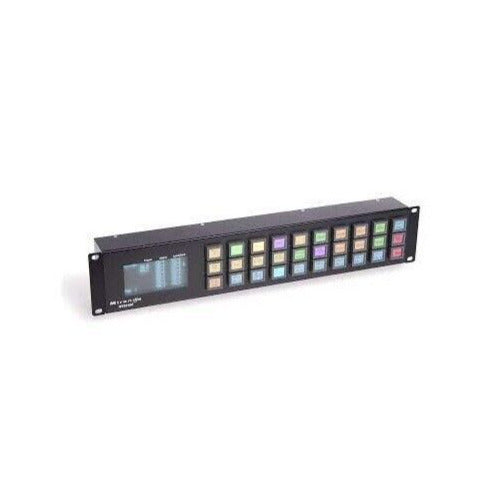

Broadcast X-Y LCD Control Panel NVision NV9640A 2RU SDI Rack-Mount

Broadcast X-Y LCD Control Panel NVision NV9640A 2RU SDI Rack-Mount

£269.00
£269.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

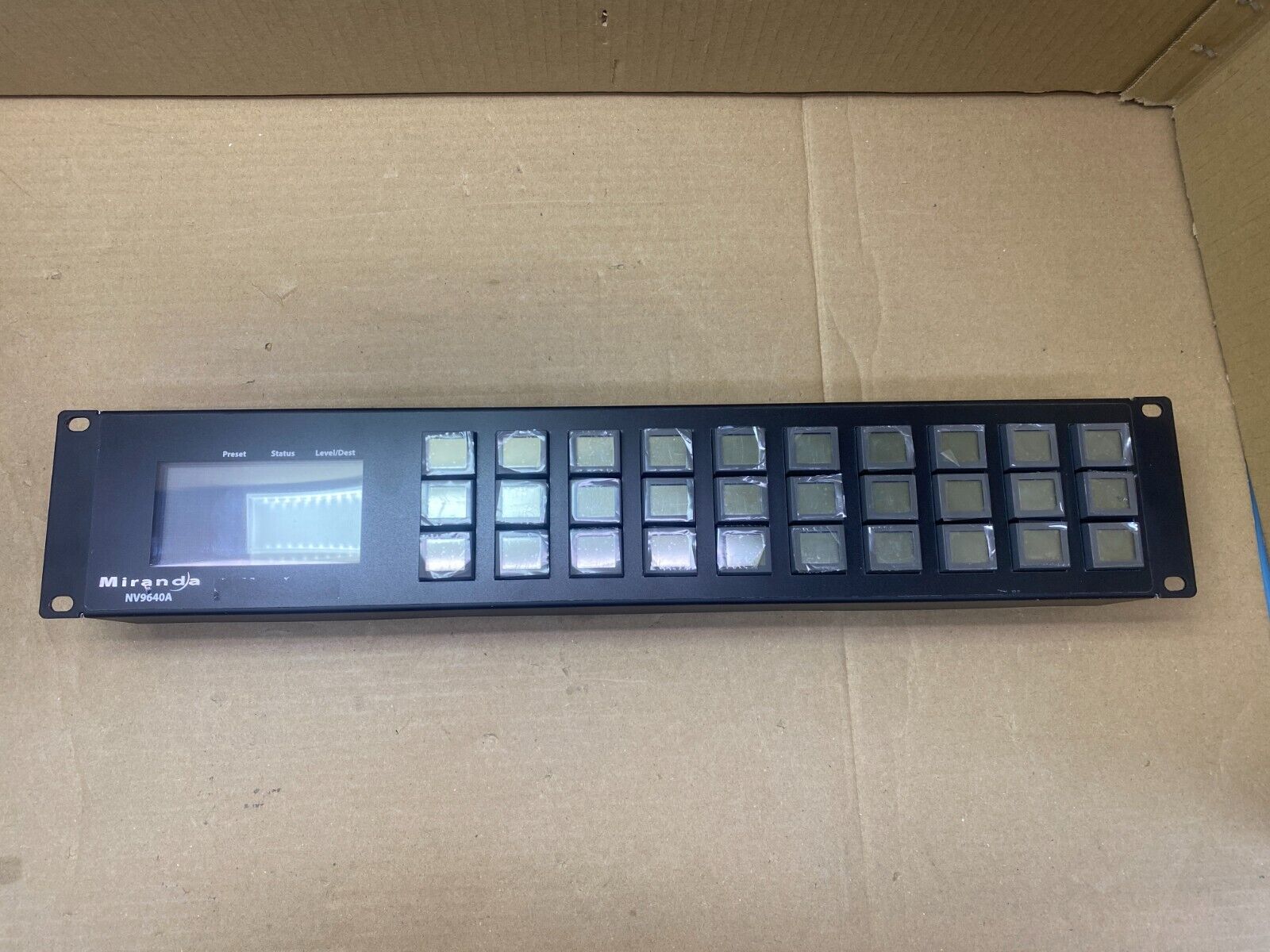

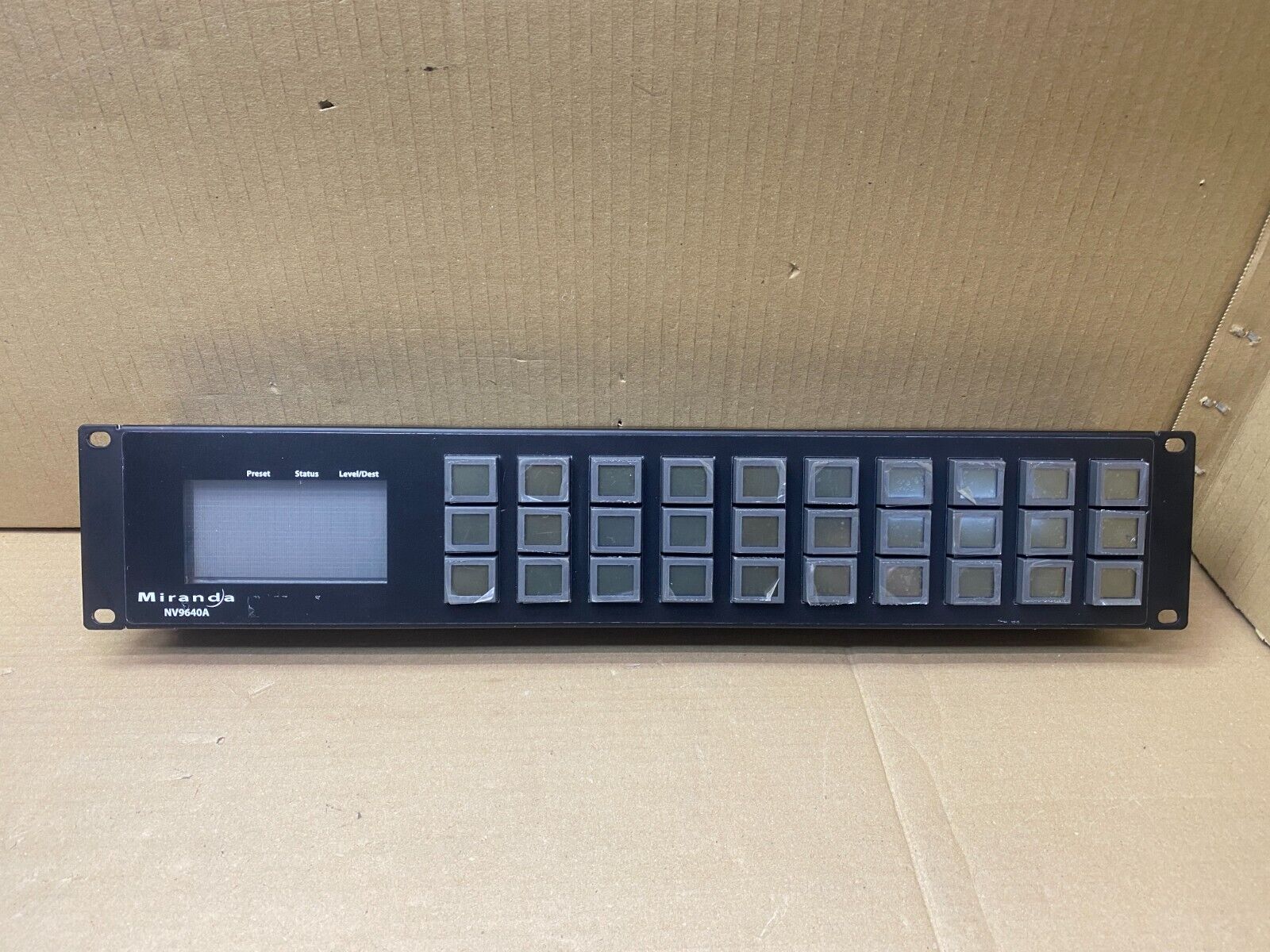

The Miranda NVision NV9640A 2RU SDI Rack-Mount LCD Control Panel is a sophisticated control system designed for broadcast environments. With its hierarchical button layout, 30 LCD function buttons, and a versatile vacuum fluorescent display, this panel offers flexible and comprehensive control for your broadcasting needs.

Description

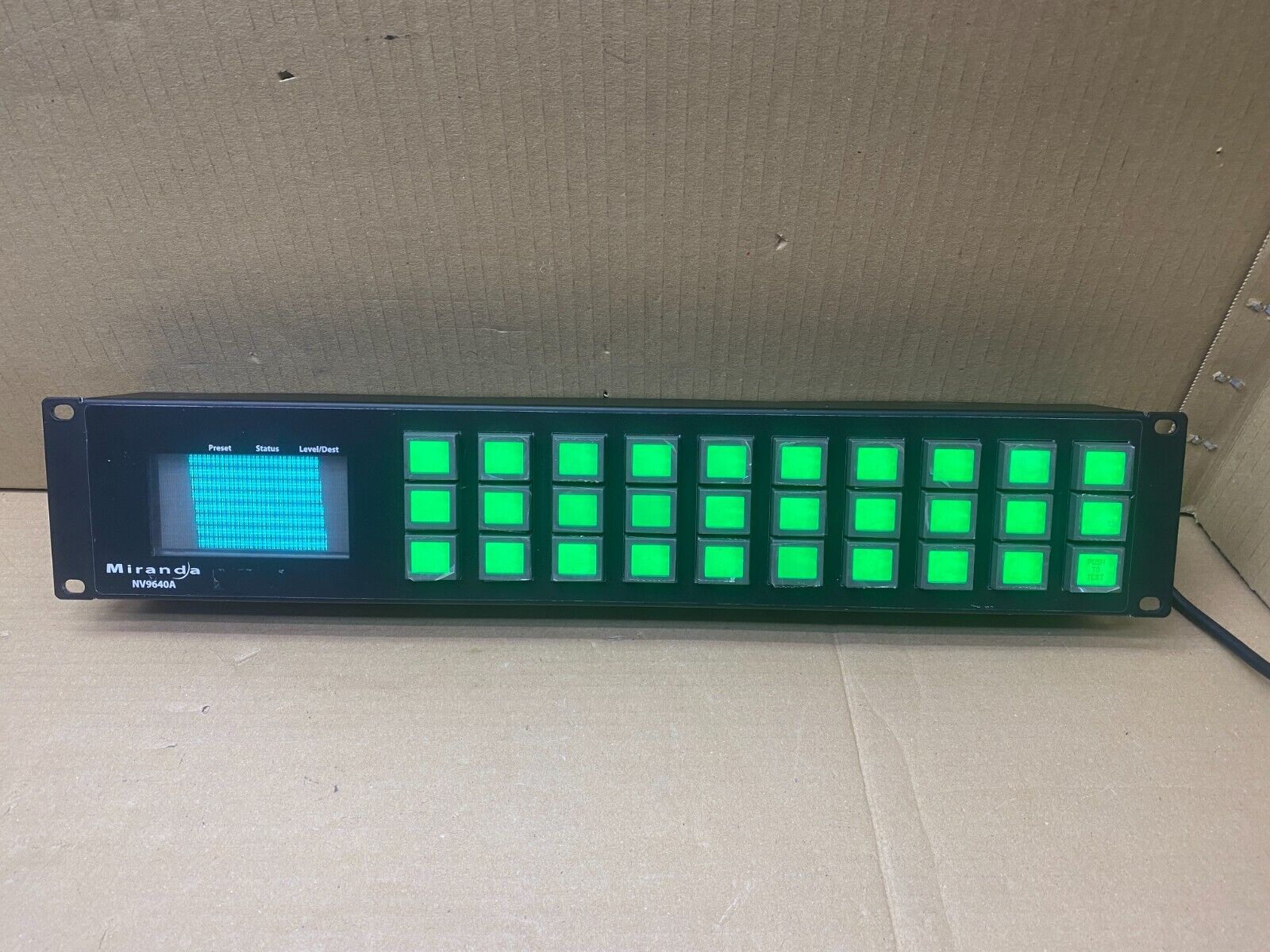

The NV9640A serves as a hierarchical control panel equipped with 30 LCD function buttons, illuminated in various colours with 1 to 3 lines of text. These buttons operate in either X-Y mode or multi-destination (MD) mode, providing a flexible operation environment. Operators can easily switch between these modes, and configure subtrees or button pages for different levels of functionality.

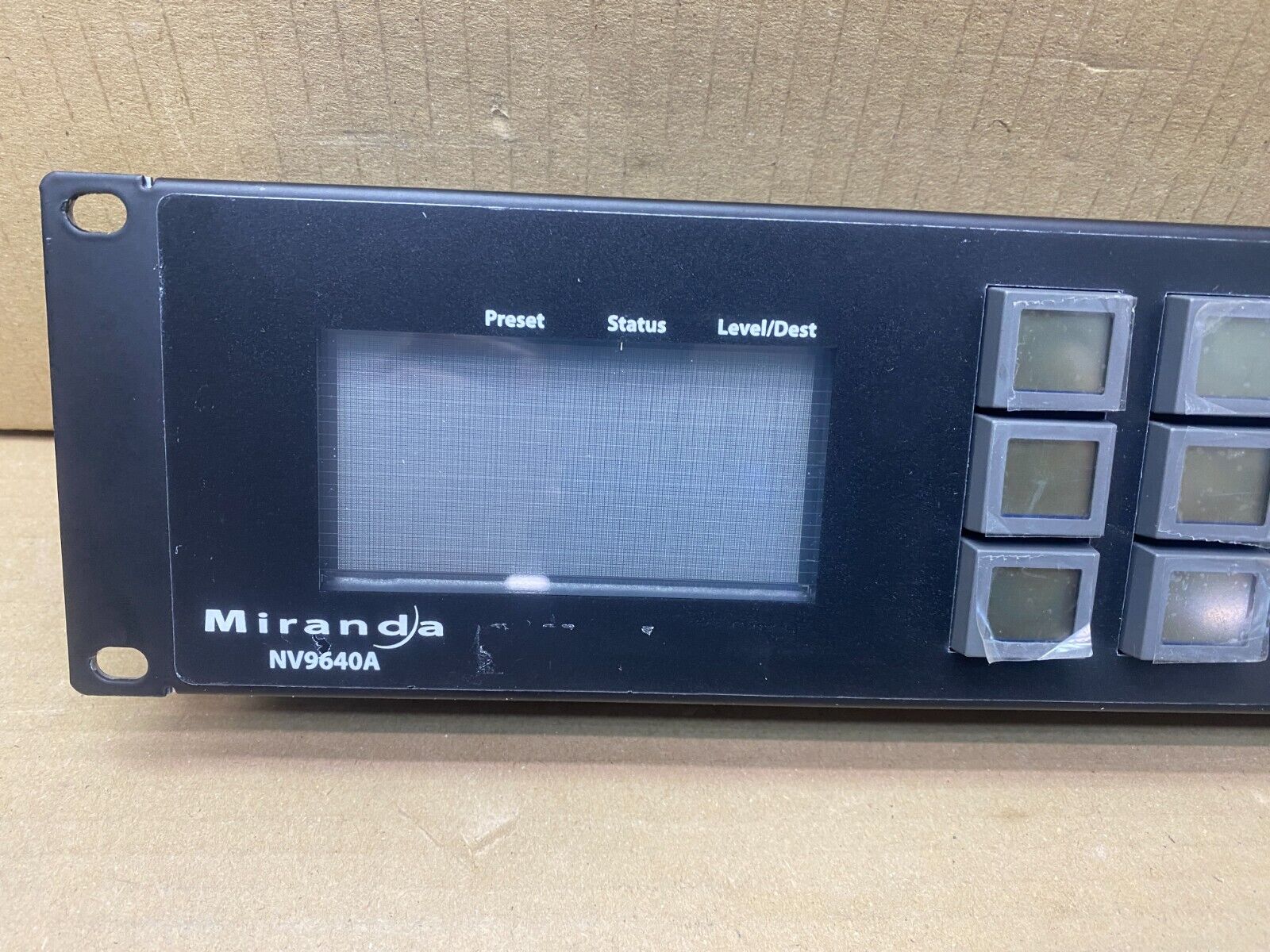

The vacuum fluorescent display features 8 lines of 42 characters, enhancing the panel's usability by providing clear and detailed information. The panel can host pre-defined button pages, allowing users to browse sources or destinations effortlessly, and offers a configurable menu setup through the 'menu' button feature.

Features

  • Previous source, free source, 'quick' source, and source/destination buttons.
  • Return to a pre-defined or default state.
  • Maintain breakaway levels.
  • System salvos for efficient operation.
  • Lock/protect/release functions for destinations.
  • Forced release of locked or protected devices.
  • Device selection via indexes or suffixes.
  • Supports multi-level breakaways in X-Y mode, enabling multiple sources to route to the same destination at different levels.
  • Gang or dub switching in multi-destination mode.
  • Broadcast data routing capabilities in X-Y mode.
  • Level mapping for precise control.
  • Button page templates, including global navigation templates and suffix templates, simplify configuration.

Specifications

  • Model: NVision NV9640A
  • Mounting: 2RU SDI Rack-Mount
  • Display: 30 LCD function buttons and 8-line vacuum fluorescent display
  • Modes: X-Y mode and Multi-Destination (MD) mode
  • Power requirements: Includes one power supply

What you get

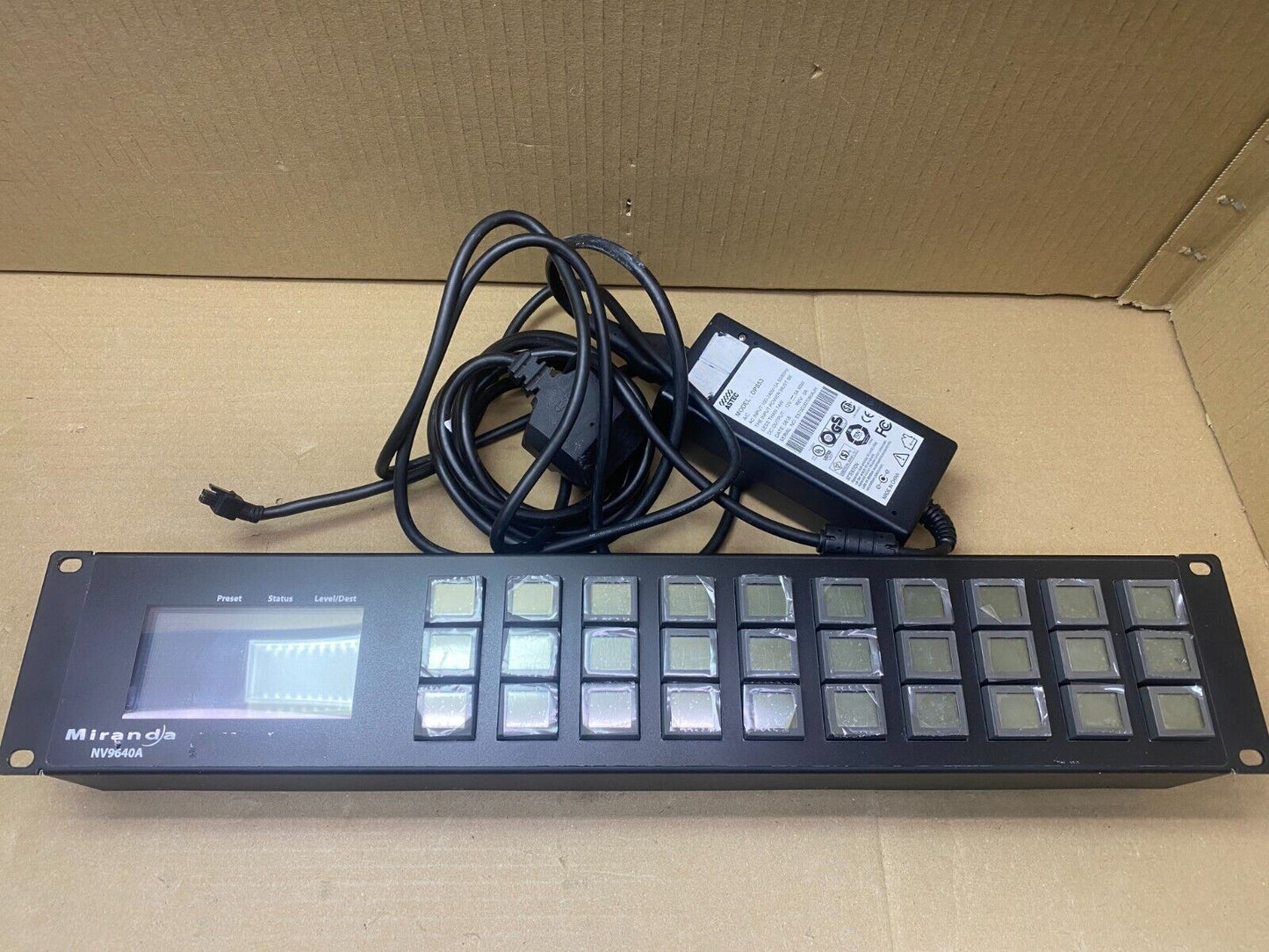

  • 1 x Miranda NVision NV9640A 2RU LCD XY Control Panel Mapping X-Y
  • 1 x Power Supply

History

The device came as part of the IT decommissioning project and was removed from a working environment.

Details

VAT or 20% is included in the price (No VAT for international customers).
