Broyce Control M1DOM Timer Relay Modules Set of 4 24-240V DIN Mount Grade B
£42.95
Regular price
£42.95
Sale price
£42.95
Regular price
£64.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 1 left

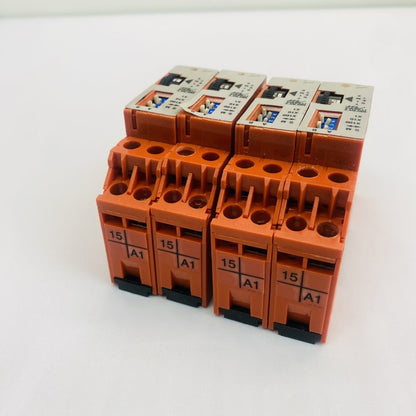

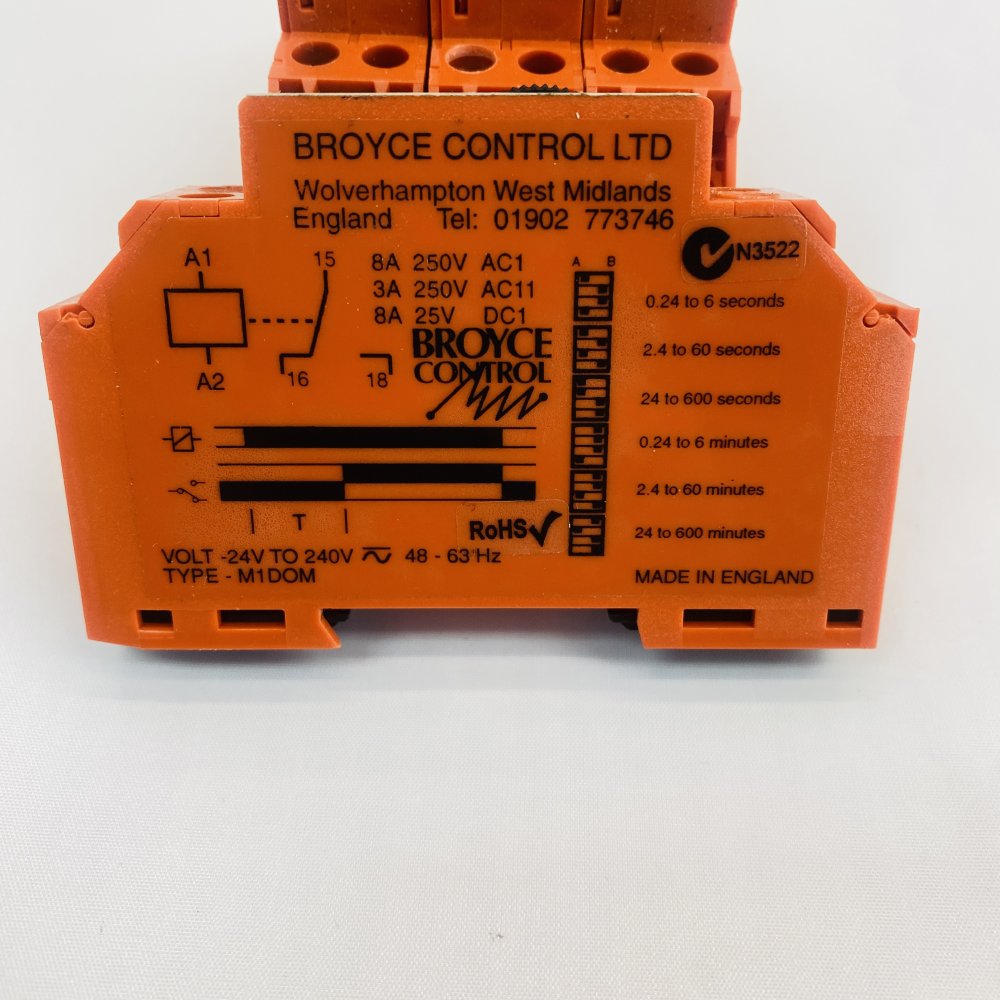

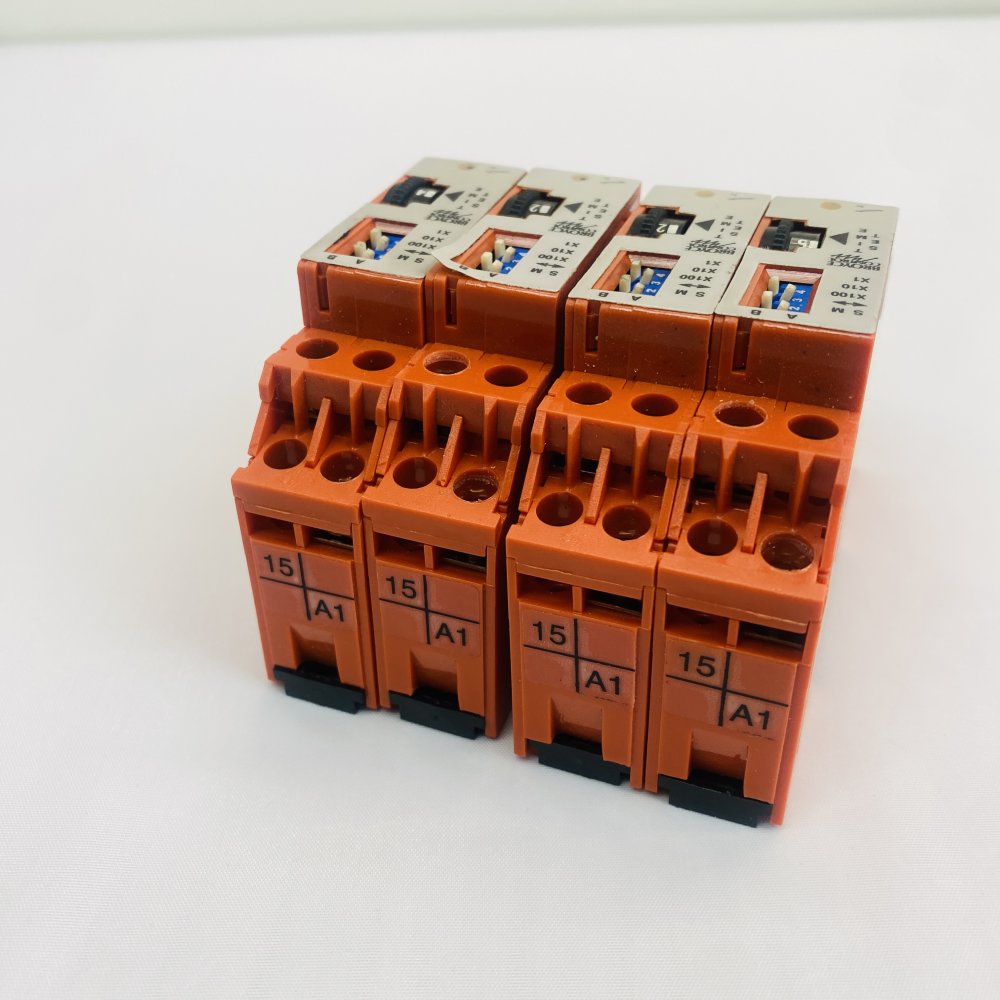

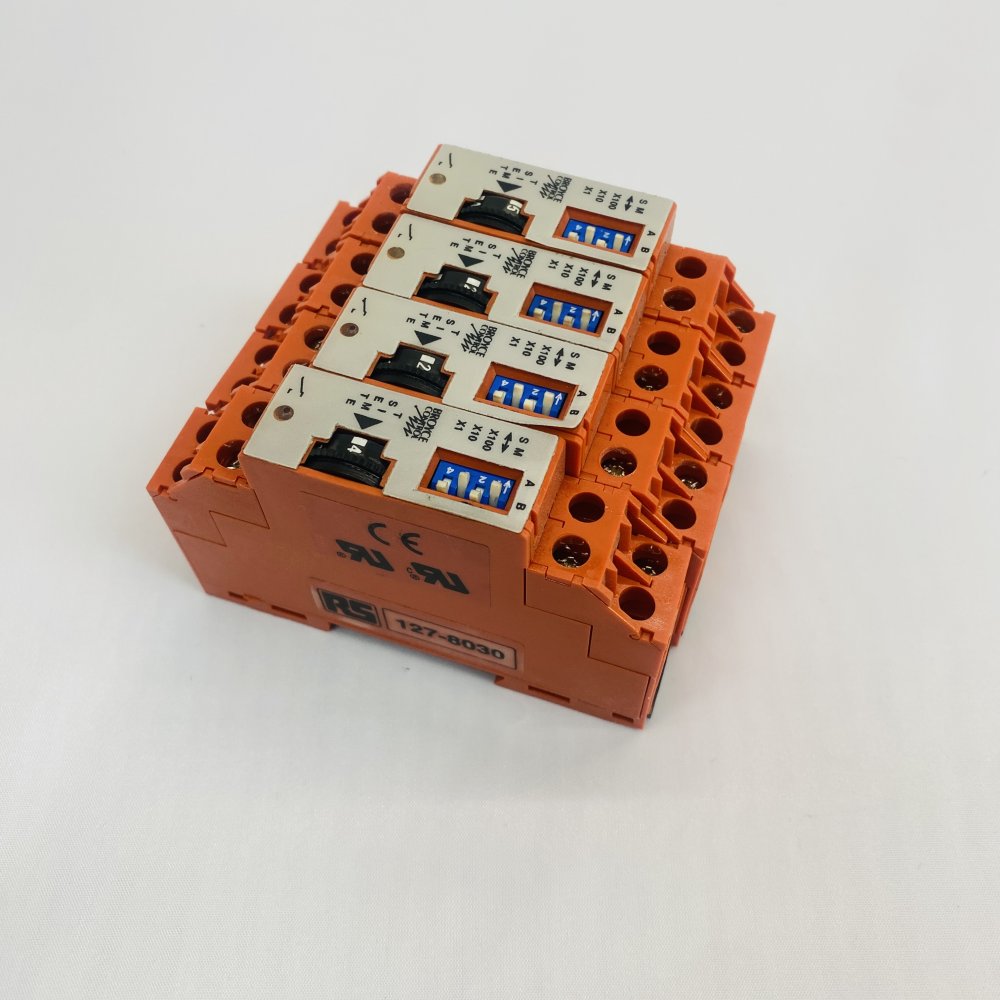

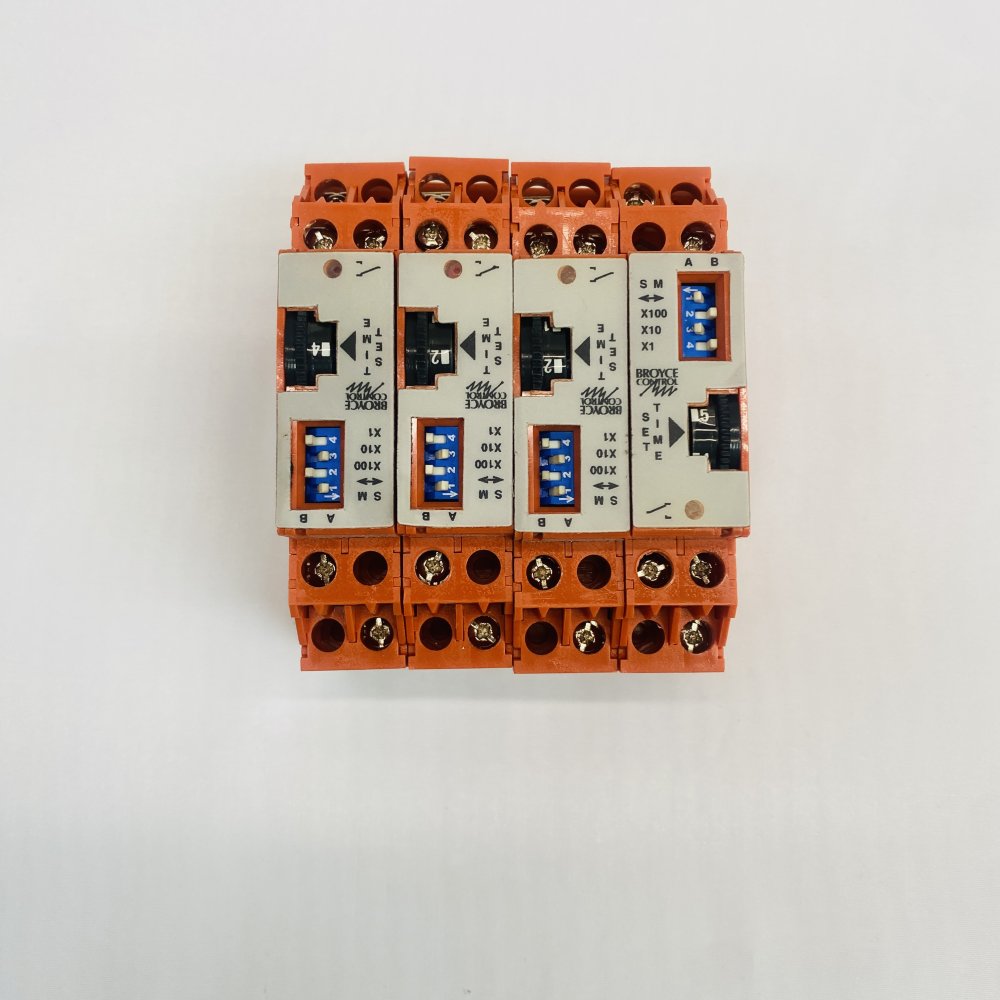

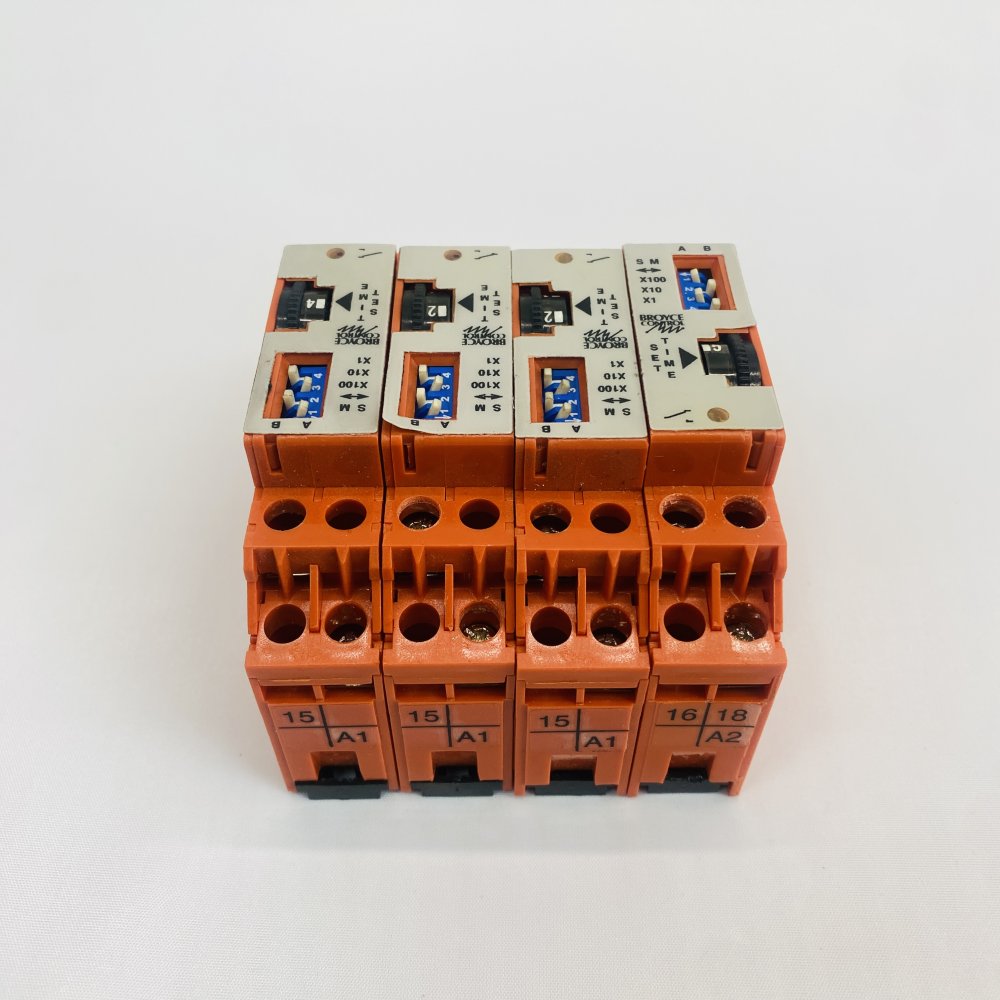

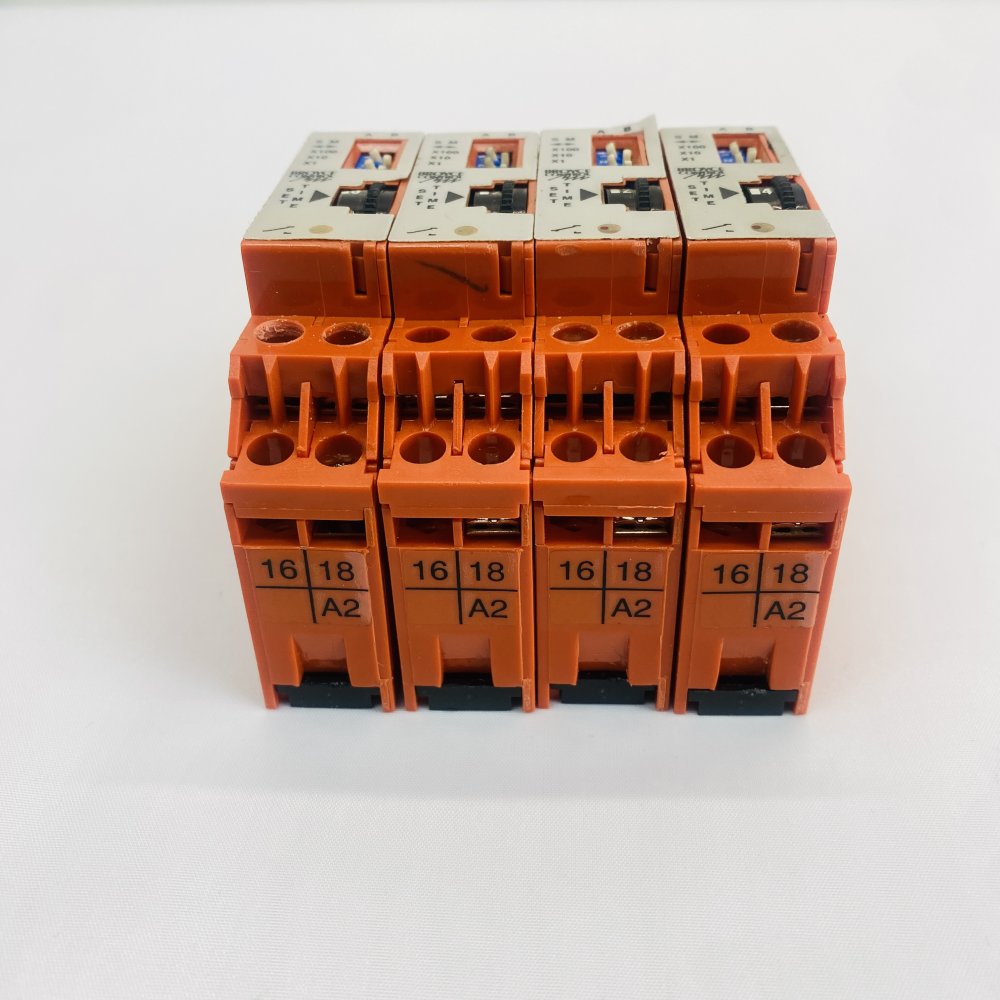

Set of four Broyce Control M1DOM DIN-rail timer relay modules. These are adjustable time-delay relays intended for use in control panels and automation systems. Units are modular and designed to clip to a standard DIN rail. The modules in the photographs show Type M1DOM with coil rating marked as 24V to 240V AC (48–63 Hz) on the housing and carry the RS label 127-8030. Each module has a single changeover contact (terminals 15, 16, 18) and adjustable timing via a multiplier switch and fine-adjust control.
Key Features
- Manufacturer: Broyce Control Ltd (Type M1DOM)
- DIN-rail mountable modular timer relays; units stack together
- Coil voltage range shown on housing: 24–240 V AC, 48–63 Hz
- Adjustable timing with multiplier switch (x1, x10, x100) and fine adjust
- Timing ranges visible on housing: 0.24–6 s, 2.4–60 s, 24–600 s, 0.24–6 min, 2.4–60 min, 24–600 min
- Screw terminals for power and load connections; common and changeover contact (15 = common, 16 = NC, 18 = NO)
- Contact ratings printed on housing (see Technical Specifications)
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Broyce Control Ltd |
| Model | M1DOM |
| Part Number / Supplier code | RS 127-8030 (label visible on unit) |
| Coil voltage | Marked on housing: 24 V to 240 V AC, 48–63 Hz |
| Timing ranges | Selectable ranges shown on housing: 0.24–6 s; 2.4–60 s; 24–600 s; 0.24–6 min; 2.4–60 min; 24–600 min |
| Adjustment | Multiplier switch (x1, x10, x100) and fine-adjust rotary/dial |
| Contact configuration | Single changeover (SPDT) per module — terminals 15 (COM), 16 (NC), 18 (NO) |
| Contact ratings (as marked) | 8 A @ 250 V AC (AC1); 3 A @ 250 V AC (AC11); 8 A @ 25 V DC |
| Mounting | DIN-rail (modular stackable enclosures) |
| Origin | Made in England (housing marking) |
What you get
- 4 x Broyce Control M1DOM timer relay modules (DIN-rail mount)
History
The items were removed during decommissioning of installed equipment. They are offered as previously installed components; please review the photographs carefully for physical condition and completeness.
