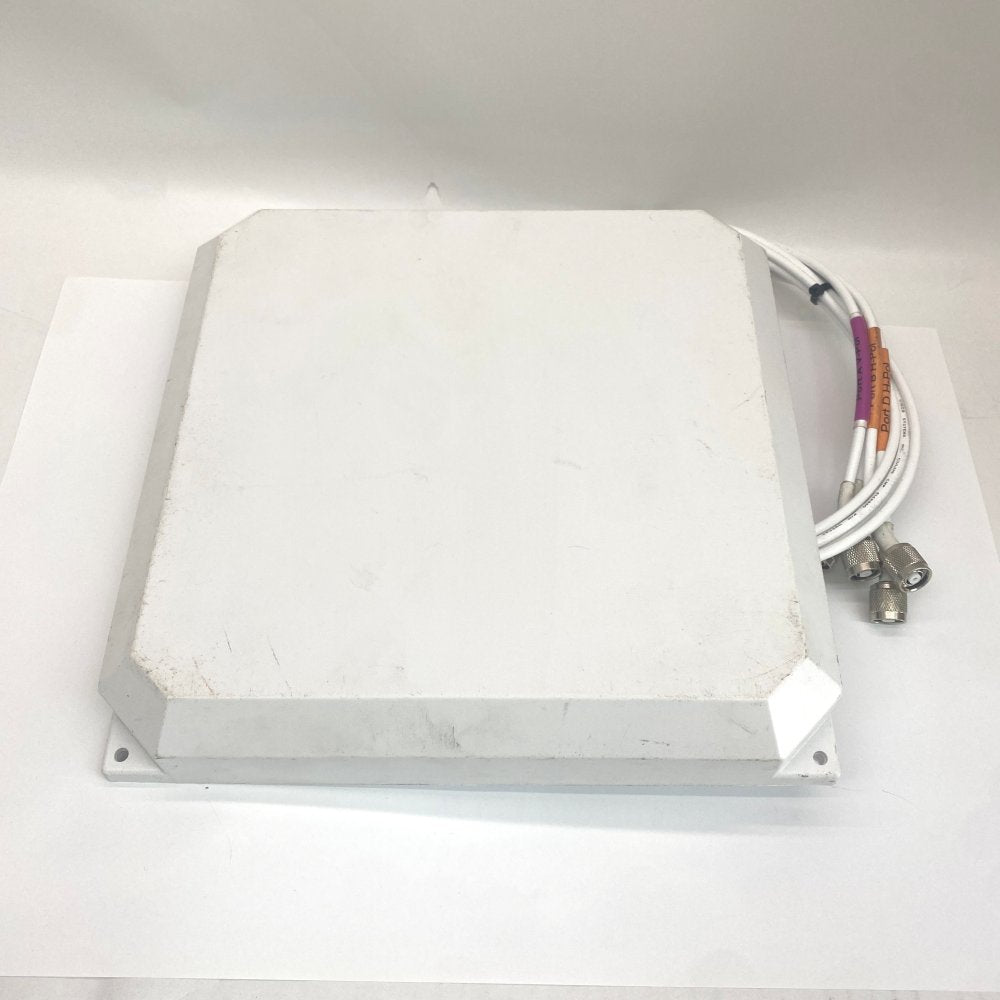

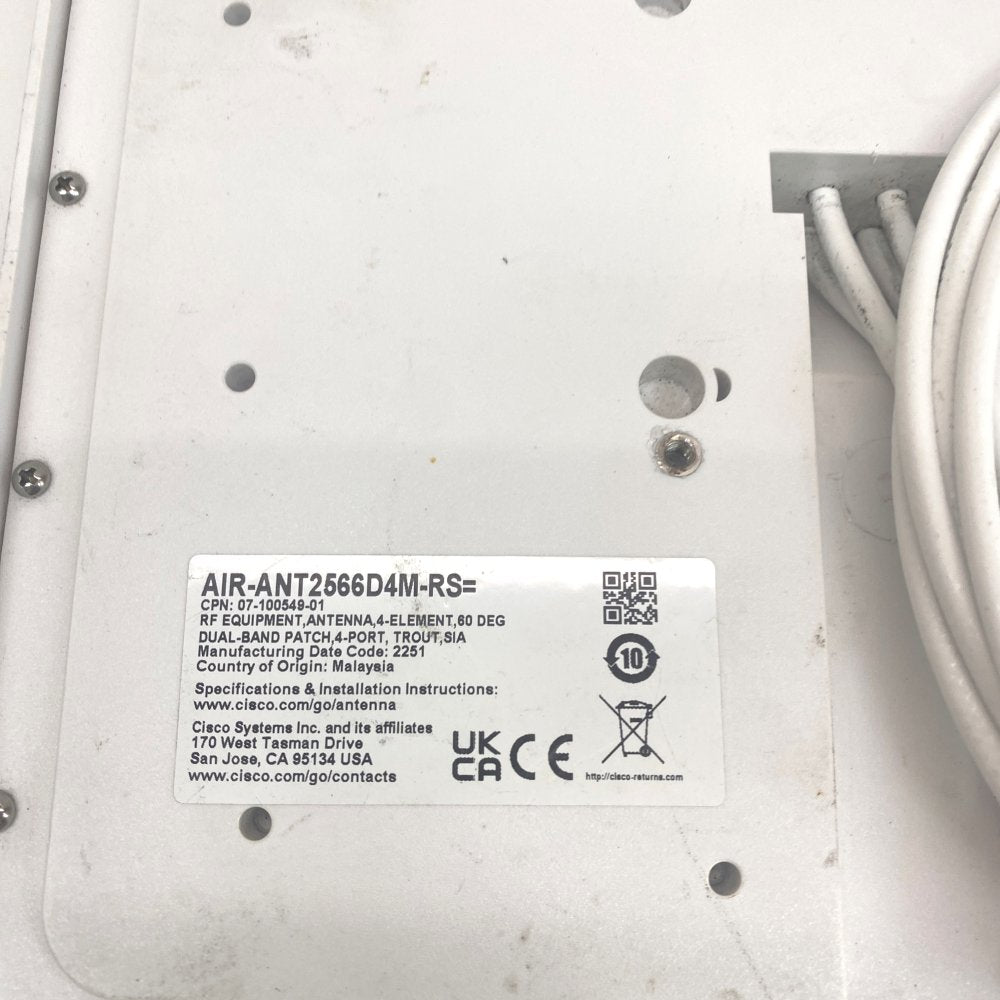

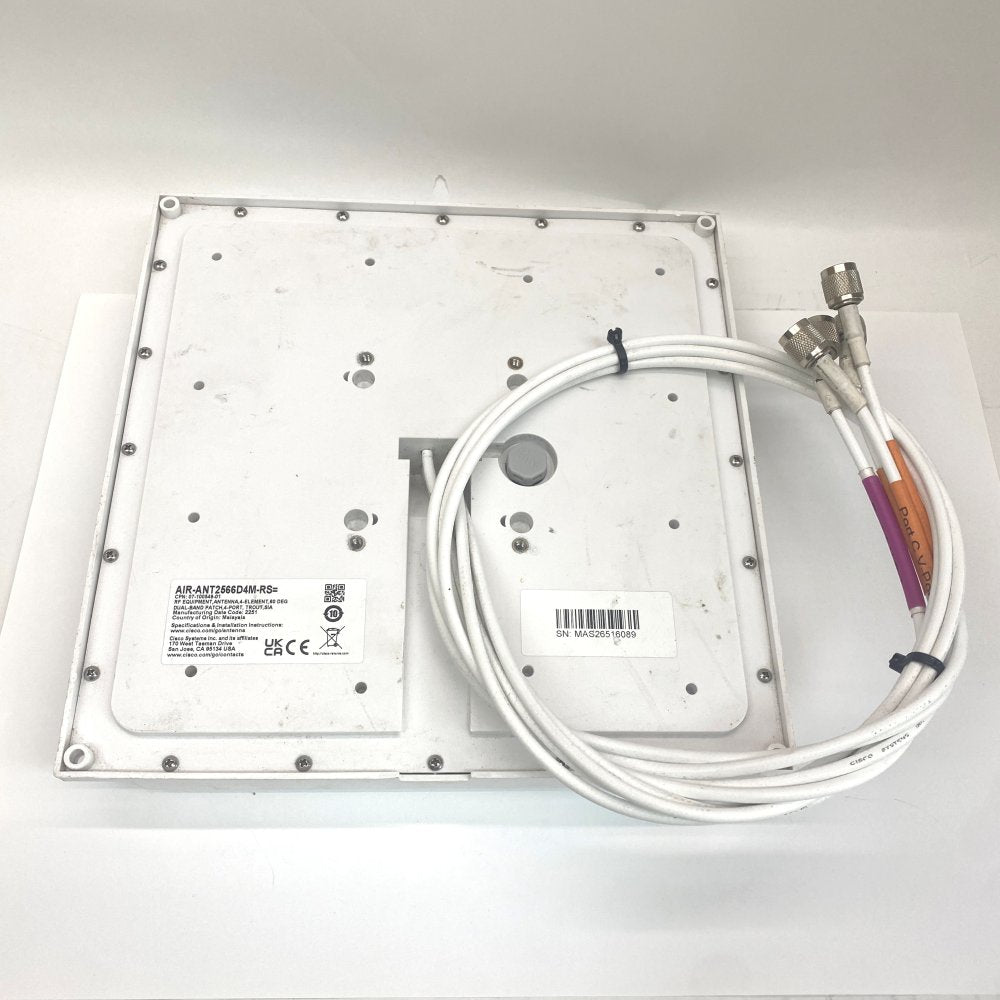

Cisco Aironet Antenna AIR-ANT2566D4M-RS Dual-Band High Gain Directional

The Cisco Aironet AIR-ANT2566D4M-RS is a high-performance, dual-band, directional antenna designed to significantly enhance wireless network performance. It supports both the 2.4 GHz and 5 GHz Wi-Fi bands, providing versatility for a range of networking environments.

Features:

• Dual-Band Operation: Supports 2.4–2.5 GHz and 5.15–5.925 GHz frequency ranges for expansive coverage.
• High Gain: Delivers a peak gain of 6 dBi for both frequency bands, ensuring strong and reliable signal strength.

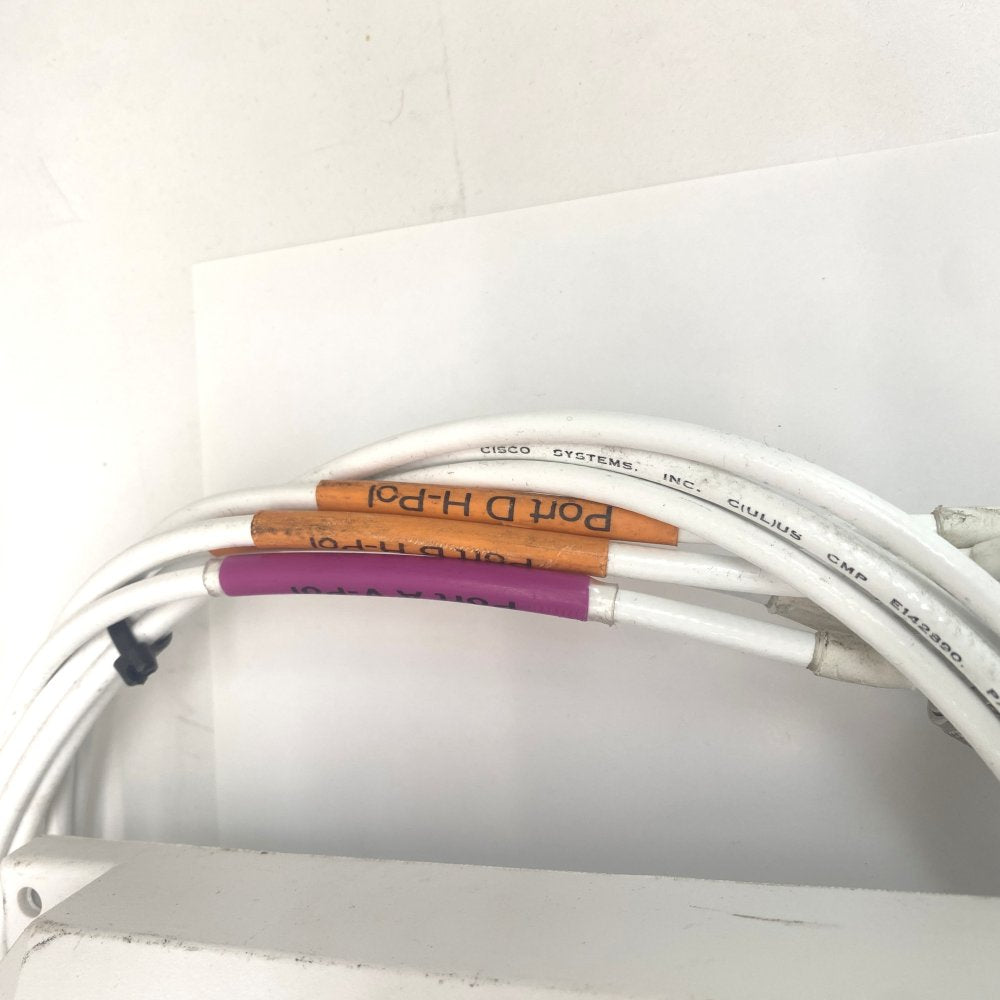

• Polarization Diversity: Contains four ports with vertical and horizontal polarization to enhance signal reliability.
• Directional Coverage: Provides focused coverage with nominal beamwidths of 65° (elevation) and 55° (azimuth) for 5 GHz.
• Durable Design: Compliant with IP67 standards, suitable for both indoor and outdoor installations, withstanding operational winds up to 100 MPH.
• Self-Identification: Includes circuitry for self-identification with Cisco Catalyst 9100 Series Access Points, simplifying integration.

Specifications:

• Dimensions: 10 inches x 10 inches x 1.61 inches (25.4 cm x 25.4 cm x 4.1 cm).
• Weight: 2.5 lbs. (1.13 kg).

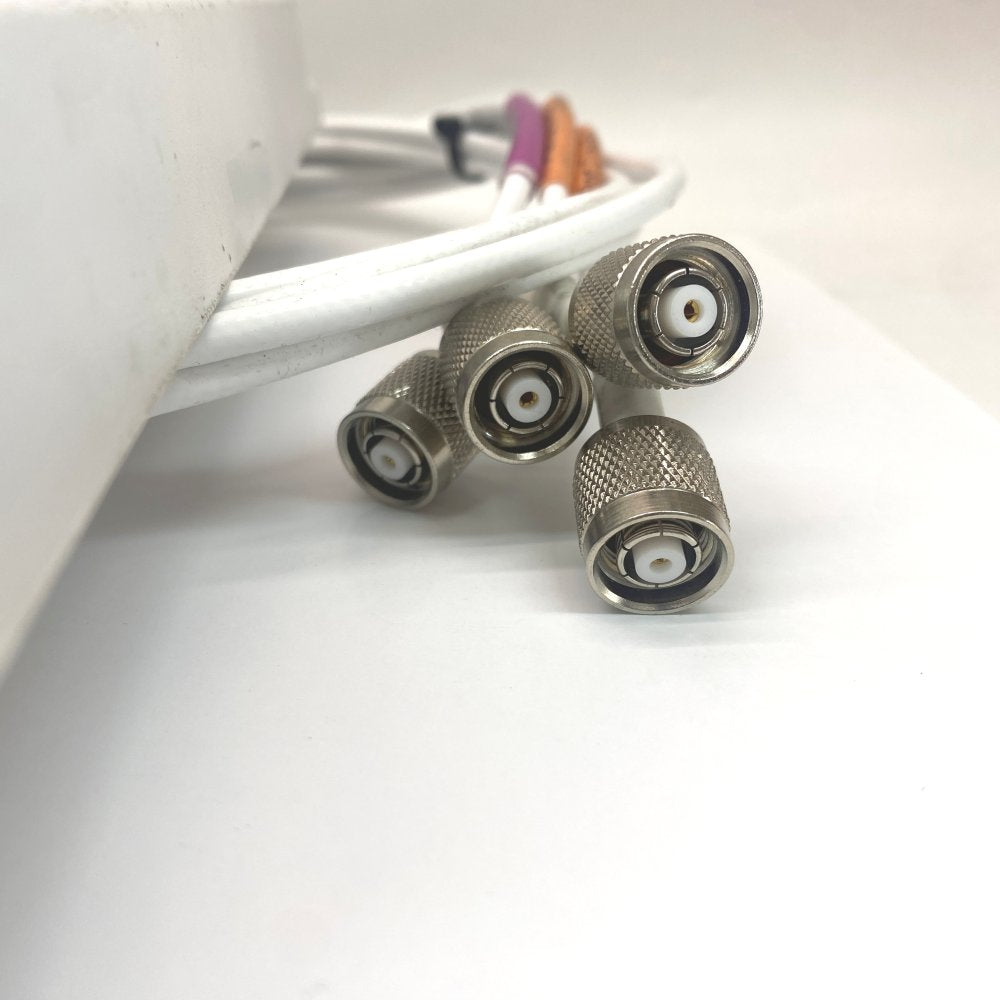

• Cable Length: Each of the four attached cables is 3 feet long, terminating with RP-TNC connectors.
• Compatibility: Compatible with Cisco Aironet and Catalyst series access points requiring four dual-band antennas, such as Aironet 1830, 1850, 2800, 3800 Series, and Catalyst 9115AX, 9120AX, 9130AX Series.
• Environmental Resilience: Designed to operate in temperatures from -40°C to 70°C and can be stored in temperatures from -40°C to 85°C.

The Cisco Aironet AIR-ANT2566D4M-RS is ideal for deployments needing focused, high-performance coverage in demanding environments.

What you get

• 1 x Unit: Cisco Aironet AIR-ANT2566D4M-RS, a dual-band antenna
