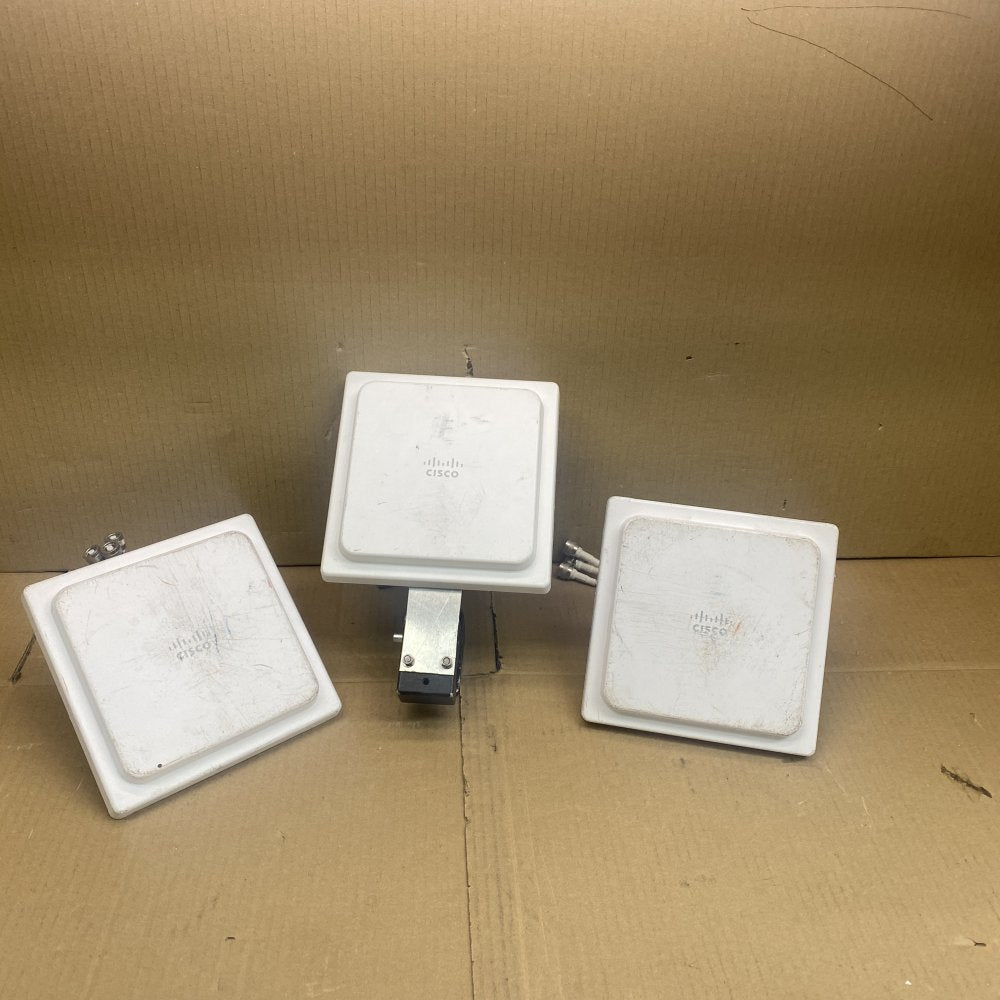

The Cisco Aironet AIR-ANT2524V4C-R is a highly efficient, four-element, MIMO, dual-band omnidirectional antenna. Designed for ceiling-mounted indoor installations, it enhances wireless connectivity in various environments by operating in both the 2.4 GHz and 5 GHz frequency bands.
Key Features
Frequency Range: Supports 2400–2484 MHz and 5150–5850 MHz bands.
Gain: Offers 2 dBi gain for the 2.4 GHz band and 4 dBi gain for the 5 GHz band.
Polarisation: Linear polarisation ensures consistent signal reception and transmission.
Beamwidth:
Elevation Plane: 69° for 2.4 GHz and 60° for 5 GHz.
Azimuth Plane: Omnidirectional coverage for broad area connectivity.
Design: Features compact dimensions of 7.25 in (18.4 cm) in length and width, and 1 in (2.5 cm) in depth, and weighs 1.3 lb (0.59 kg).

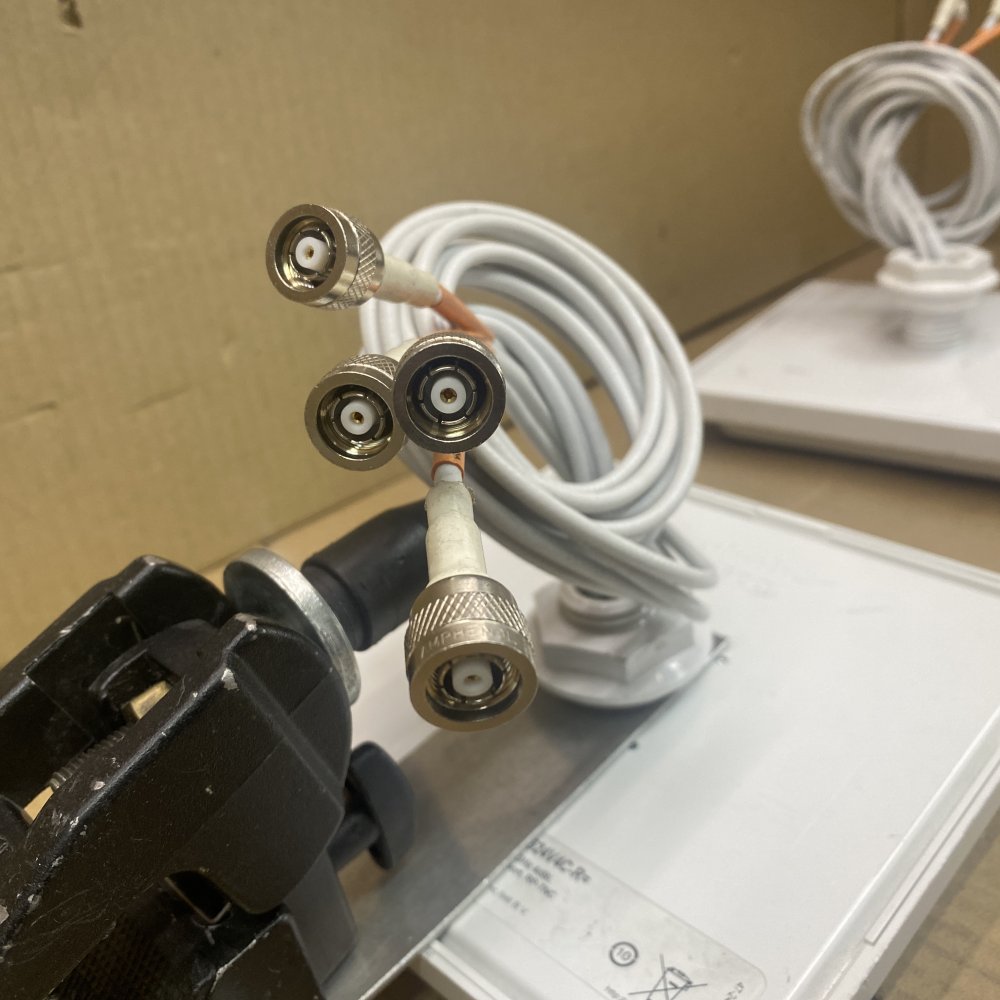

Cable: Comes with a 3 ft (91.4 cm) plenum-rated, UV-stable cable terminating with RP-TNC connectors.
Environmental Suitability: Designed for indoor use, operating efficiently within temperatures ranging from 32°F to 133°F (0°C to 56°C).
Specifications
Compatibility: Compatible with Cisco Aironet radio devices featuring dual-band (2.4 and 5 GHz) RP-TNC antenna ports.

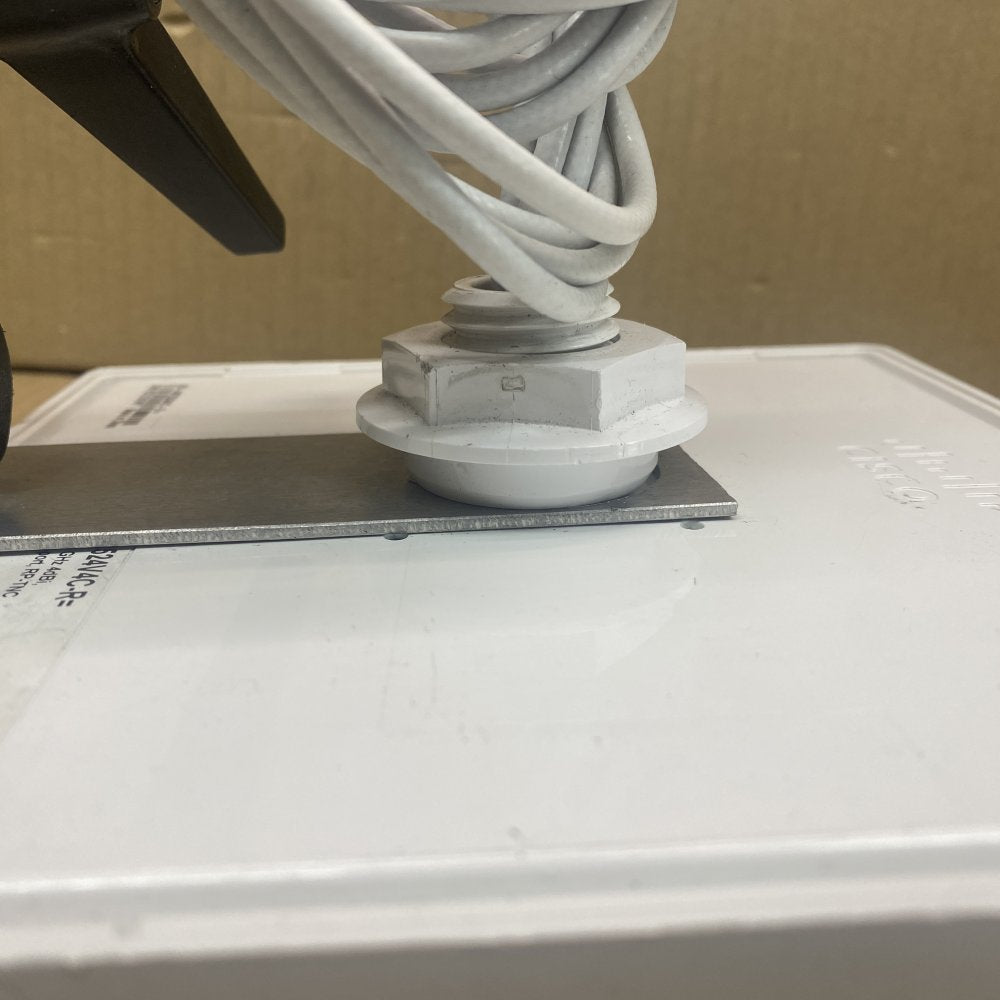

Mounting Location: Ideal for installation on suspended ceiling tiles with a thickness between ½ in. (1.27 cm) and 1 in. (2.54 cm).
Orientation: For optimal signal propagation, install the antenna horizontally at or near the centre of its coverage area.
Interference Avoidance: Keep the antenna away from potential sources of interference, such as microwave ovens and 2-GHz cordless phones, which operate in similar frequency ranges.
What you get
3 x Unit Cisco AIR-ANT2524V4C-R Dual-Band Omni Antenna
History
The device came as part of the IT decommissioning project and was removed from working environment.
Details
VAT or 20% is included in the price (No VAT for international customers).
