FS 16DWDM-MD 16-Channel Dual-Fiber DWDM Mux/Demux LC/APC w/EXP Port

£48.95
£48.95
£48.95 £73.99
Tax included. Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock

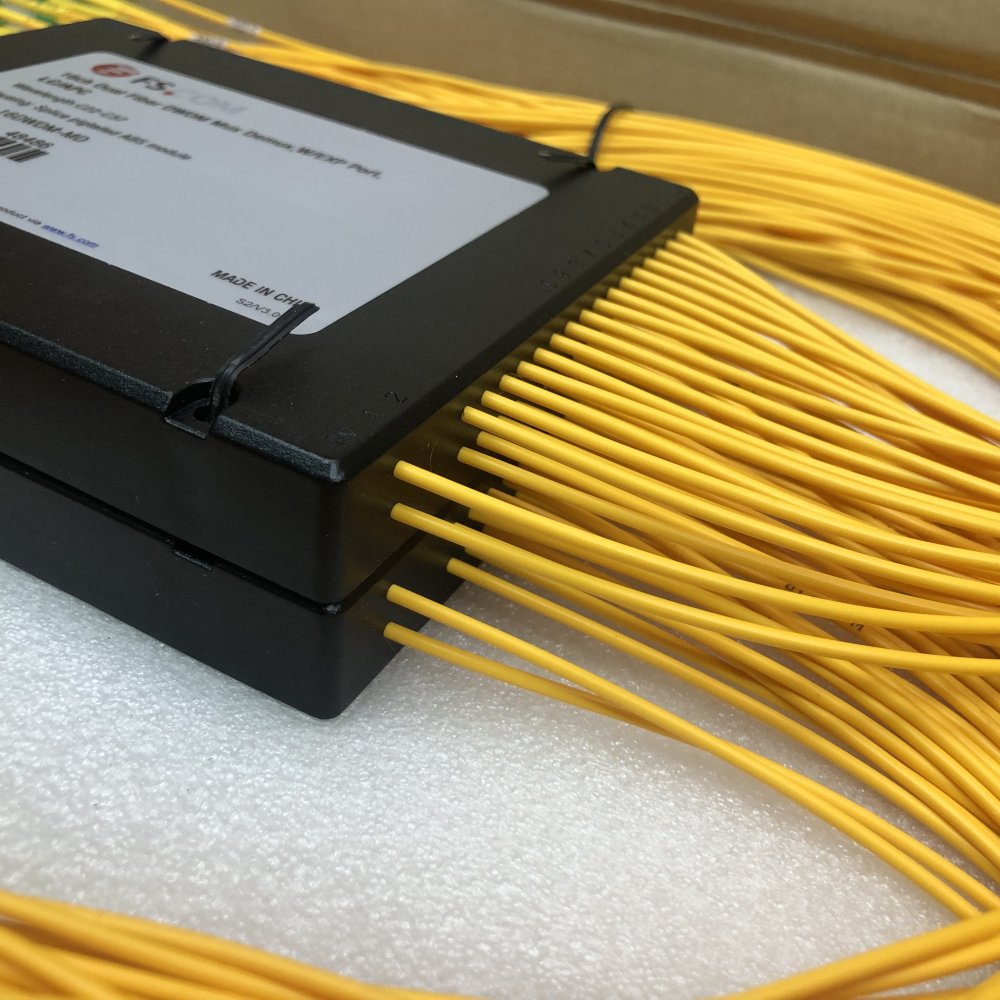

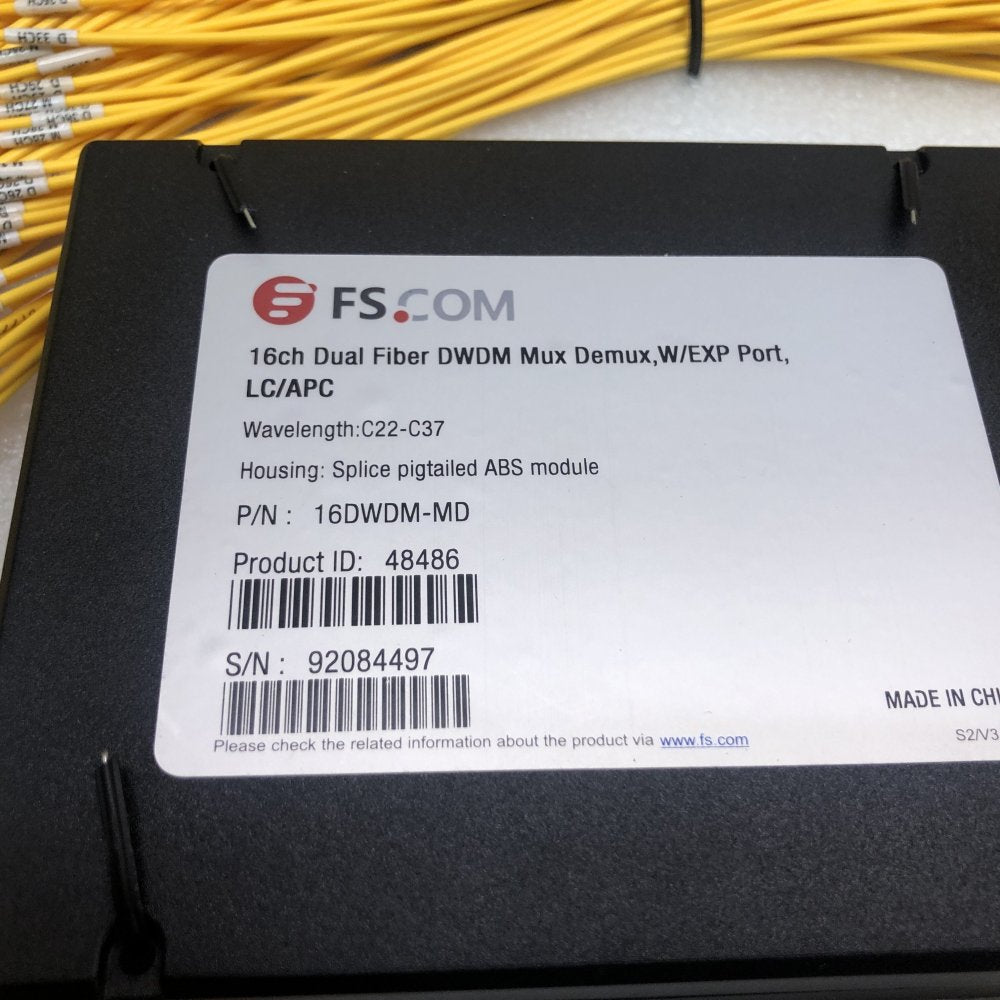

FS 16-Channel Dual‑Fibre DWDM Mux/Demux with Expansion Port (LC/APC) is a high‑performance passive optical module designed for dense wavelength division multiplexing (DWDM) systems. The unit supports up to 16 DWDM channels on the ITU grid (C‑band) and operates over two fibres. It includes an expansion (EXP) port for cascading or future upgrades and is supplied with LC/APC pigtails for low insertion loss and high return loss. The housing is a splice‑pigtailed ABS module (P/N: 16DWDM‑MD).

Features

  • Supports multiplexing/demultiplexing of 16 DWDM channels on the ITU grid (C‑band)
  • Wavelength range: C22–C37 (configured to ITU channel plan)
  • Dual‑fibre operation with an integrated expansion (EXP) port for cascading additional modules
  • LC/APC connectors (pigtails) for low insertion loss and high return loss
  • Passive device — no external power required
  • Splice‑pigtailed ABS module housing for straightforward installation
  • Suitable for metro and long‑haul fibre networks

Specifications

  • Part number: 16DWDM‑MD
  • Channel spacing: 100 GHz
  • Number of channels: 16
  • Wavelength range: C22–C37 (ITU grid)
  • Connector type: LC/APC (pigtails)
  • Insertion loss: < 4.5 dB (typical, all channels)
  • Return loss: > 45 dB
  • Housing: Splice‑pigtailed ABS module
  • Operating temperature: -5°C to 75°C
  • Storage temperature: -40°C to 85°C

What you get

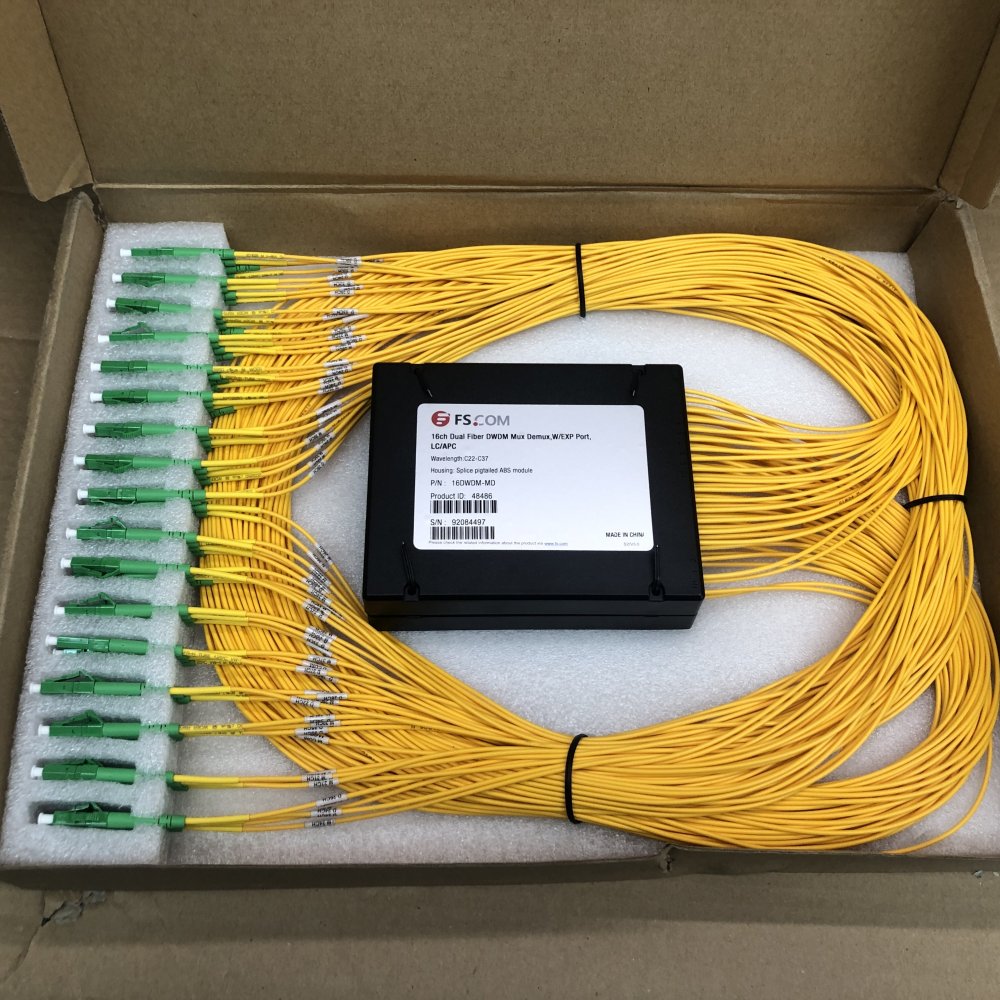

  • 1 x FS 16‑Channel Dual‑Fibre DWDM Mux/Demux with Expansion Port, LC/APC (P/N: 16DWDM‑MD) (Opened, Never used)

History

The unit was removed as part of an IT decommissioning project. It is offered as a used network component; functionality and condition should be verified prior to deployment.

Details

VAT (20%) is included in the price for UK sales where applicable. International customers may be exempt from VAT according to local regulations.
