EMACS R1V-2275V 275W Server Power Supply PSU (Slim) (Grade A)
£22.95
Regular price
£22.95
Sale price
£22.95
Regular price
£34.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 19 left
The EMACS R1V-2275V (Rev 4.0) is a slim-line server power supply rated at 275W maximum output. It provides a single +12V rail and a +5V standby output, accepts universal AC input (100–240V, 47–63Hz) and is supplied in a compact, hot‑swappable enclosure suitable for compatible 1U server chassis. The unit bears safety and compliance markings and is manufactured in Taiwan.
Features
- Slimline / narrow form factor designed for space‑constrained server bays
- 275W maximum output power
- Single +12V output (high‑current rail) with separate +5VSB standby output
- Universal AC input: 100–240V ~, 47–63Hz (auto‑ranging)
- Hot‑swappable design with pull handle for easy replacement
- Integral cooling fan and vents for active thermal management

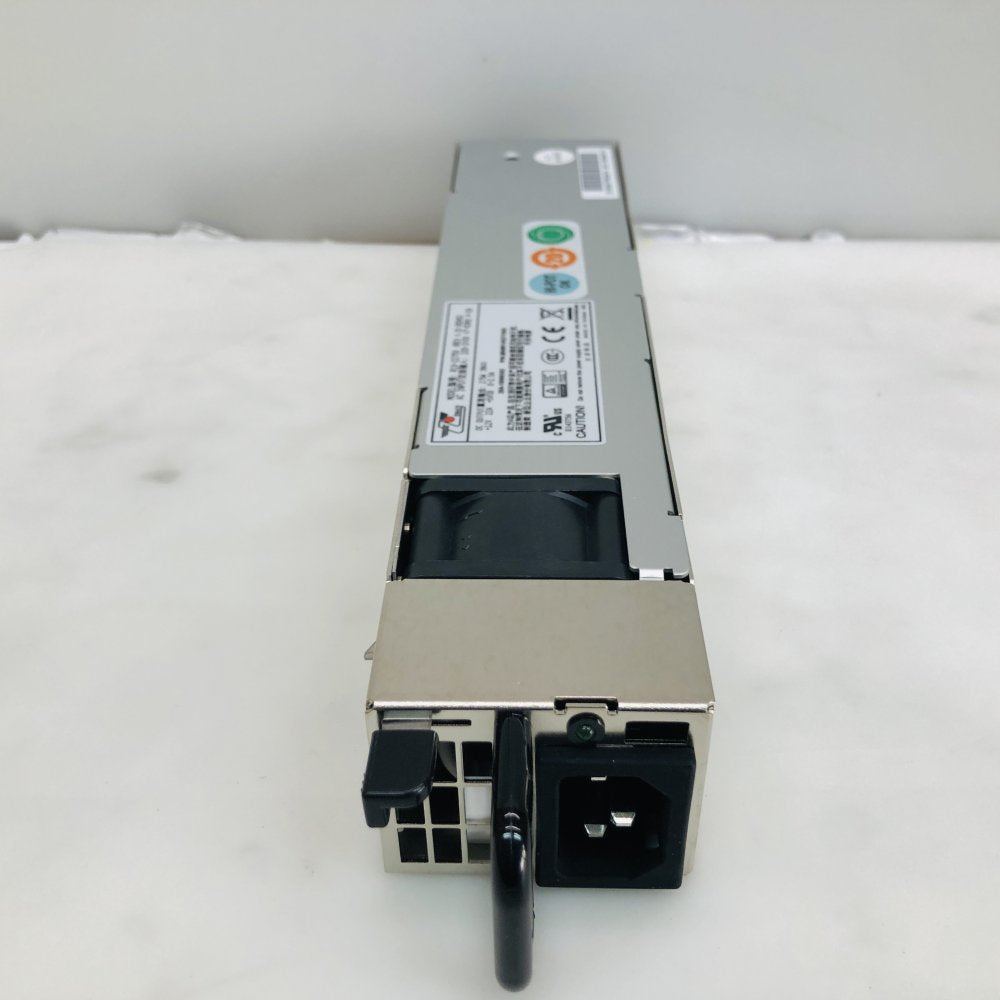

- Standard IEC inlet on the PSU for chassis power cabling
- Safety and compliance markings visible on the label (CE, cRUus, CCC, etc.)
- Common built‑in protections: over‑voltage, over‑current, short‑circuit and over‑temperature protection
Specifications
- Manufacturer / Brand: EMACS (Emacs Technology Co.)
- Model: R1V-2275V (Revision 4.0)
- Maximum DC output: 275W (max)
- DC outputs: +12V @ 22A; +5VSB @ 0–2.5A
- AC input: 100–240V ~, 47–63Hz; 4A @100V, 2A @240V (auto‑ranging)

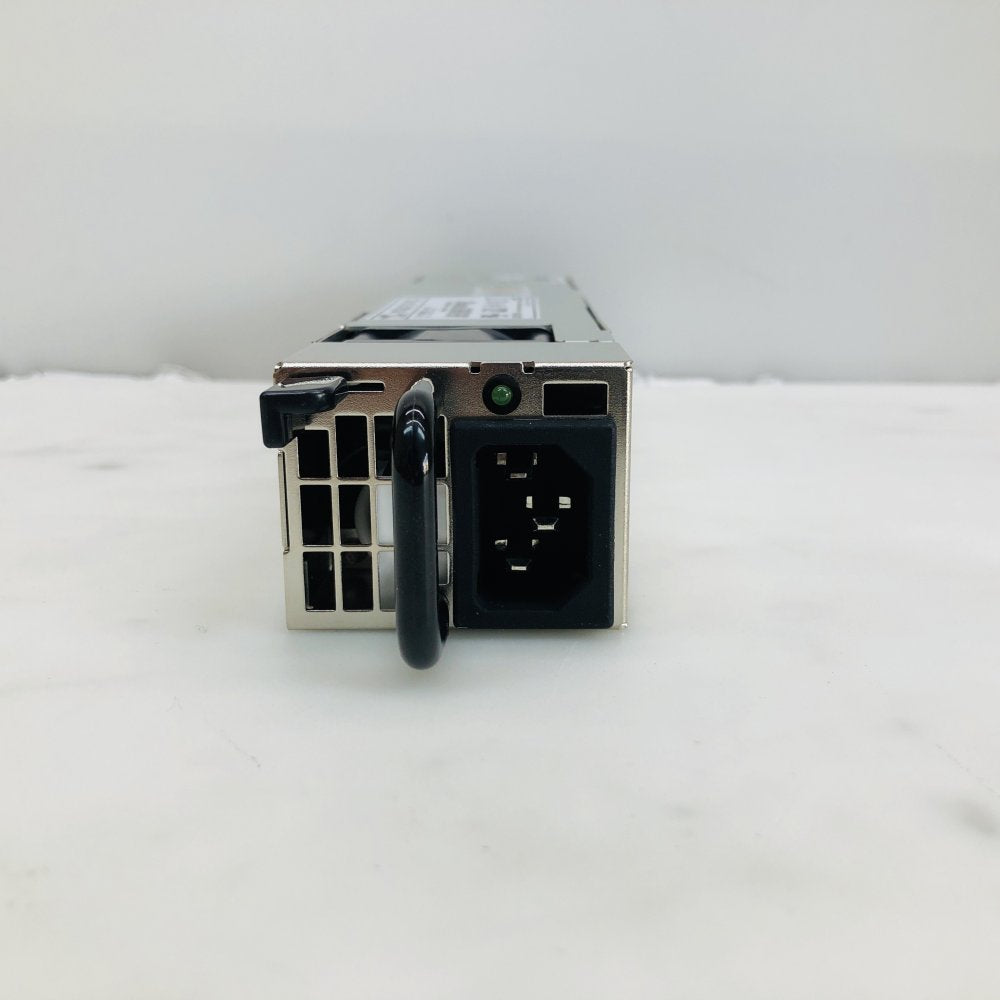

- Connector (inlet): IEC 320 C14 style inlet on the power module
- Form factor: Slim / narrow server power supply (hot‑swap style, suitable for compatible rack chassis)

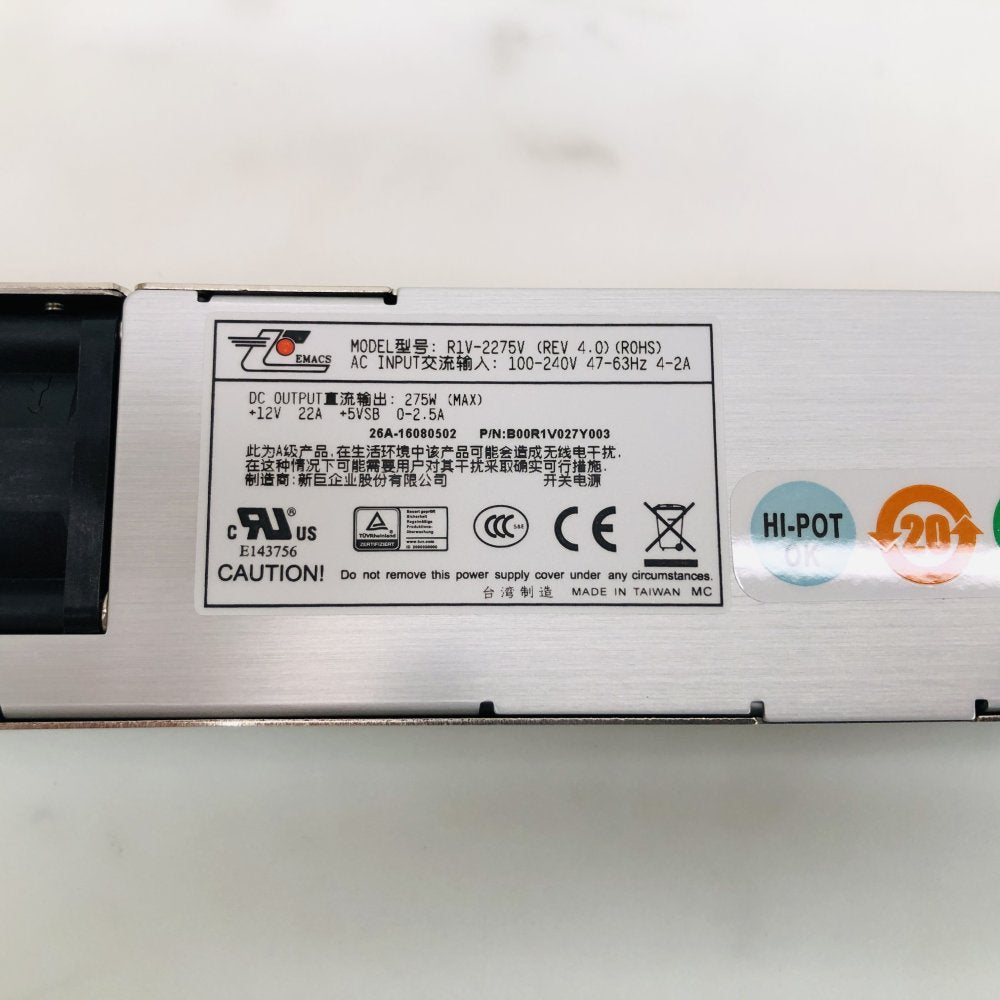

- Part numbers and markings visible on label: P/N B00R1V027Y003, 26A-16080502 (as shown)
- Country of origin: Made in Taiwan
- Certifications / marks: CE, cRUus (UL recognition mark), CCC and other safety symbols shown on the label
What you get
- 1 x EMACS R1V-2275V 275W Server Power Supply (Slim)
History
This unit was removed during an IT decommissioning project and taken from a working environment. It is offered as a single power supply module; please ensure compatibility with your chassis before purchase.
