Evertz 7801FC Broadcast Video I/O Board Module
£159.00
Regular price
£159.00
Sale price
£159.00
Regular price
£249.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 1 left

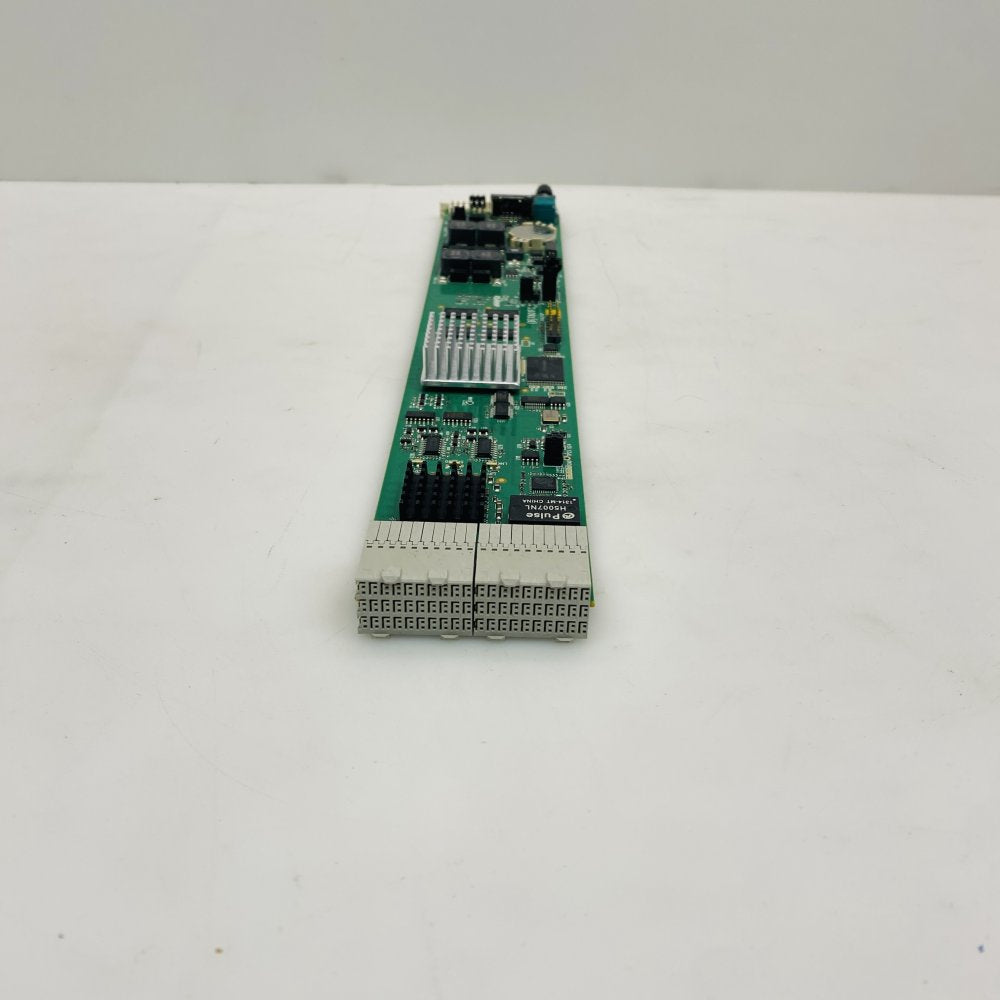

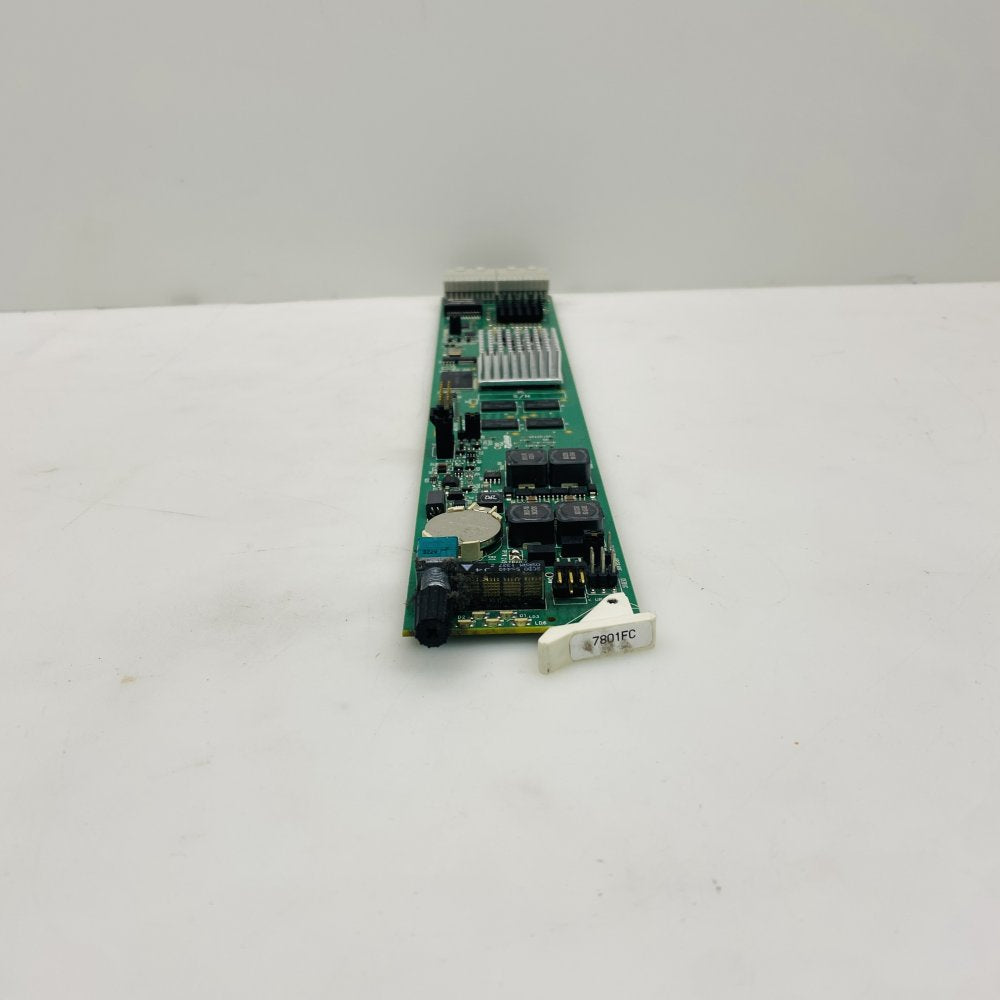

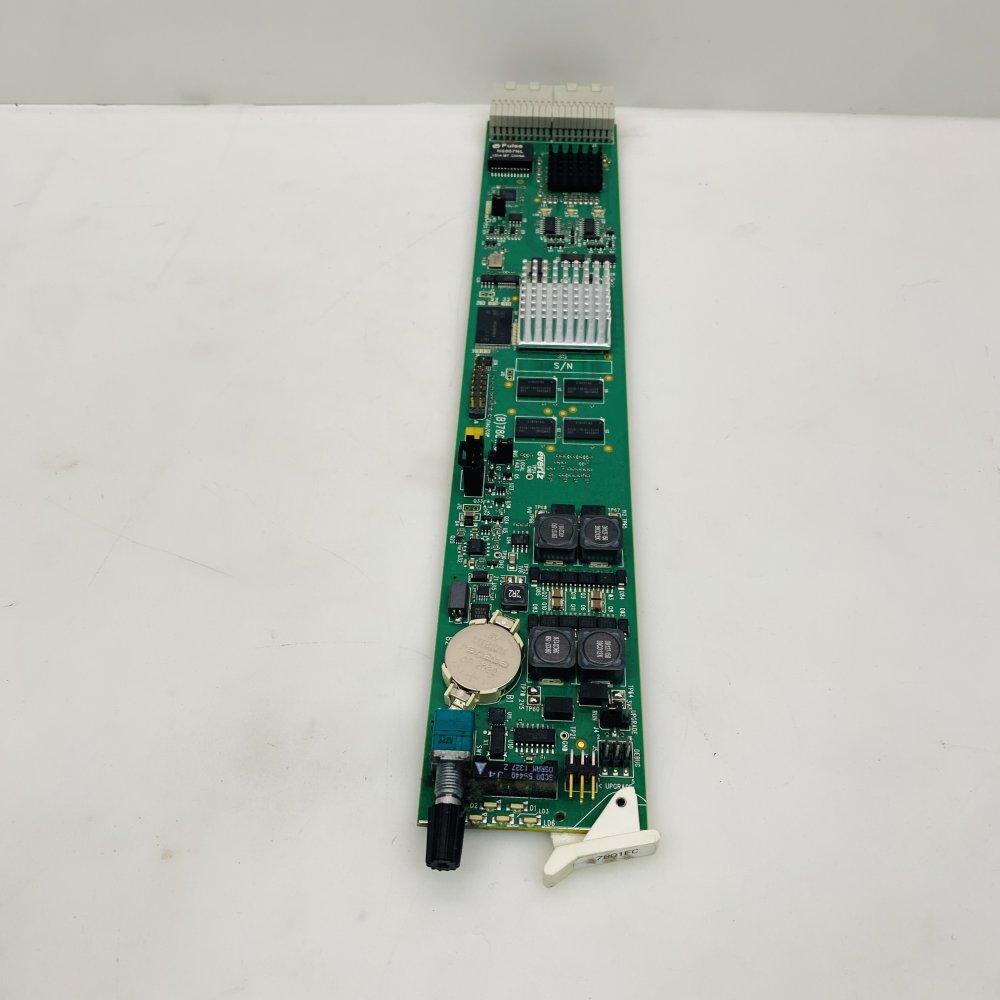

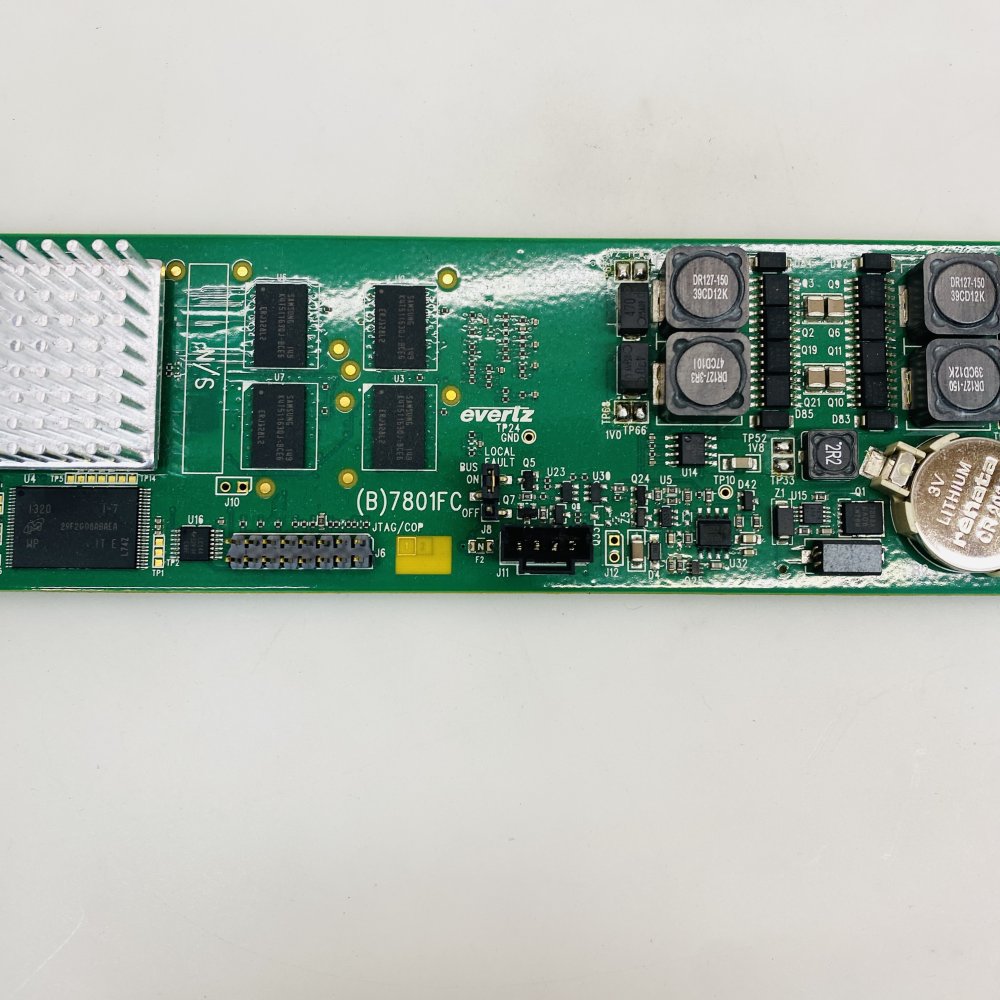

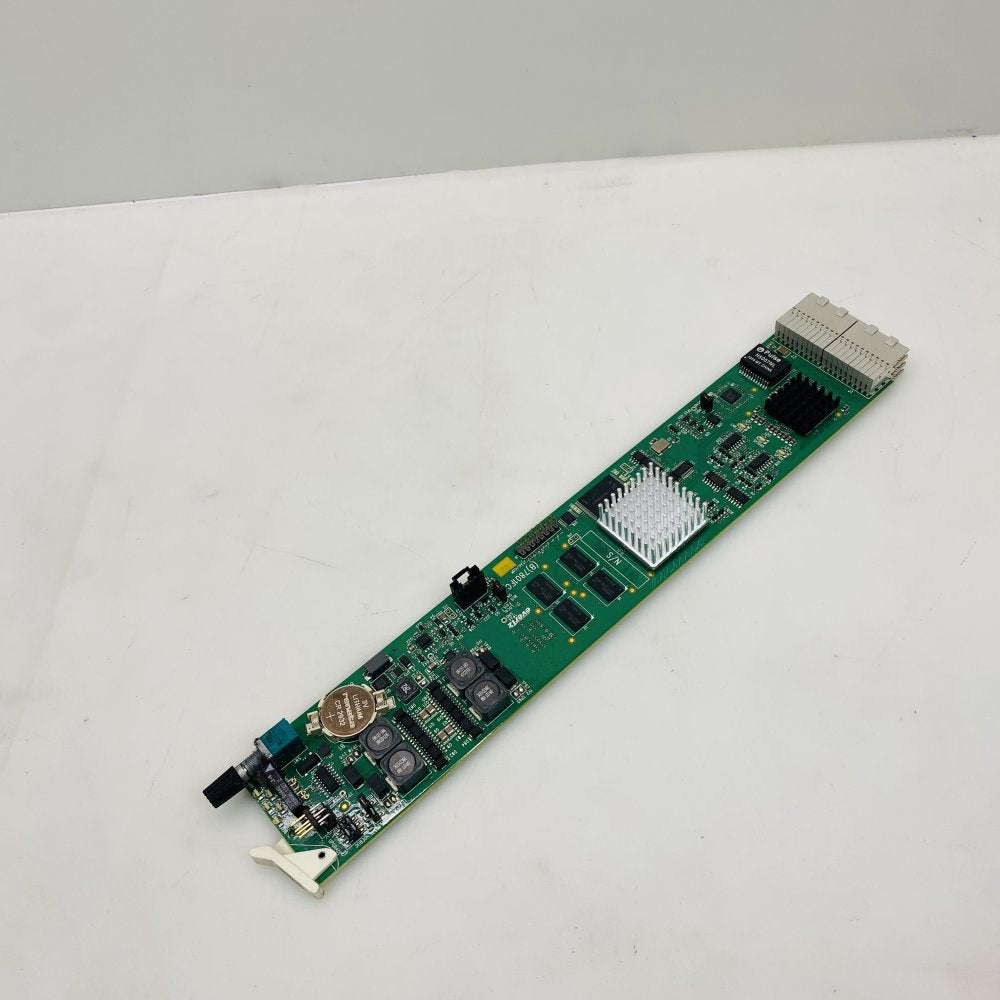

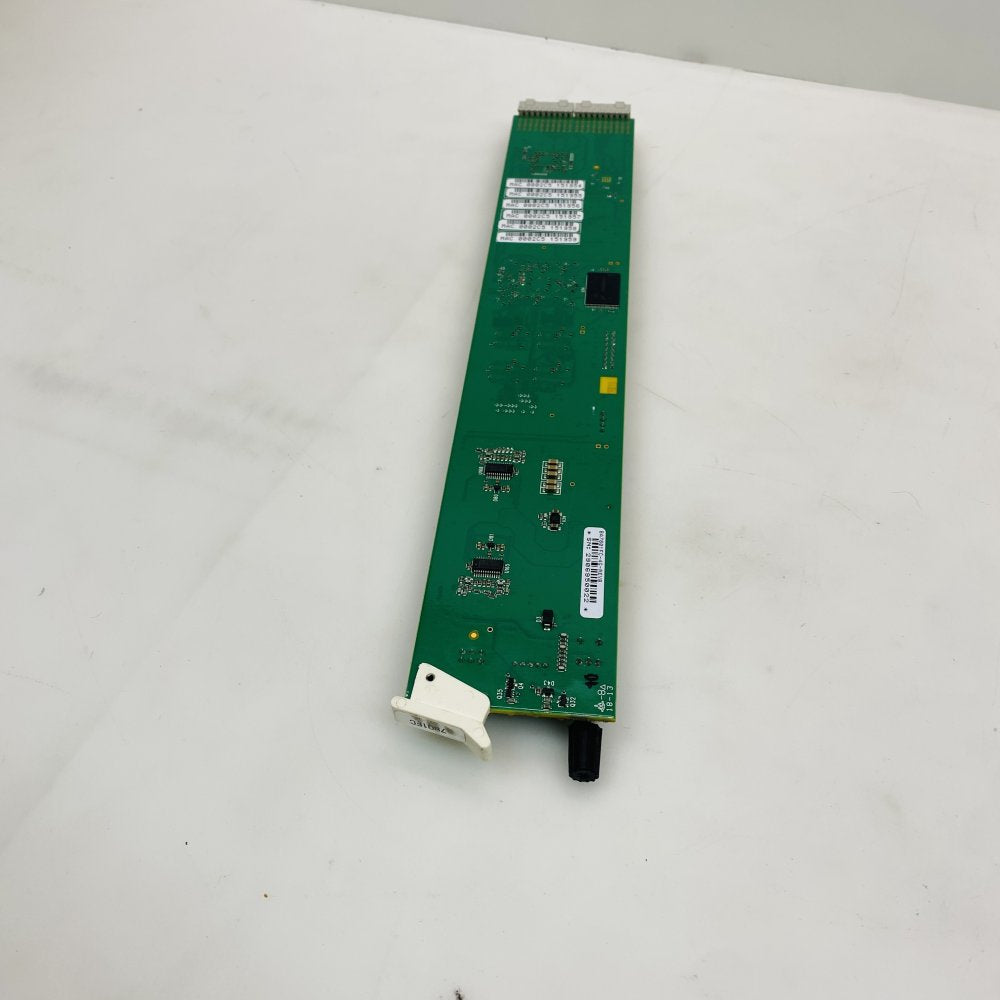

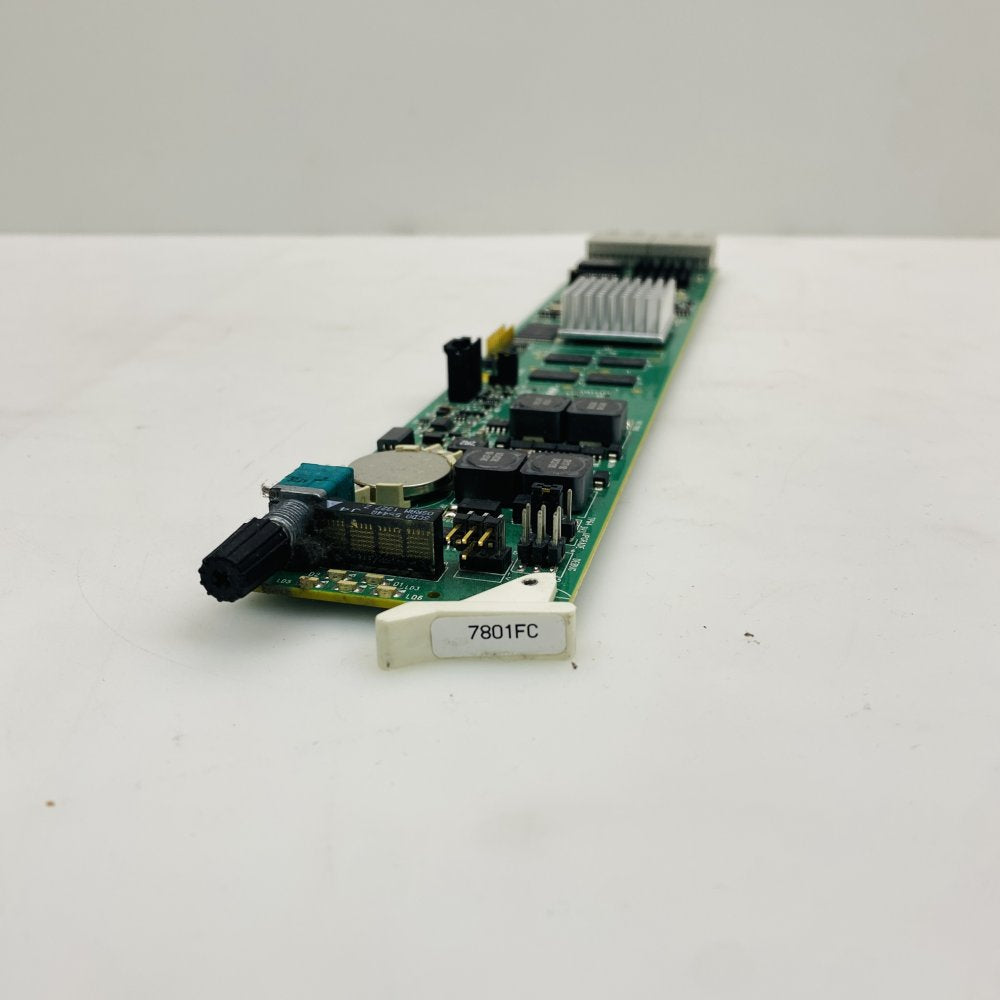

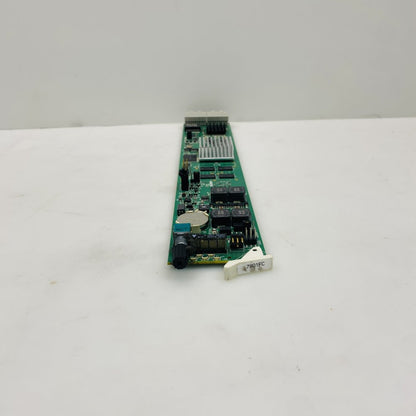

Evertz B7801FC PCB Module — Interface Card. This listing is for a single Evertz B7801FC printed circuit board (PCB) module, marked B7801FC. The board is shown in the photographs and includes visible components such as heat sinks, a coin-cell holder, a potentiometer, multiple inductors and power components, a card-edge connector and several pin headers (including a JTAG/COP header) as labelled on the PCB. Please verify mechanical and electrical compatibility with your Evertz chassis or system before purchase.
Features
- OEM Evertz PCB module, part number B7801FC (marked on the board)
- Card-edge connector for insertion into compatible Evertz chassis
- On-board coin-cell holder (real-time clock / memory backup)
- Heat sinks fitted to major ICs for thermal management
- Multiple power regulation components and inductors visible
- Pin headers and test points including a JTAG/COP header (labelled on the PCB)
- Compact, elongated module form factor for rack/frame integration
Specifications
- Manufacturer: Evertz (as marked on the PCB)
- Model / Part number: B7801FC (marked on the PCB)
- Item type: PCB module / interface card (for use in compatible Evertz equipment)
- Key on-board items visible: coin-cell holder, potentiometer, heat sinks, power inductors, JTAG/COP header, card-edge connector
- Form factor: elongated PCB designed for insertion into a chassis or frame (verify exact chassis compatibility prior to purchase)
- Labelled markings: 'B7801FC', 'S/N' area and JTAG/COP silk-screened on board
What you get
- 1 x Evertz B7801FC PCB Module (Interface Card) — as pictured
History
The module was removed during an IT decommissioning project. It is offered as a single PCB module; buyers should ensure it meets their requirements and is compatible with their equipment. Images form part of the description—please review them carefully.
