Huawei OptiX OSN 1800 I Carrier-Grade DWDM Optical Transport System

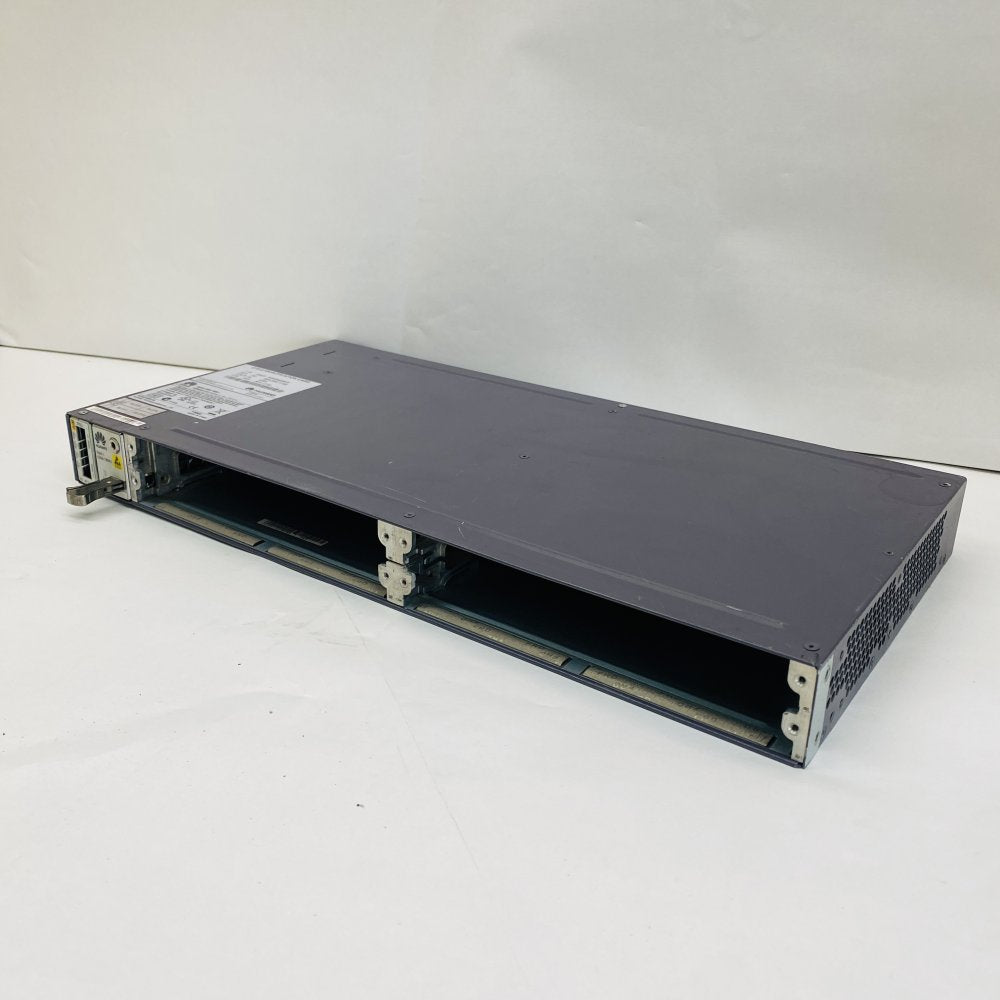

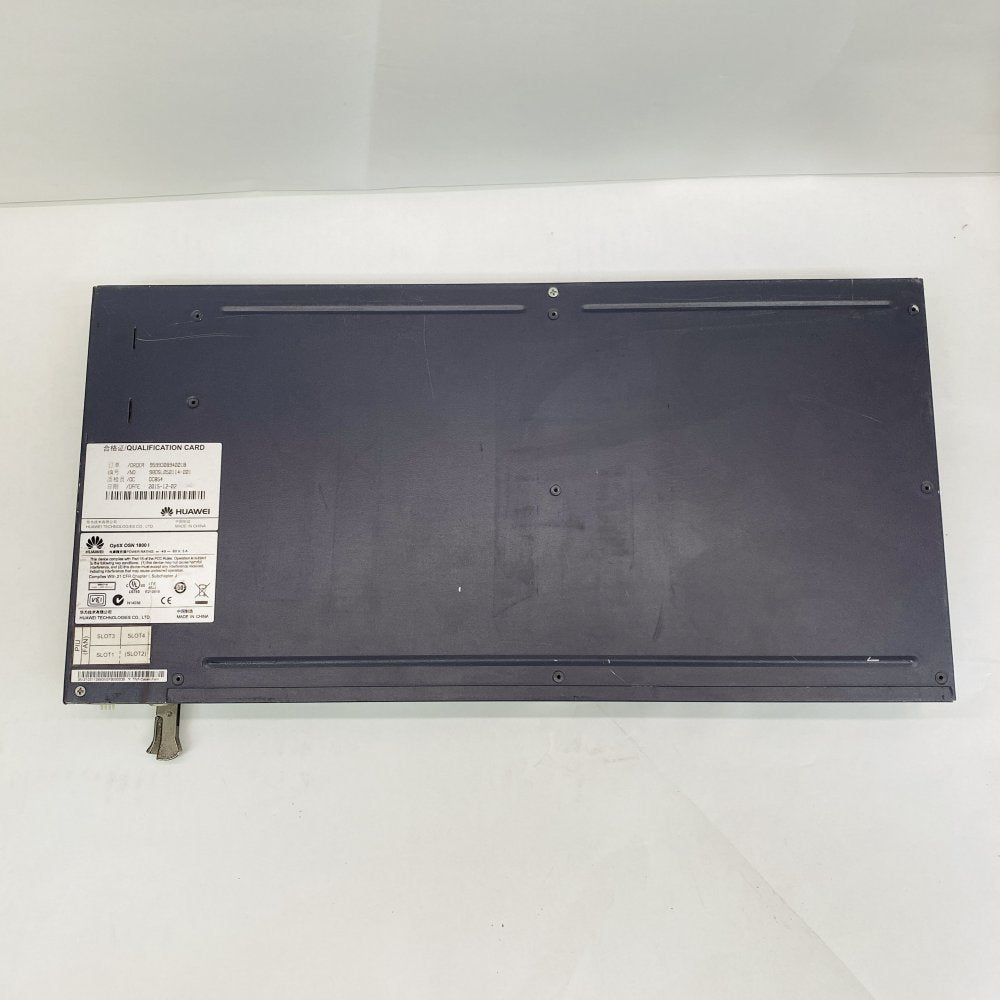

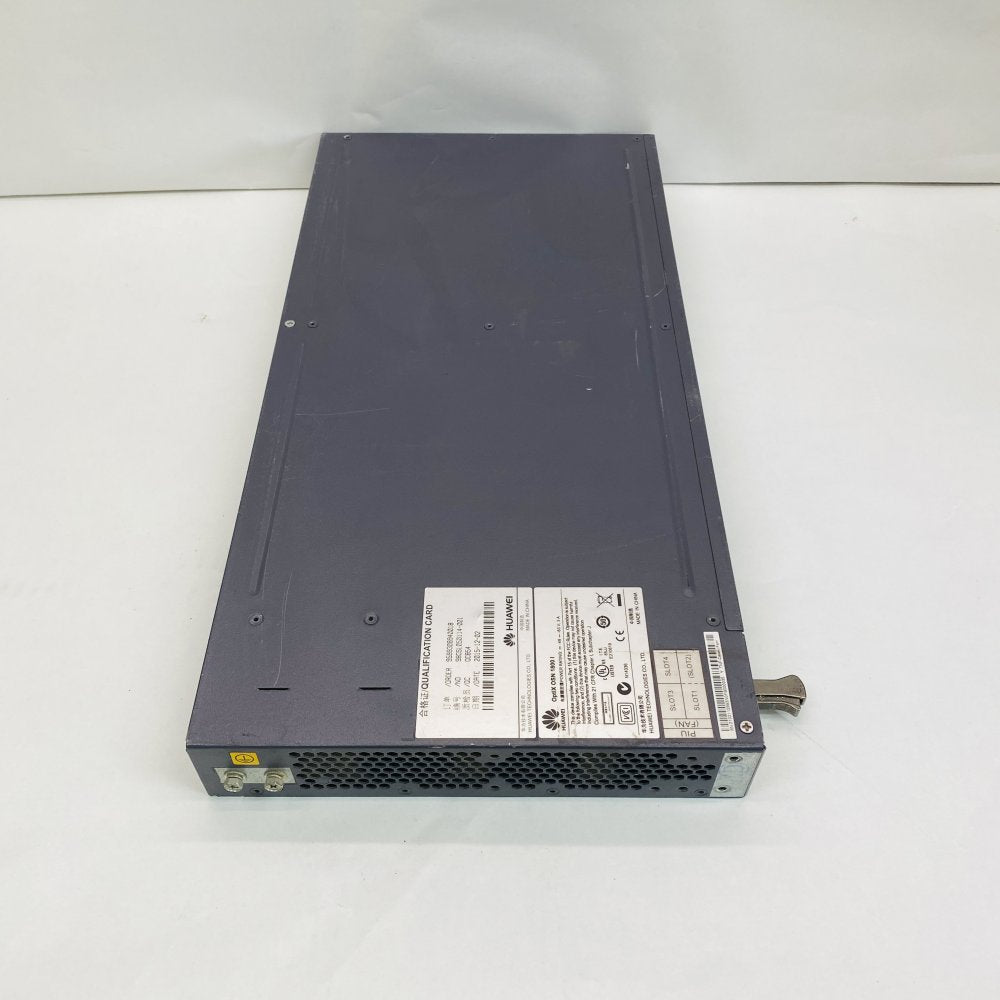

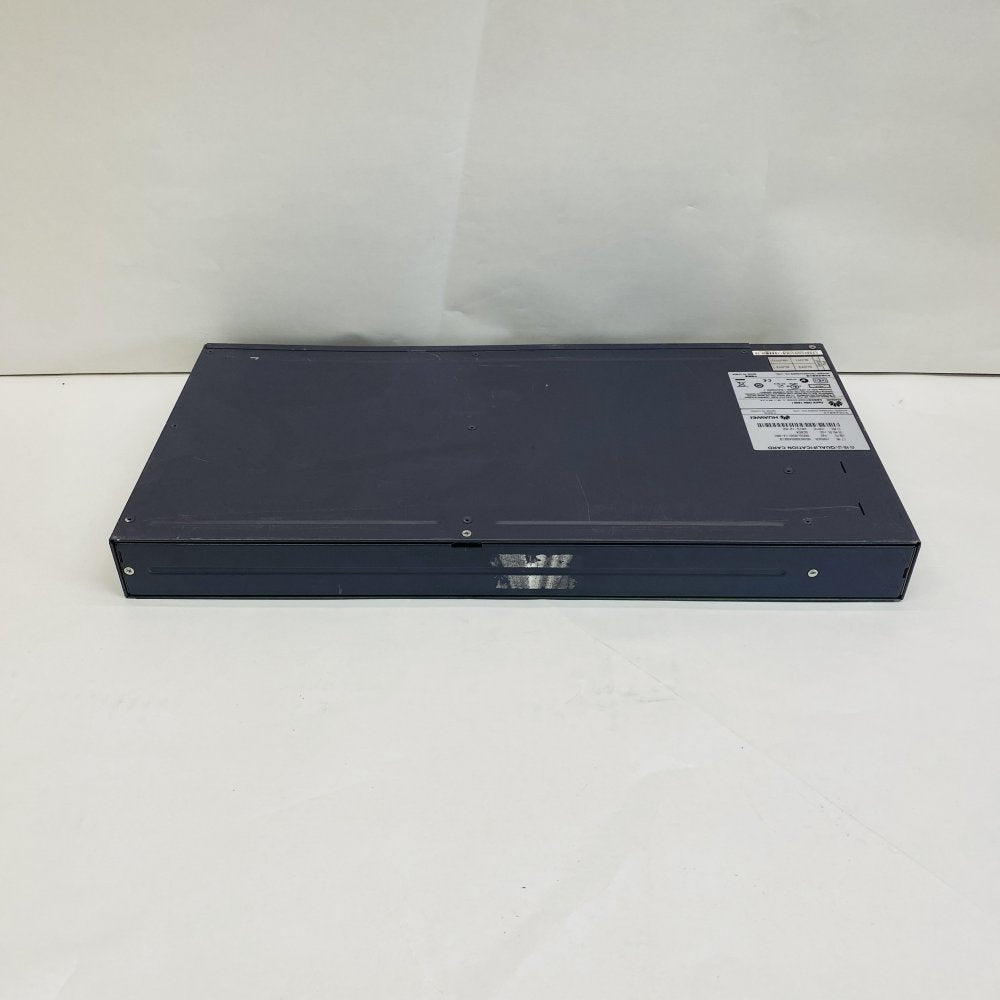

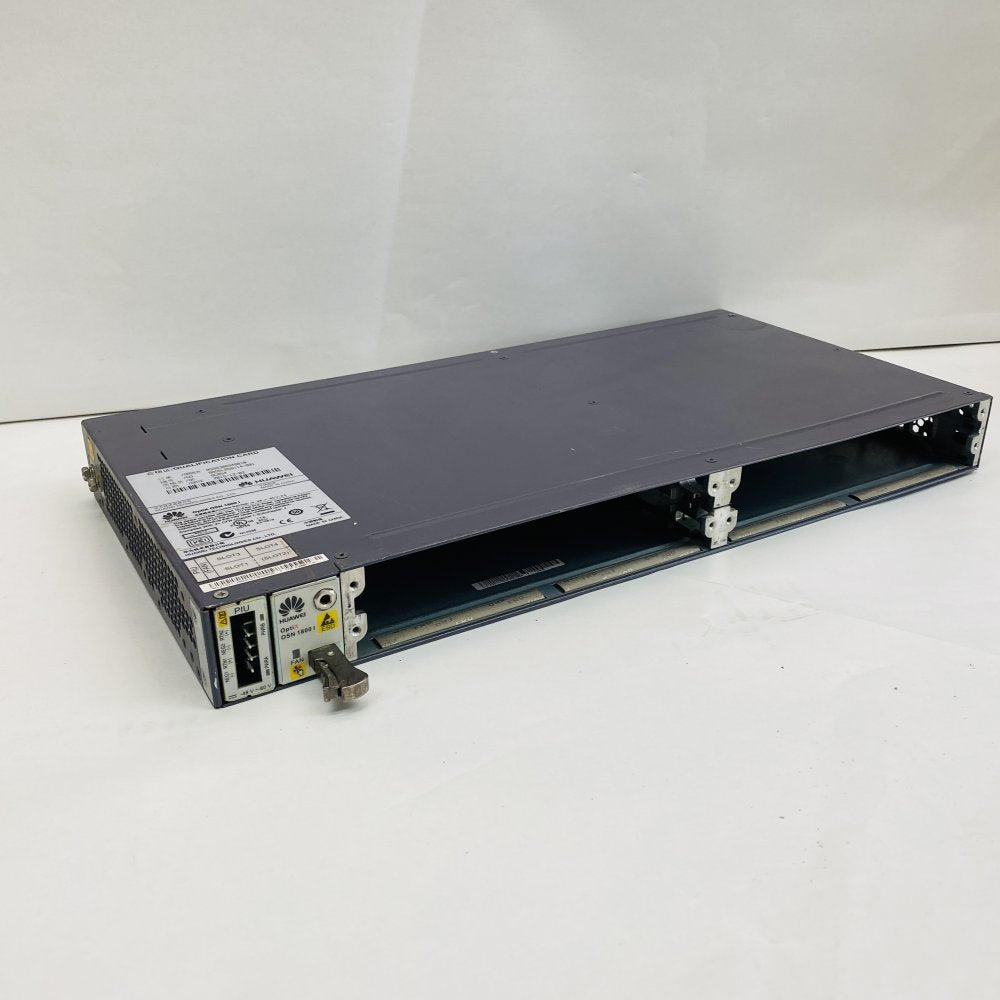

This listing is for a Huawei OptiX OSN 1800 I (DC Power) optical transport system chassis. Please note, this is sold without any service cards or rack mount brackets. The device includes the integrated Power Interface Unit (PIU) with a cooling fan installed, suitable for carrier-grade DWDM/MSTP metro aggregation networks, providing excellent flexibility and bandwidth for optical transport deployments.

Key Features

• Ultra-Large Bandwidth: Supports up to 80×100 Gbit/s DWDM channels, enabling high-speed data transfer.
• Multi-Service Support: Capable of handling E1, E3, T3, FE, GE, STM-x, 10GE, 100GE, CPRI, FC, and SAN (with appropriate cards, not included).
• MPLS-TP Ready: Seamlessly integrates with Huawei OSN 8800/9800 networks for enhanced system interoperability.
• Advanced Clocking: Supports 2M, IEEE 1588v2, synchronous Ethernet, suitable for 3G/4G/5G backhaul.

Specifications

• Form Factor: 1U chassis

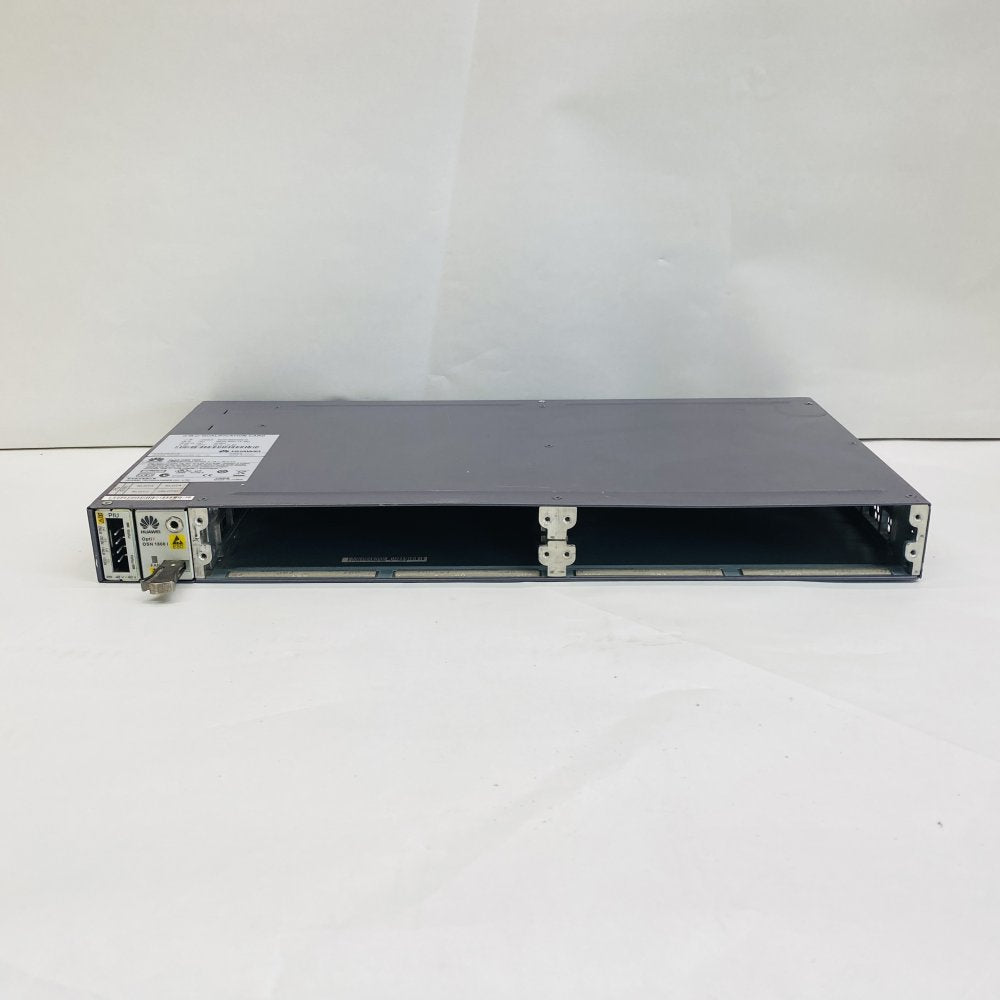

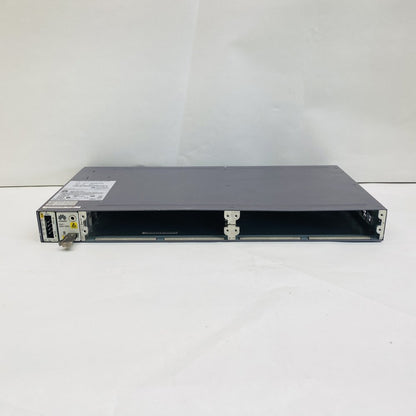

• Slots: 4 service card bays (cards not included)

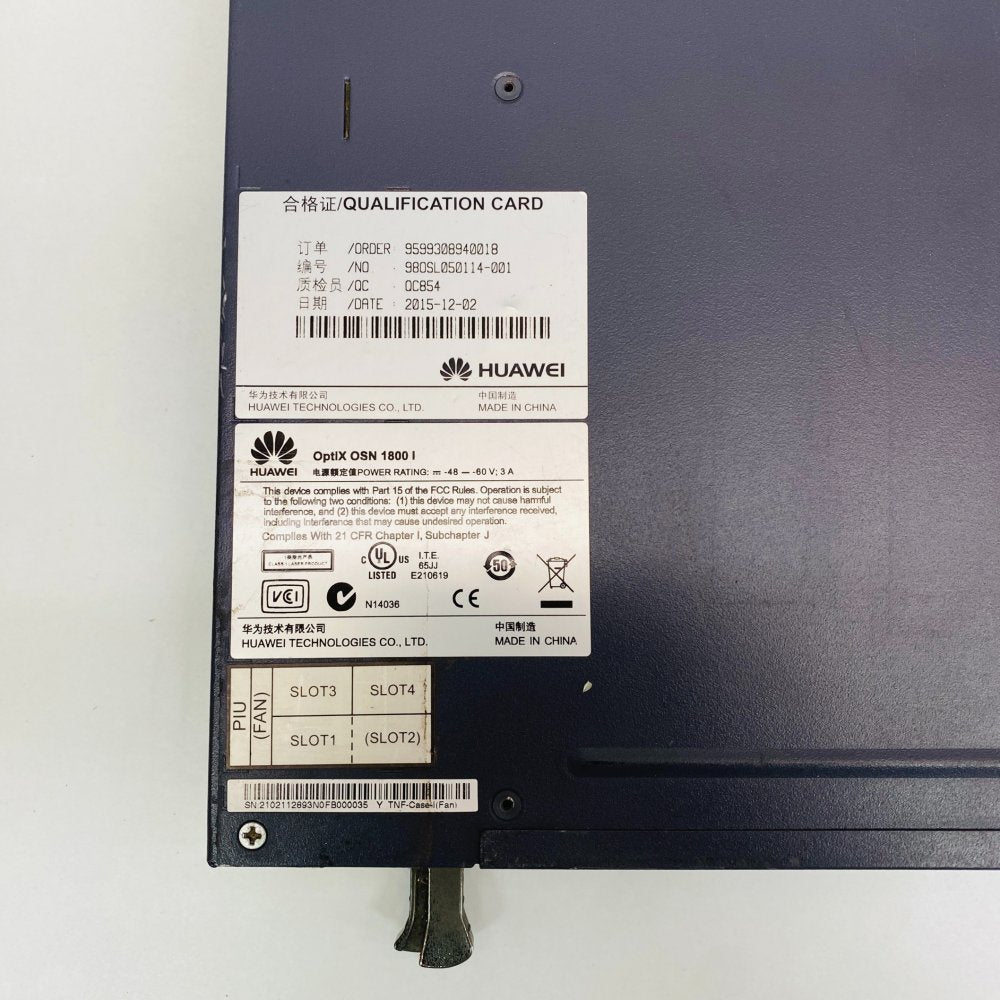

• Power Input: –48 V / –60 V DC

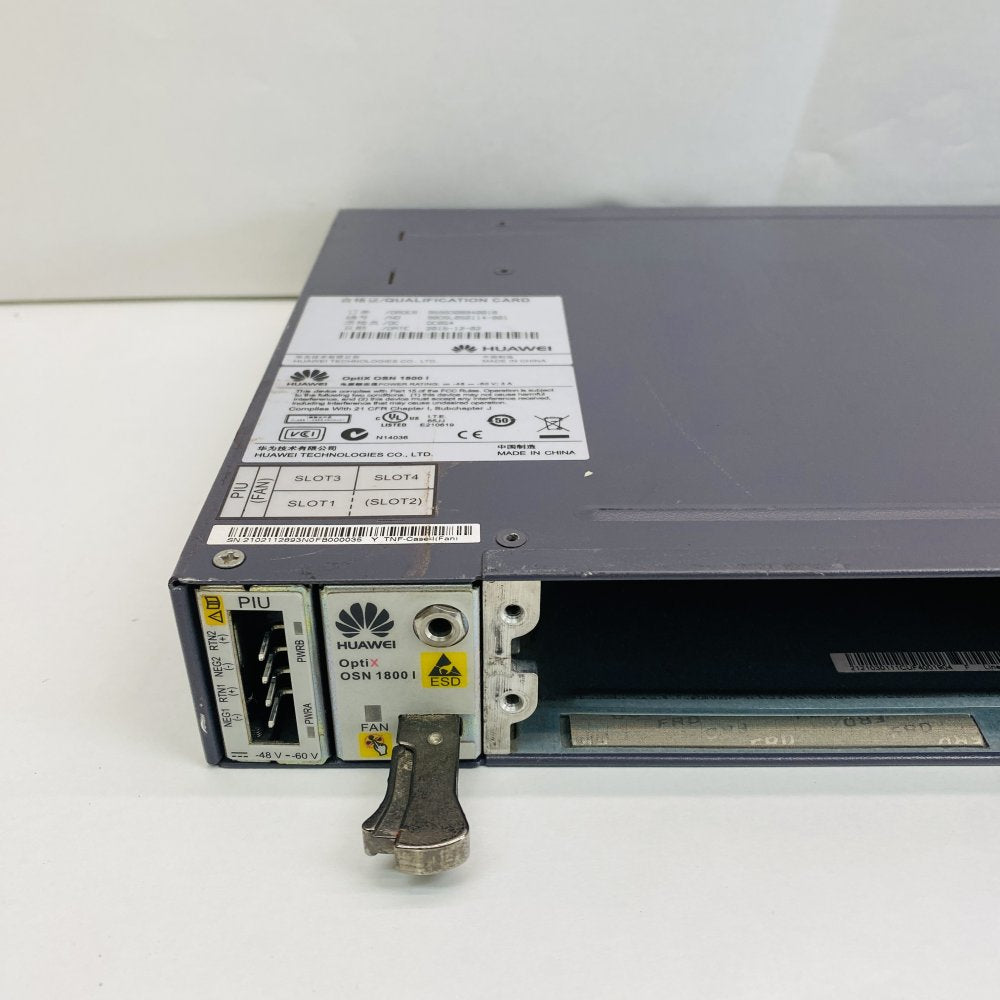

• Integrated PIU: Module with fan is already installed
• Dimensions: 44 mm (H) × 442 mm (W) × 220 mm (D)
• Mounting: Compatible with standard 19-inch rack (rack mount ears/brackets not included)

What you get

• 1 x Huawei OptiX OSN 1800 I (DC Power) Optical Transport System Chassis
• Note: Service Cards Not Included
