IME TAIG50C400 Current Transformer 400/5A Split-Core Metering CT Grade B
£26.95
Regular price
£26.95
Sale price
£26.95
Regular price
£40.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 2 left

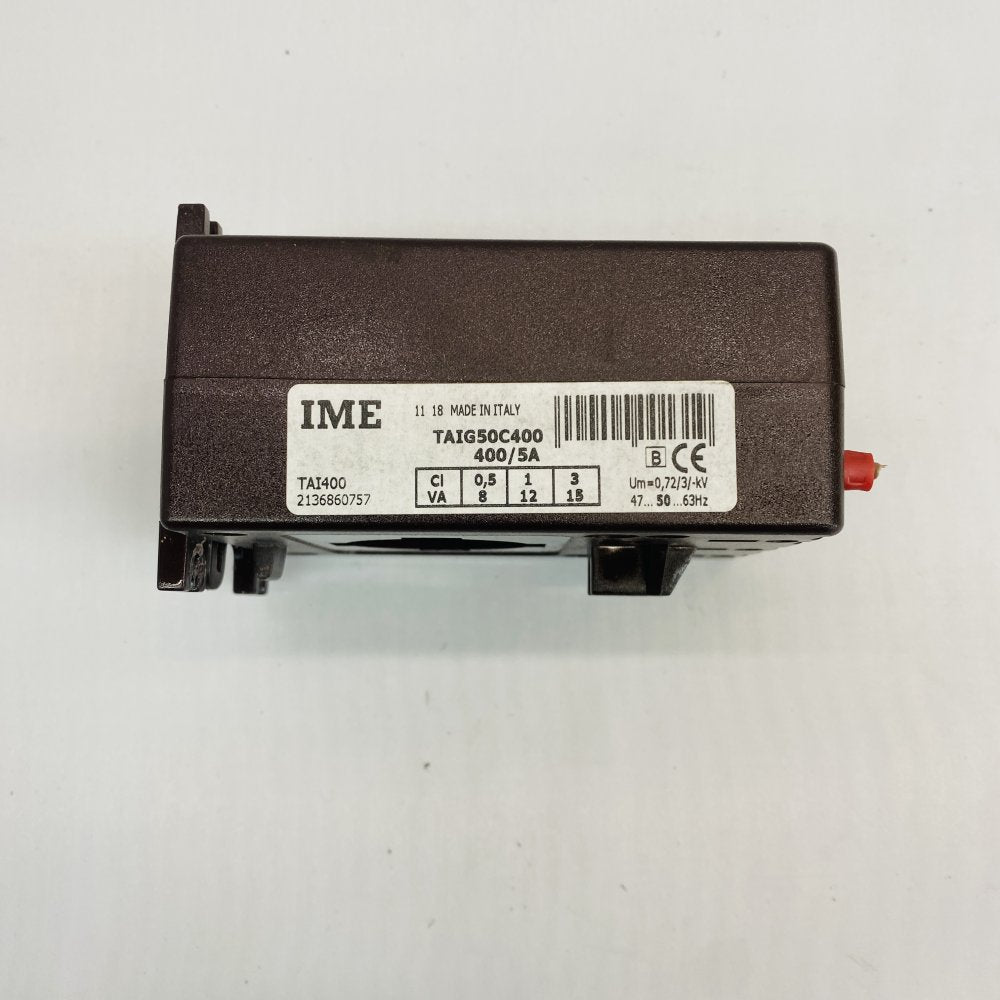

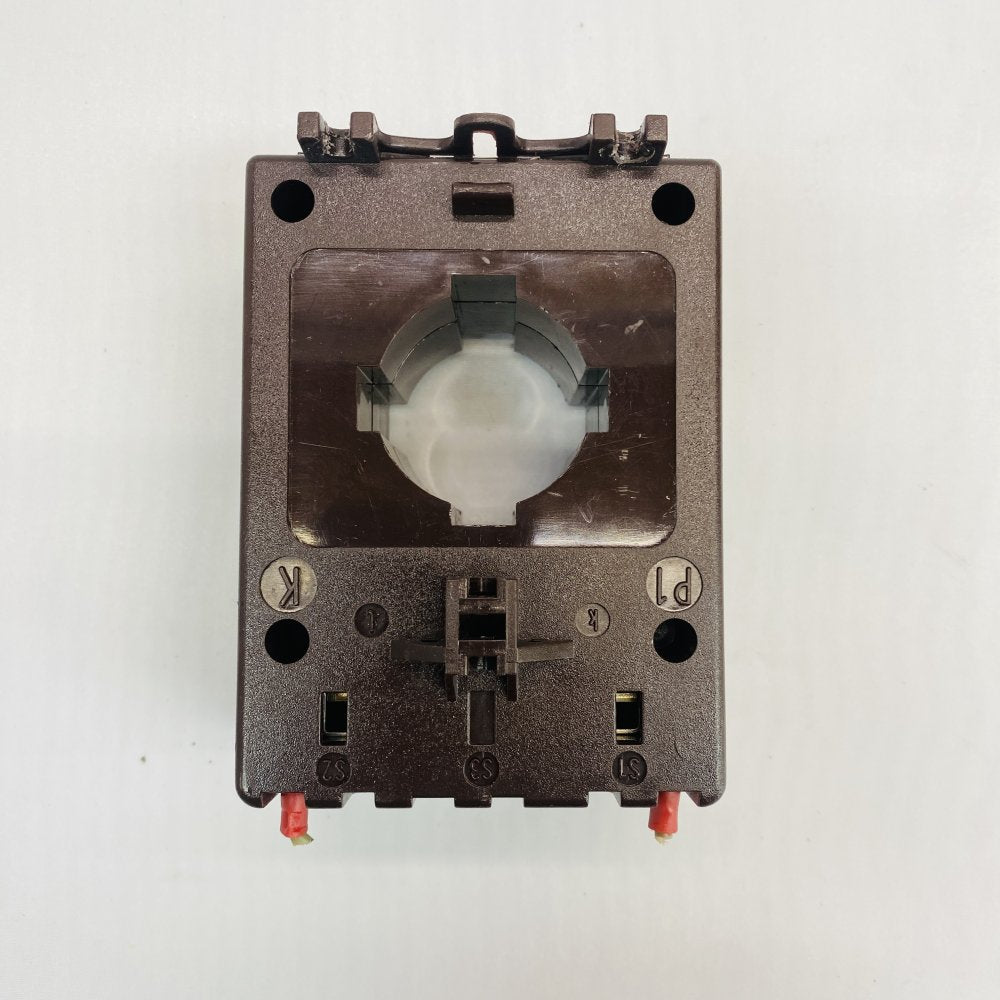

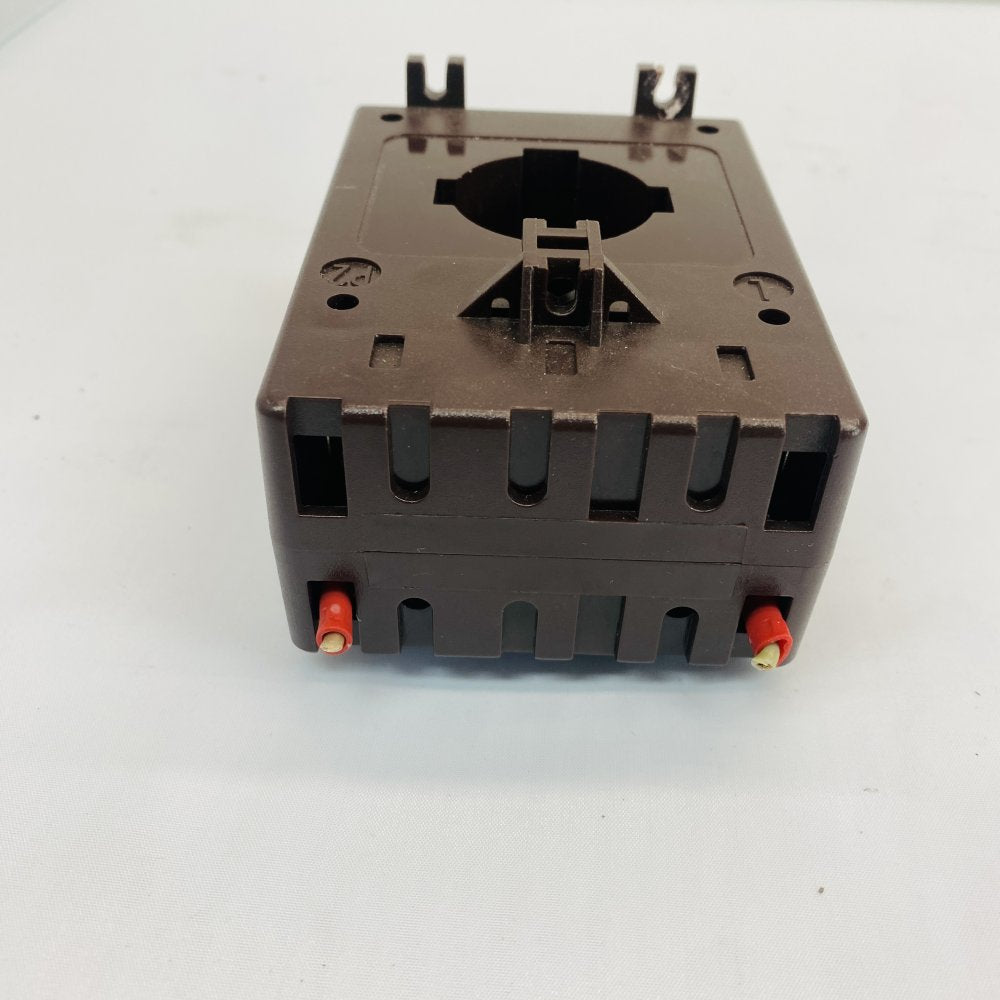

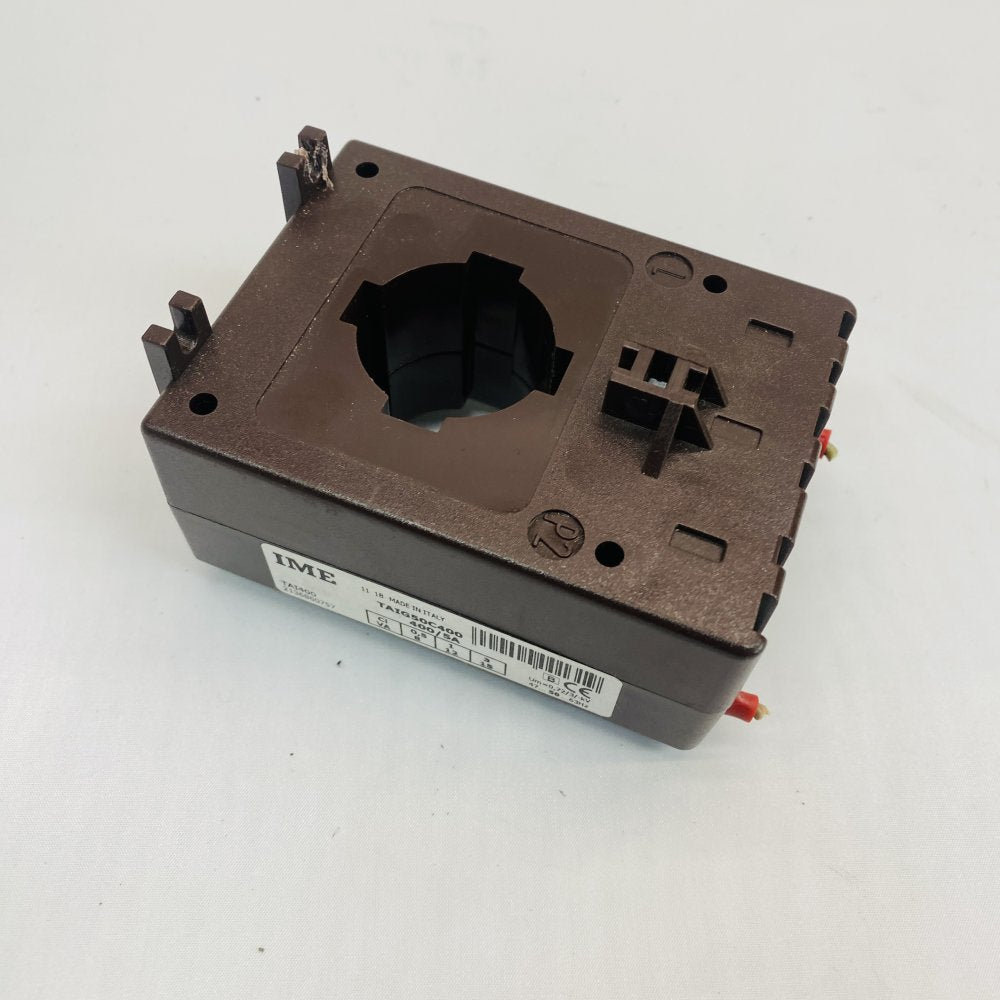

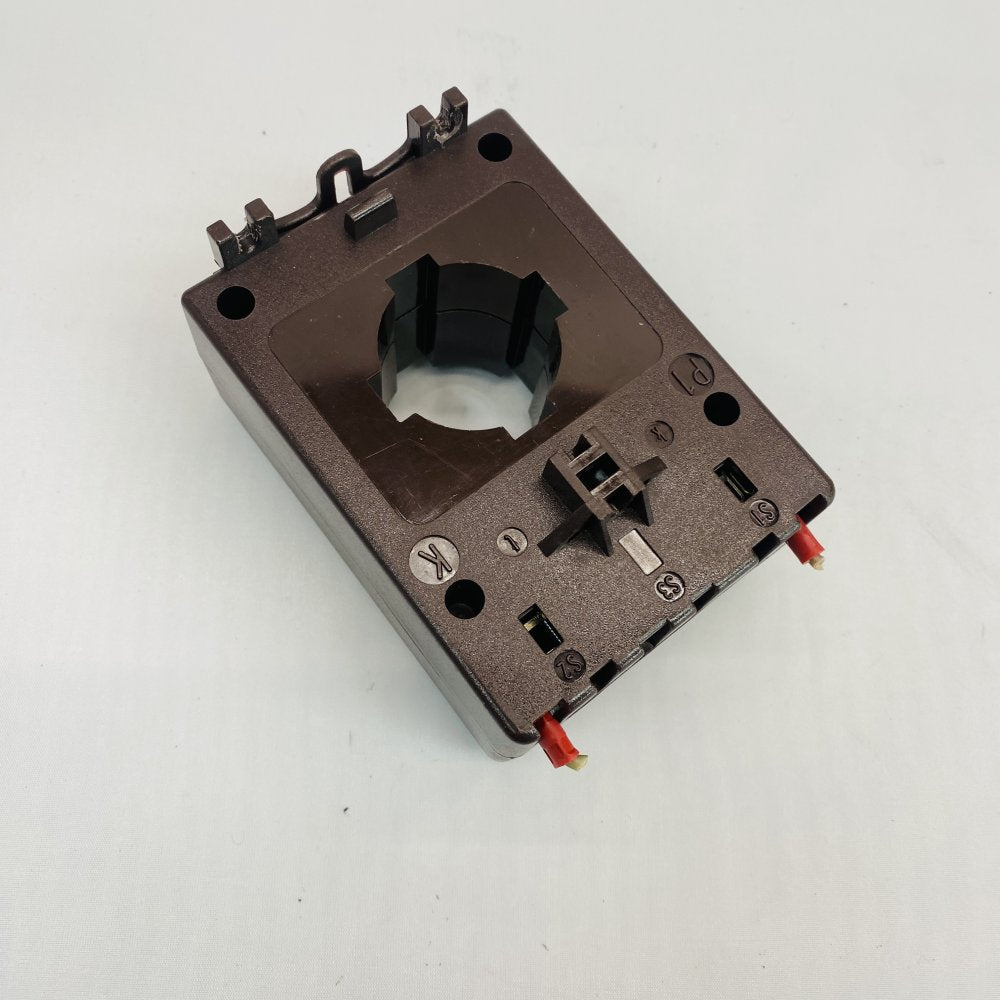

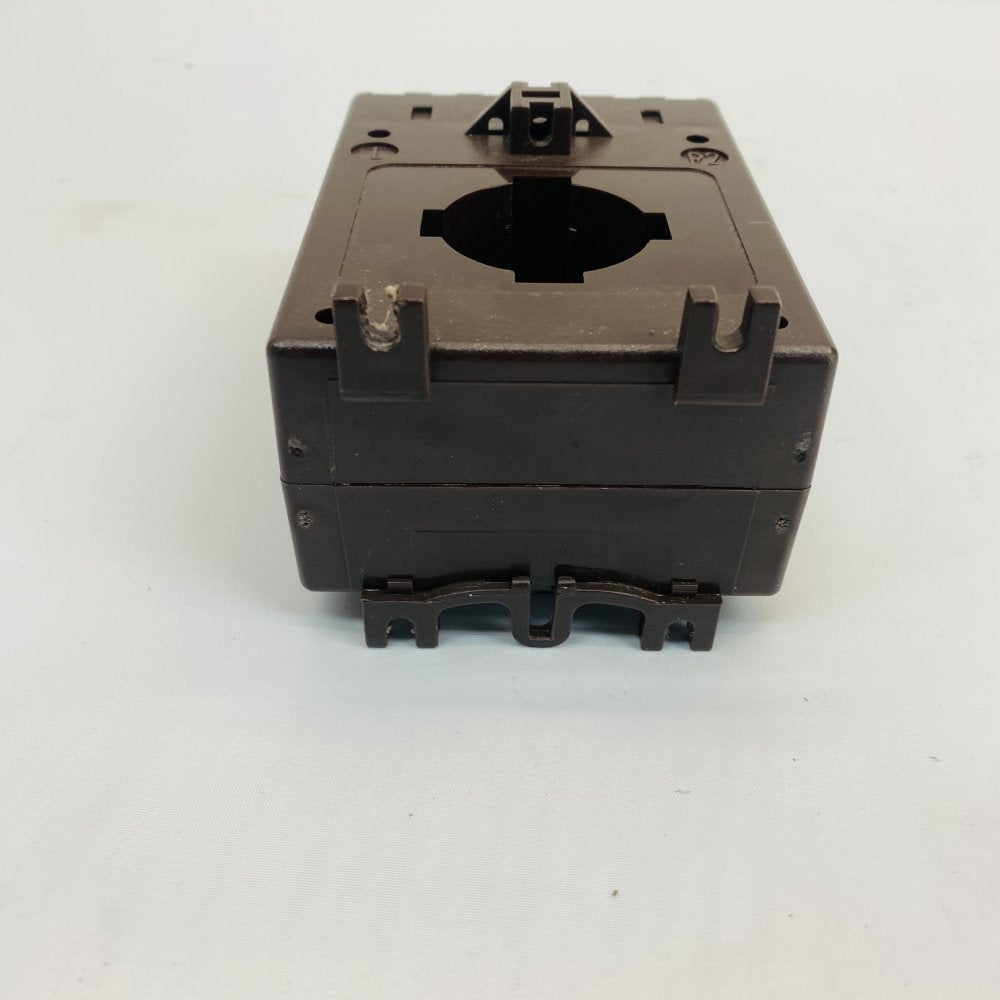

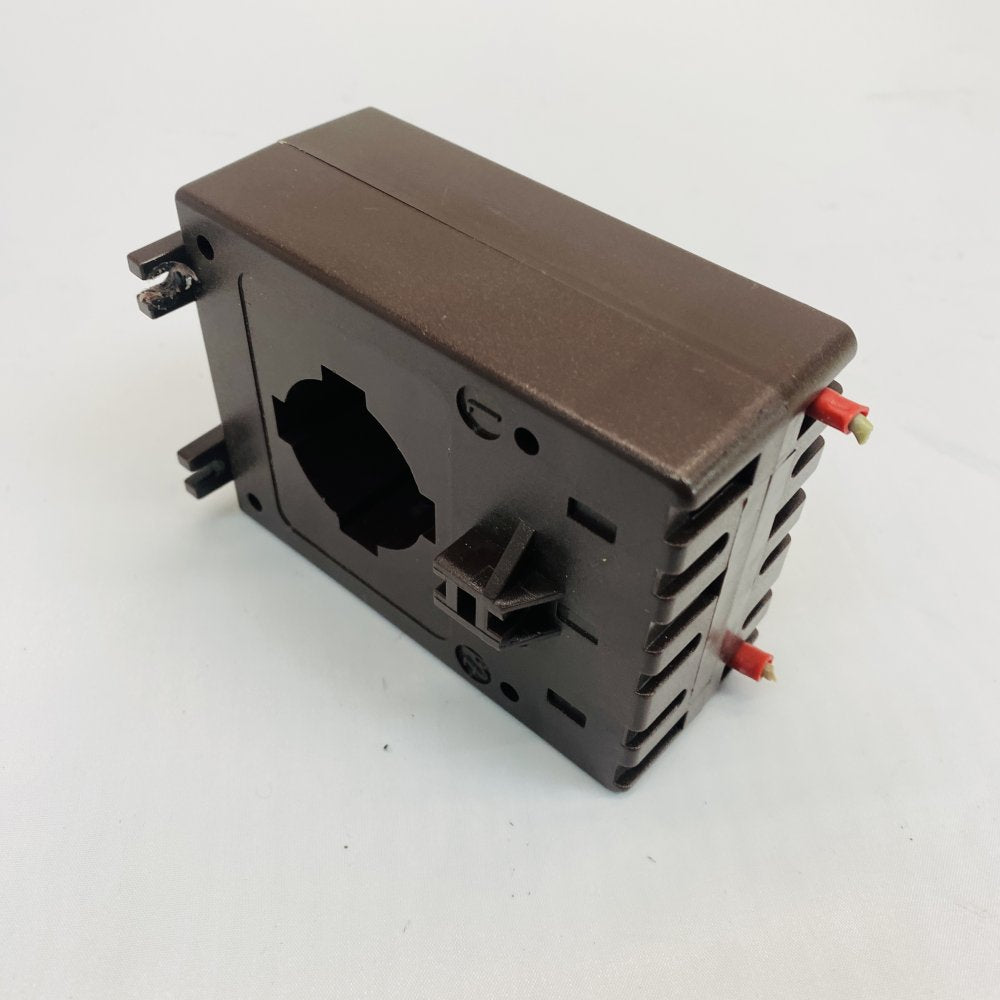

IME TAIG50C400 split-core metering current transformer. Rated 400/5 A for panel metering and energy monitoring. Clamp-style (split-core) construction allows installation without disconnecting the primary conductor. Insulated secondary terminals (red) are provided for safe connection. Unit labelled "Made in Italy".
Key Features
- Split-core clamp design for retrofit installation without disconnecting the primary conductor
- Rated ratio 400/5 A (80:1) suitable for metering and monitoring
- Accuracy classes 0.5, 1 and 3 with corresponding rated burdens (labelled on the unit)
- Insulated secondary terminals (red) for secure connection
- Labelled rated insulation and frequency: Um = 0,72/3 kV; 47–63 Hz
- Manufactured by IME (model TAIG50C400)
Technical Specifications
| Specification | Details |
|---|---|
| Brand | IME |
| Model | TAIG50C400 |
| Part number | TAI400 / 2136860757 (as labelled) |
| Primary current (rated) | 400 A |
| Secondary current (rated) | 5 A |
| Turns ratio | 80:1 (400/5) |
| Accuracy class | 0.5 / 1 / 3 |
| Rated burden (VA) | 8 VA (class 0.5); 12 VA (class 1); 15 VA (class 3) — values shown on unit label |
| Frequency | 47–63 Hz |
| Rated insulation | Um = 0,72/3 kV (as labelled) |
| Type | Split-core current transformer (metering) |
| Termination | Insulated secondary terminals (red) |
| Country of origin | Italy (as labelled) |
What you get
- 1 x IME TAIG50C400 split-core current transformer (400/5 A)
History
The device was removed during equipment decommissioning and is offered as a single metering current transformer for reuse. Please examine the photographs carefully for physical condition and fitment details.
Returns
Please review the listing details and photographs carefully before purchase. If you have any questions about the item, ask before ordering.
