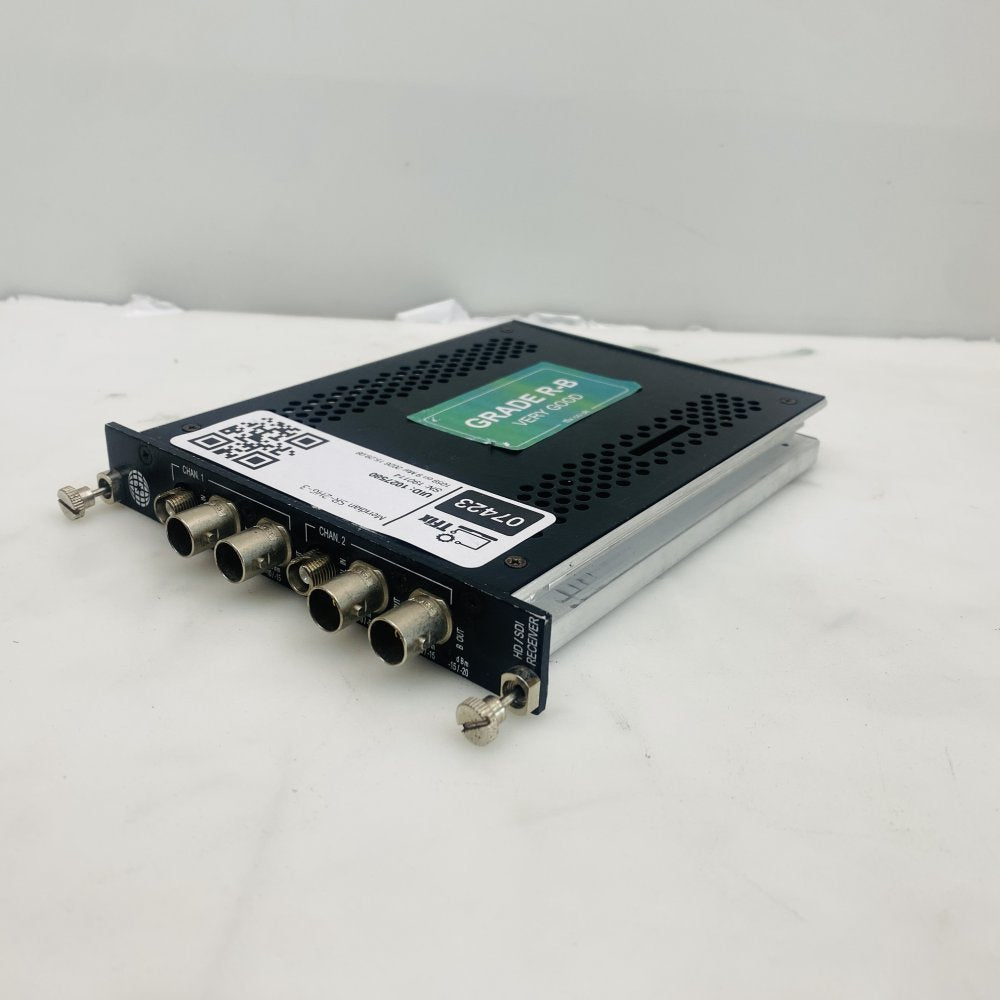

Meridian Technologies SR-2HG-3 HD/SDI 3G-SDI 2-Channel Optical Video Receiver

Features

• Model: SR-2HG-3 by Meridian Technologies
• Two independent HD/SDI channels
• Optical fibre input ports (FC / ST compatible as indicated on the module)

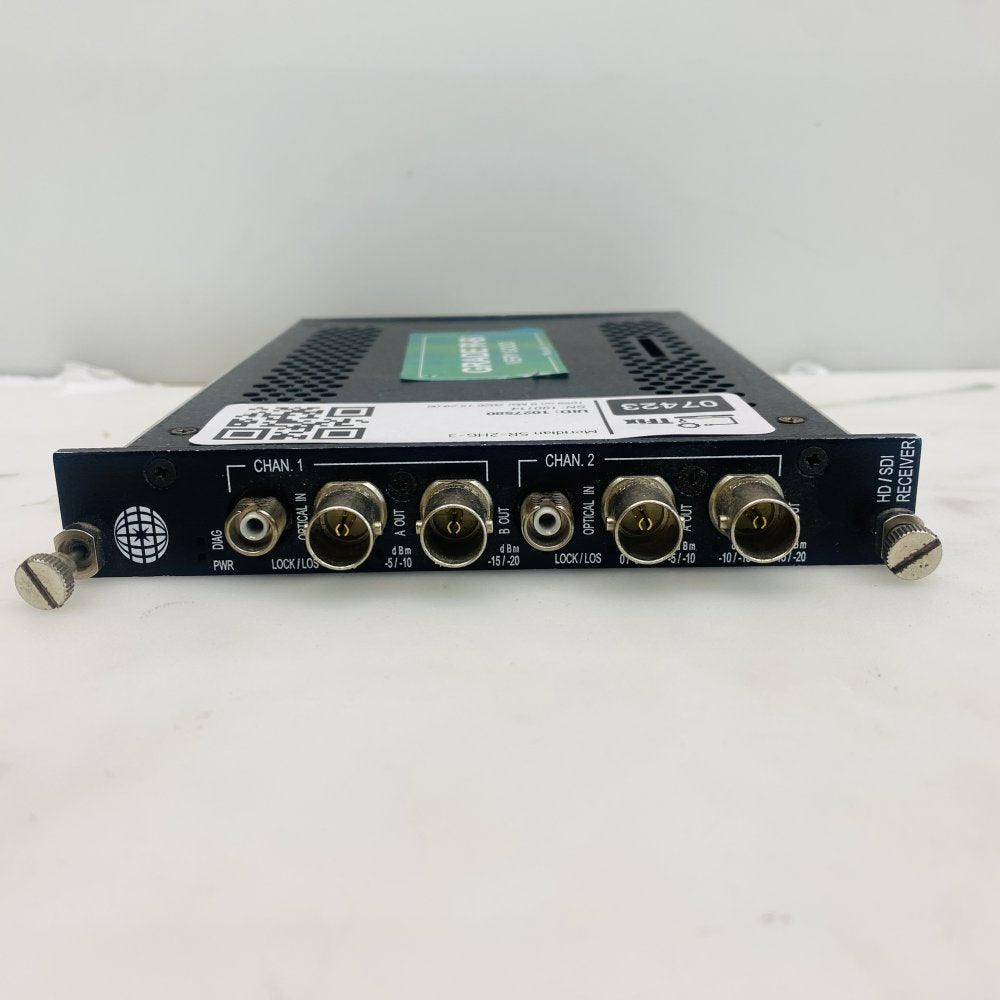

• Dual SDI BNC outputs per channel (A and B) for signal distribution or redundancy

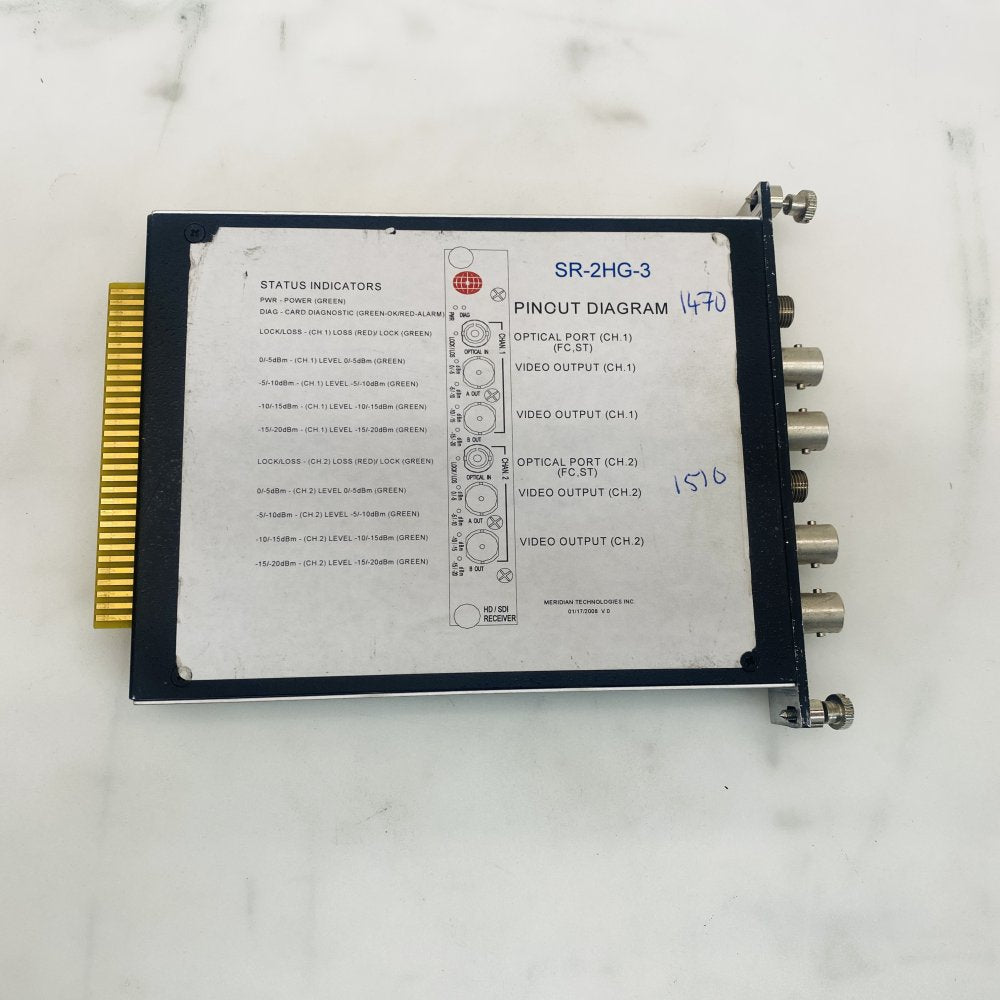

• Front-panel diagnostic LEDs: PWR, DIAG, LOCK/LOSS and optical-level indicators
• Module form factor with edge connector for insertion into a Meridian frame/chassis
• Compact, rack-modular design for broadcast and professional video systems

Specifications

• Manufacturer: Meridian Technologies, Inc.
• Model / P/N: SR-2HG-3

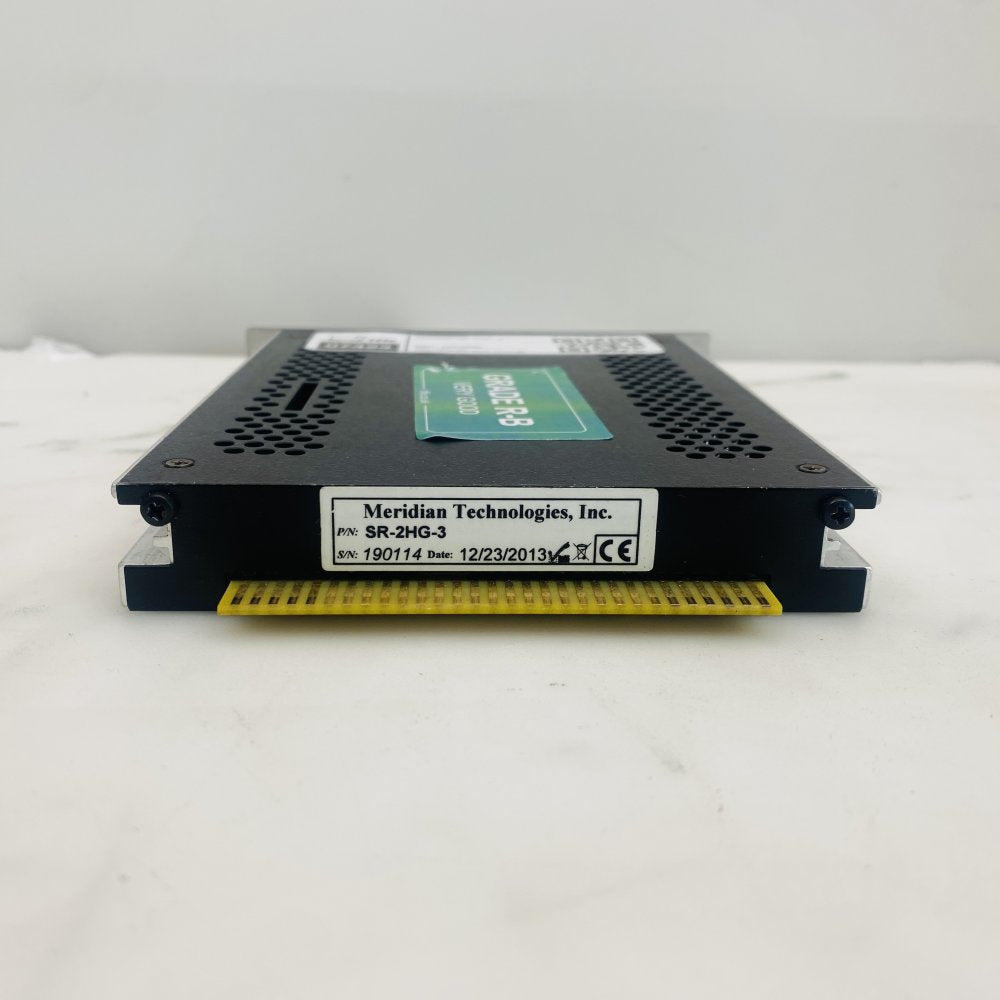

• Serial number (visible on unit): S/N 190114 (Date: 12/23/2013)
• Channels: 2 independent channels (Channel 1 and Channel 2)
• Optical input: Fibre port(s) — marked as FC/ST on the module
• Video outputs: SDI BNC outputs (two per channel, labelled A and B)
• Indicators: Power (PWR), Card diagnostic (DIAG), LOCK/LOSS and optical input level indication (approx. 0 to -20 dBm range as marked on the unit)
• Form factor: Plug-in receiver card with gold-edge connector for Meridian chassis (HD/SDI receiver module)
• Application: Reception and distribution of HD/SDI and SD-SDI signals from optical fibre links

What you get

• 1 x Meridian Technologies SR-2HG-3 HD/SDI 2-Channel Optical Video Receiver module (as pictured)

History

Notes: The item is supplied as a modular card intended to be powered and controlled by a compatible Meridian frame/chassis. No additional accessories are included unless explicitly listed above.
