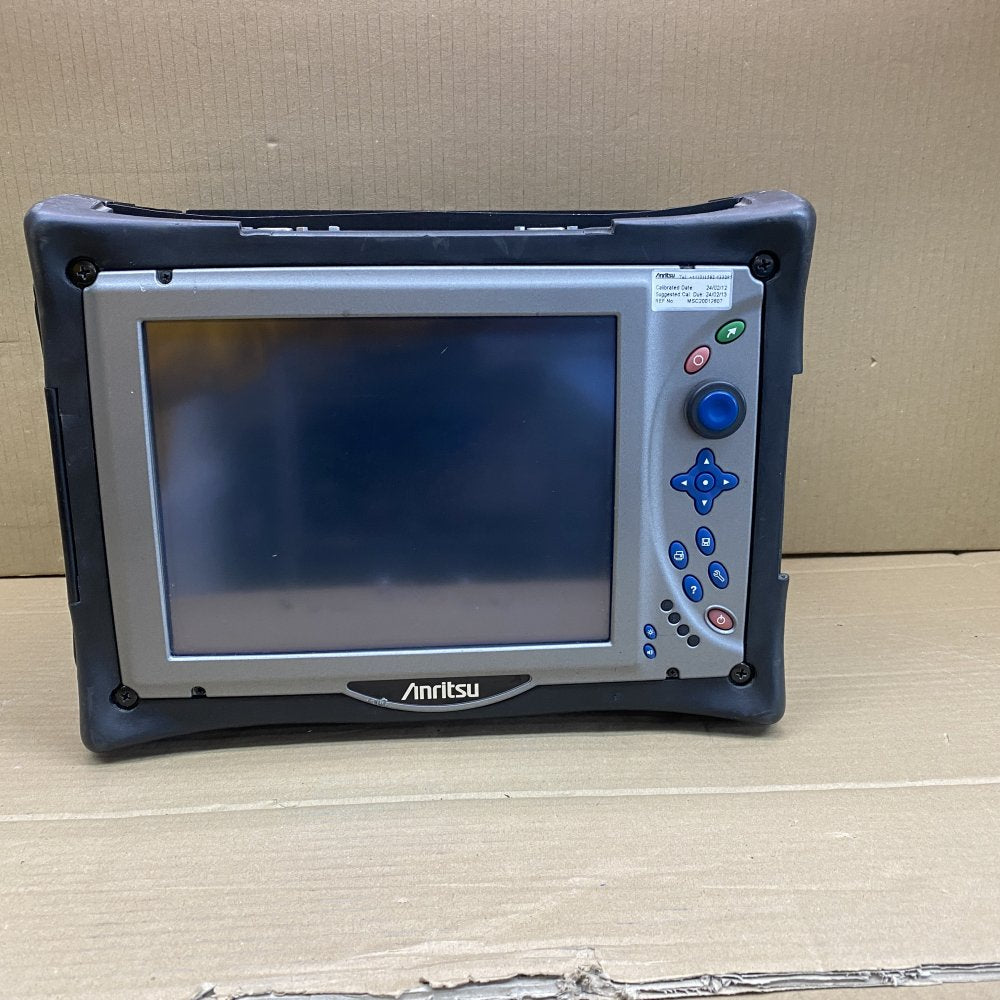

The Anritsu CMA5000 Multi-Layer Fibre OTDR Network Tester is an advanced optics test and measurement solution, ideal for telecommunication professionals. It is designed to facilitate the rapid deployment of new services while minimising total cost of measurement and optimising network performance. With its modular capabilities, this open-architecture platform supports high-performance measurement applications, accelerating network characterisation and commissioning. The CMA5000's flexibility and scalability ensure it remains a relevant and adaptable solution for evolving telecommunication infrastructures.
Description
The Anritsu CMA5000 is a comprehensive test and measurement solution designed to support the stringent demands of the telecommunications industry. Its modular design supports applications across the Physical, Data Link, Network, and Transport layers, including DWDM, SONET/SDH, Gigabit Ethernet, OTDR, and Dispersion tests. This versatility ensures each fibre and network can be accurately characterised for optimal performance and revenue potential.
Features
High-performance, modular design
Open-architecture for scalability
Quick network characterisation and commissioning
Supports applications across multiple network layers
Reduces time to revenue
Specifications

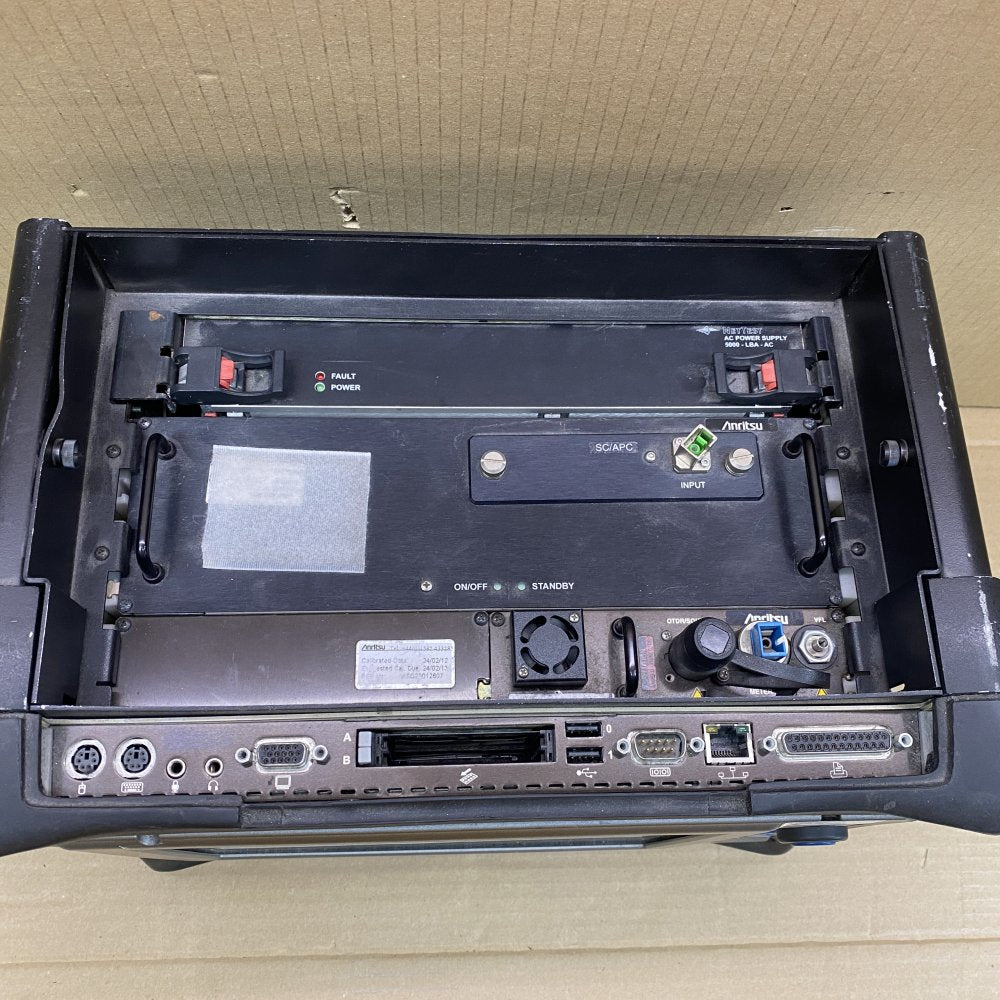

Model: CMA5000 with Large Bay Adapter (LBA)
Processor: 700MHz Pentium III
RAM: 512MB
Operating System: Windows XP Professional

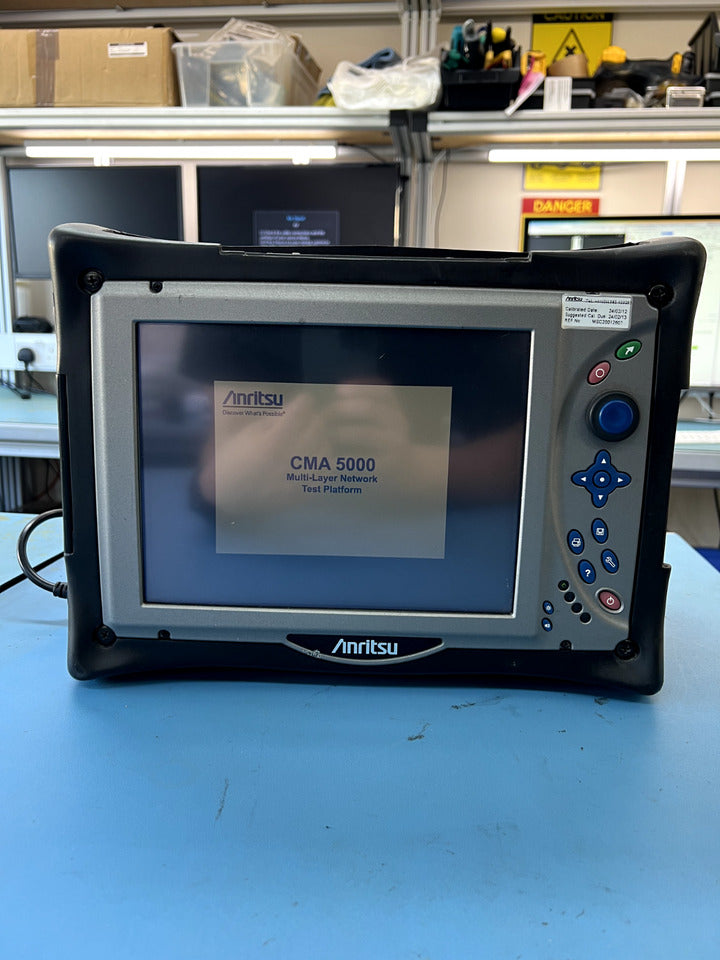

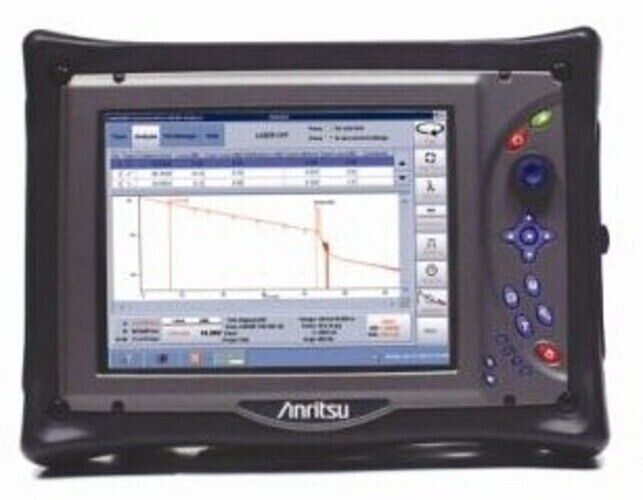

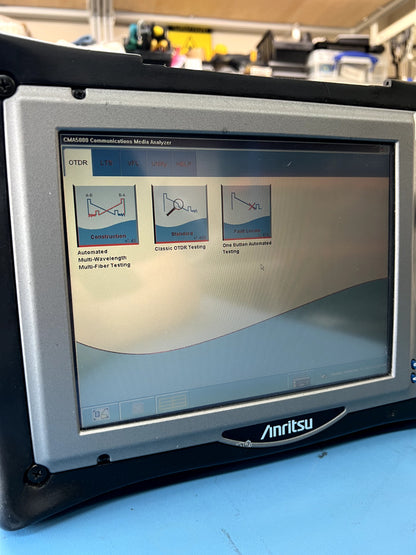

Display: 10.4 inch (26.4cm) colour XGA (1024x768) LCD with touchscreen interface
Internal Storage: Minimum 20GB hard drive

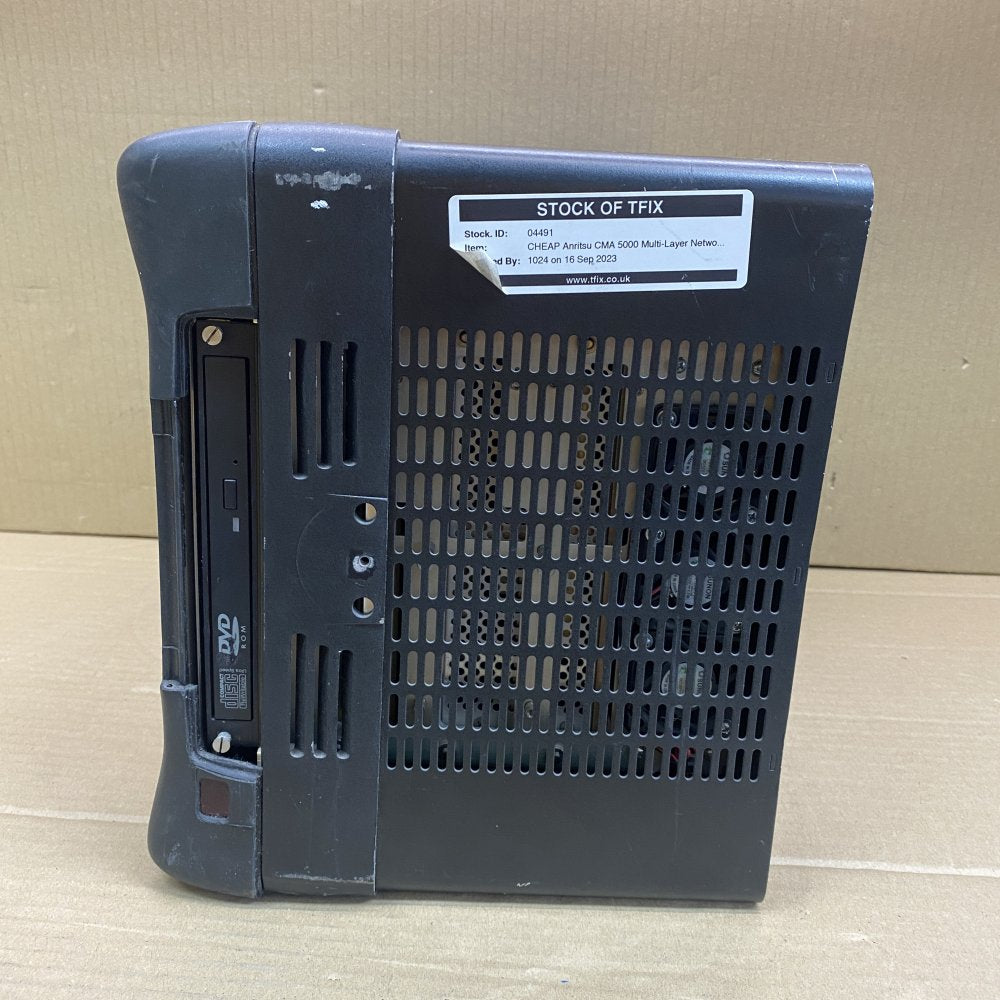

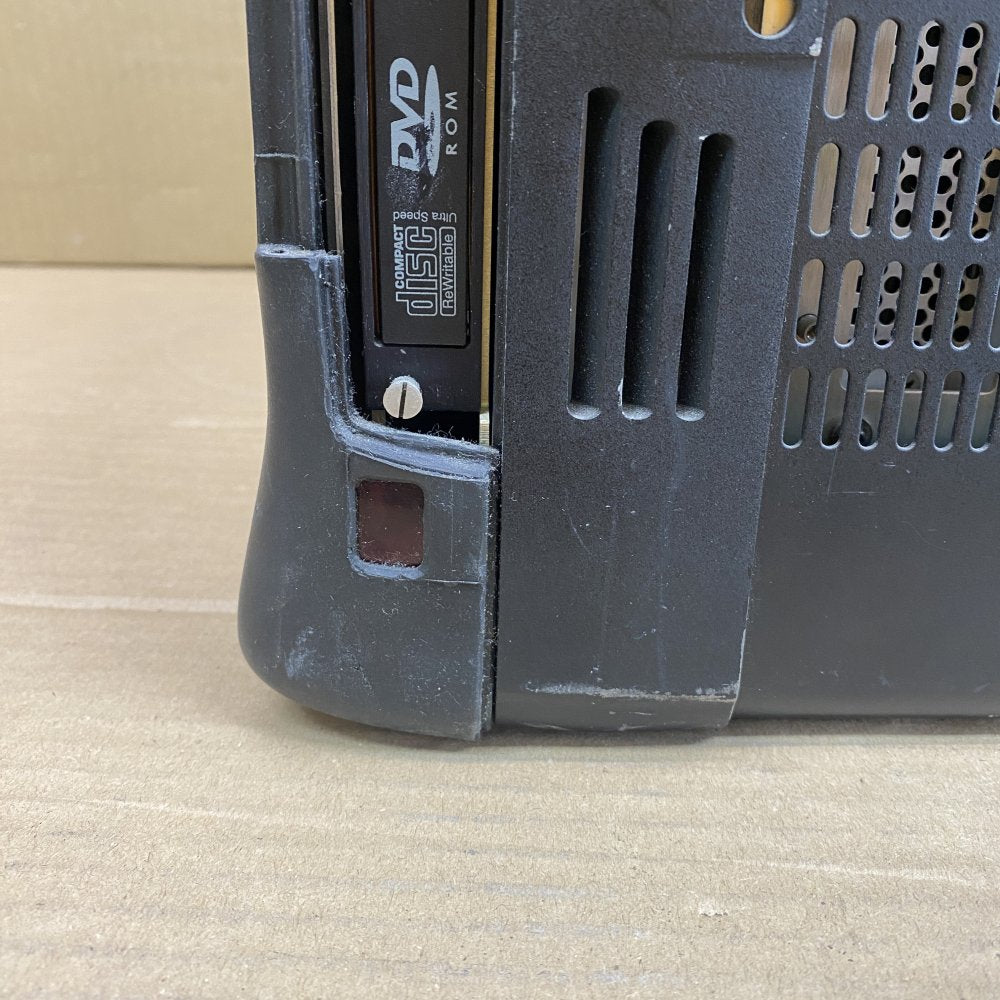

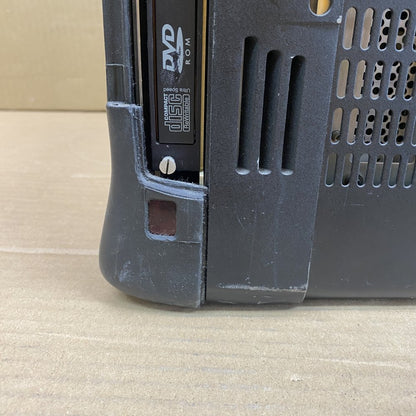

Removable Storage: Standard CD-R/W

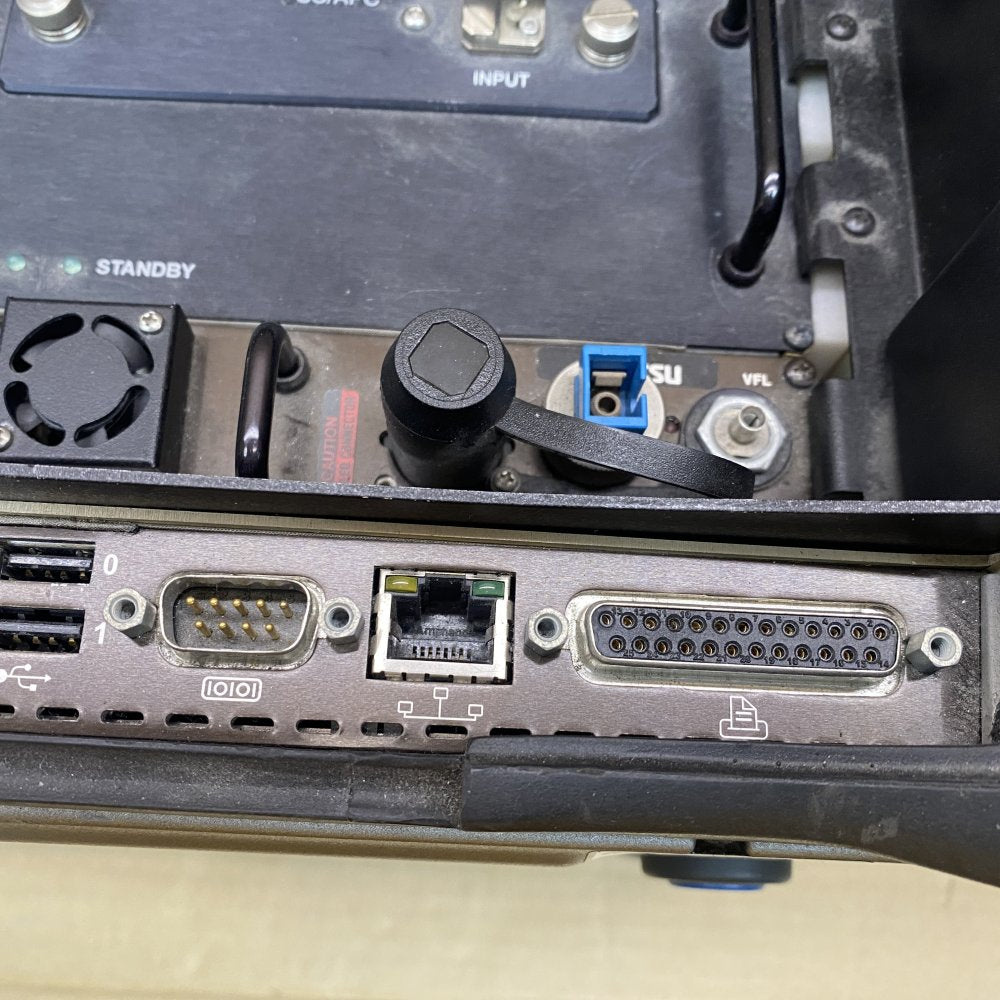

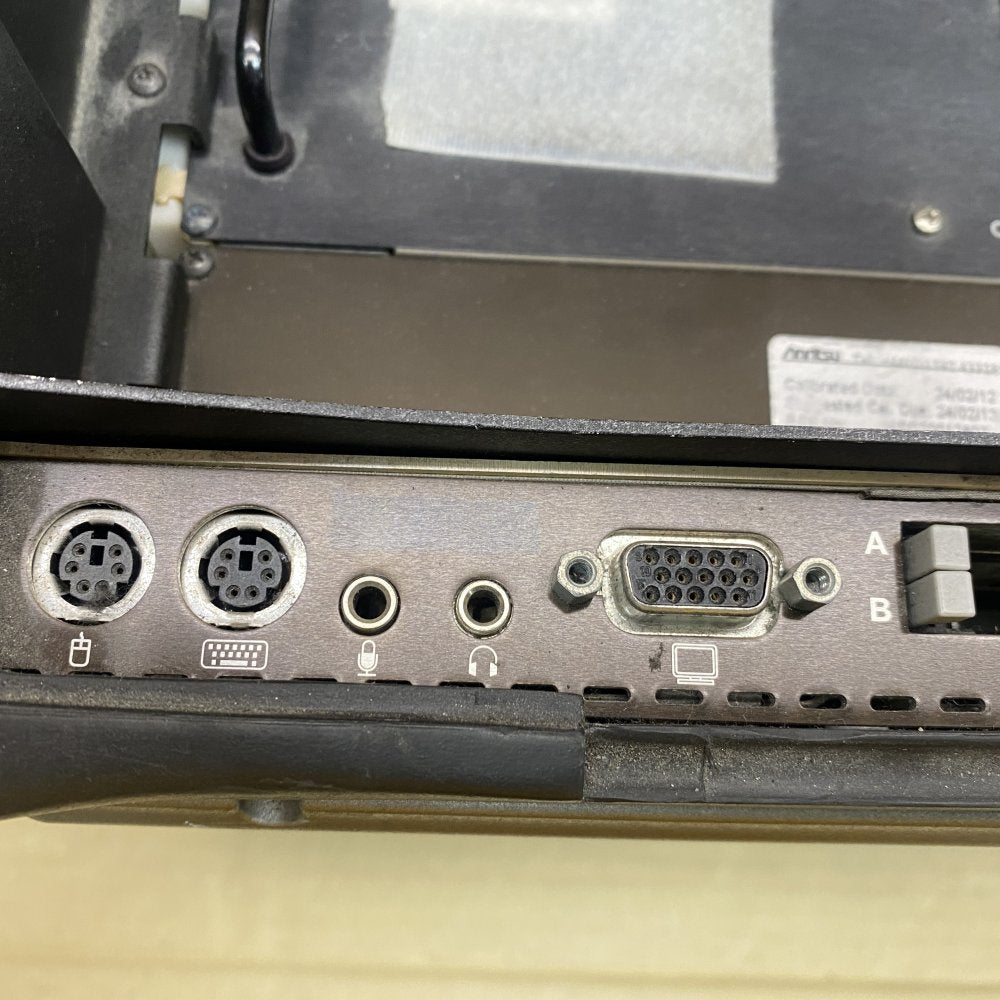

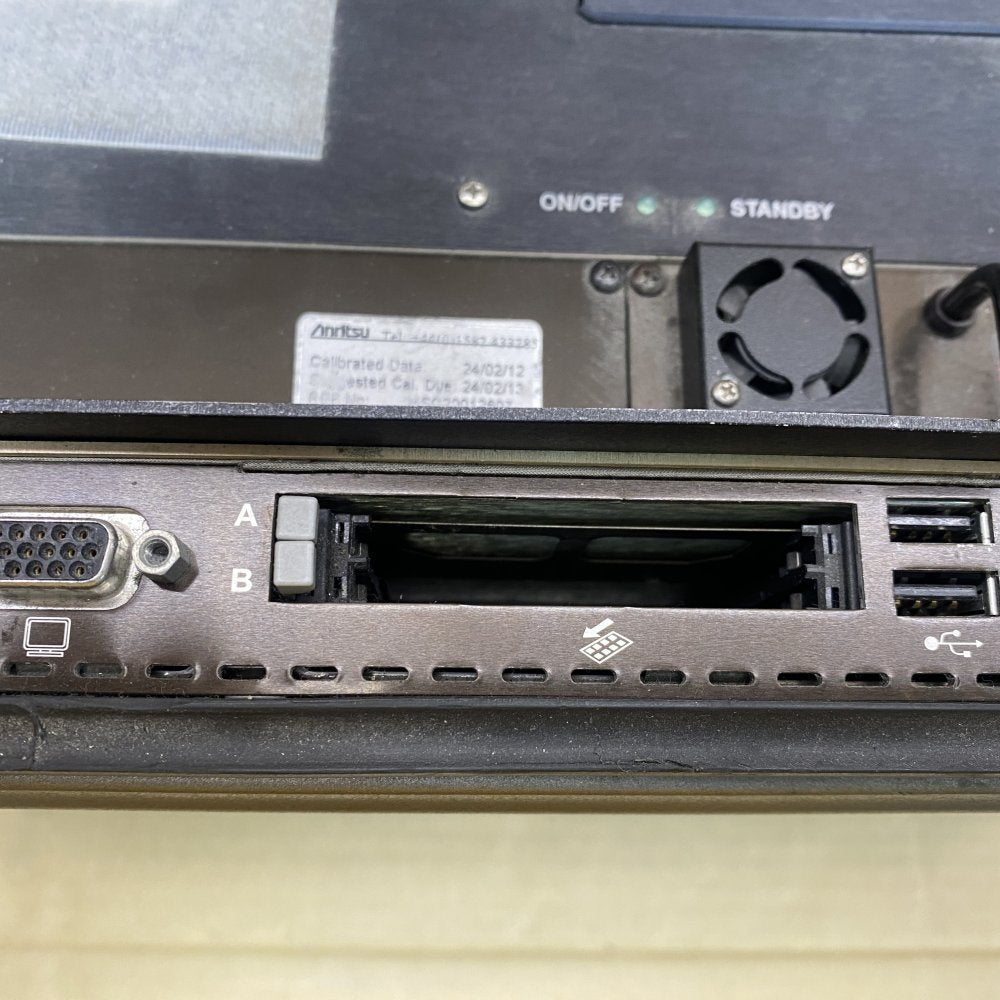

Interfaces: PS/2 (2), Video output, PCMCIA card bus (2), USB (2), RS-232, Parallel, 10/100 Ethernet, IrDA
Power Supply: Auto switching 92-132 VAC, 184-264 VAC (47-63 Hz)
Dimensions: 24.1 x 34.3 x 24.1 cm (9.5 x 13.5 x 9.5 inches)
Weight: 8.1 kg (18 lbs)
What you get
1 x Anritsu Multi-Layer Network Testing Platform
1 x Power Cable
History

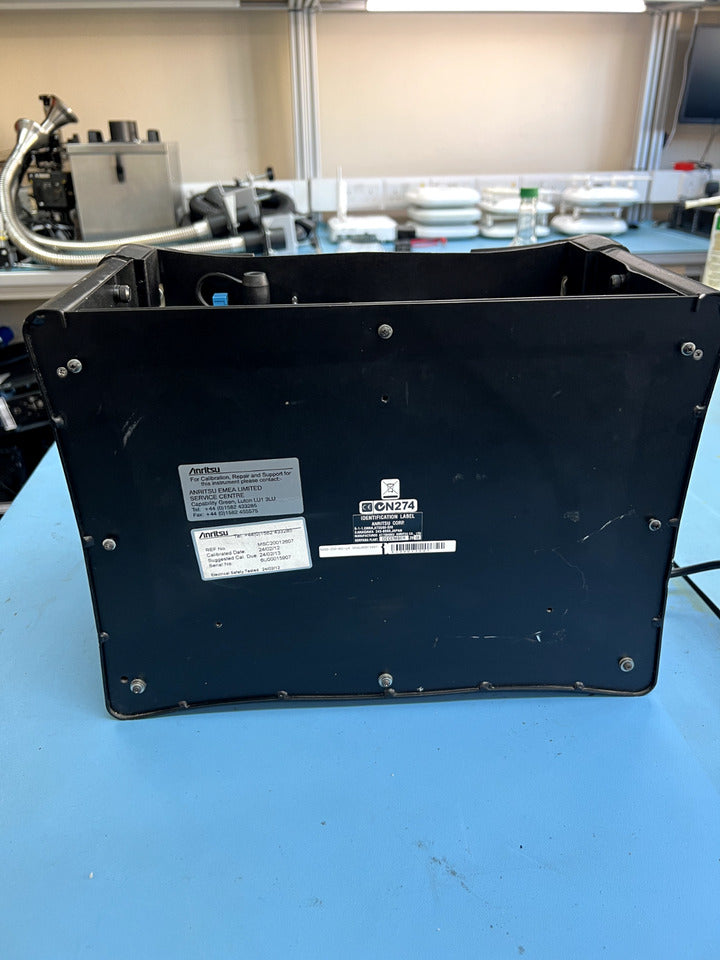

The device came as part of the IT decommissioning project and was removed from working environment.
Details
VAT or 20% is included in the price (No VAT for international customers).
