Gear Haven

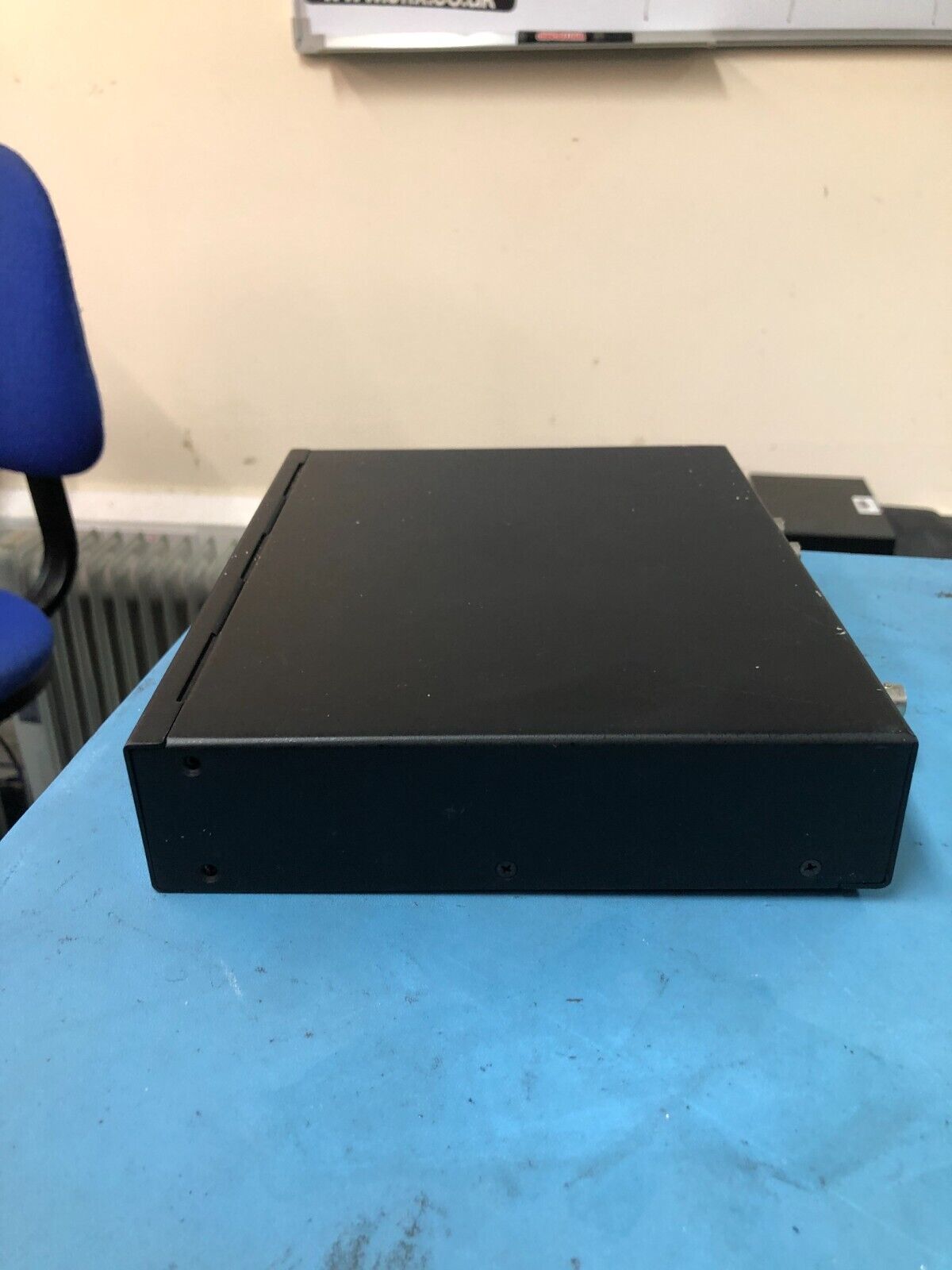

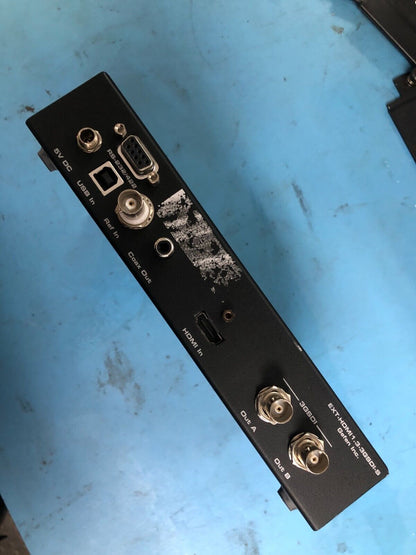

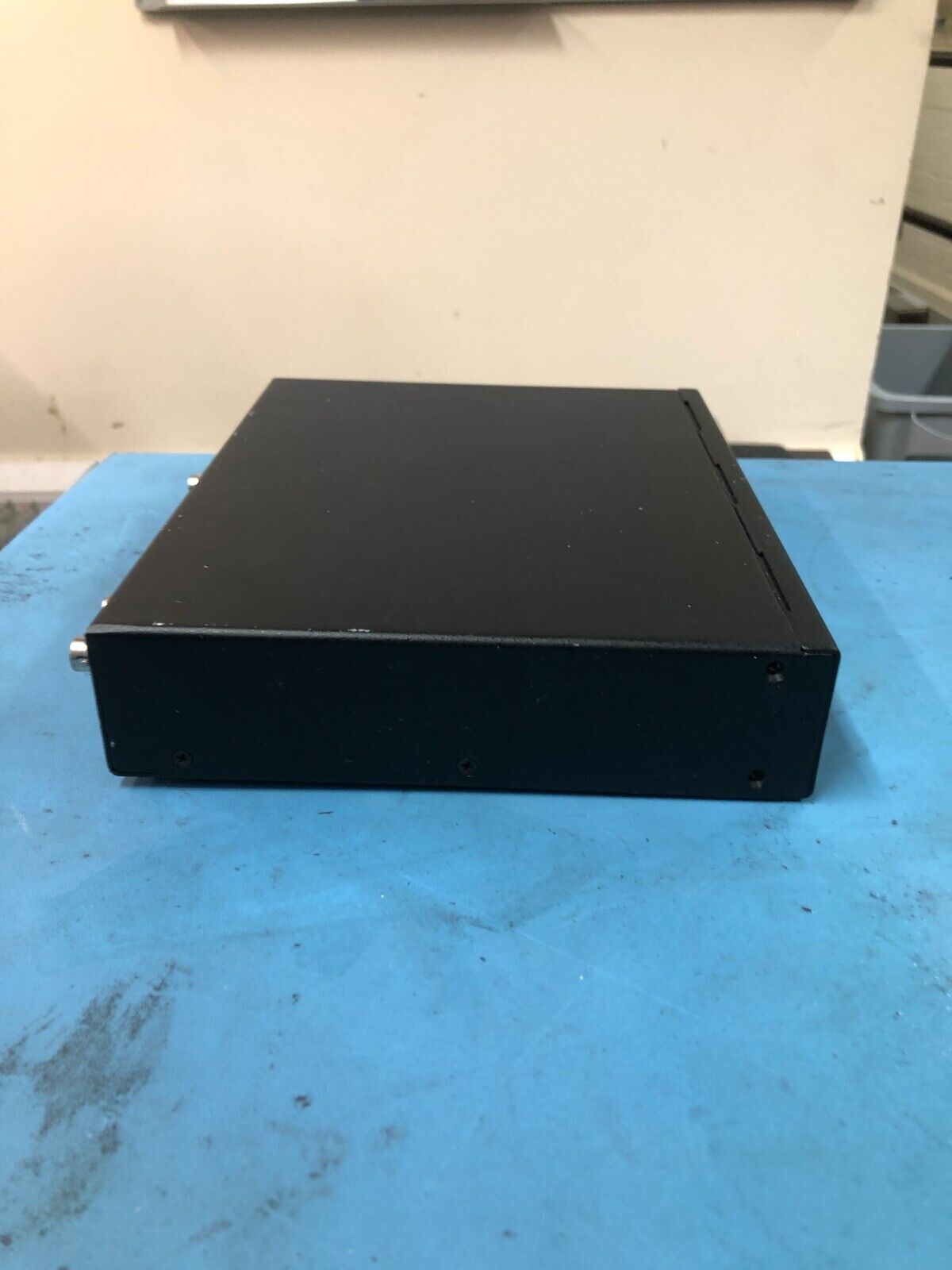

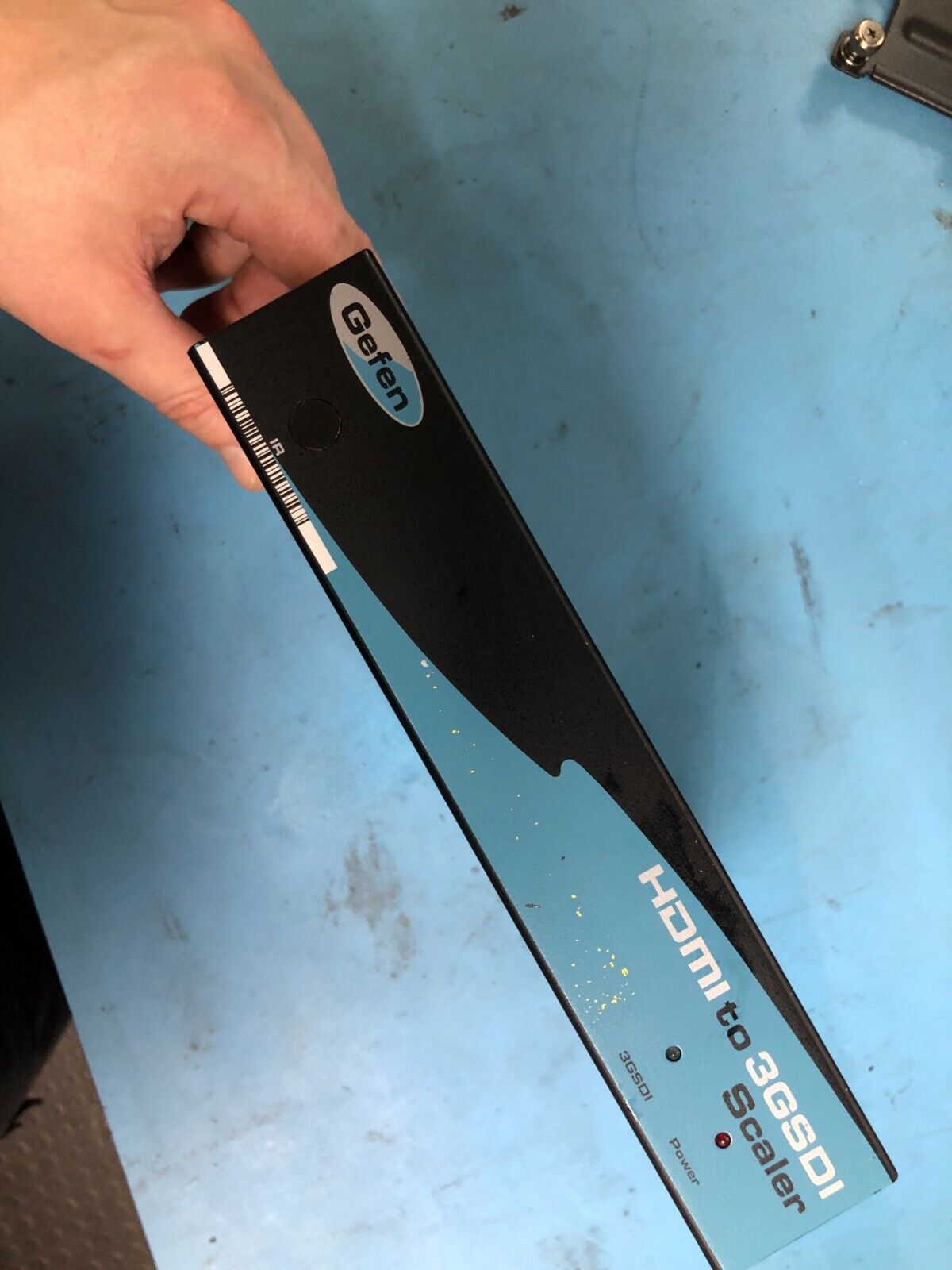

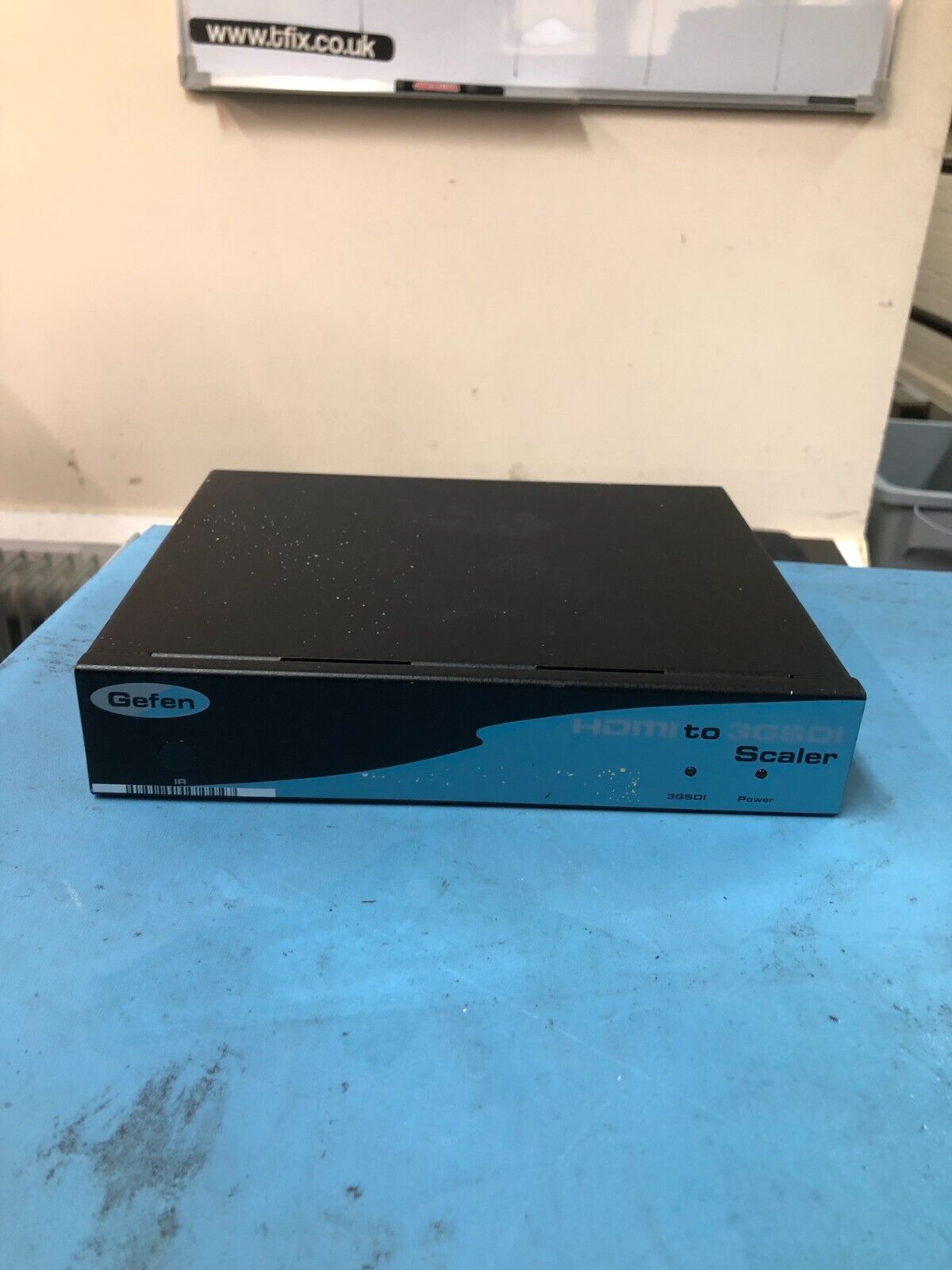

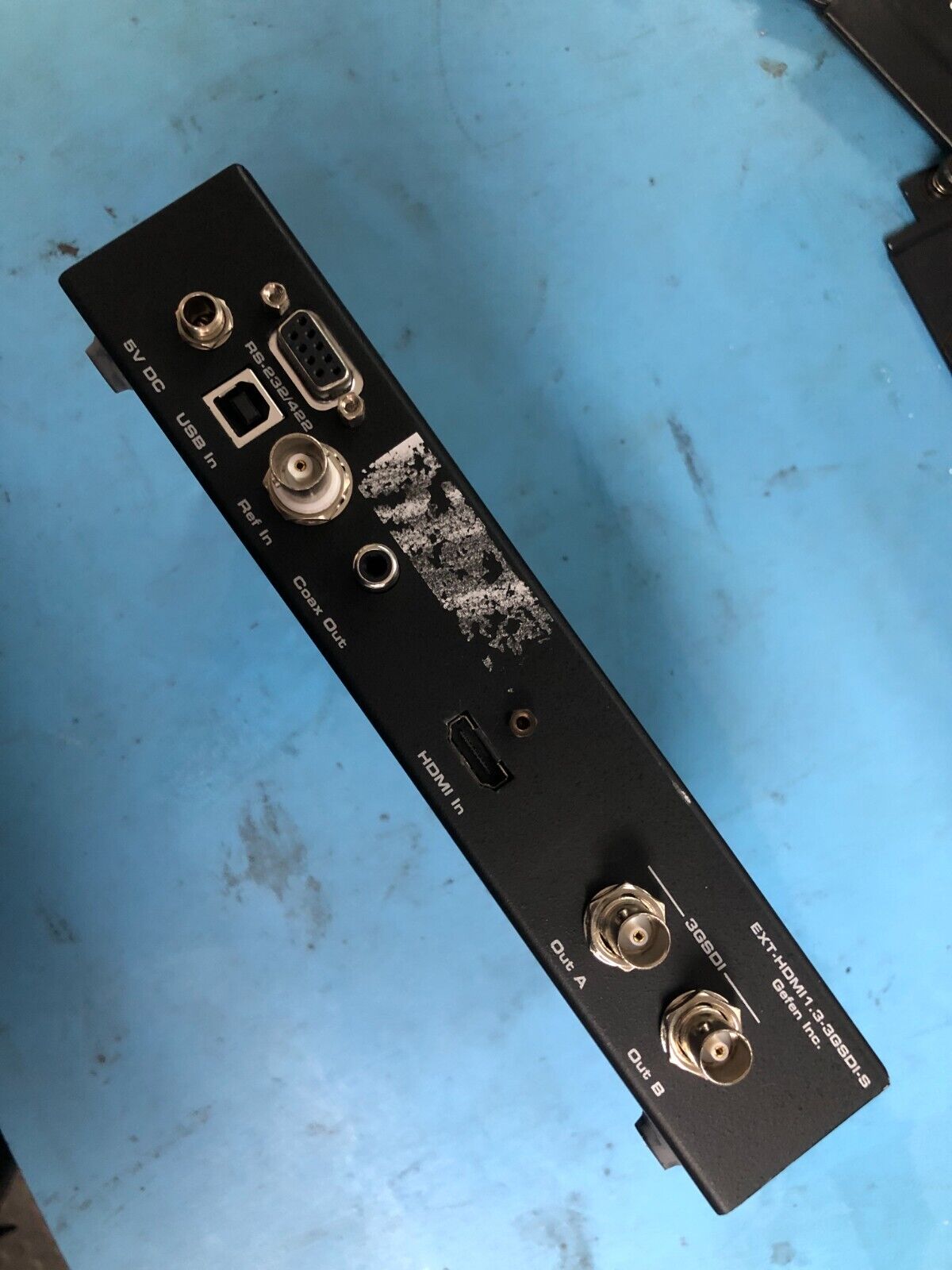

Professional 3G-SDI to HDMI Converter, Gefen EXT-HDMI Scaler, 1080p
Professional 3G-SDI to HDMI Converter, Gefen EXT-HDMI Scaler, 1080p
Regular price
£30.95
Regular price
Sale price
£30.95
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Gefen EXT-HDMI 1.3 to 3G-SDI Converter is a professional-grade device that seamlessly converts a single HDMI input signal into SDI, HD-SDI, or 3G-SDI formats. It supports high-definition and ultra-high bandwidth outputs. The converter provides HDMI audio/video signals in SDI format through two SDI BNC connectors, with up to eight channels of HDMI audio integrated into the output signal. Additionally, RCA-type L/R analogue audio output jacks allow for monitoring of the primary two audio channels from the HDMI source. LED indicators offer diagnostic assistance by displaying HDMI and SDI signal statuses.
Simply connect an HDMI source to the HDMI input and an SDI device to the SDI outputs. The included power supply connects to the converter, facilitating audio and video signal conversion to connected A/V output devices like displays and audio receivers. The built-in DIP switches allow for configuration of Sampling, Colour Space/Colour Depth, and EDID Management settings. Note that PC video formats are not supported, and the converter does not scale video.
Features
- Plug-and-play functionality with optional configuration via DIP switches
- Firmware upgradable through the integrated USB port
- Includes a 720p 60Hz test pattern without needing a video/audio input
- Supports up to eight PCM audio channels on the 3G-SDI connector
- Compatible with Dolby Digital and DTS AC3 encoded audio
- Offers two analogue audio outputs for monitoring HDMI audio
- Supports input resolutions up to 2K (2048x1080) and output resolutions up to 1080p@60Hz
- Dual outputs available for SDI and HD-SDI equipment
- Handles 3G-SDI SMPTE 425-A and 425-B, automatically converting B to A
- Features a locking power input for secure connections
Specifications
- Input Interfaces: HDMI 1.3
- Output Interfaces: 2 x SDI BNC connectors
- Power: Secure locking input
- Audio Support: Up to 8 channels PCM, Dolby Digital, DTS AC3
What you get
- 1 x Gefen EXT-HDMI 1.3-3GSDI-S Scaler HDMI to SDI Converter 3G-SDI Converter 3G-SDI
- No Power Supply
History
The device came as part of the IT decommissioning project and was removed from a working environment.
Details
VAT or 20% is included in the price (No VAT for international customers).
