Procom DPF 70/6-9/13 UHF Duplexer / 6-Cavity Duplex Filter 406-470MHz
£61.99
Regular price
£61.99
Sale price
£61.99
Regular price
£92.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 1 left
Professional-grade Procom DPF 70/6-9/13 6-cavity UHF duplexer (duplex filter) suitable for duplex transceivers and repeater base stations. The unit supports the 406–470 MHz UHF band with a selectable duplex spacing window of 9–13 MHz. It is built with full‑length 1/4 λ cavities housed in an extruded aluminium case and is intended to allow a transmitter and receiver to share a single antenna while maintaining strong isolation and low insertion loss.
Key Features
- 6-cavity duplexer for UHF transceivers and repeater use
- Frequency range: 406–470 MHz (UHF)
- Duplex spacing: 9–13 MHz variant
- Rugged extruded aluminium housing with full‑length 1/4 λ cavities
- Standard 50 Ω impedance and N-type antenna connectors
- Designed to provide high TX/RX isolation and low insertion loss
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Procom |
| Model | DPF 70/6 |
| Part Number (MPN) | DPF 70/6 |
| Frequency range | 406–470 MHz (UHF) |
| Duplex spacing | 9–13 MHz |
| Impedance | 50 Ω |
| Max input power | 50 W |
| Isolation (single-channel tuned) | >85 dB |
| VSWR | <1.5:1 |

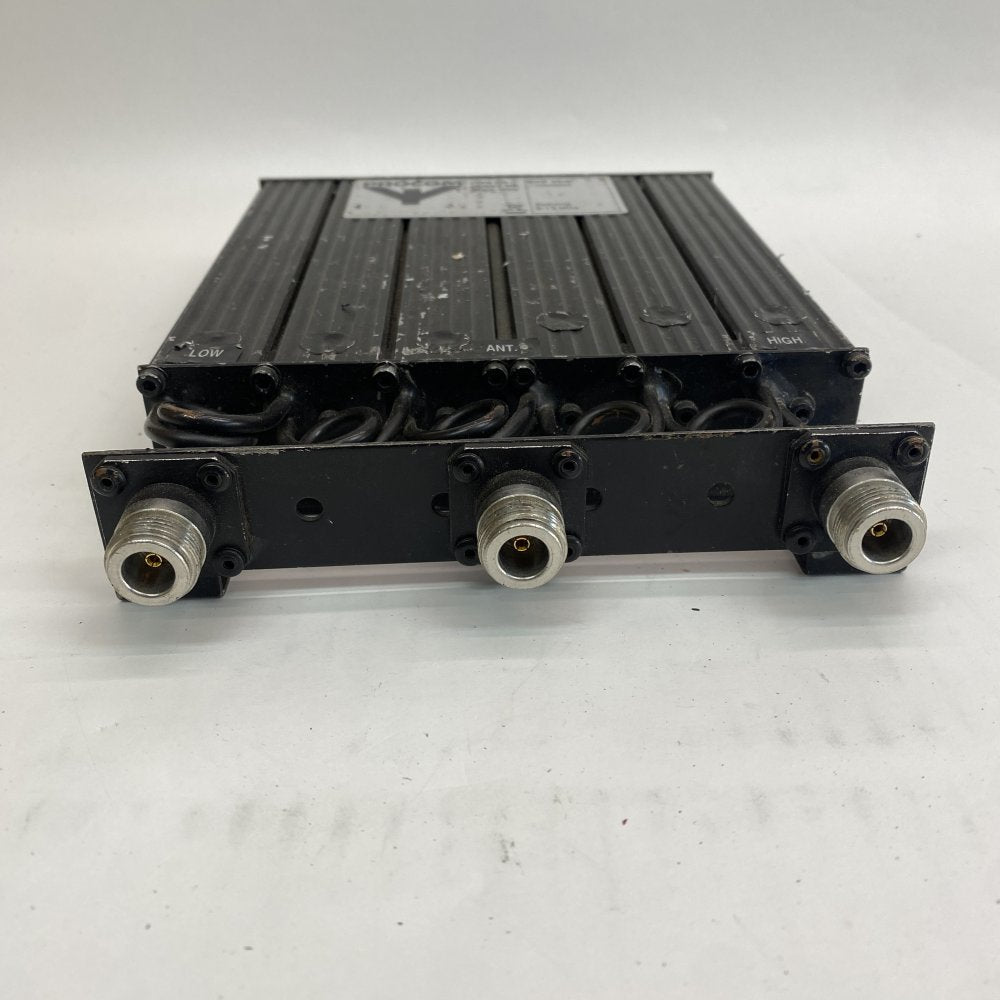

| Connectors | N-type female (Low, Antenna, High) |
| Housing | Extruded aluminium |
| Dimensions (approx.) | 226 x 154 x 33 mm |
| Weight (approx.) | 1 kg |
| Country of origin | Denmark |
What you get

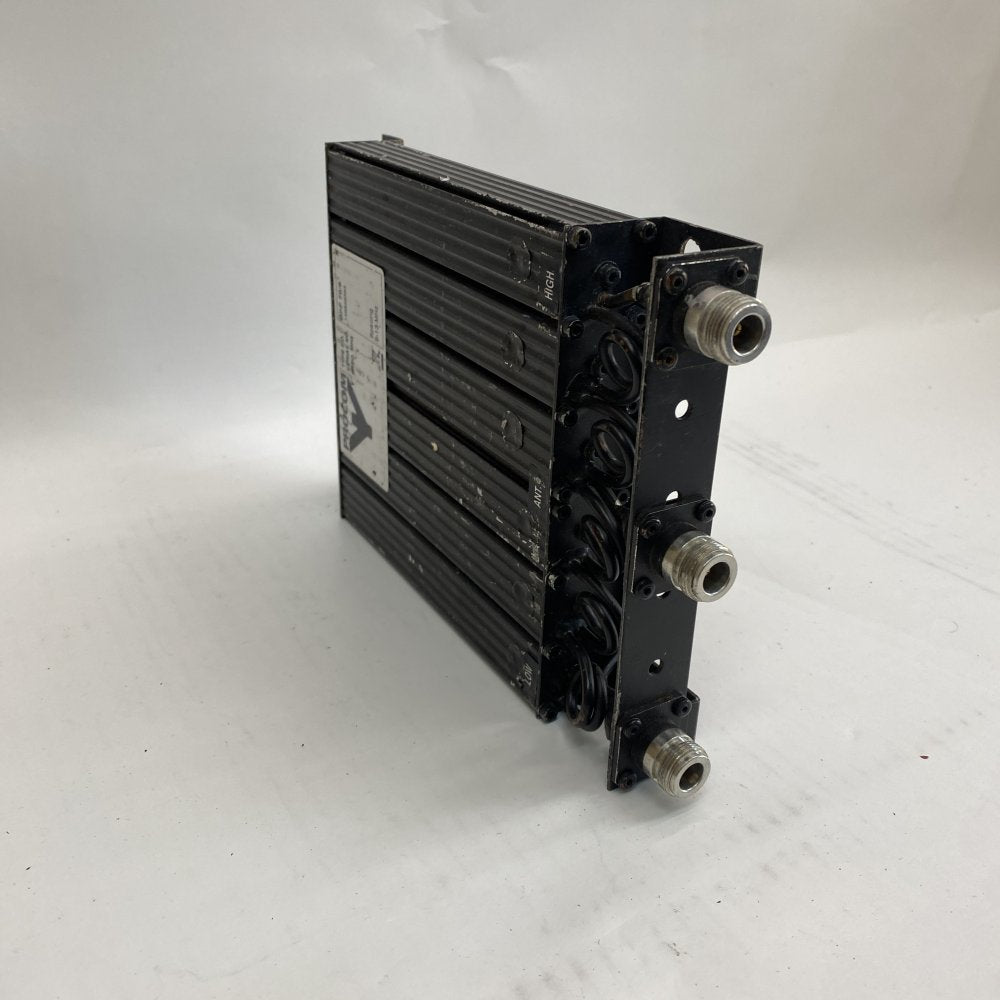

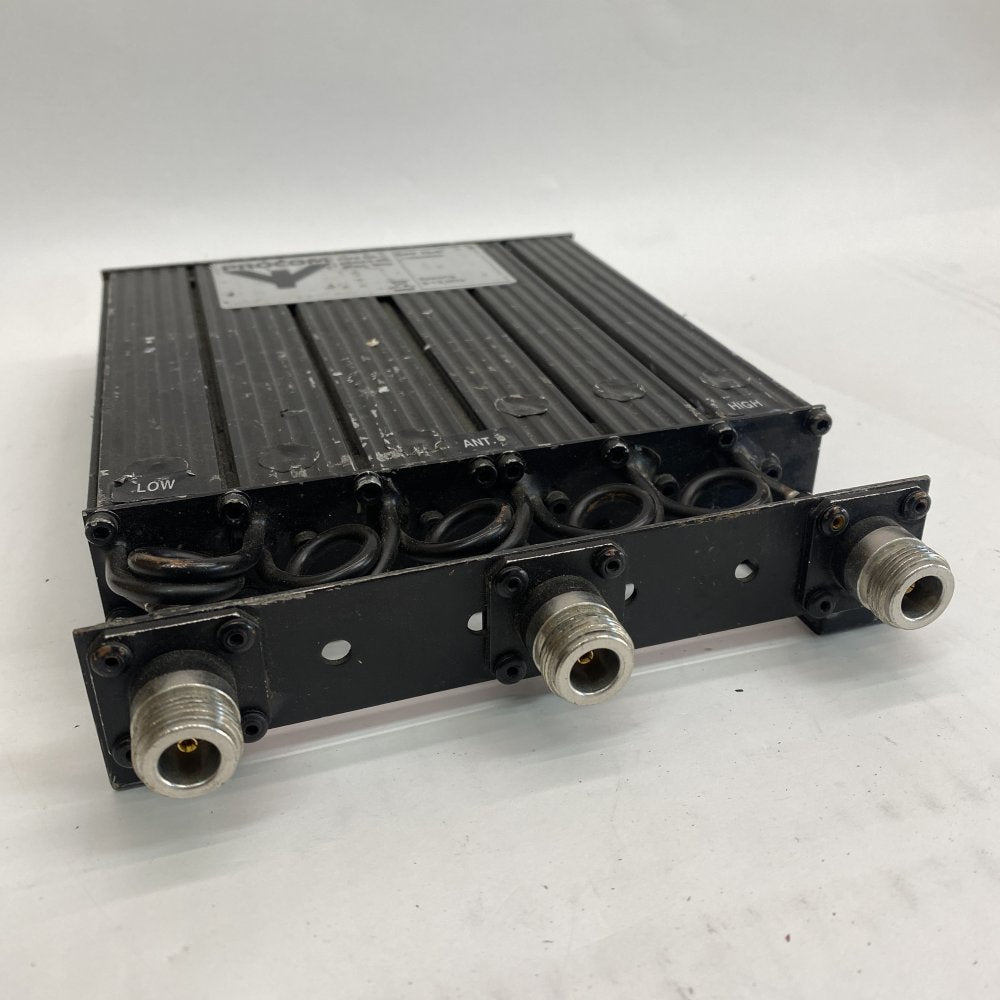

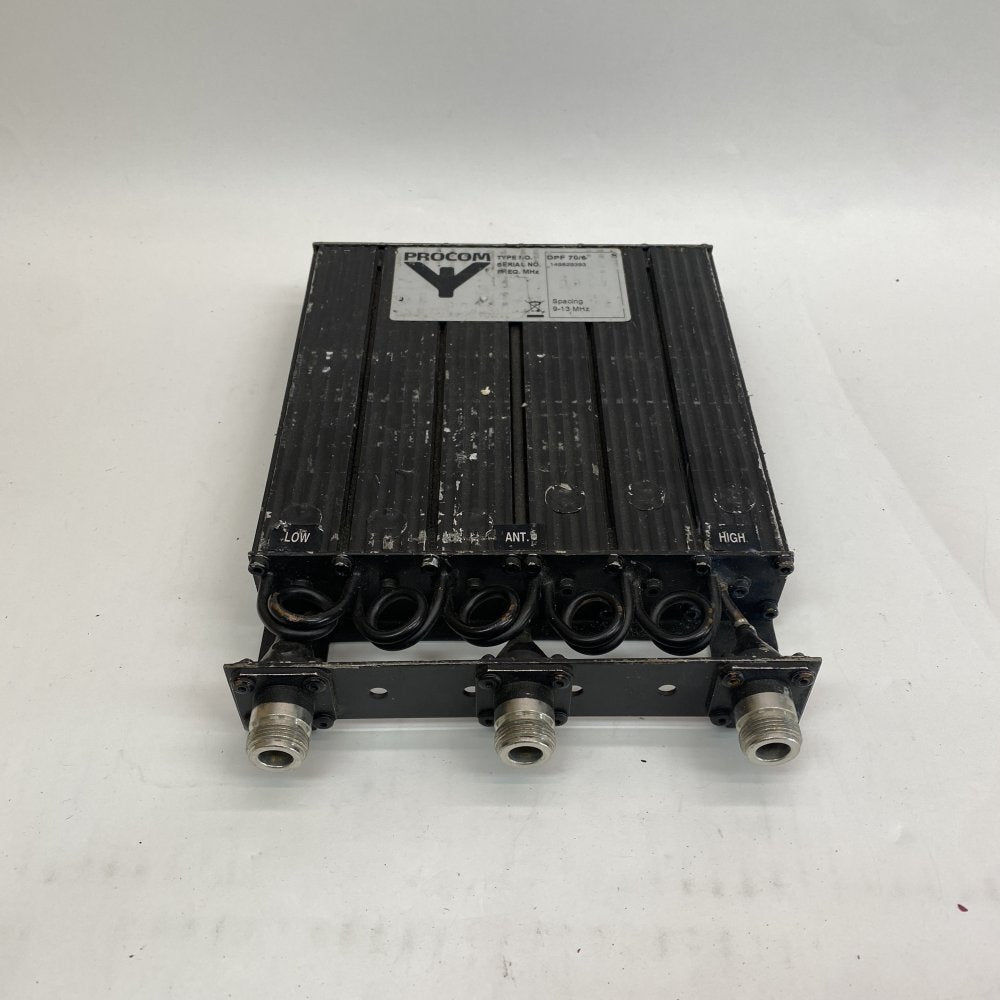

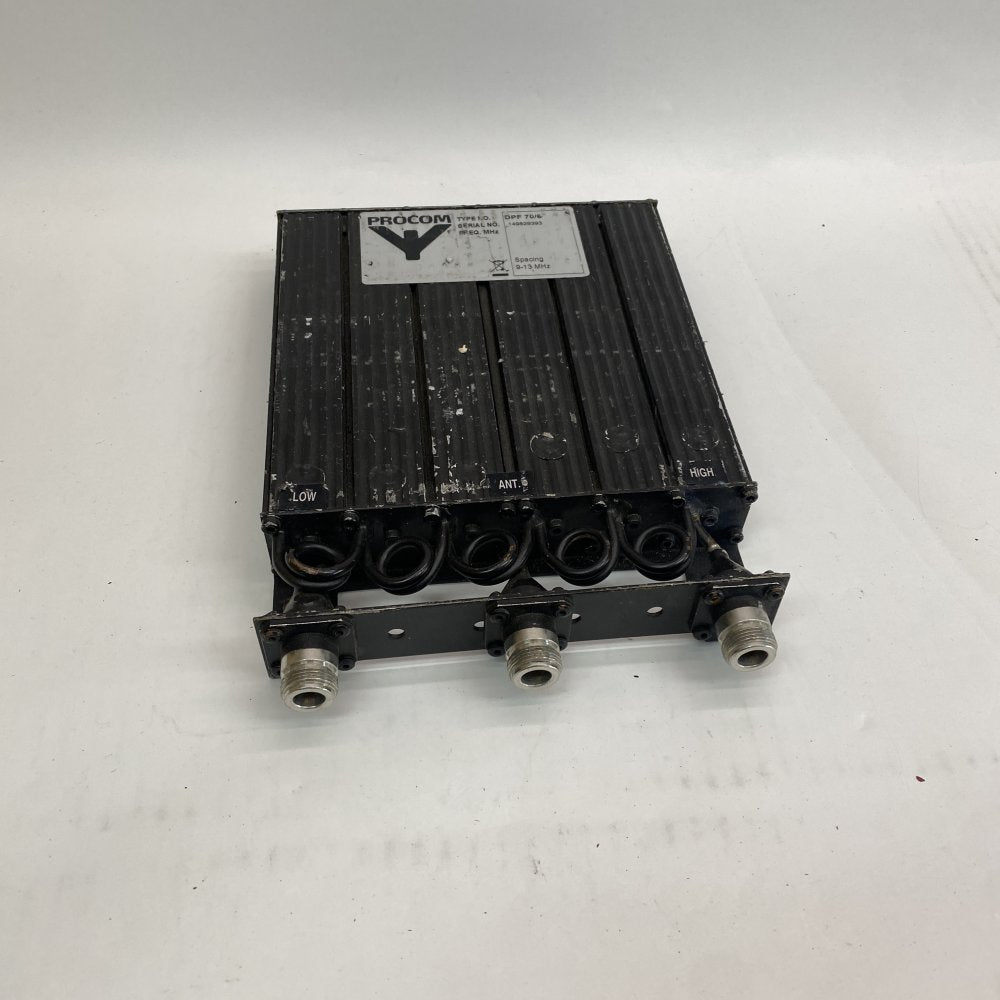

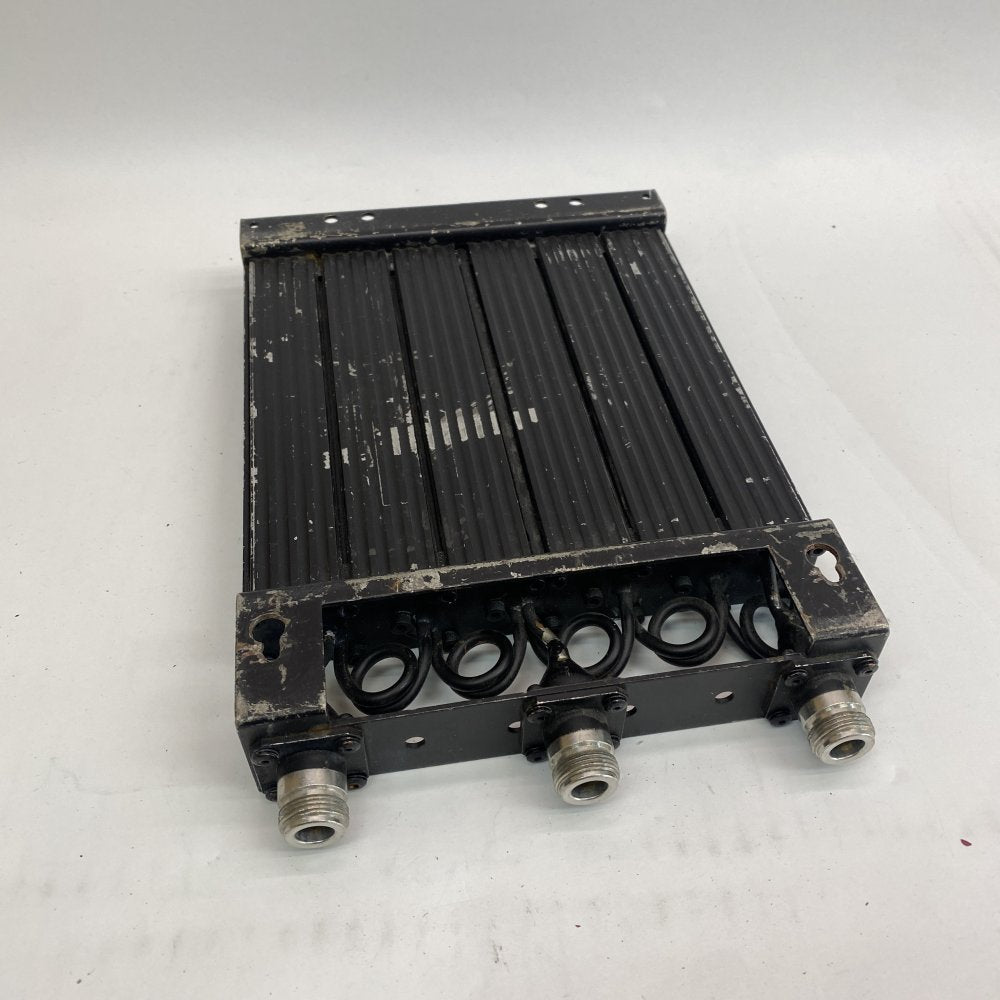

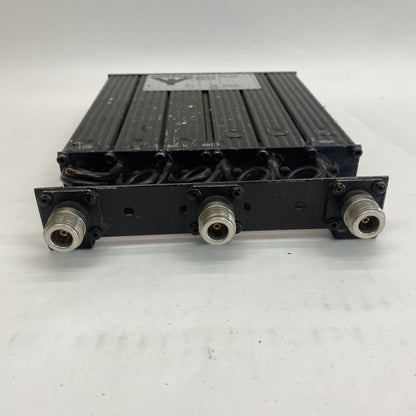

- 1 x Procom DPF 70/6-9/13 6-cavity UHF duplexer (as pictured)
History

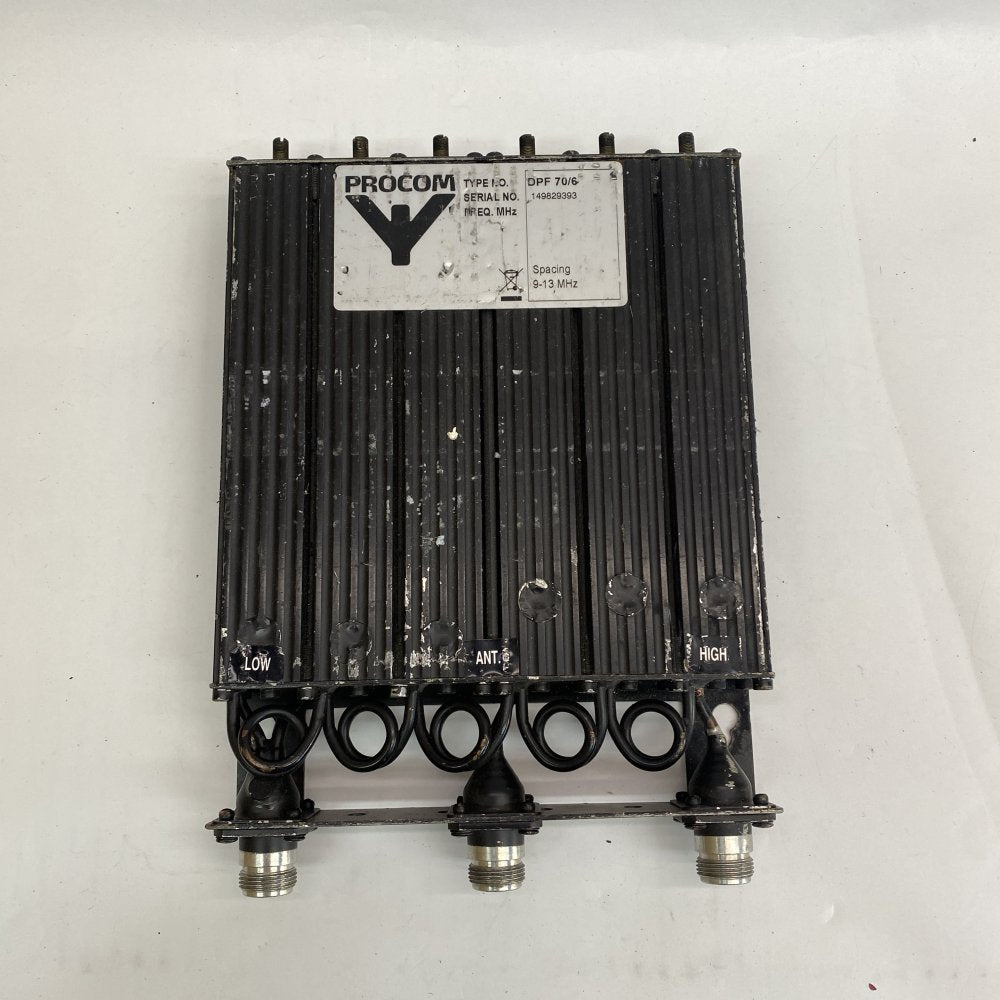

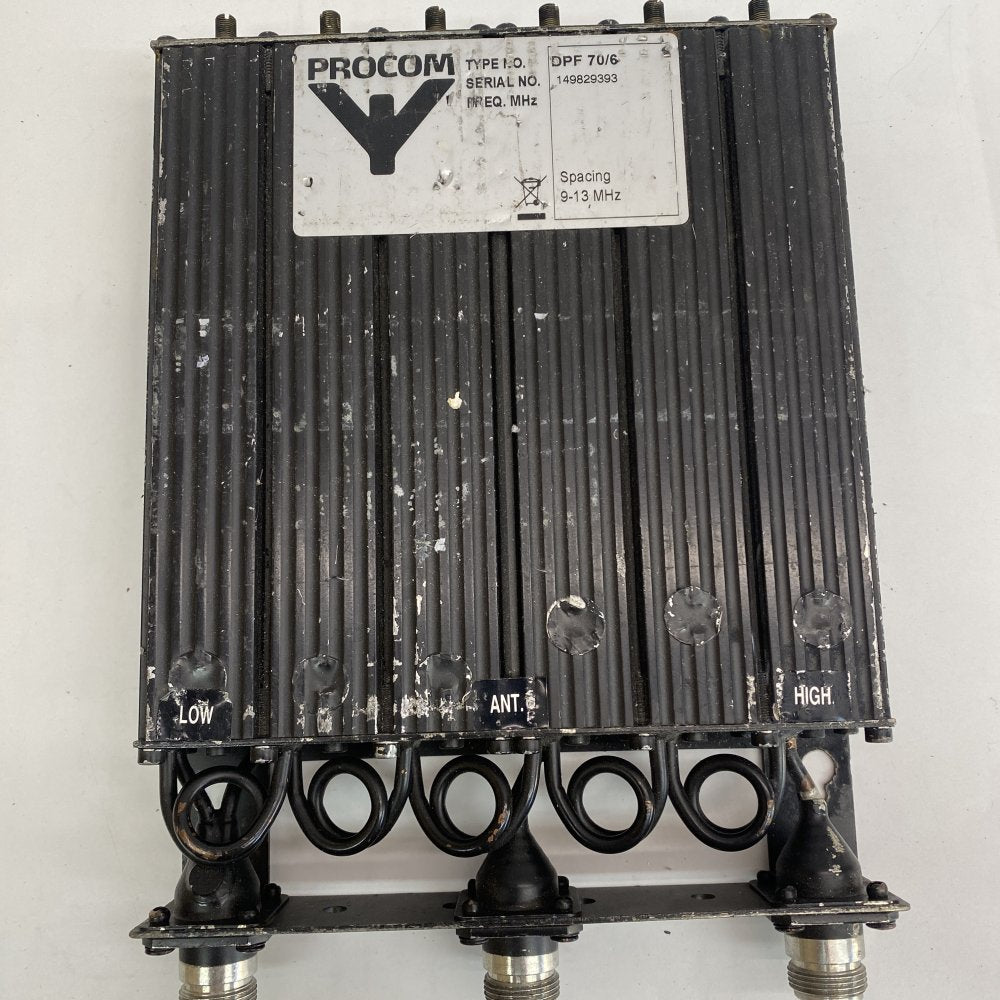

The unit was removed during an IT/radio decommissioning project from a working environment. The frequency label on the top may be blank or unmarked; the unit is intended to be bench-tuned to your target frequencies as required.
