Professional DigiLink DL4000 Media Platform Chassis 4-Slot Fiber Hub

Professional DigiLink DL4000 Media Platform Chassis 4-Slot Fiber Hub

£18.49
£18.49
Sale Sold out
Taxes included. Shipping calculated at checkout.

Overview

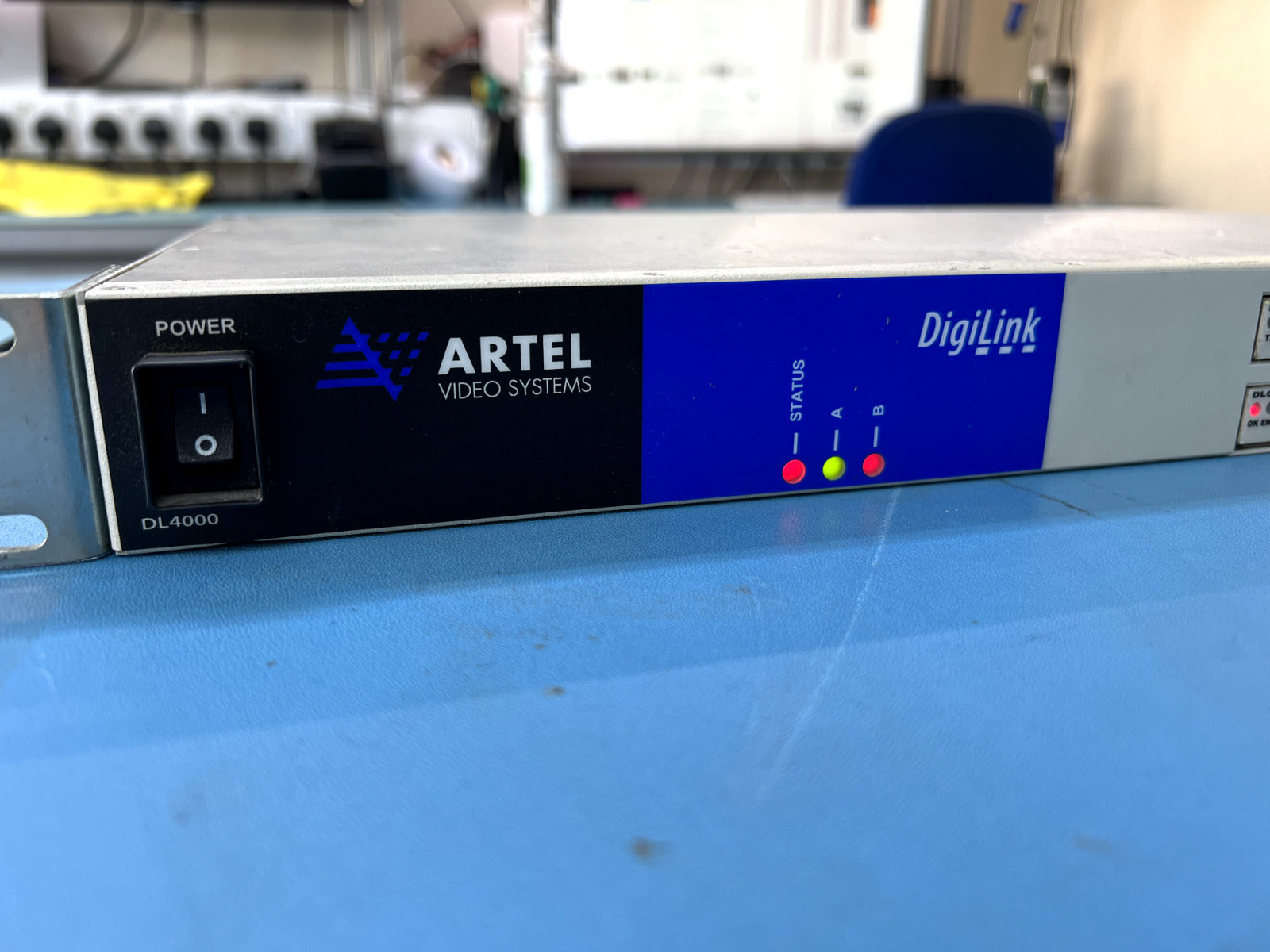

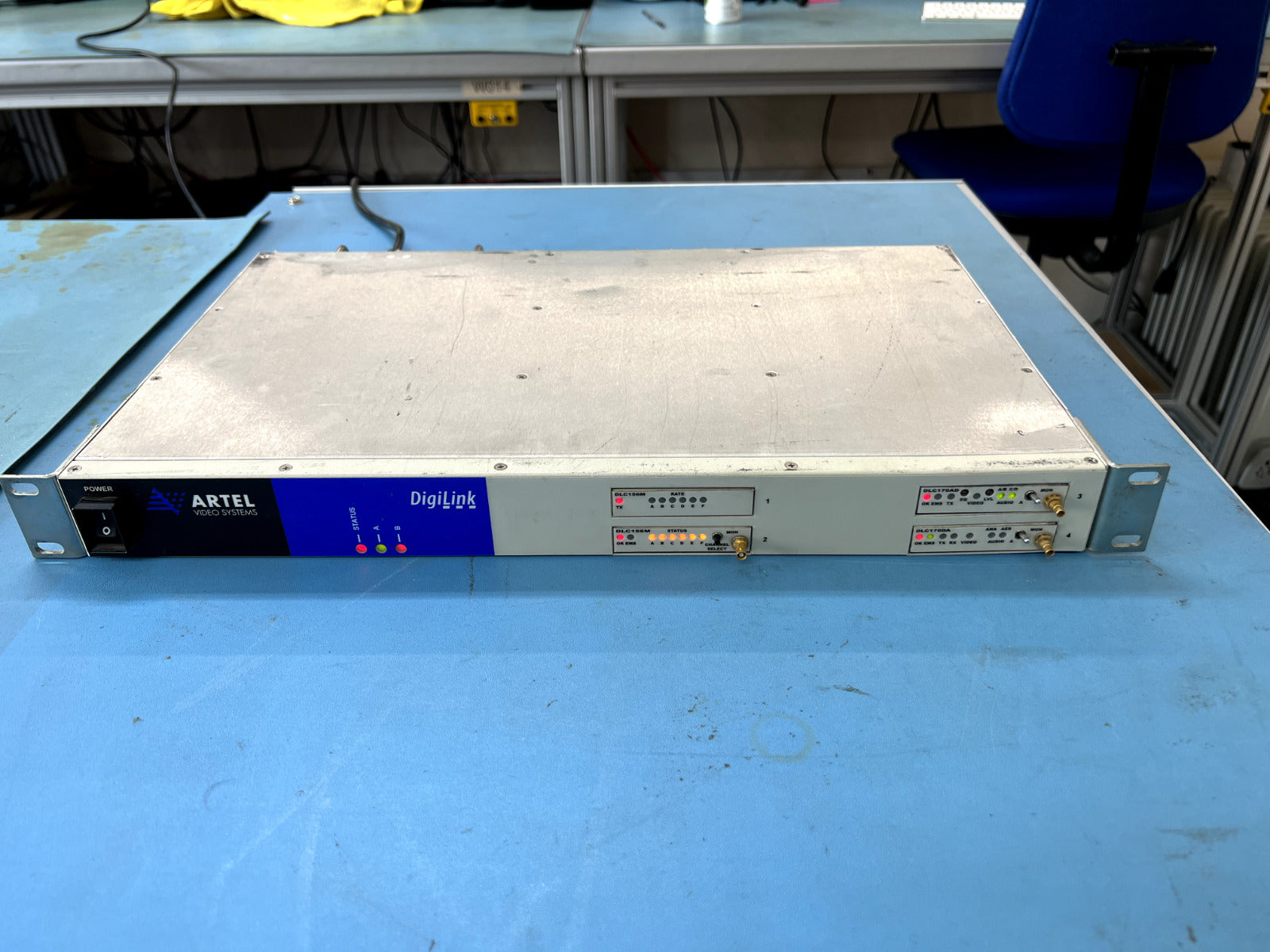

The Professional DigiLink DL4000 Media Platform Chassis is a robust, 1 RU, 4-slot fibre hub meticulously designed for efficient video and Ethernet signal routing. With a compact and efficient design that holds up to four functional modules, it caters perfectly to smaller deployments and portable applications. The platform employs a passive backplane design, ensuring internal routing of video and Ethernet signals between modules, delivering unparalleled reliability and durability.
The DigiLink DL4000 exemplifies a cutting-edge modular platform that capitalises on Artel's 30-year expertise in carrier-class video transport. This chassis meets the demand for a cost-effective and rugged solution, excelling in the transportation of broadcast-quality video and Ethernet over IP networks, direct fibre, and optical backbones.
Highly regarded as the industry standard for broadcast video transport, the DigiLink DL4000 is predominantly utilised by major broadcasters and networks across North America to deliver critical feeds for significant sporting events, news coverage, and live events. With its legendary reliability, cost-effectiveness, and streamlined design, the DigiLink platform offers integrated video and Ethernet switching, uncompressed video-over-IP transport, and a wealth of other features.
The DL4000 platform supports versatile, single-piece function modules and incorporates features designed to meet the exacting demands of broadcast video transport, including NEBS Level 3 Certification, affirming it as one of the most rugged and reliable solutions available.

Features

  • 1 RU compact chassis with 4 slots
  • Supports modular and integrated design
  • Internal signal routing for video and Ethernet
  • Supports HTTP and SNMP management
  • Integrated video and Ethernet switching
  • Uncompressed video-over-IP transport
  • NEBS Level 3 certified
  • Rugged chassis with front panel accessible status LEDs and video monitor ports
  • External optics supporting all standard wavelengths

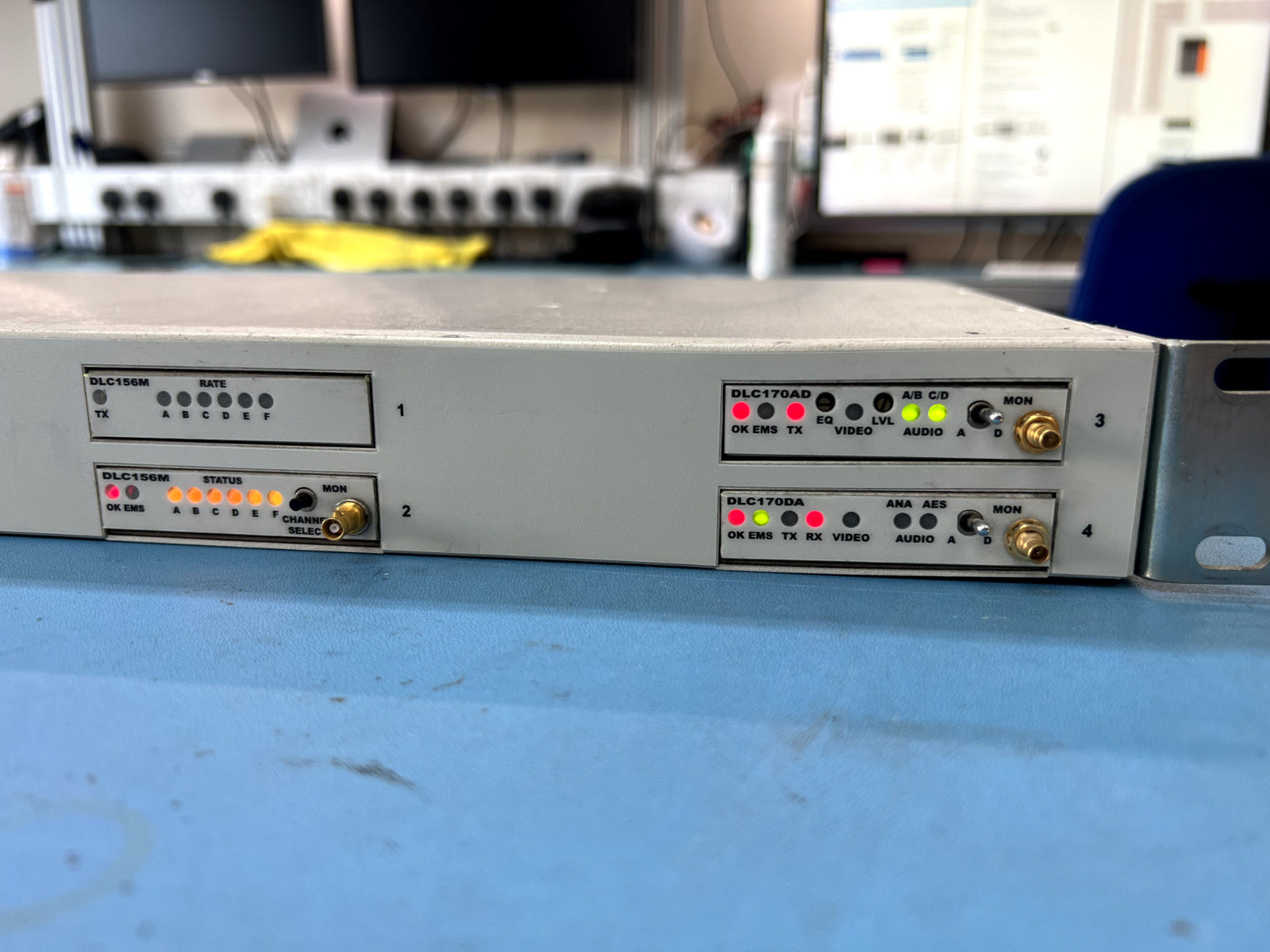

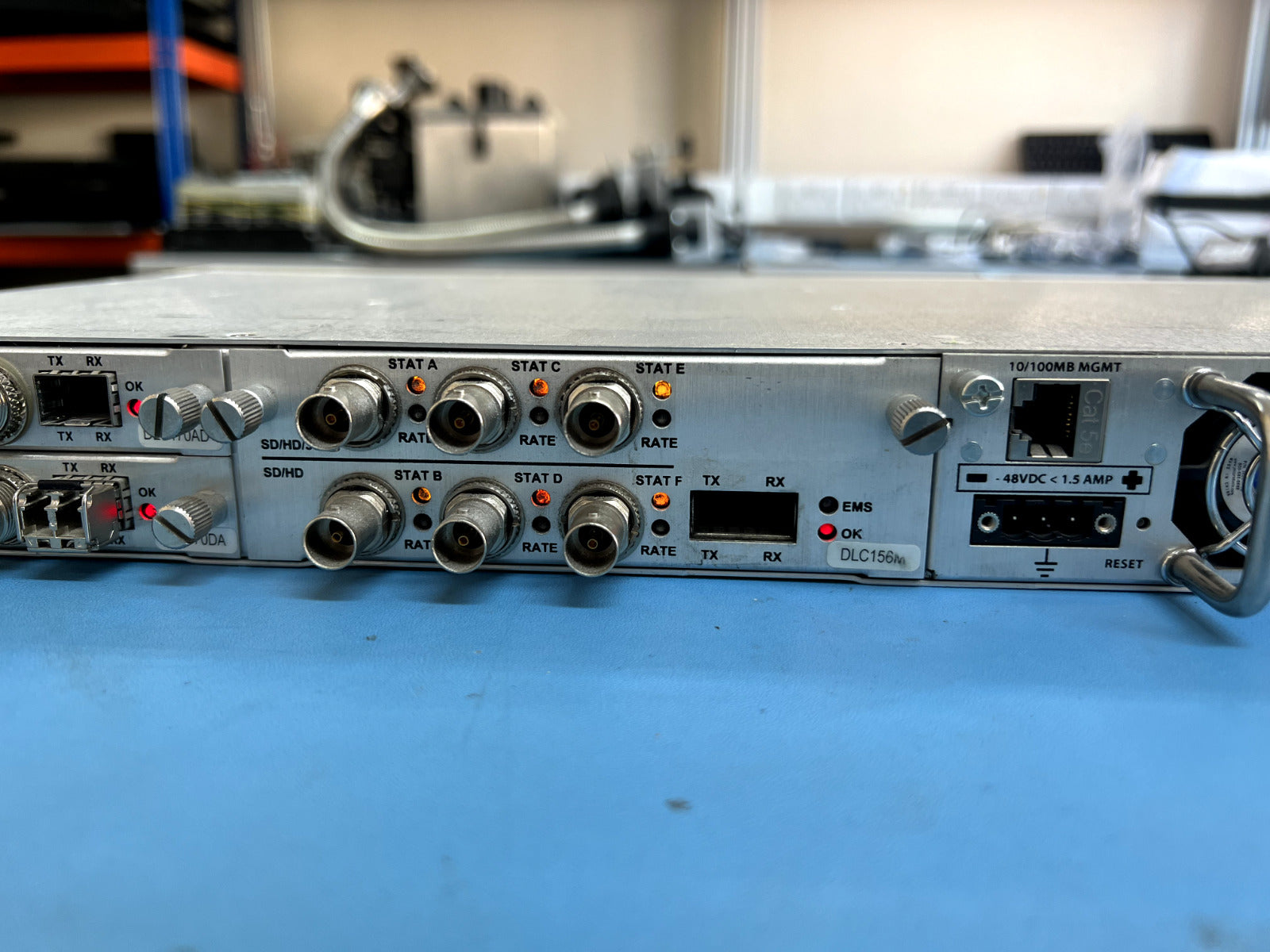

Specifications for Slot 1

  • Model: DigiLink DLC156M
  • Function: Six Channel TDM Multiplexer for 3G, HD, SDI, and ASI
  • All six channels enabled
  • BNC connector selected as the source for each channel
  • No video detected alarm disabled
  • EMS override enabled (DigiLink Manager can change the DLC156M configuration)
  • All 3G inputs disabled

Specifications for Slot 2

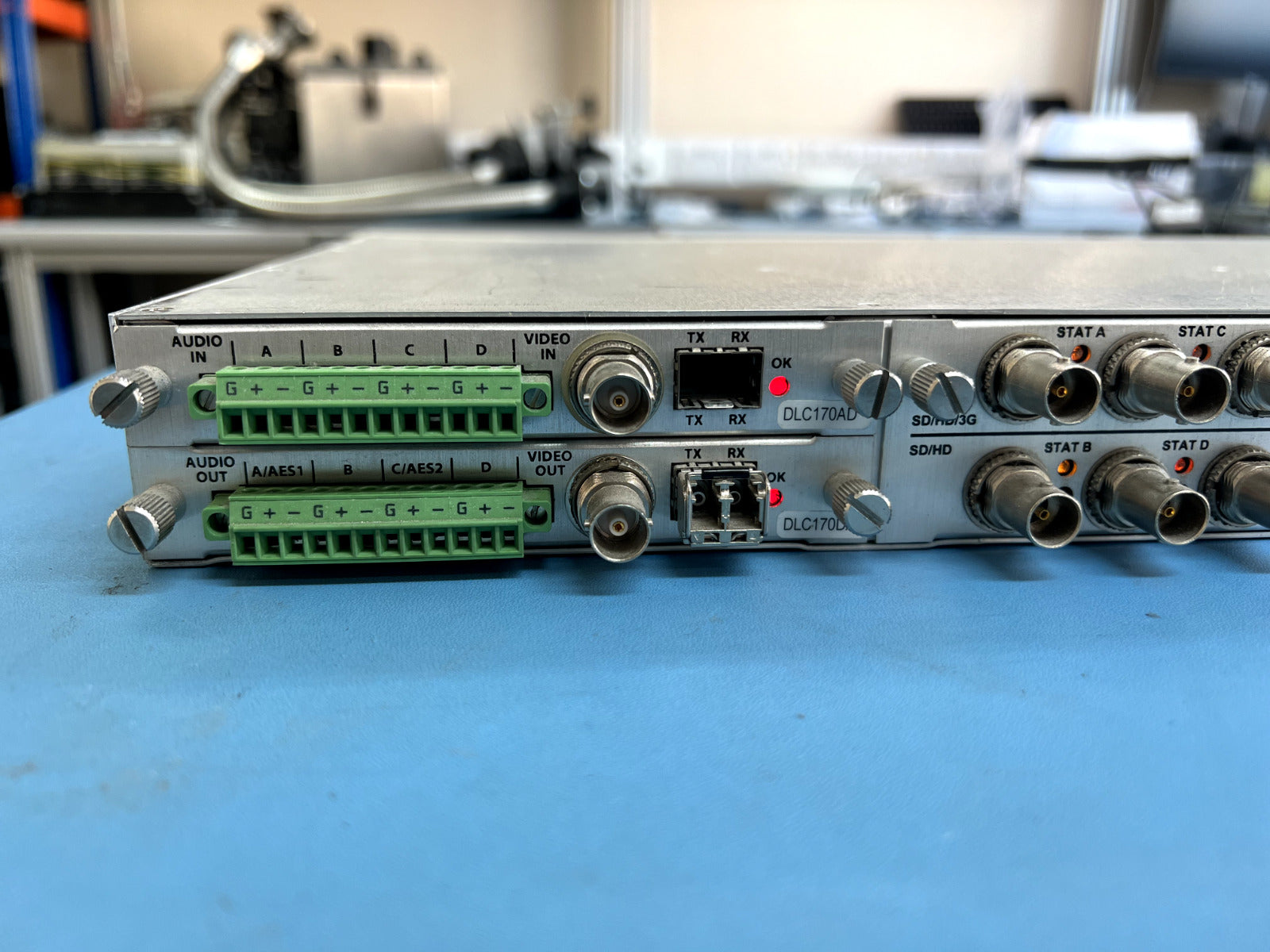

  • Model: DigiLink DLC170AD
  • Function: Composite Video (NTSC/PAL) and Analogue Audio to SDI Conversion with Optical Transmitter
  • Analogue composite 75 Ohm video input BNC
  • Automatic NTSC-M / PAL-B/G format detection
  • 12-bit video composite to 10-bit component digital processing
  • Advanced, adaptive 3D comb filter
  • Comprehensive VBI data handling
  • SMPTE 259M SD-SDI 270Mb/s output
  • Automatic and manual gain and equalisation (100 m)

What you get

  • 1 x DigiLink DL4000 1 RU 4-Slot Media Chassis
  • 1 x DigiLink DLC156M Card inside
  • 1 x DigiLink DLC170AD Card inside
  • 1 x Power cable

History

The device came as part of the IT decommissioning project and was removed from a working environment.
