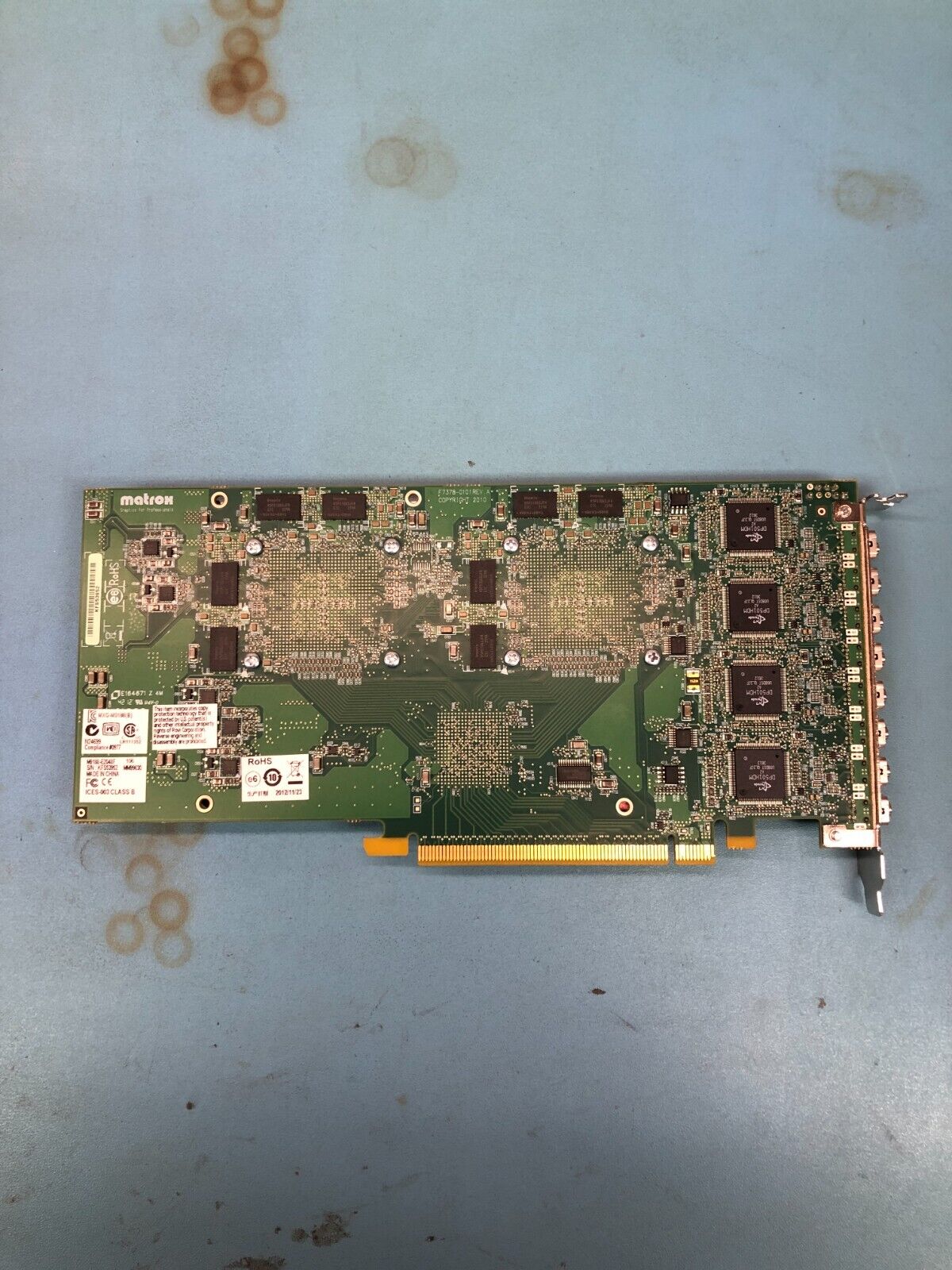

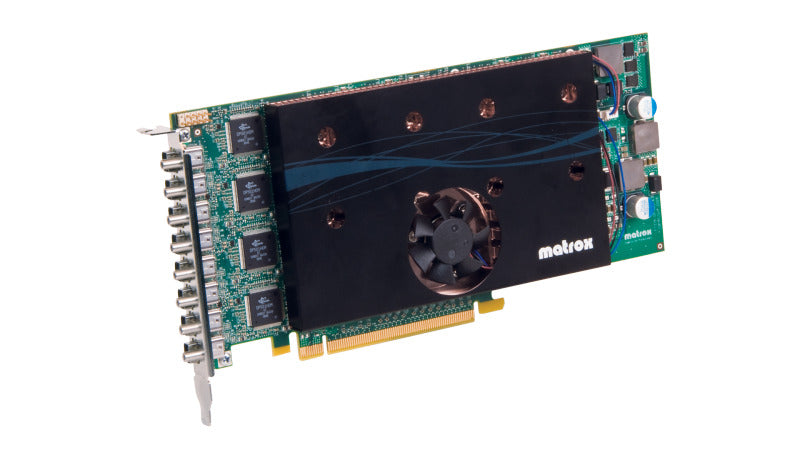

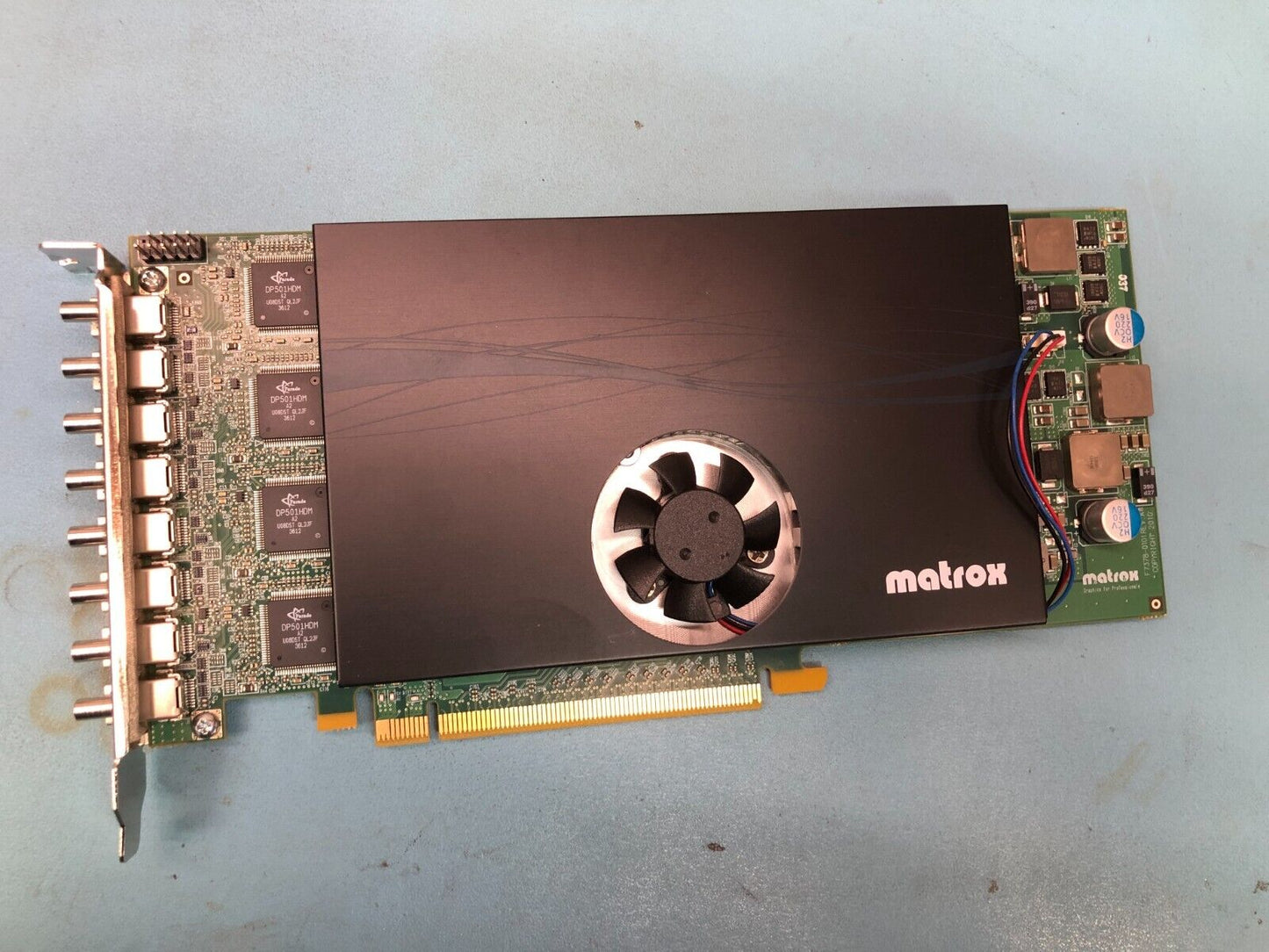

Matrox M9188 8-Port DisplayPort PCIe x16 2GB Multi-Display Card

Features

• Eight independent DisplayPort outputs (mini DisplayPort form factor) for extensive multi-monitor deployments.
• Supports resolutions up to 2560 x 1600 per DisplayPort output; DVI single-link adapters enable up to 1920 x 1200 where required.
• 2 GB of dedicated graphics memory to support multiple high-resolution displays.
• PCI Express x16 interface for maximum bandwidth and reliable throughput in professional systems.
• Independent, cloned and stretched desktop modes to suit a variety of workflow requirements.
• Edge Overlap for bezel management and seamless projection blending across multiple screens.
• Supports M-Series multi-card configurations to expand display capacity (for example, two cards can be combined to increase the number of outputs).
• Matrox PowerDesk software support for easy multi-monitor configuration and management.
• Enterprise driver support for a range of Windows and Linux platforms, ensuring broad compatibility in professional IT environments.

Specifications

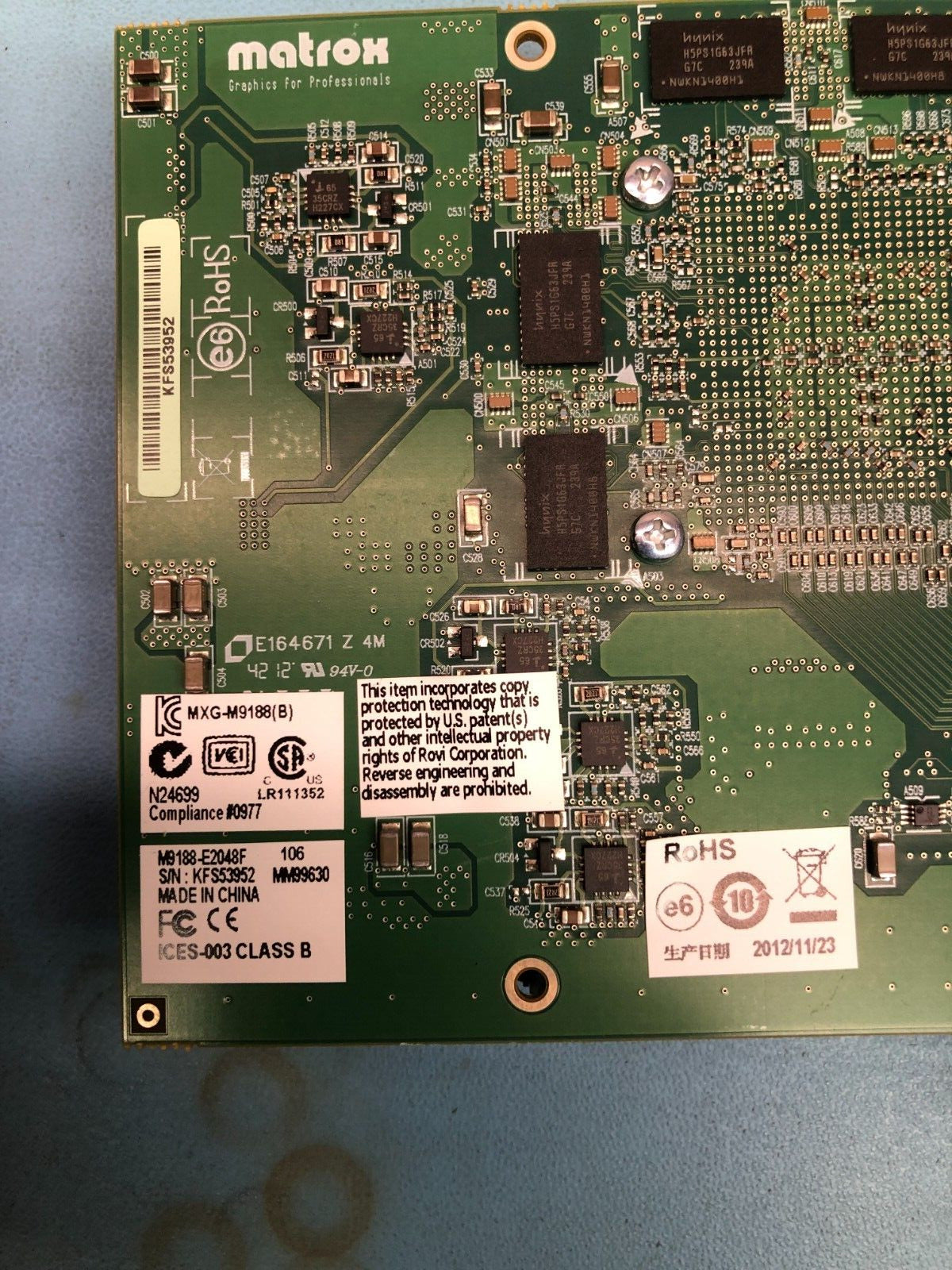

• Model: Matrox M9188 (MPN: M9188-E2048F)
• Form factor: ATX / PCIe x16 card
• Memory: 2 GB (on-board)

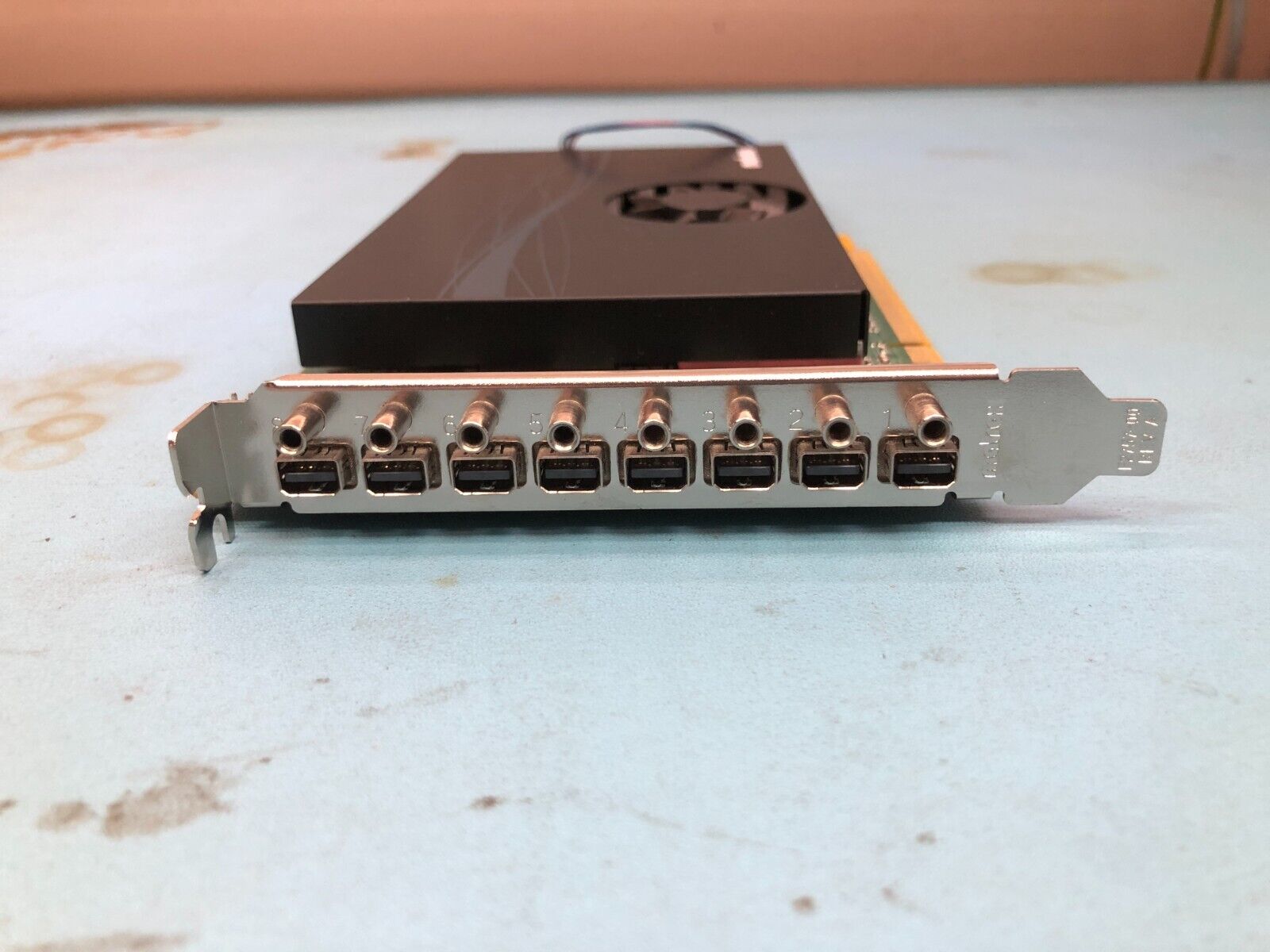

• Outputs: 8 × DisplayPort (mini DisplayPort) — DVI output possible using adapters
• Maximum resolution: 2560 x 1600 (DisplayPort); 1920 x 1200 (DVI single-link via adapter)
• Interface: PCI Express x16
• Multi-display support: Up to 8 independent displays per card
• Operating systems: Drivers available for Windows and Linux platforms
• Manufacturer: Matrox
• Manufacturer warranty: None
• Unit quantity: 1

What you get

• 1 × Matrox M9188 PCIe x16 Multi-Display Octal Graphics Card (2 GB) — supports up to 8 monitor displays
