Viavi OCC-55 Handheld Optical Channel Checker DWDM Tester - Tested
£179.00
Regular price
£179.00
Sale price
£179.00
Regular price
£279.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 1 left

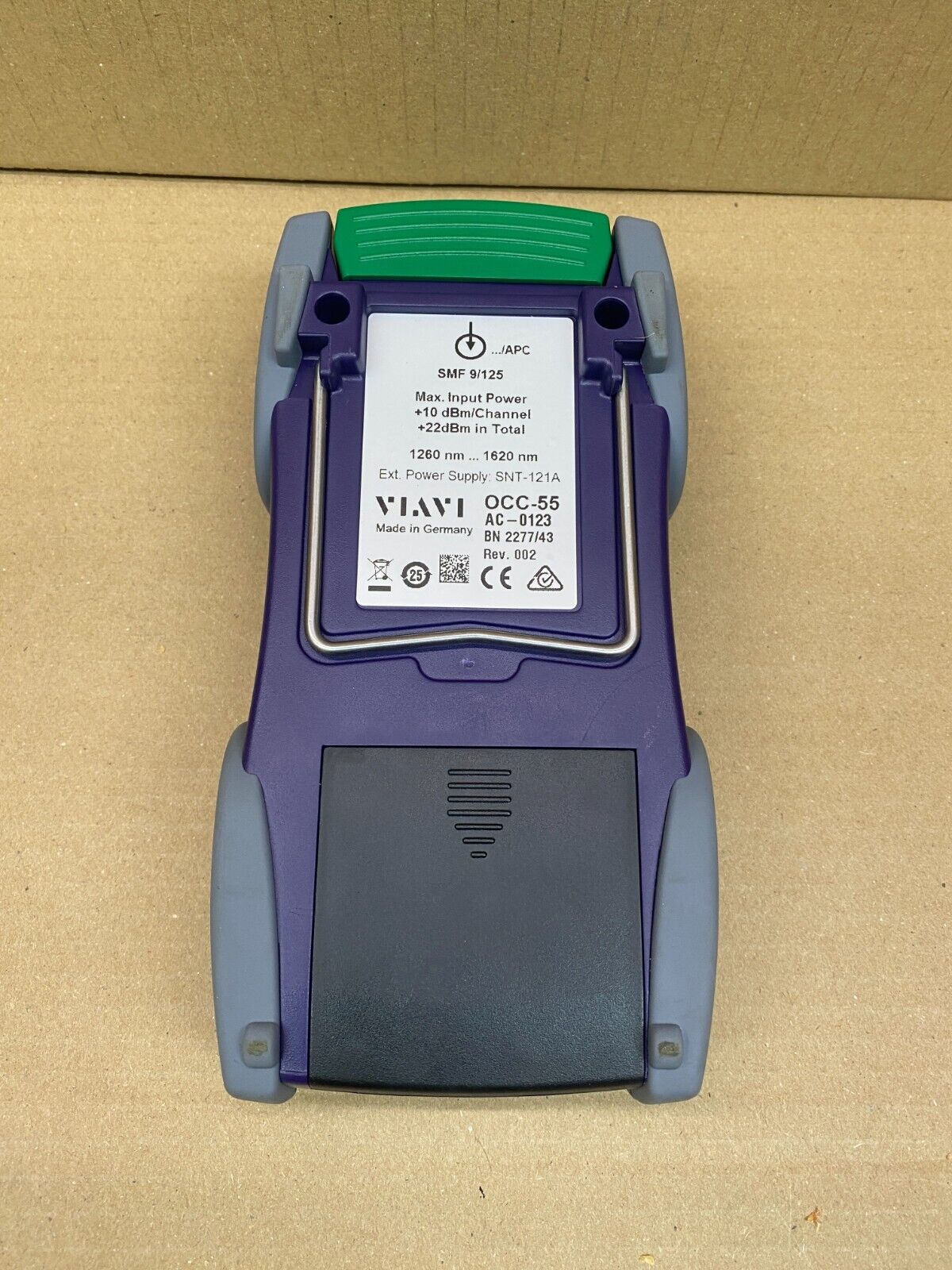

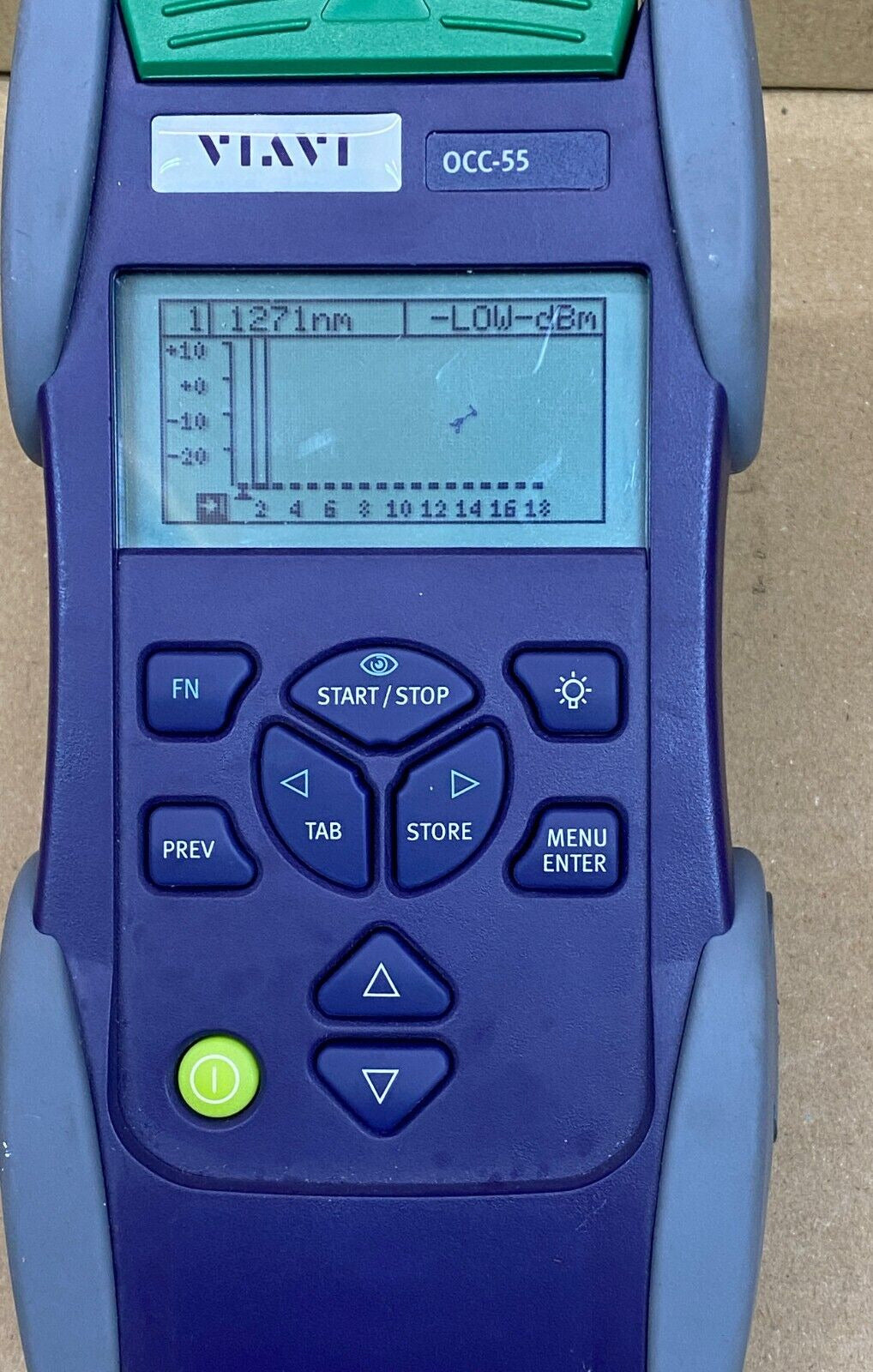

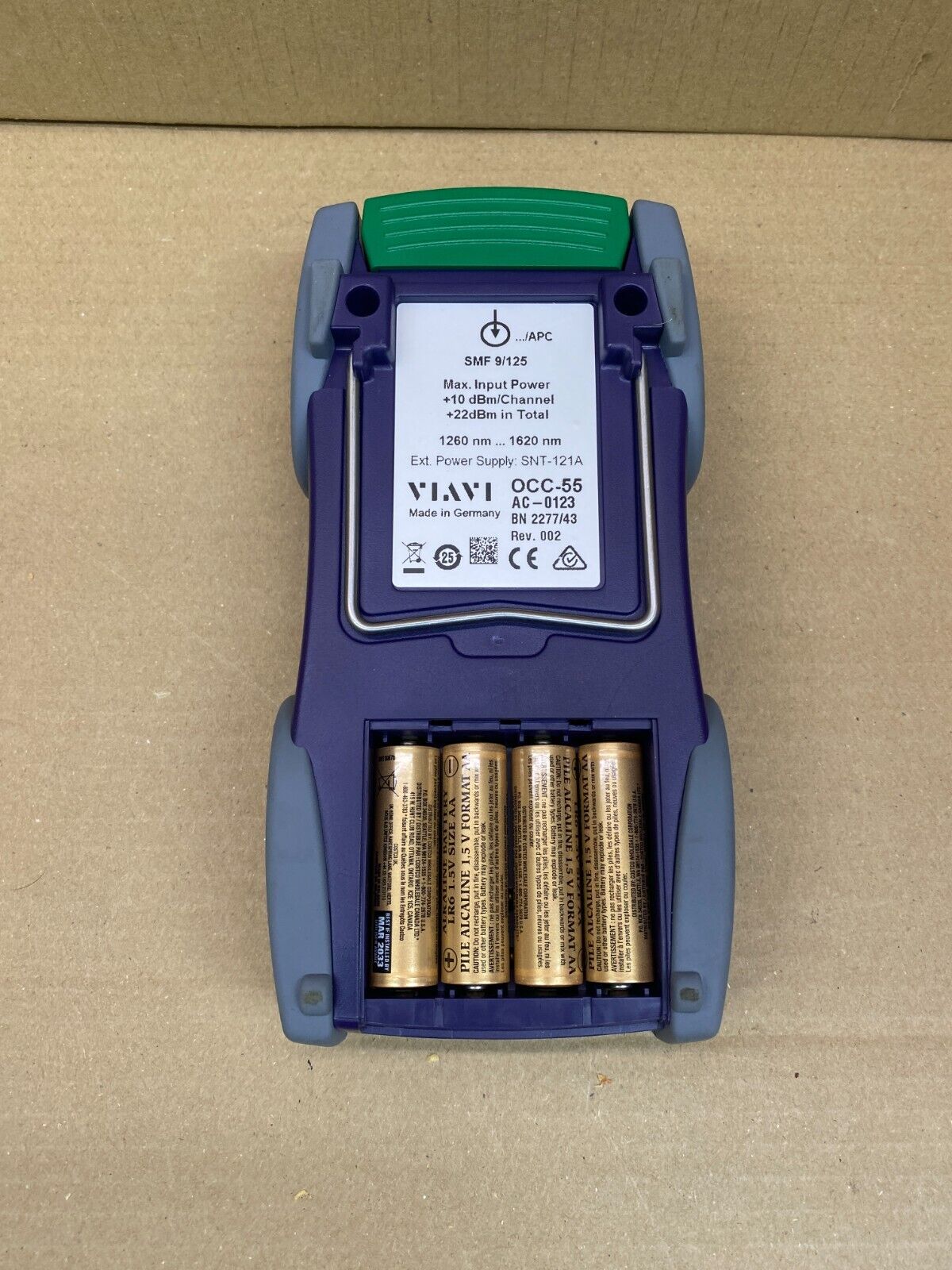

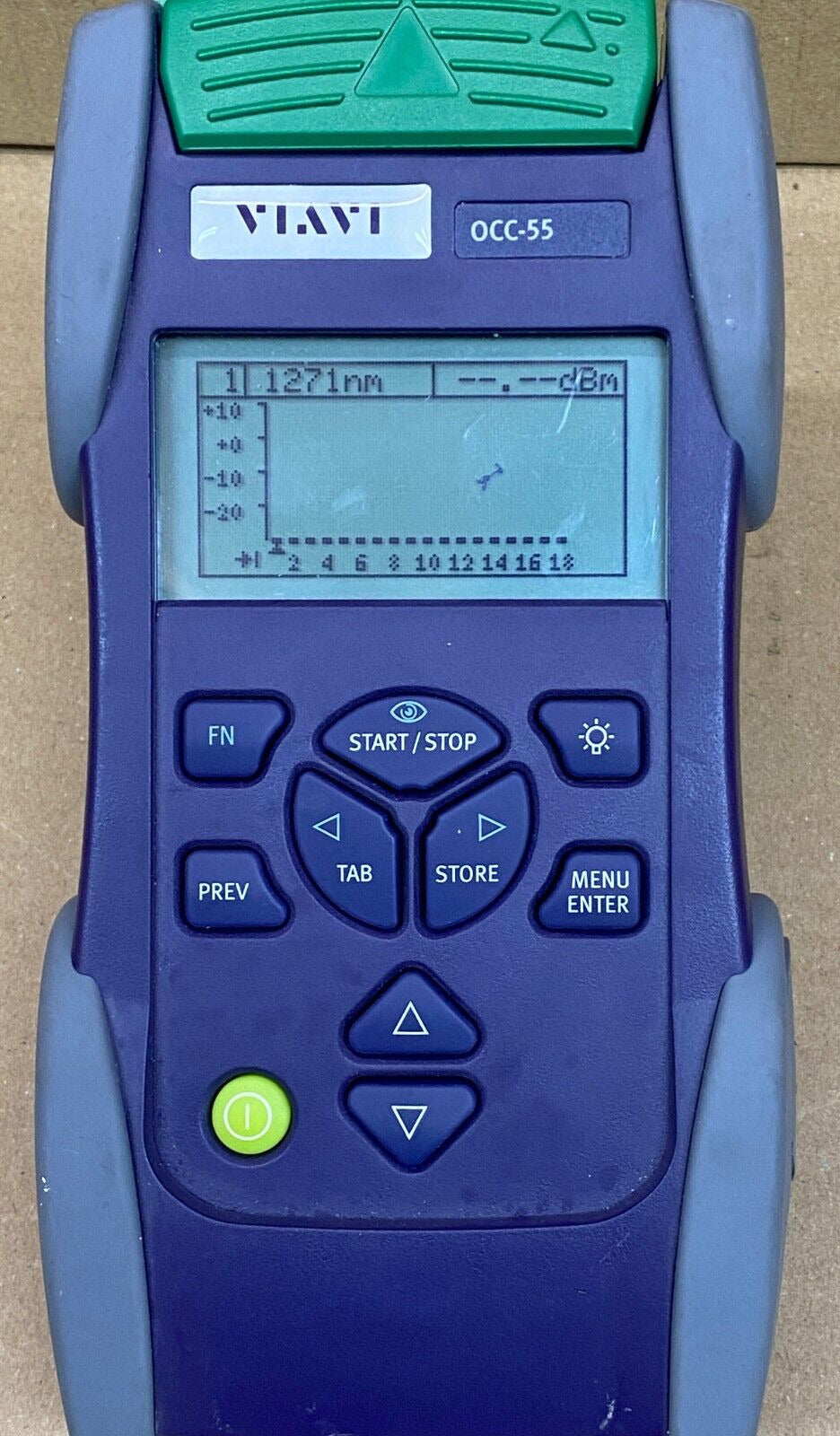

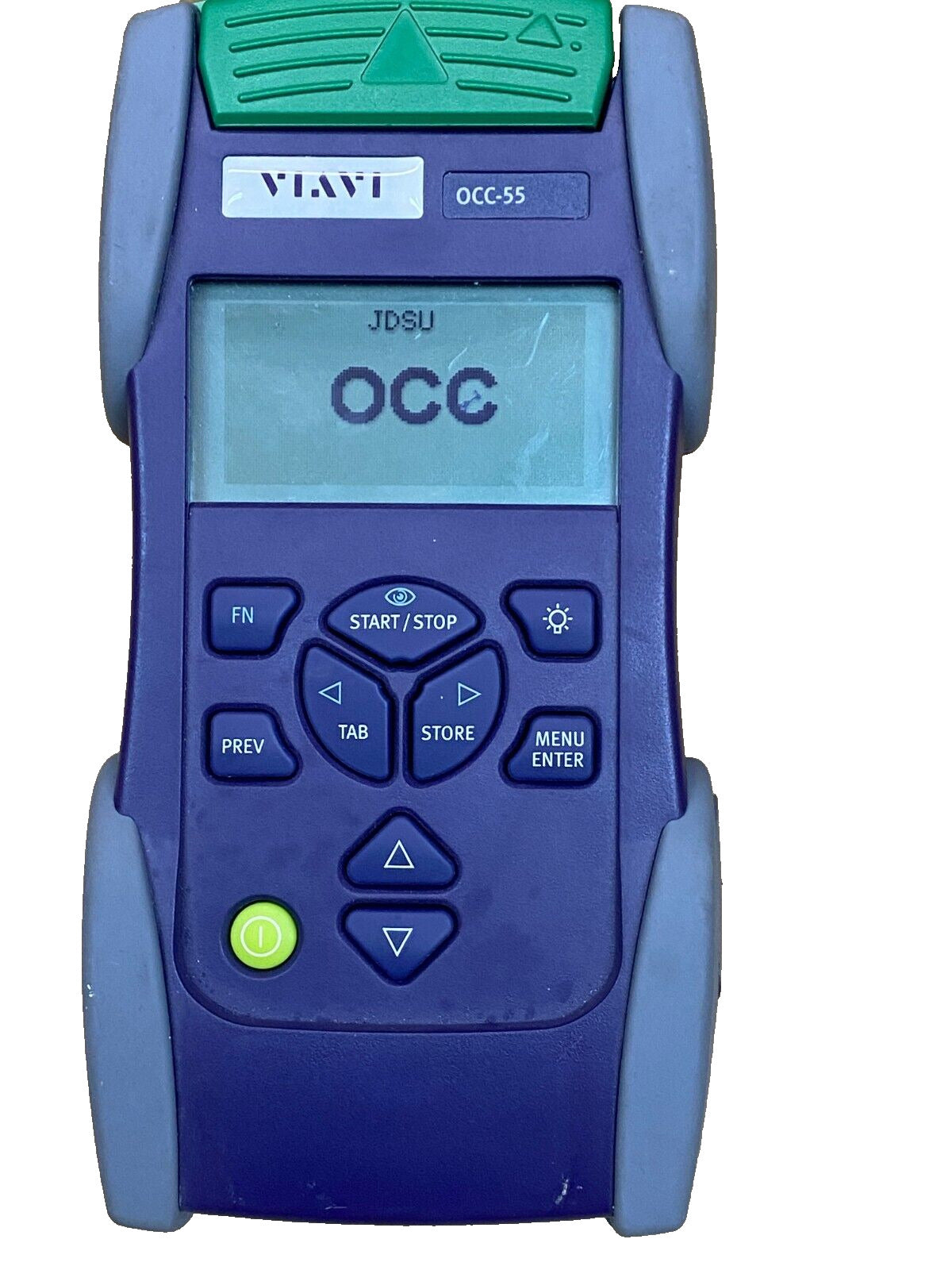

The Viavi OCC-55 is a handheld optical channel checker for Dense Wavelength Division Multiplexing (DWDM) networks. The unit powers on and displays the menu and sweep screen in the supplied photographs. Visible markings on the rear label and display confirm: model OCC-55 (AC-0123), SMF 9/125 operation, wavelength range 1260 nm to 1620 nm, maximum input power +10 dBm per channel and +22 dBm total, external power supply reference SNT-121A, "Made in Germany", calibration date 2016/APR/27 and software version V03.50. The optical input is marked "APC" and a protective cover is shown in the images. The item is offered as tested and shown.
Key Features
- Handheld DWDM optical channel checker (Viavi OCC-55)
- Detects and displays DWDM channel wavelengths and relative power levels
- Wavelength range 1260 nm to 1620 nm (labelled)

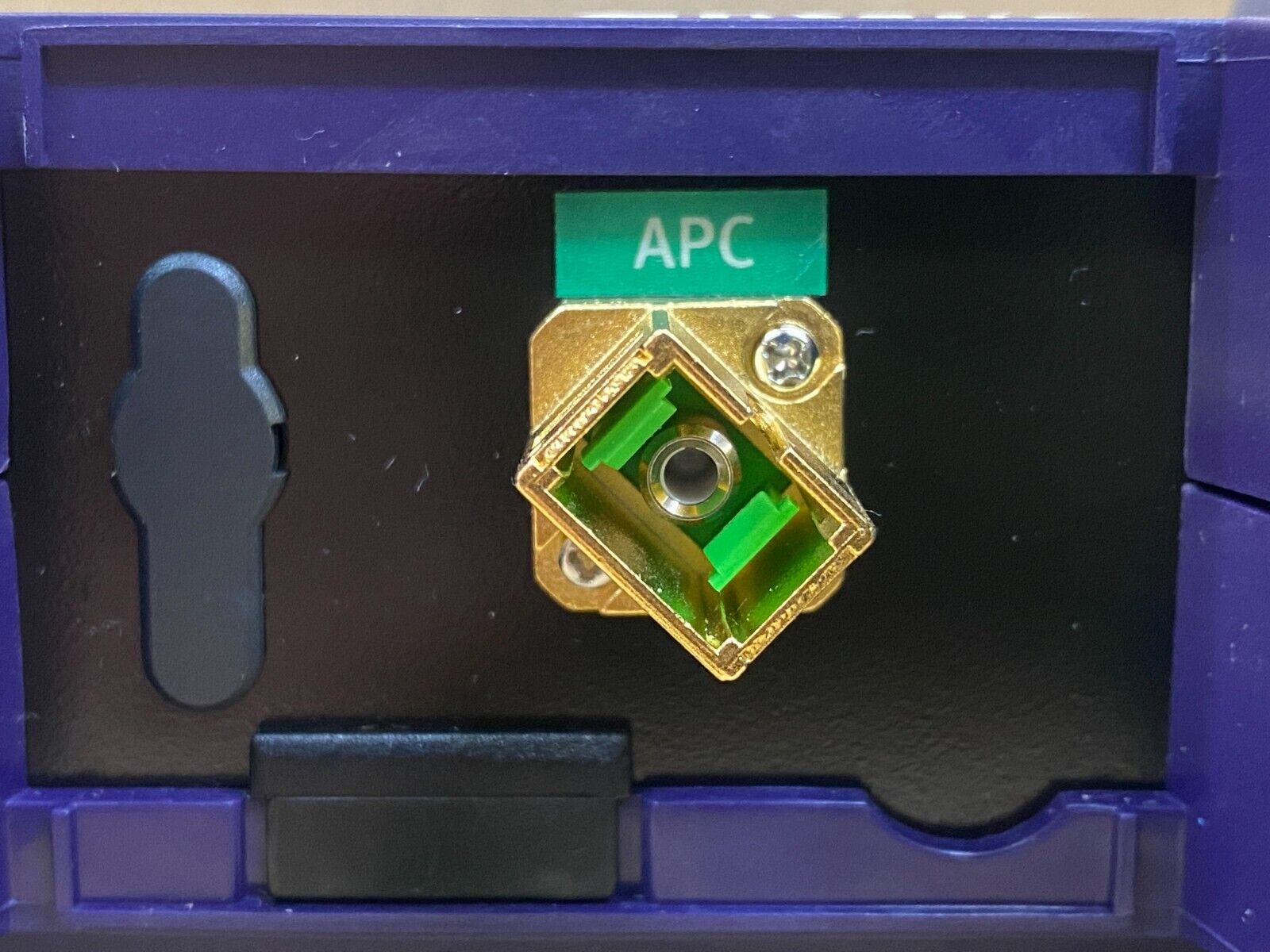

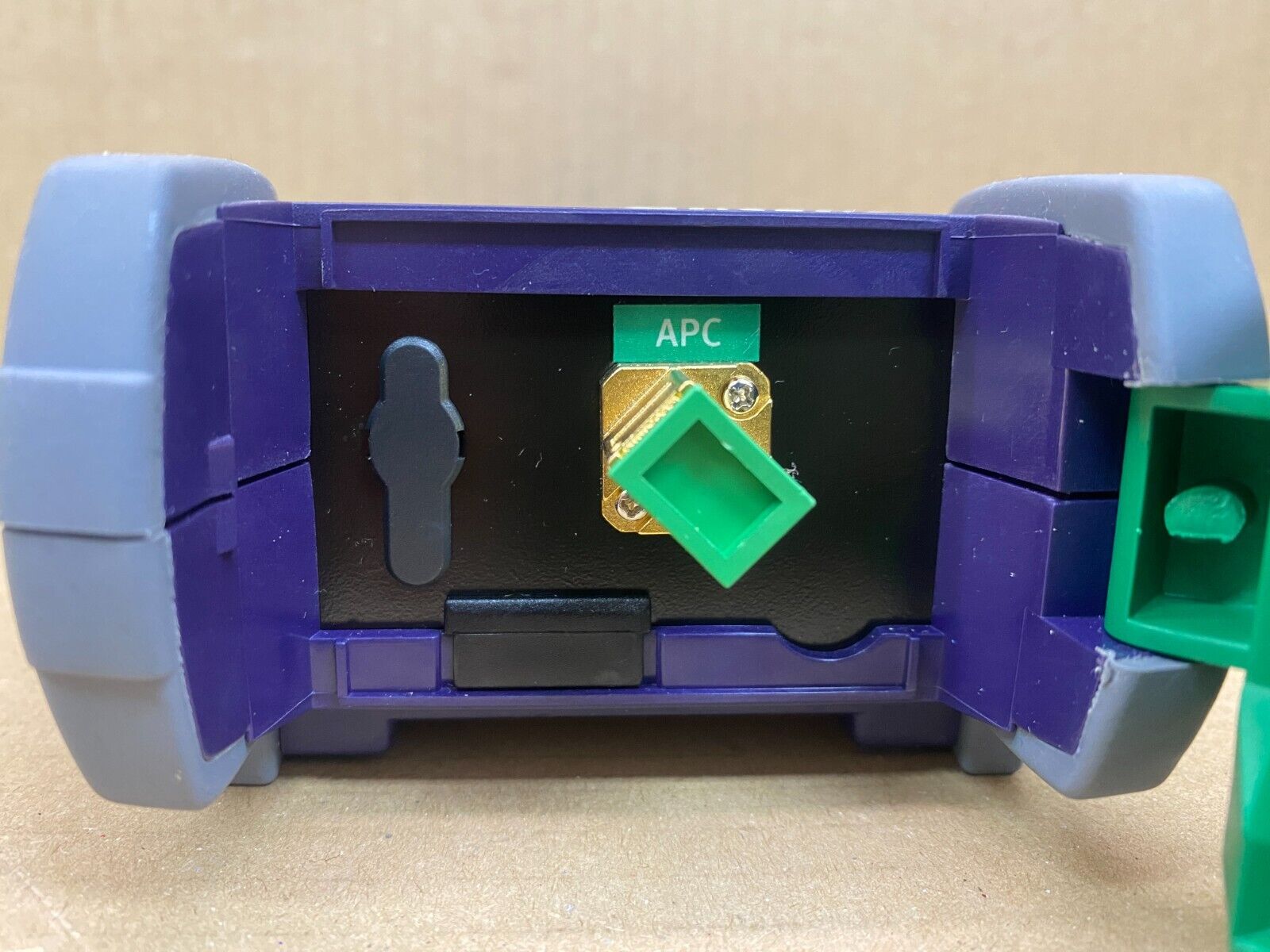

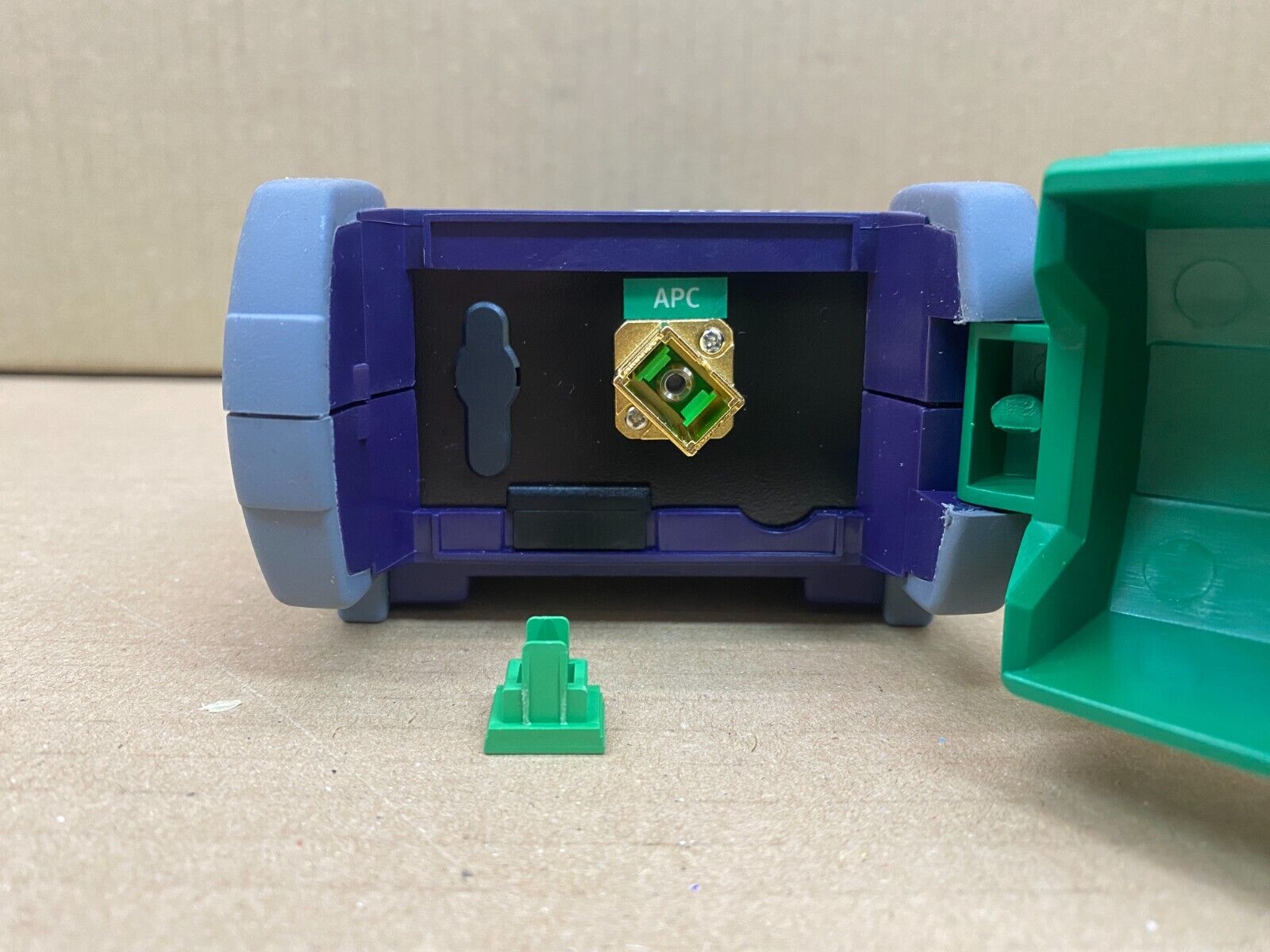

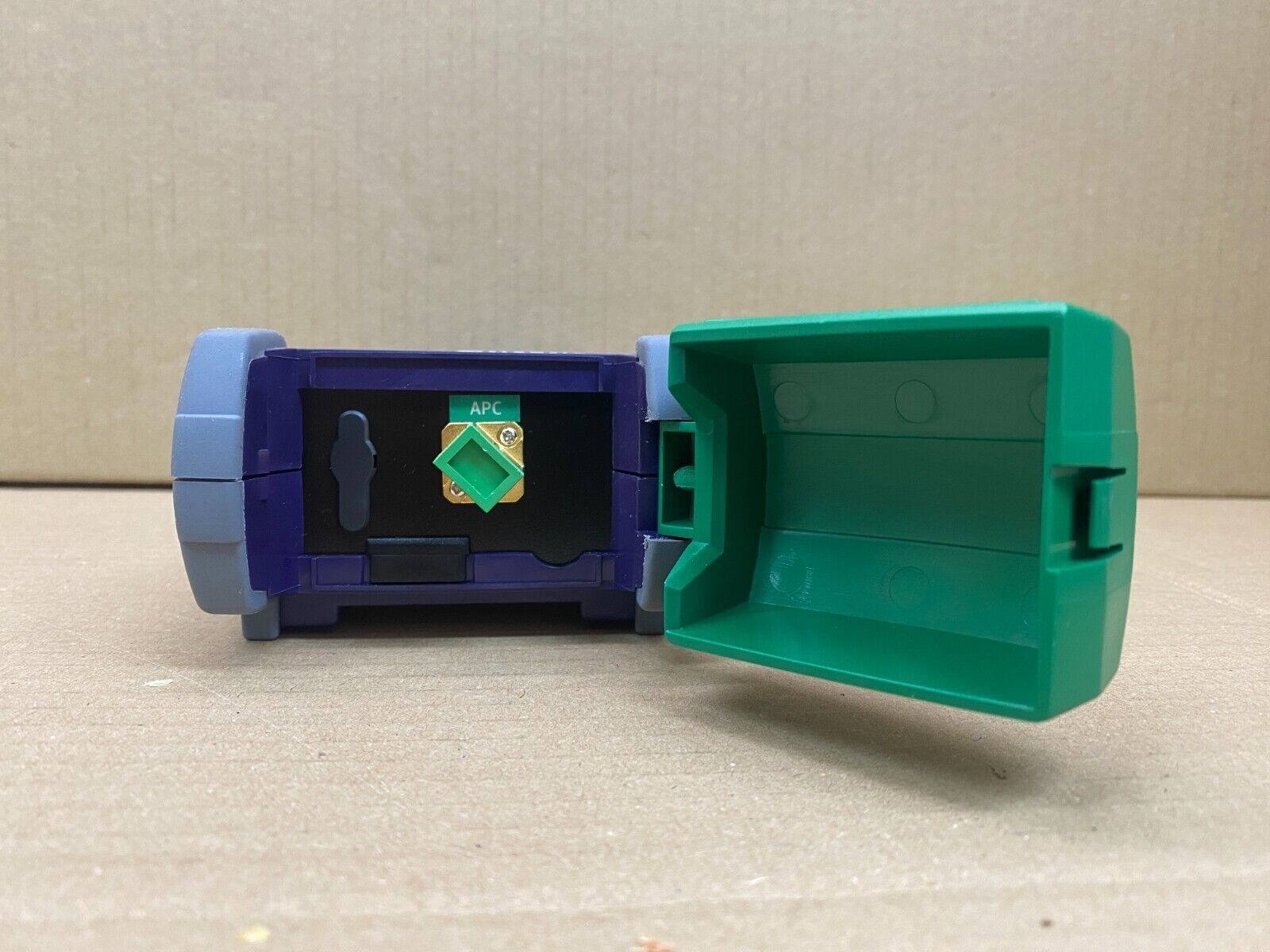

- APC optical input (protective cap supplied, shown in photographs)

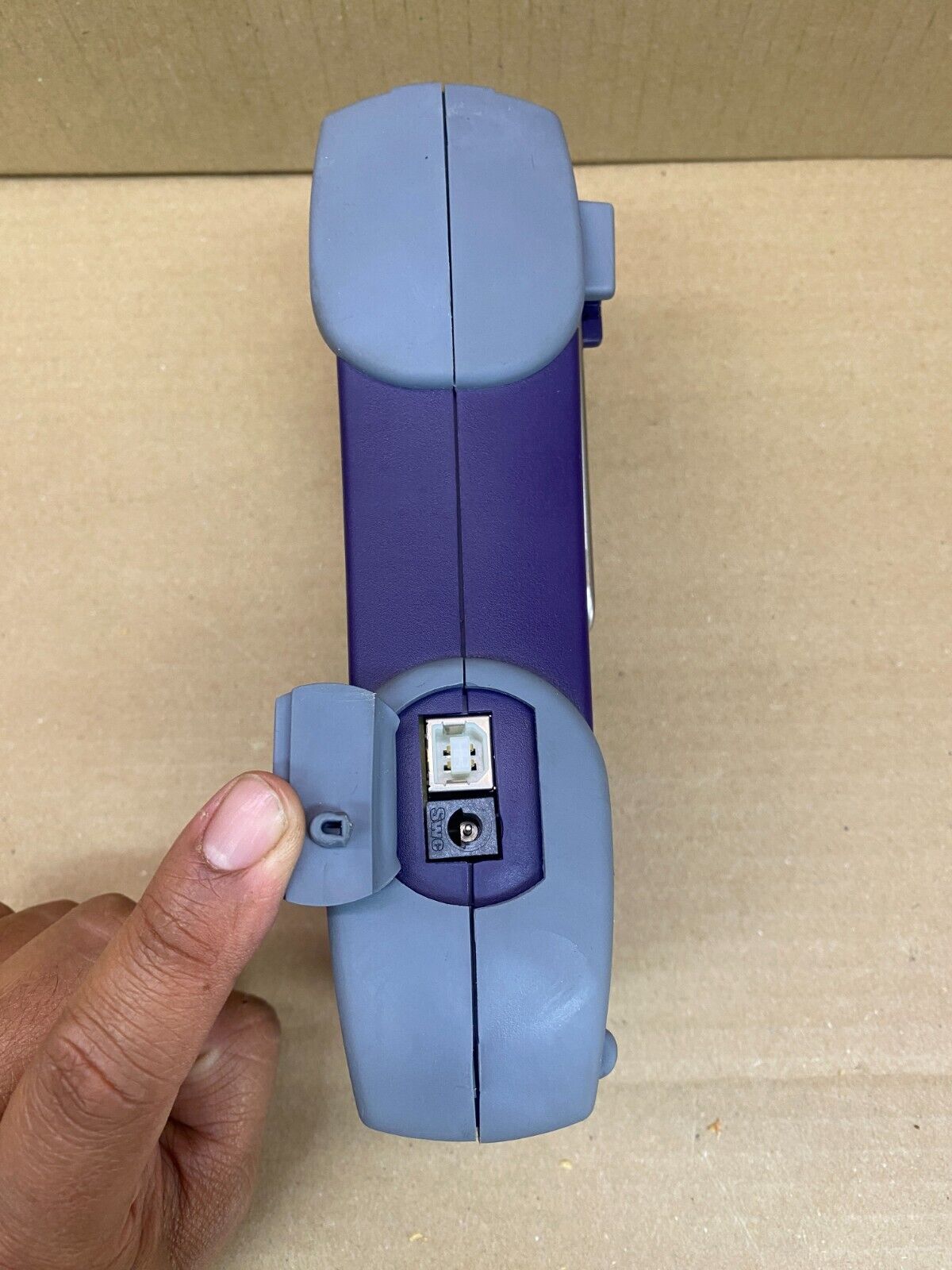

- Battery powered (4 × AA cells shown) with option for external supply (SNT-121A reference on label)

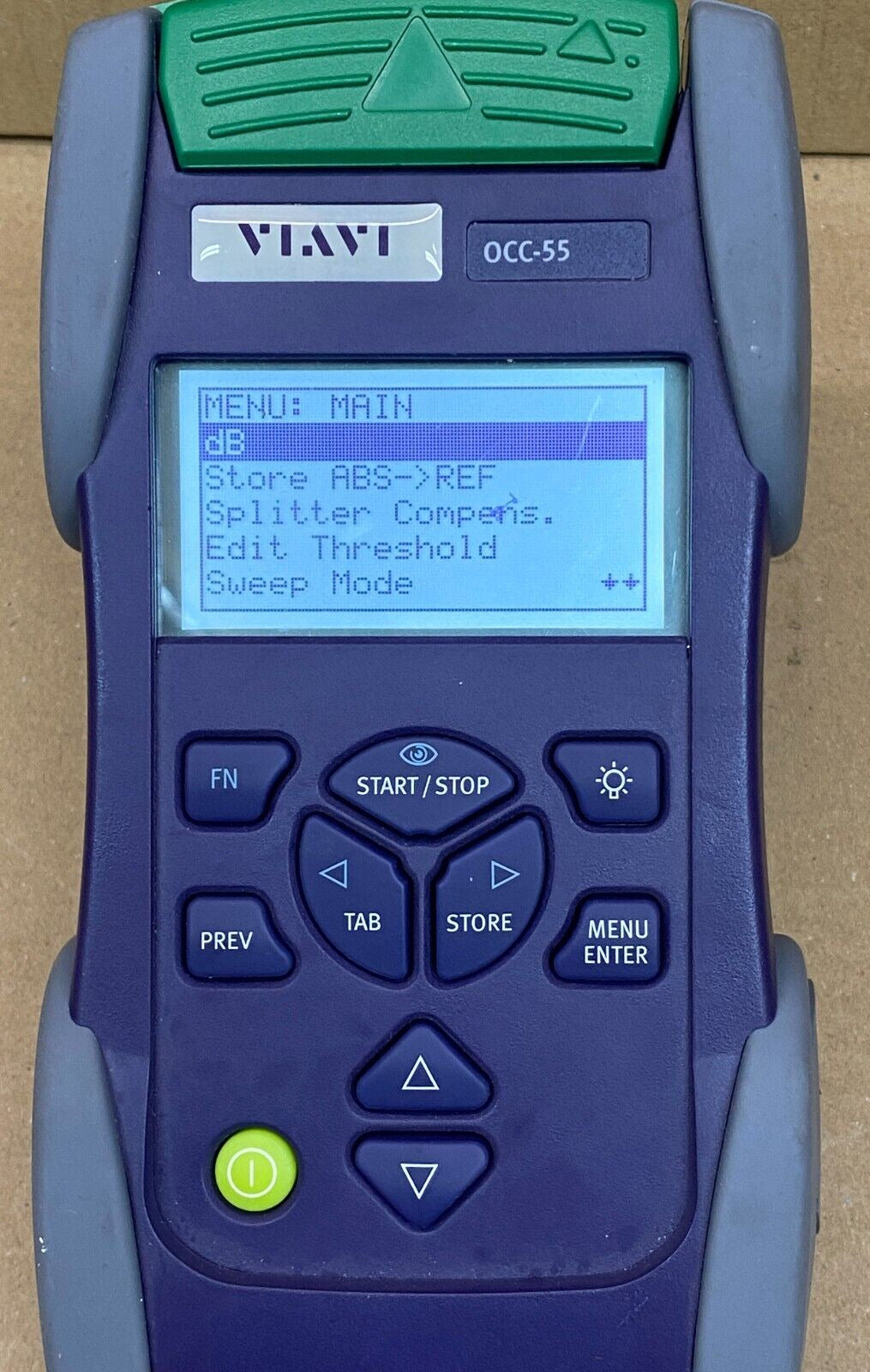

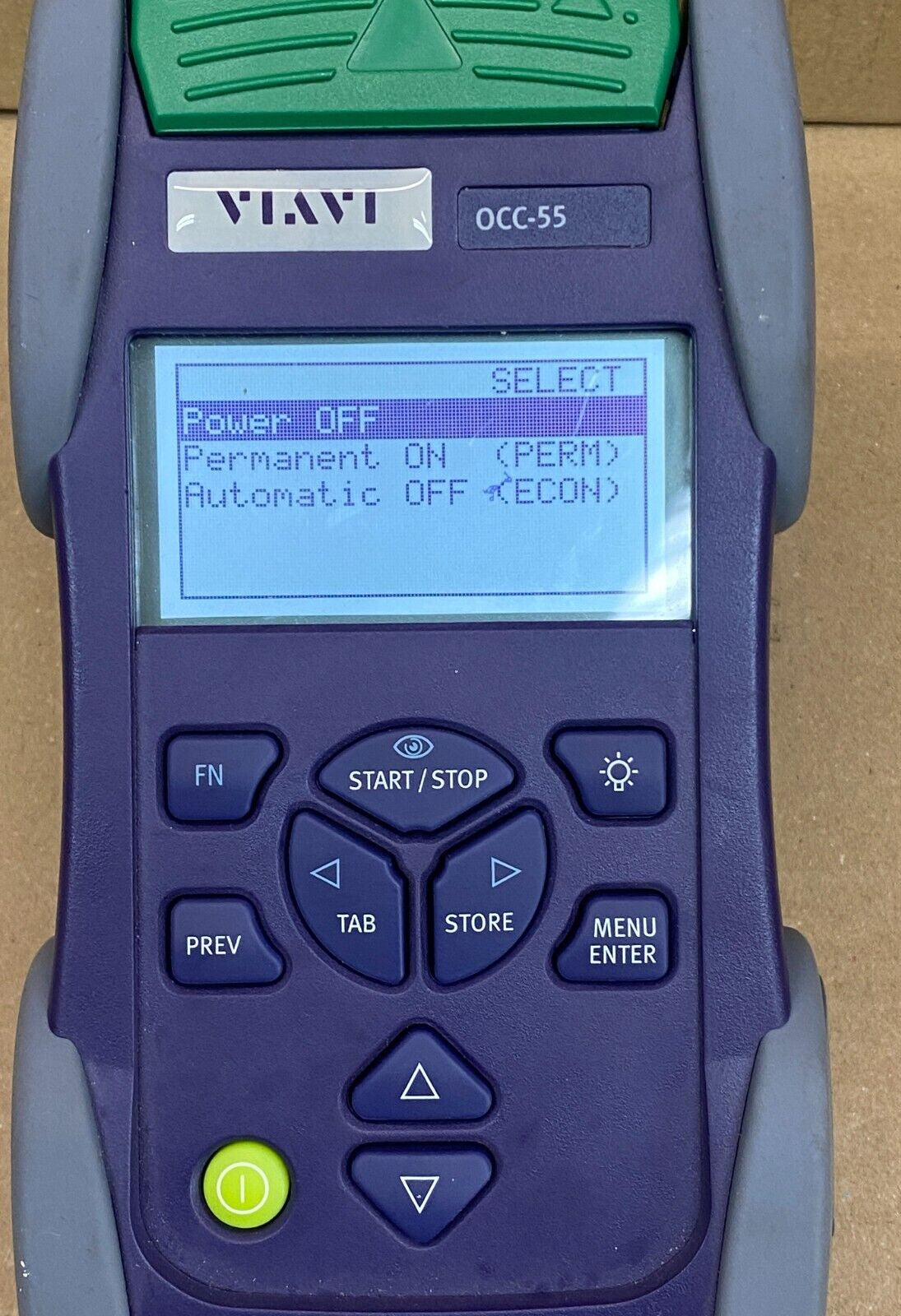

- On-screen menu, store and sweep functions; software version visible in photos
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Viavi (JDSU heritage) |
| Model | OCC-55 |
| Part / Series | AC-0123 (BN 2277/43 shown) |
| Wavelength range | 1260 nm – 1620 nm (labelled) |
| Maximum input power | +10 dBm per channel, +22 dBm total (labelled) |
| Fibre type | SMF 9/125 (labelled) |
| Optical input | APC (labelled) |
| Power | 4 × AA batteries (supplied in photographs); external supply reference SNT-121A (labelled) |

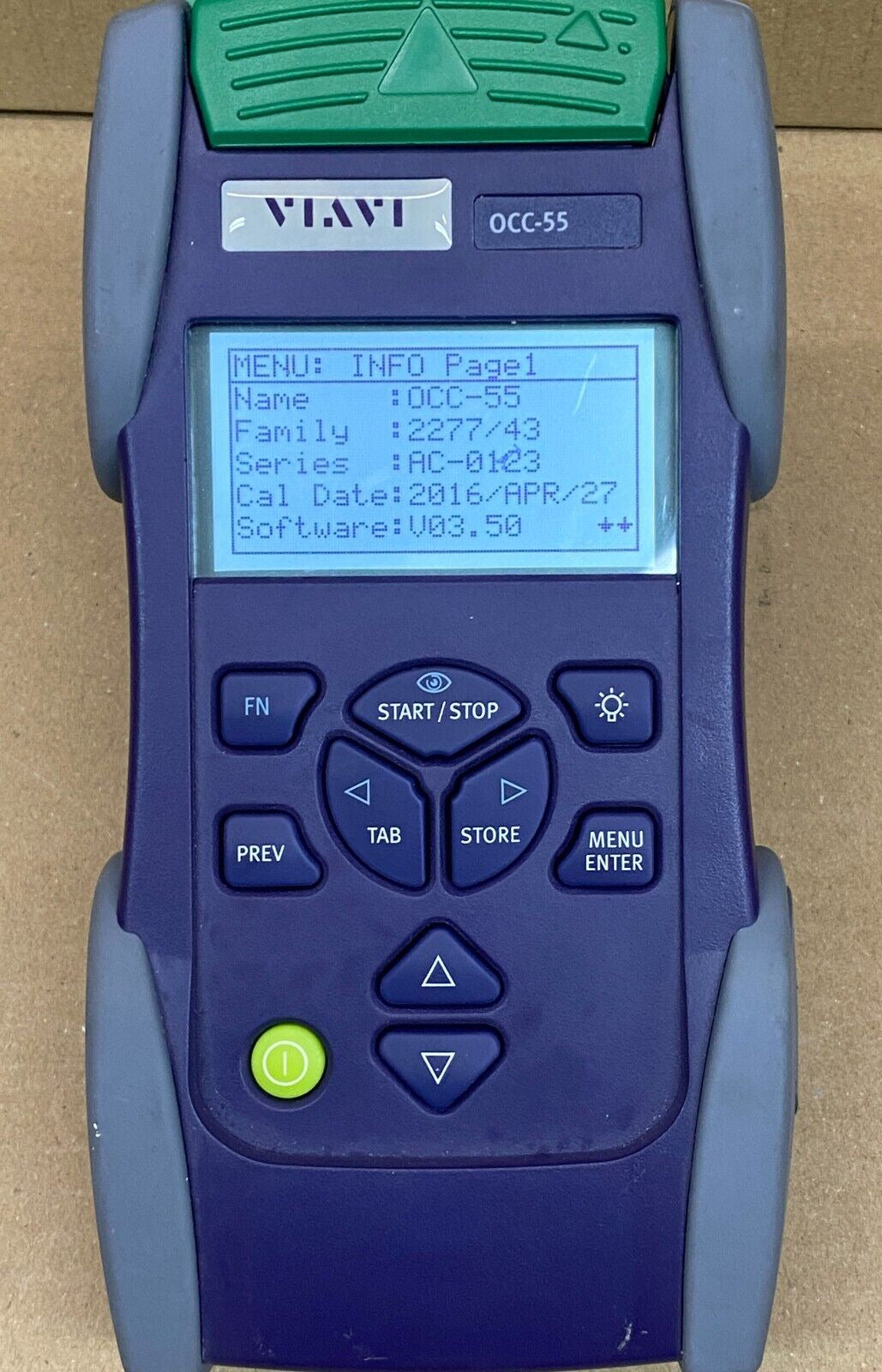

| Calibration / Software | Cal date: 2016/APR/27; Software V03.50 (shown on screen) |
| Country of manufacture | Made in Germany (labelled) |
| Quantity | 1 Unit |
What you get
- 1 x Viavi OCC-55 handheld optical channel checker (as pictured)
History
The unit was removed during an IT decommissioning process. The photographs show the device powered on and the rear label information; the listing is for the single unit shown.
