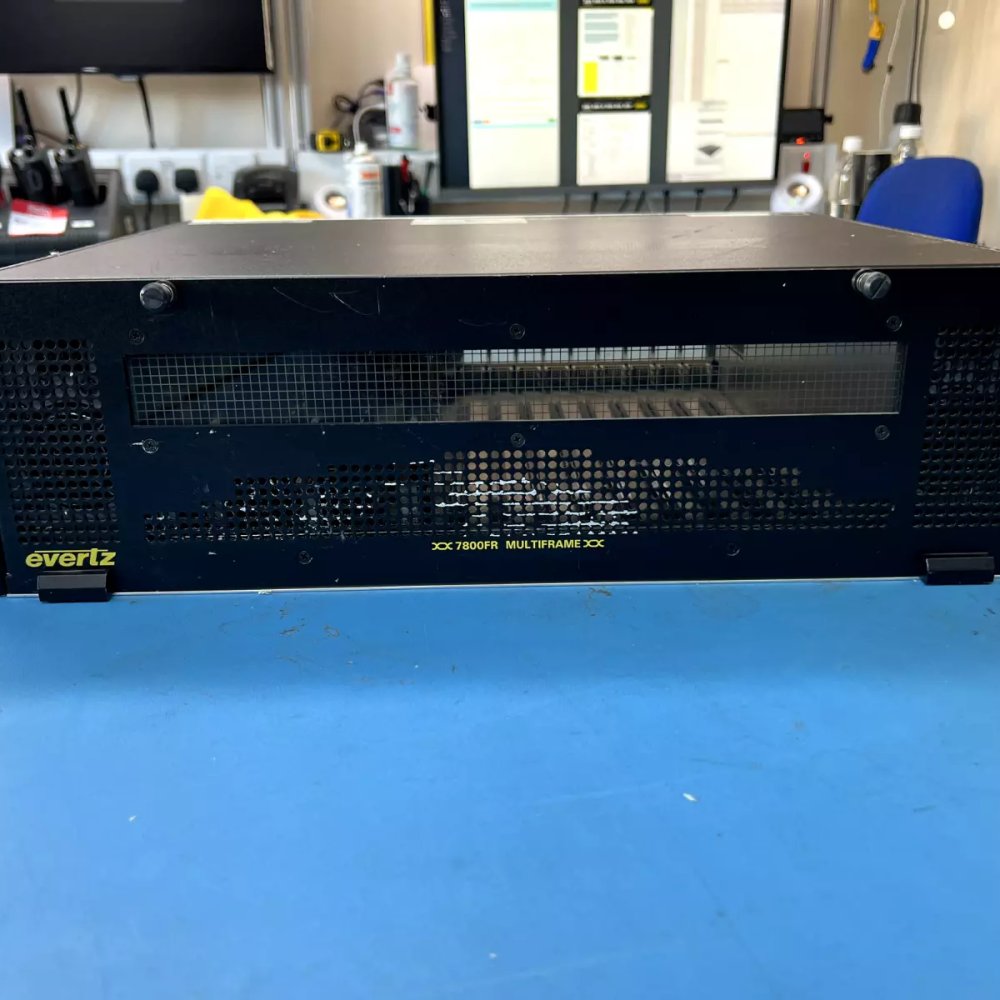

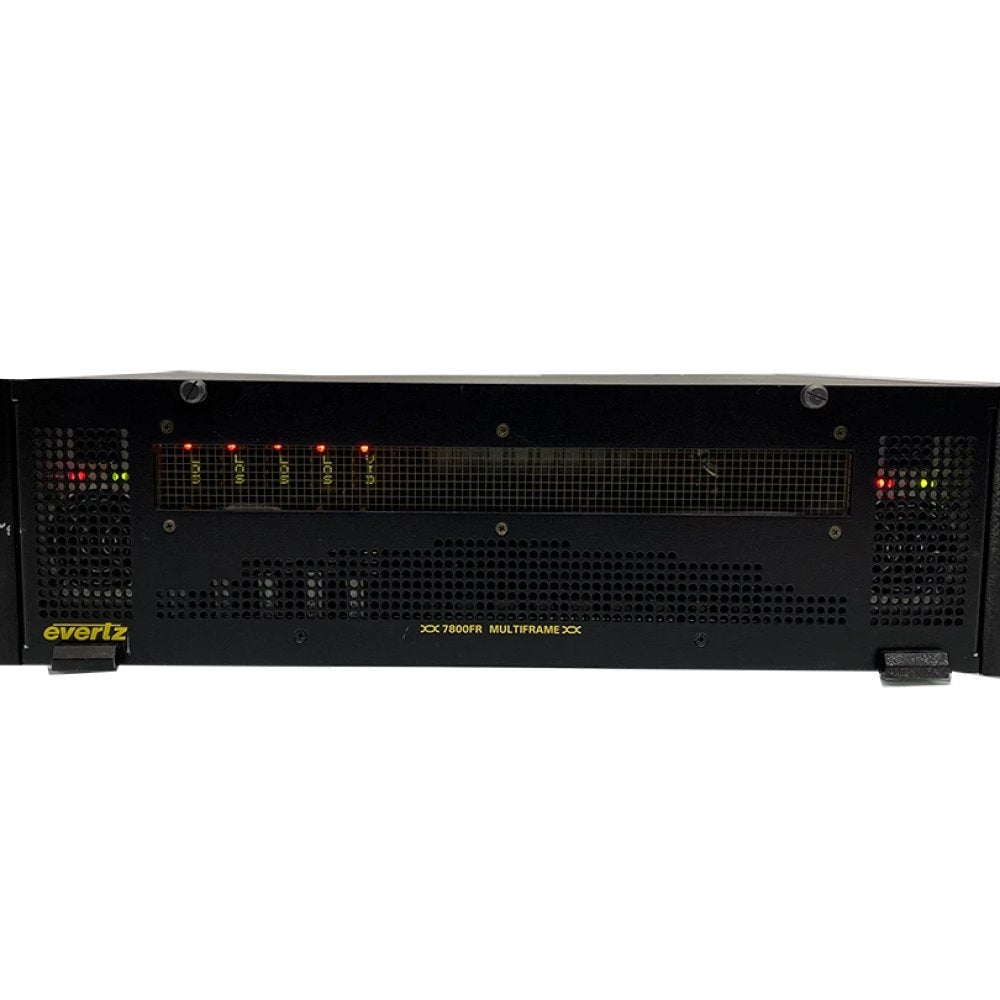

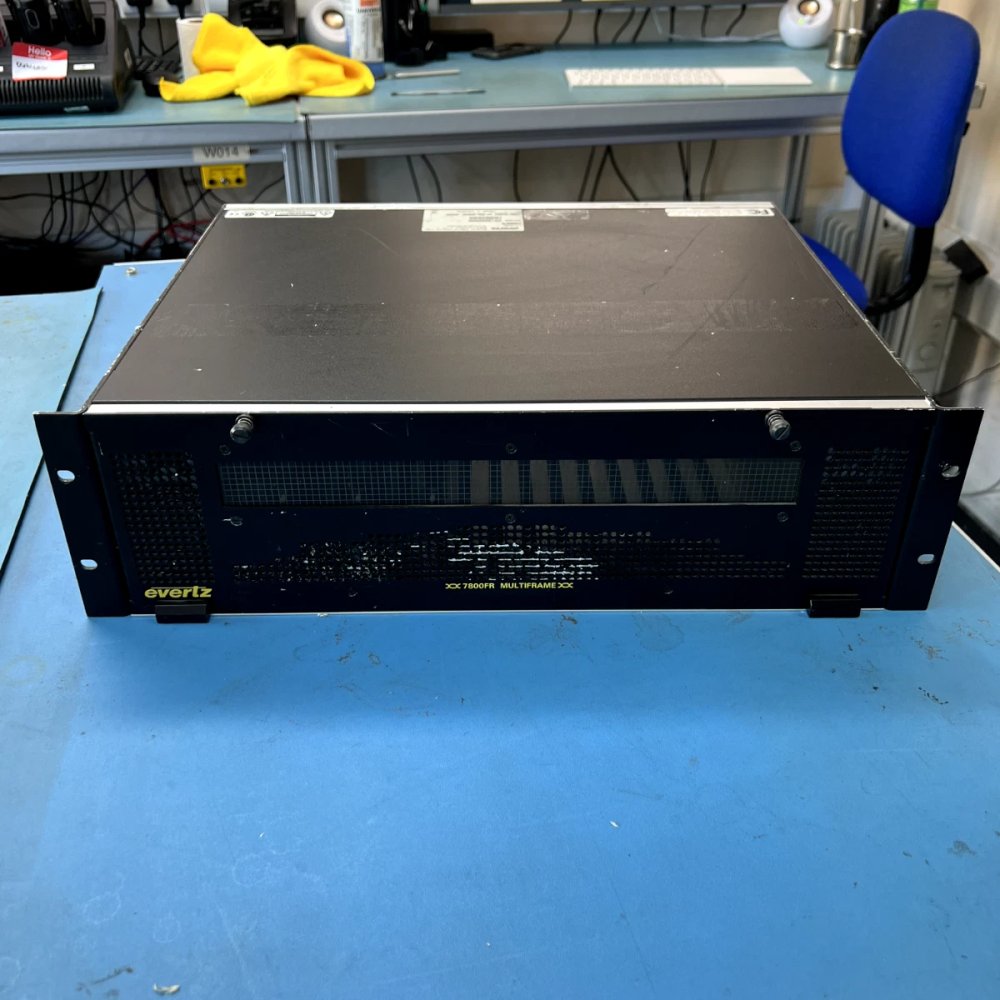

Professional Evertz 7800FR-QT Multiframe, 3x Quad HD/SDI Receiver Cards

Condition

This item has been professionally tested to ensure it is fully functional and in good working condition. It does not come in retail packaging. Item has very minor signs of use such as cosmetic marks and small scratches that will not affect its functionality. The item includes only the components listed under "What you get". The manual is not included but can be downloaded online. Images are for illustration purposes, and the actual product may have slight cosmetic imperfections.

Description

Evertz’ award–winning 7800 family of multiframes provides flexibility in the truest form. With simultaneous processing capability of RF, Fiber, ASI, IP, 3G, HD/SD and more, these frames are designed to grow with the rapid changing needs of the facility and are available in a wide variety defined in the chart below. Standard features of all 7800 series multiframes include dual frame genlock providing a stable reference signal across the internal bus to all installed modules that minimizes the cost spent on genlock distribution, global frame status alarming to provide quick alert to operations in the event of a failure, and interchangeable modules between all frames (both processing module and companion rear plate). Additionally all frames offer hot–swappable dual redundant power supplies that allow for power supply and fan replacement without compromising the integrity of critical signal paths and true remote monitoring of all modules and signals within the chassis via a VistaLINK frame controller. This configuration provides the SNMP network communication interface from the VistaLINK Network Management Software to the chassis over the local or wide area network.

• Standard rack mountable 19” W
• 3RU
• Up to 15 single–slot modules in any combination
• True SNMP
• VistaLINK® PRO via 7700FC/7800FC
• Front to rear exhaust
• Rear–mounted fans
• Up to 360W
• 24W of power per slot
• 19” W x 5.25” H x 14.5” D (483mm x 133mm x 368mm)
• 17.4lbs (7.9 kg) empty

• Single card TDM de-multiplexer for two HD-SDI signals, or one HD-SDI signal and three SDI/DVB-ASI signals, or four SDI/DVB-ASI signals
• Low jitter outputs
• Independent signal outputs unaffected by loss of any other HD, SDI or DVB-ASI input feed
• Transparently passes embedded AES or any other data in the horizontal or vertical ancillary data space
• Fully hot-swappable from front of frame
• Supports single-mode and multi-mode fiber optic cable (contact factory for multi-mode applications)
• Accepts any wavelength in the 1270nm to 1610nm range
• SC/PC, ST/PC, FC/PC connector options
• Comprehensive signal and card status monitoring via four digit card edge display or remotely through SNMP and VistaLINK®
• VistaLINK® capability is available when modules are used with the 3RU 7800FR or 350FR frame and a 7700FC VistaLINK® Frame Controller module in slot 1 of the frame
• Can be housed in either a 1RU frame which will hold up to 3 modules, a 3RU frame which will hold up to 15 modules.

What you get

• 1 x EVERTZ 7800FR-QT Quiet Multiframe

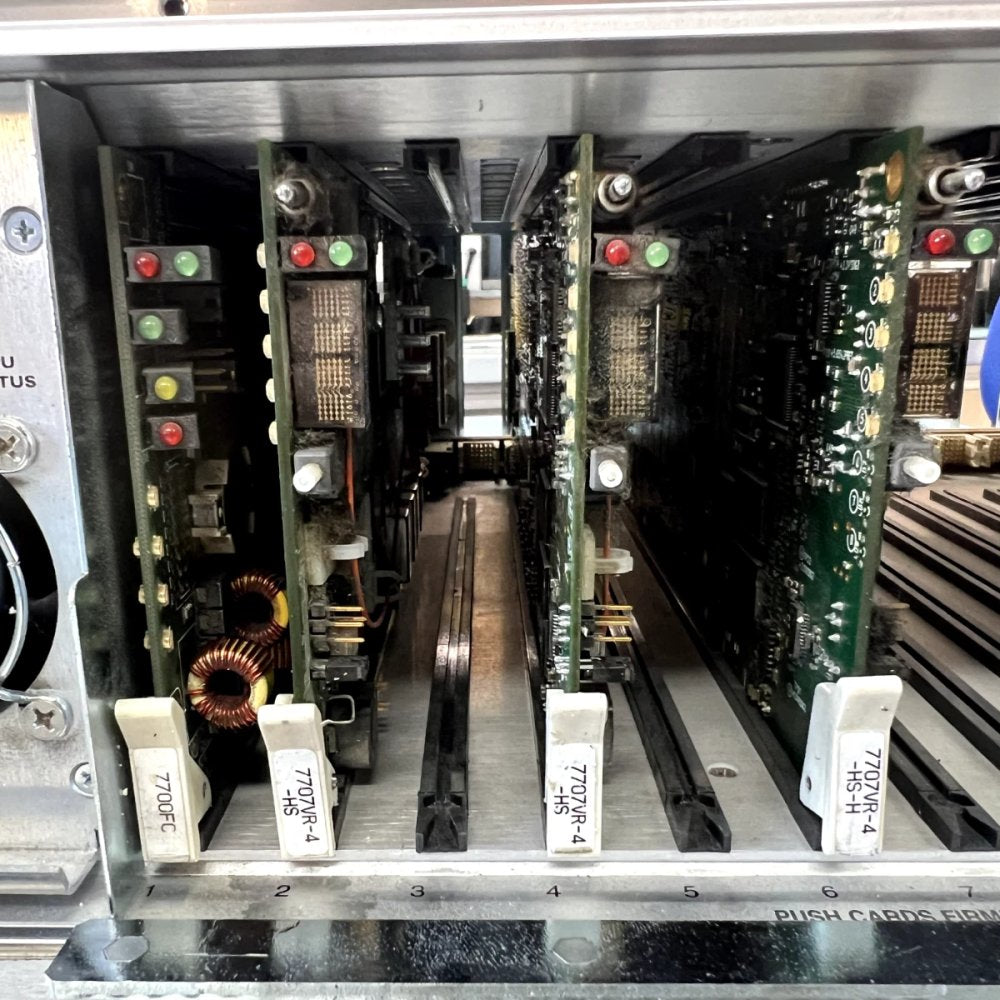

• 3 x EVERTZ 7707VR-4-HS Quad SD / Dual HD Fiber Receiver Cards
