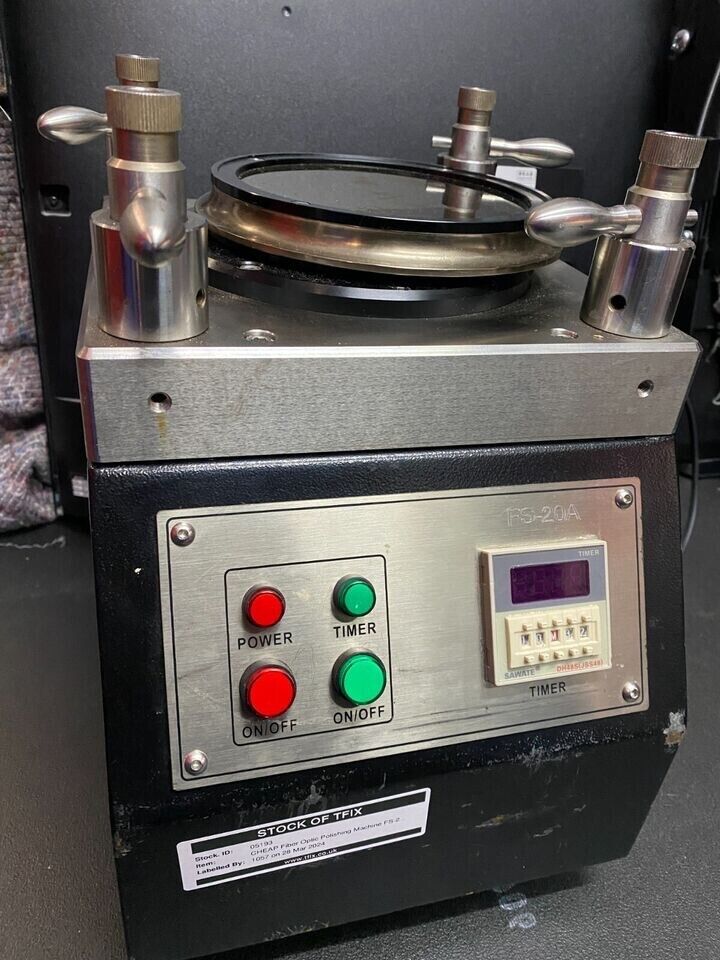

Professional Fiber Optic Polishing Machine FS-20A 40 Connectors 2100GBP

Professional Fiber Optic Polishing Machine FS-20A 40 Connectors 2100GBP

Regular price £499.00
Regular price Sale price £499.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

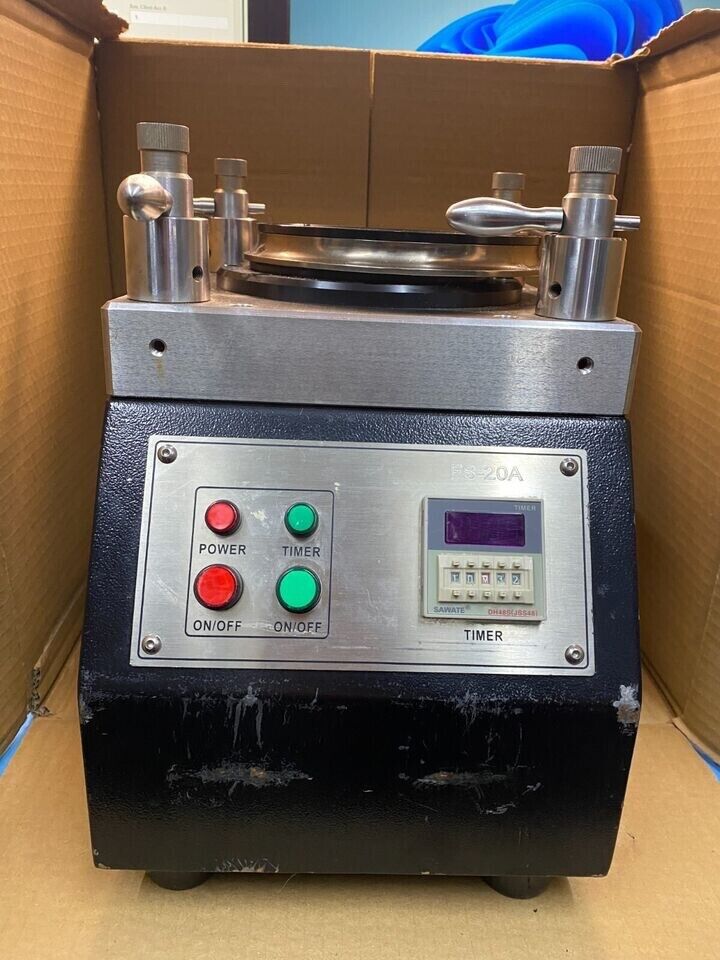

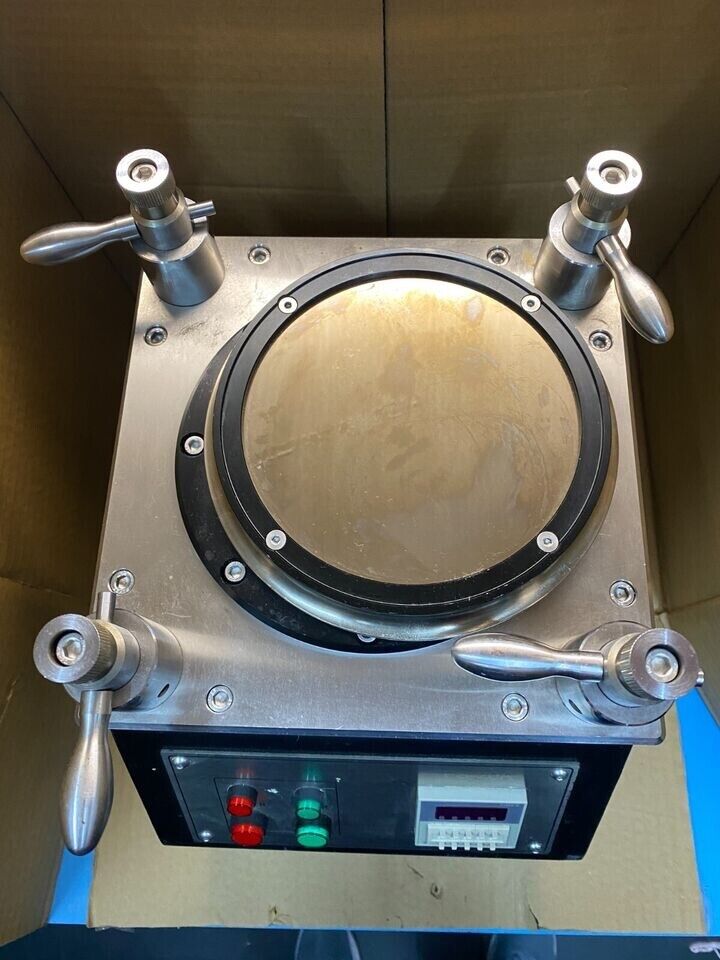

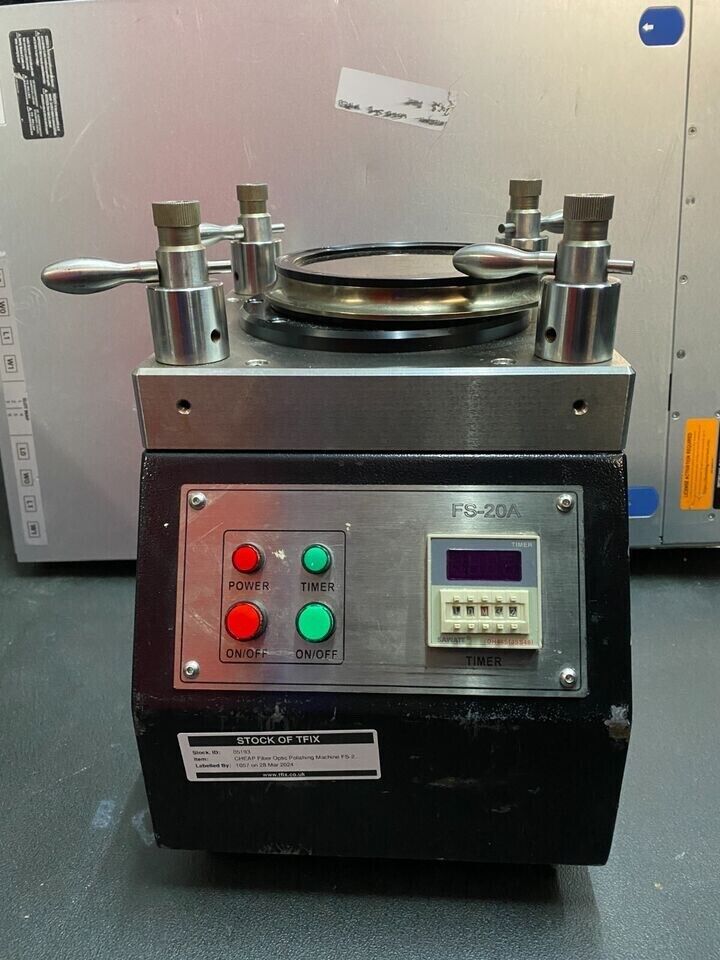

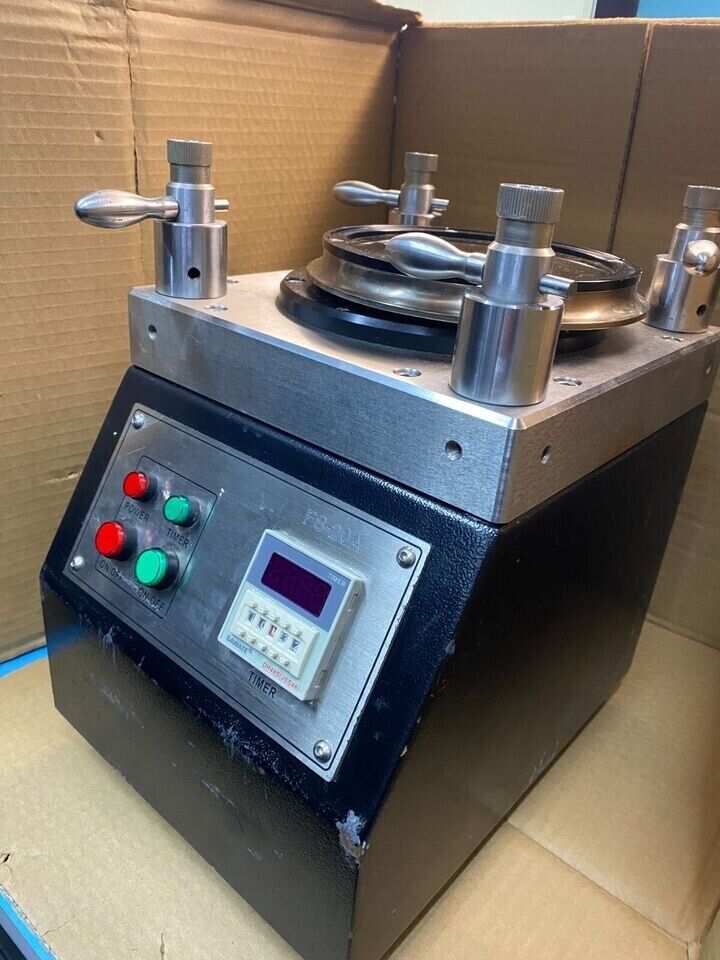

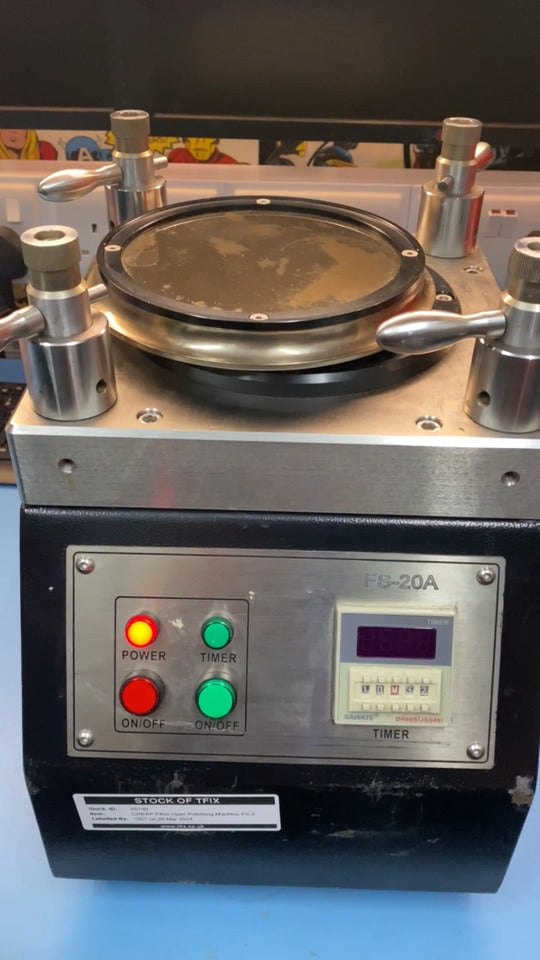

The FS-20A Professional Fiber Optic Polishing Machine is engineered to deliver exceptional quality and performance for high-capacity fibre optic connector polishing. Ideal for both small and large-scale projects, this machine can process up to 40 connectors simultaneously with its square pressurised polisher, making it a cost-effective choice for communication and networking applications.

Features

  • Efficiently polishes 18 to 40 standard fibre optic connectors in one operation.
  • Square pressurised by spring for enhanced flexibility and ease of use.
  • High-speed rotation plate with a speed of 90 rpm for optimal polishing results.
  • Spring-loaded pressure mechanism for consistent results and high return loss.

Specifications

  • Model Number: FS-20A
  • Pressure Type: 4 Coil Springs
  • Polishing Capacity: 18pcs/20pcs/24pcs/40pcs Connectors
  • Dimensions (HxWxD): 10.2" x 9.4" x 9.4" (260x240x240 mm)
  • O.D. of Rotation Plate: 127 mm (5 inches)
  • Speed for Rotation Plate: 90 rpm
  • Maximum Time Settings: 99 minutes 99 seconds
  • Return Loss: ≥50 dB
  • Power Input: 220-230VAC, 50Hz/60Hz
  • Electric Power: 40W
  • Working Temperature: 10-40°C
  • Net Weight: 24 kg

What you get

  • 1 x Fiber Optic Polishing Machine FS-20A Square Pressurised Polisher
  • 1 x Power Cable

History

The device came as part of the IT decommissioning project and was removed from working environment.

Details

VAT or 20% is included in the price (No VAT for international customers).
