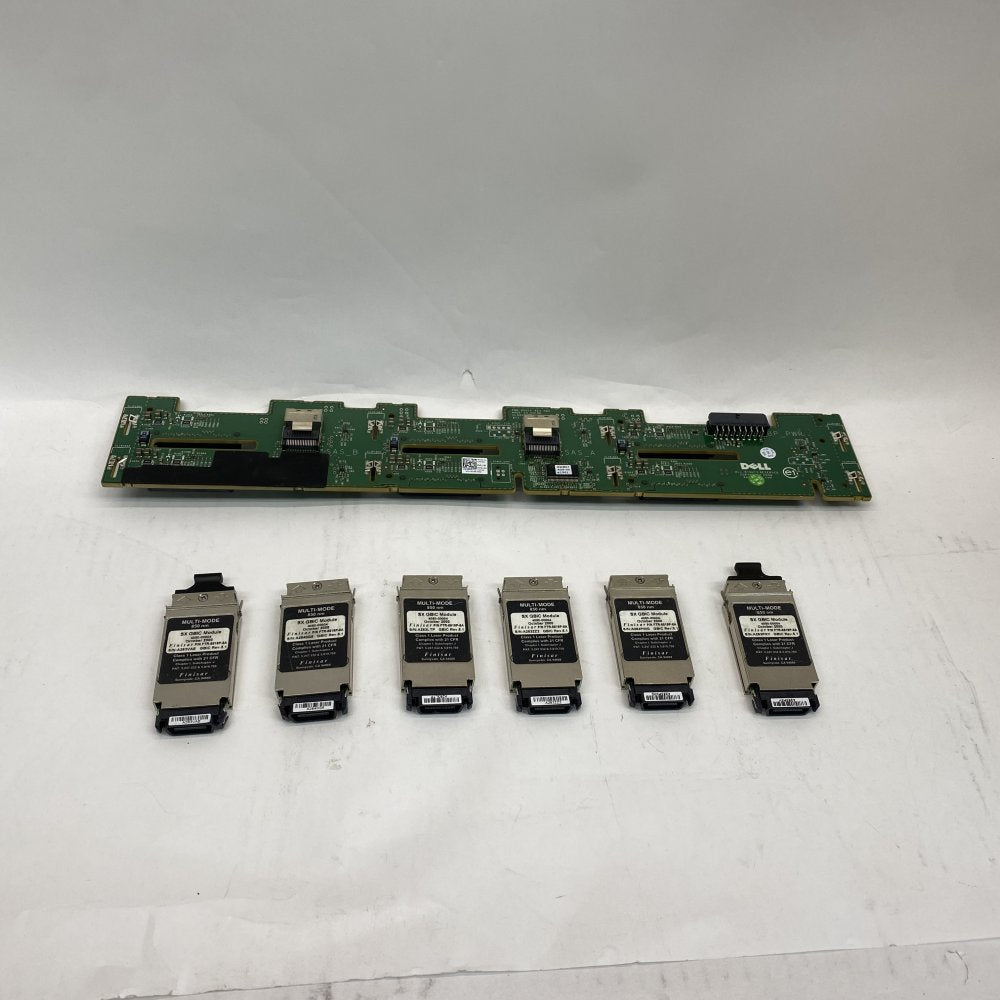

Dell R710 Backplane Board + 6x Finisar 850nm SX GBIC Transceivers - Used

What you get

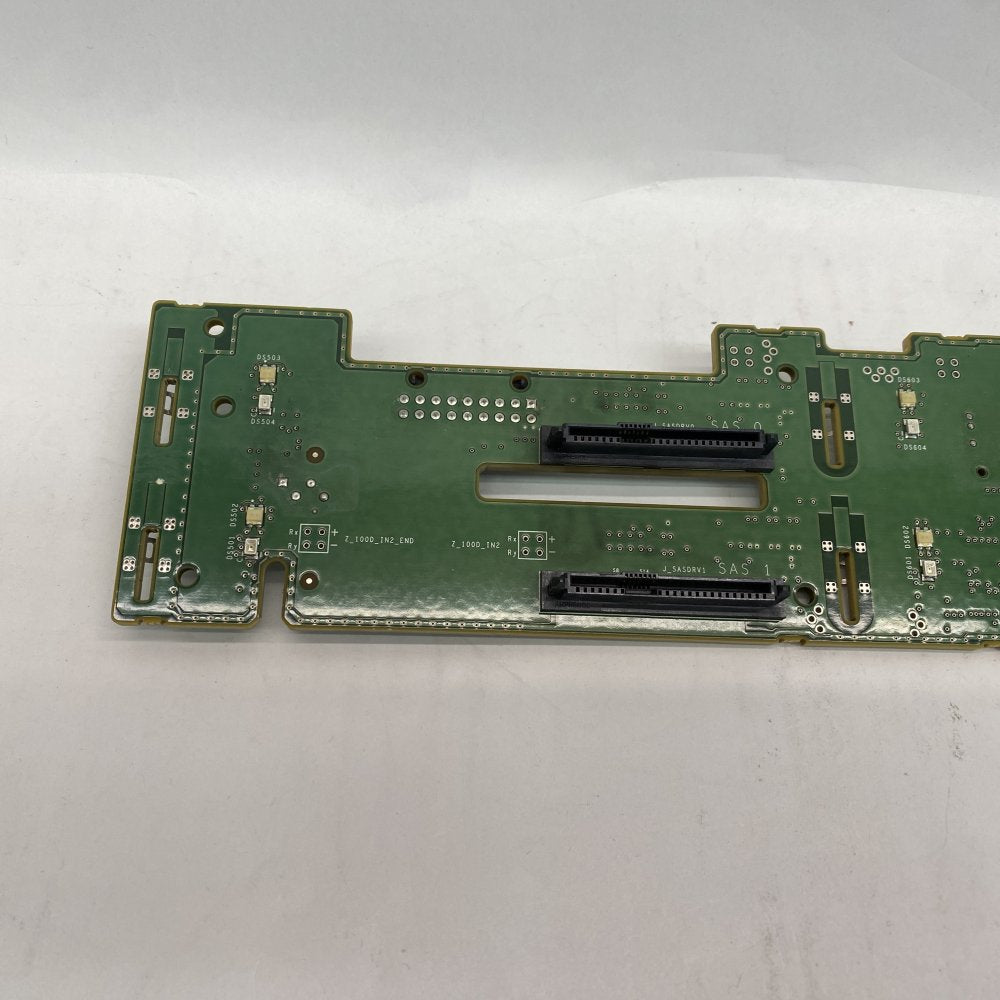

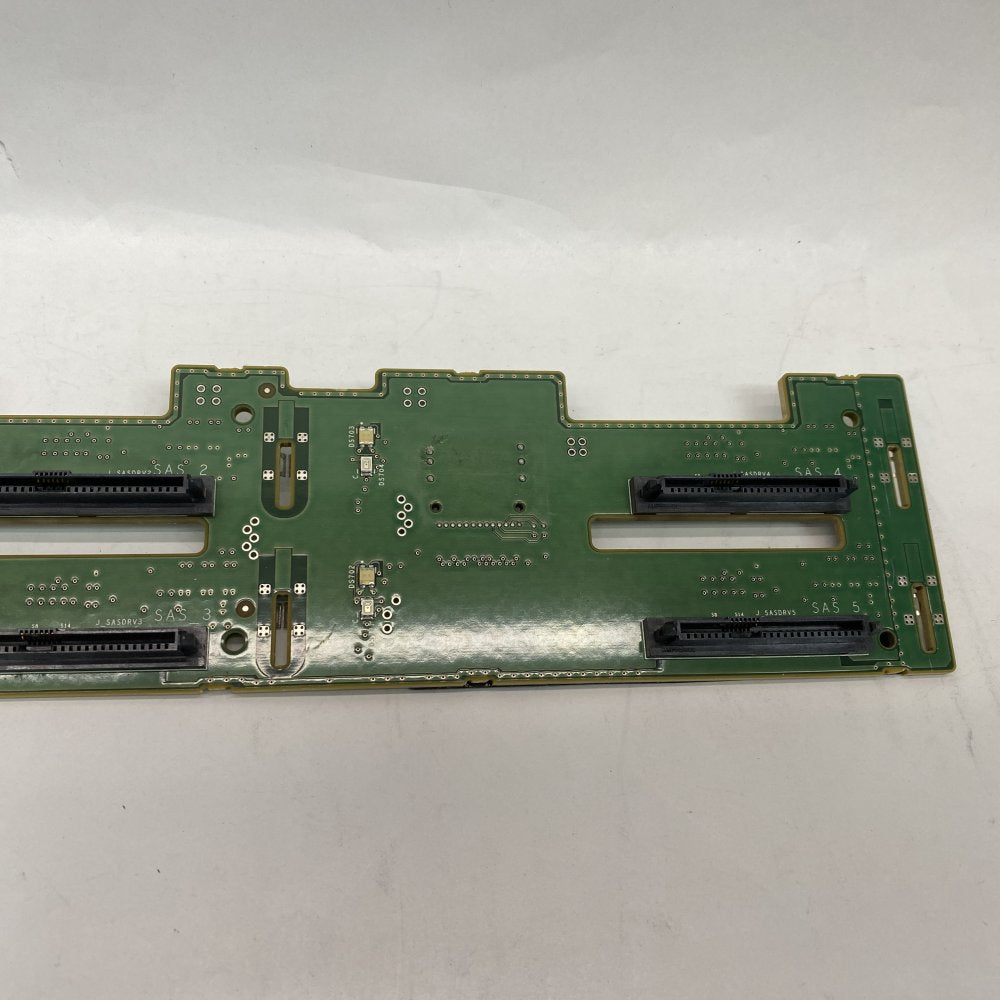

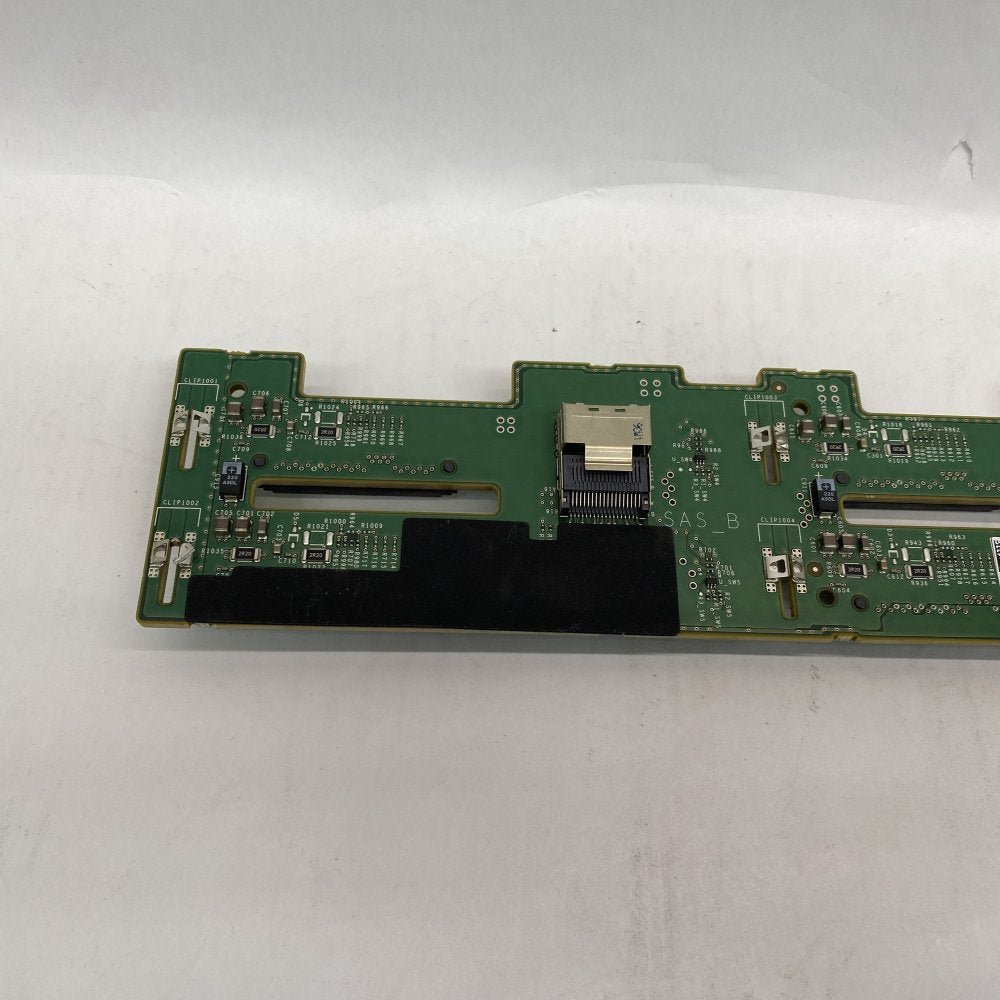

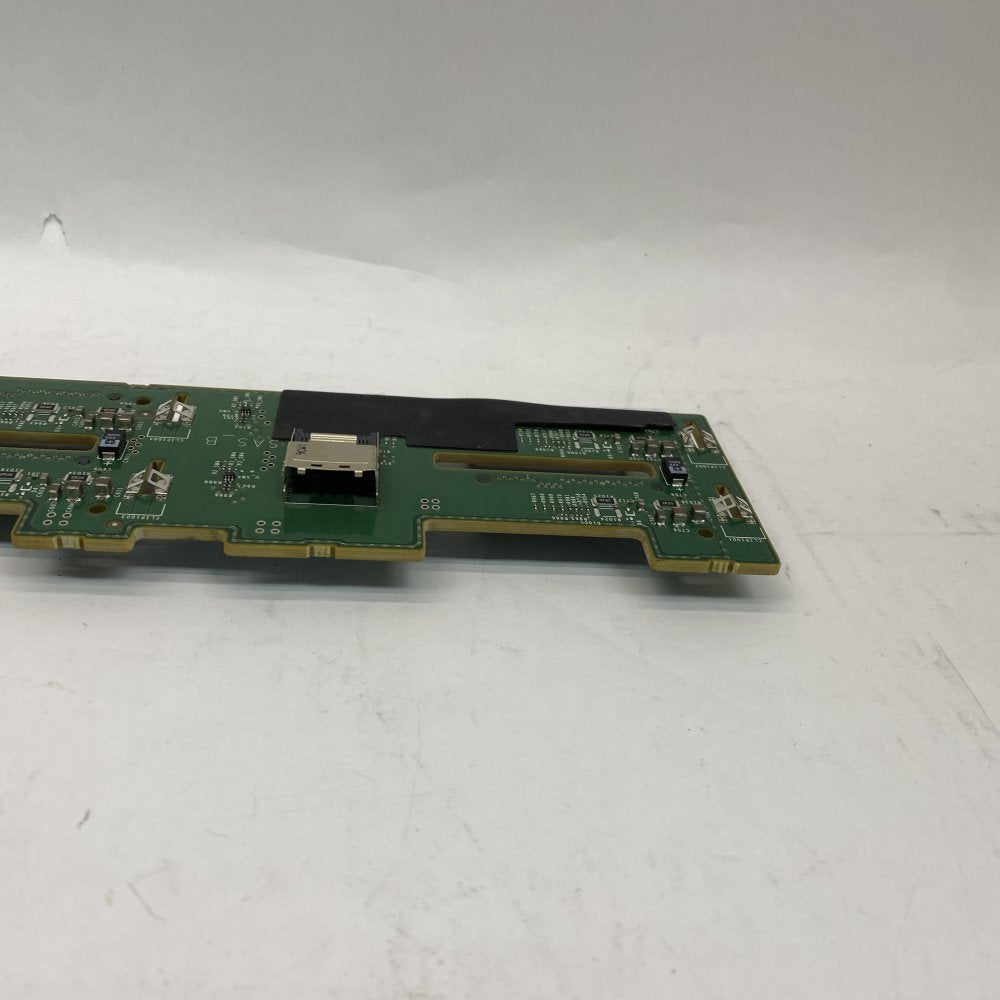

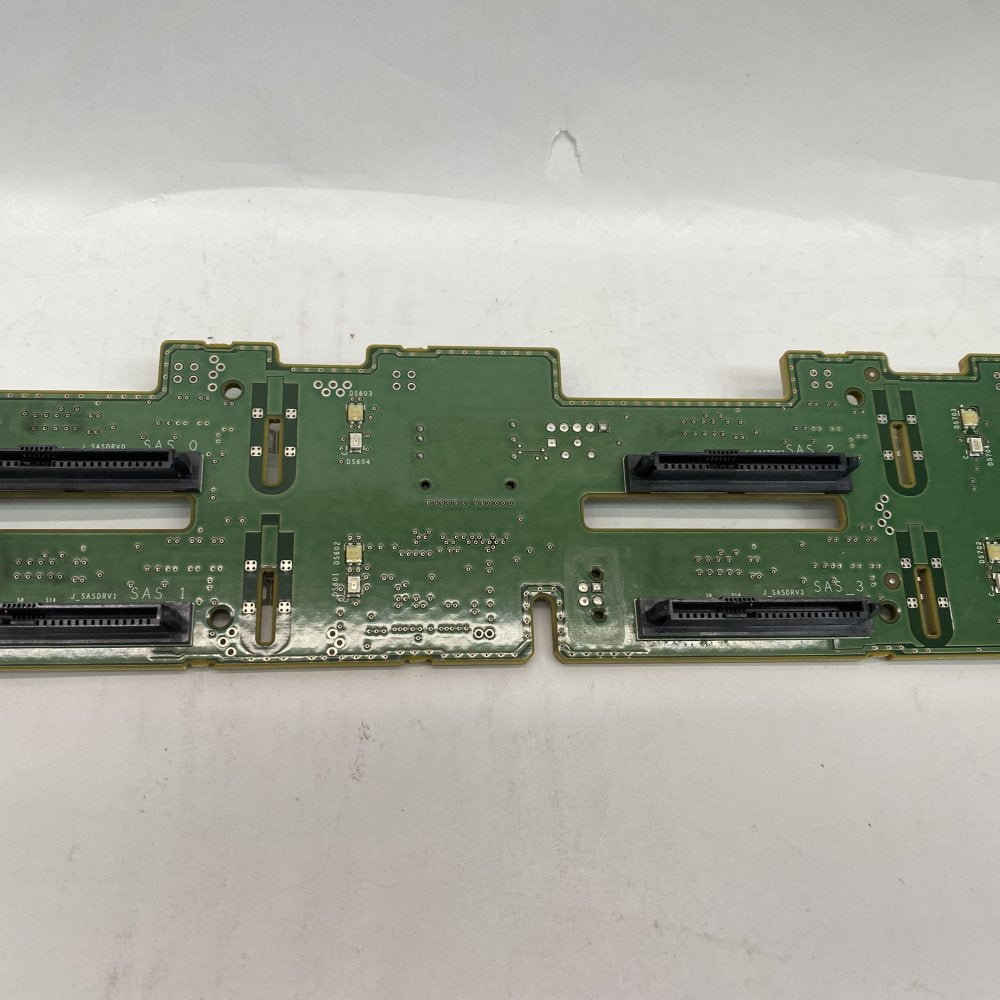

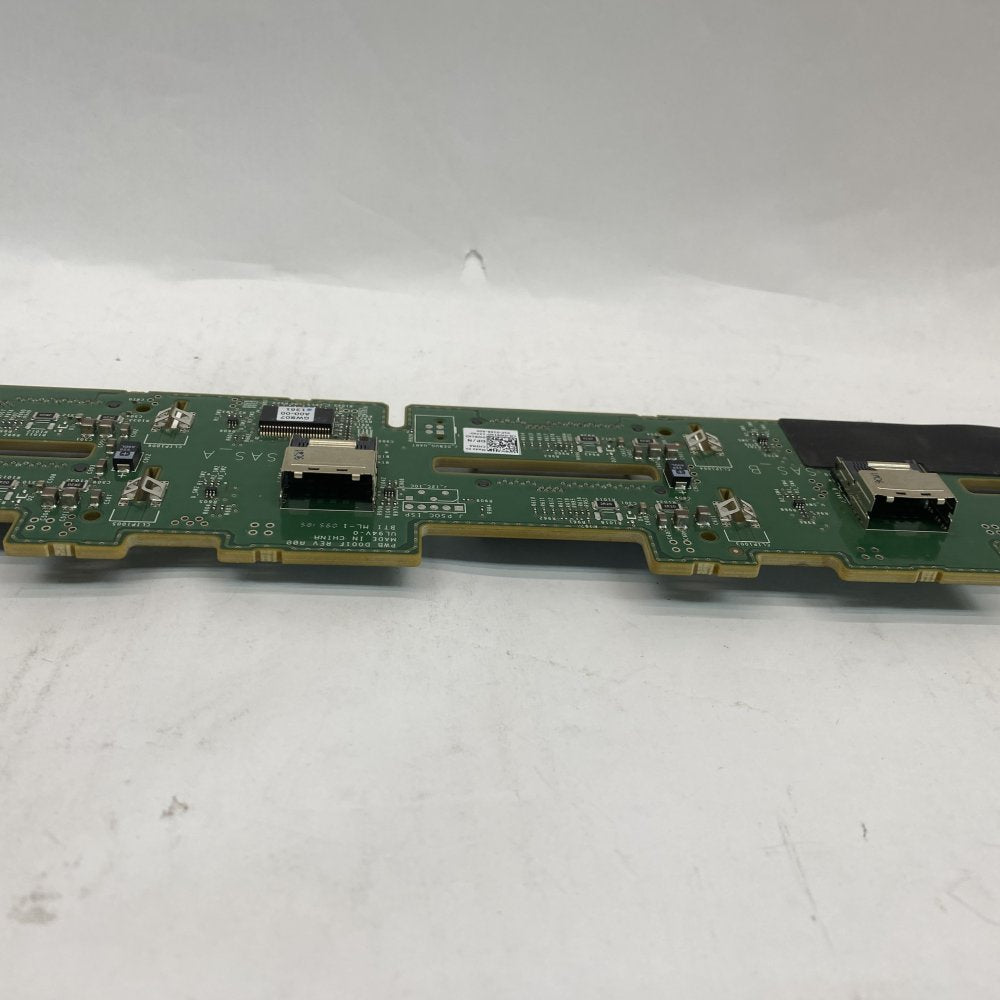

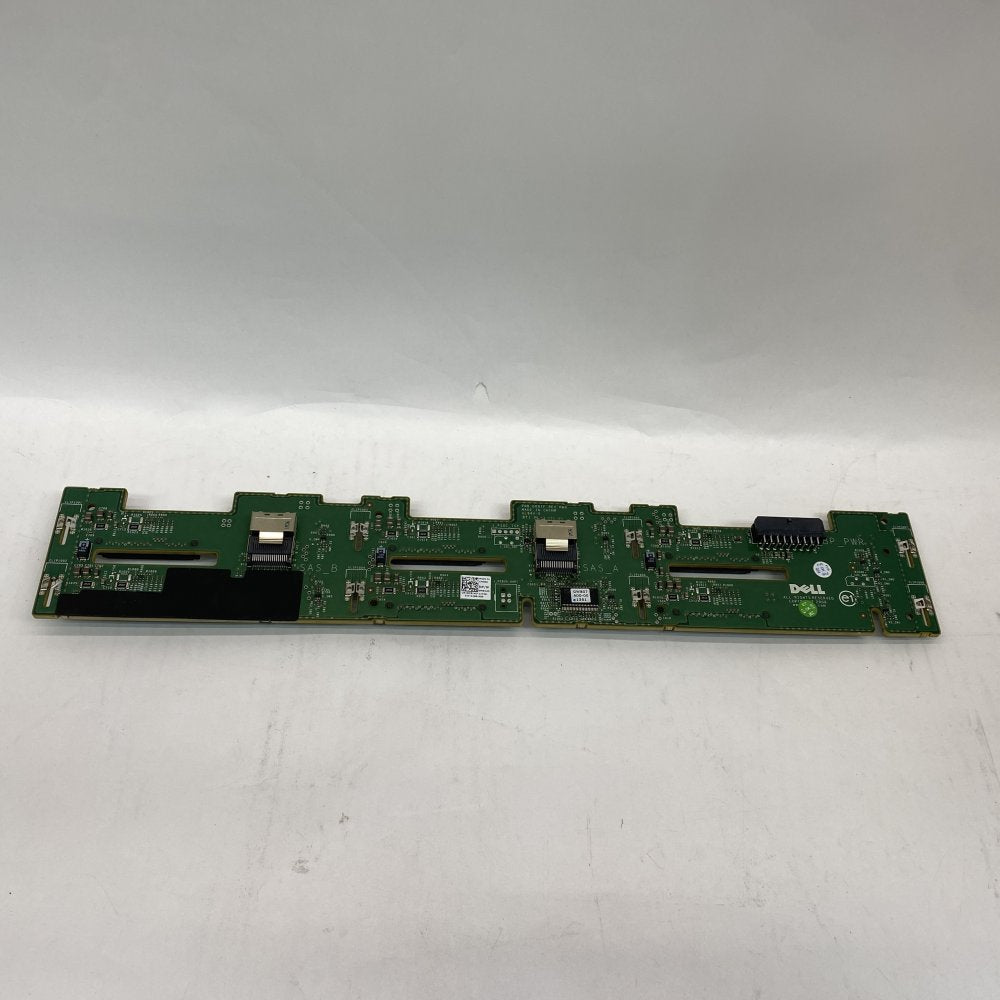

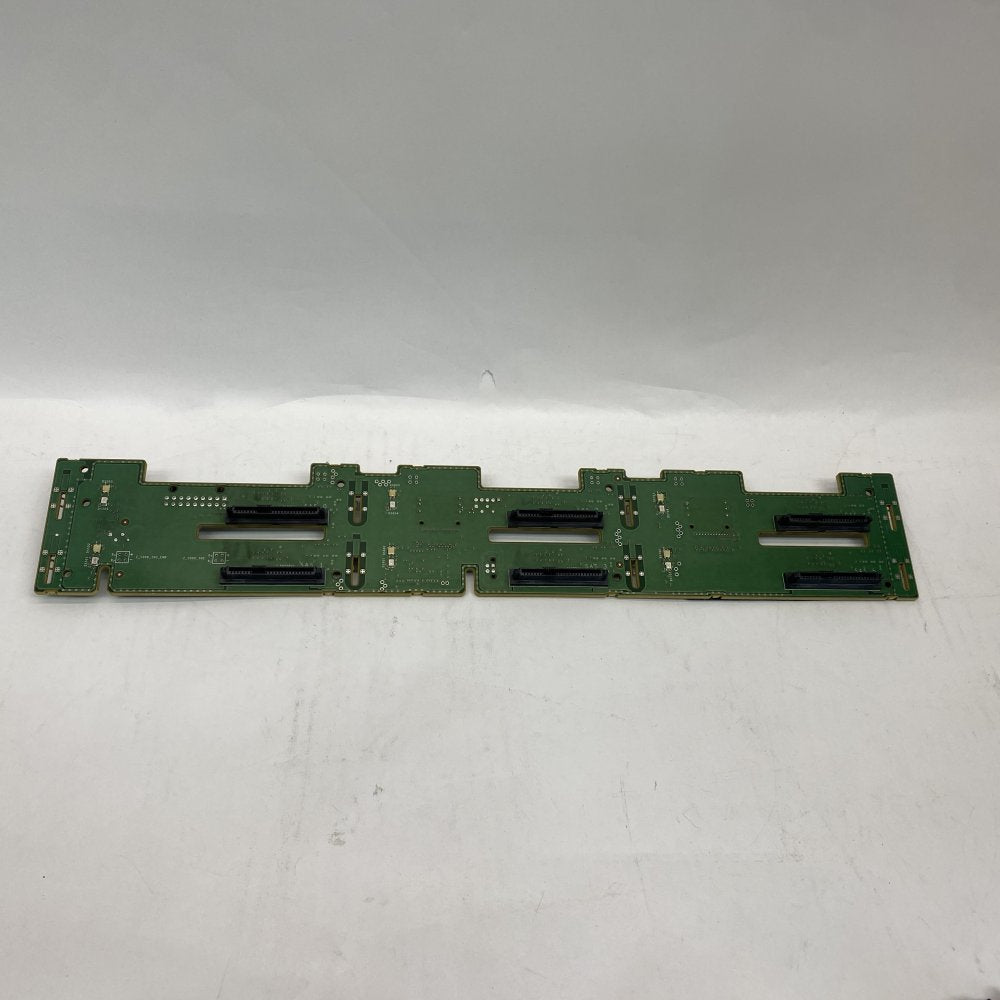

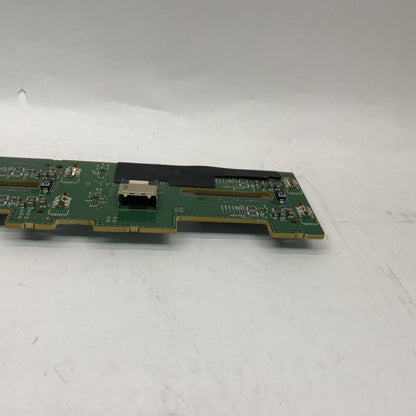

• 1 x Dell PowerEdge R710 backplane board (6-bay, 3.5" SAS/SATA drive backplane)

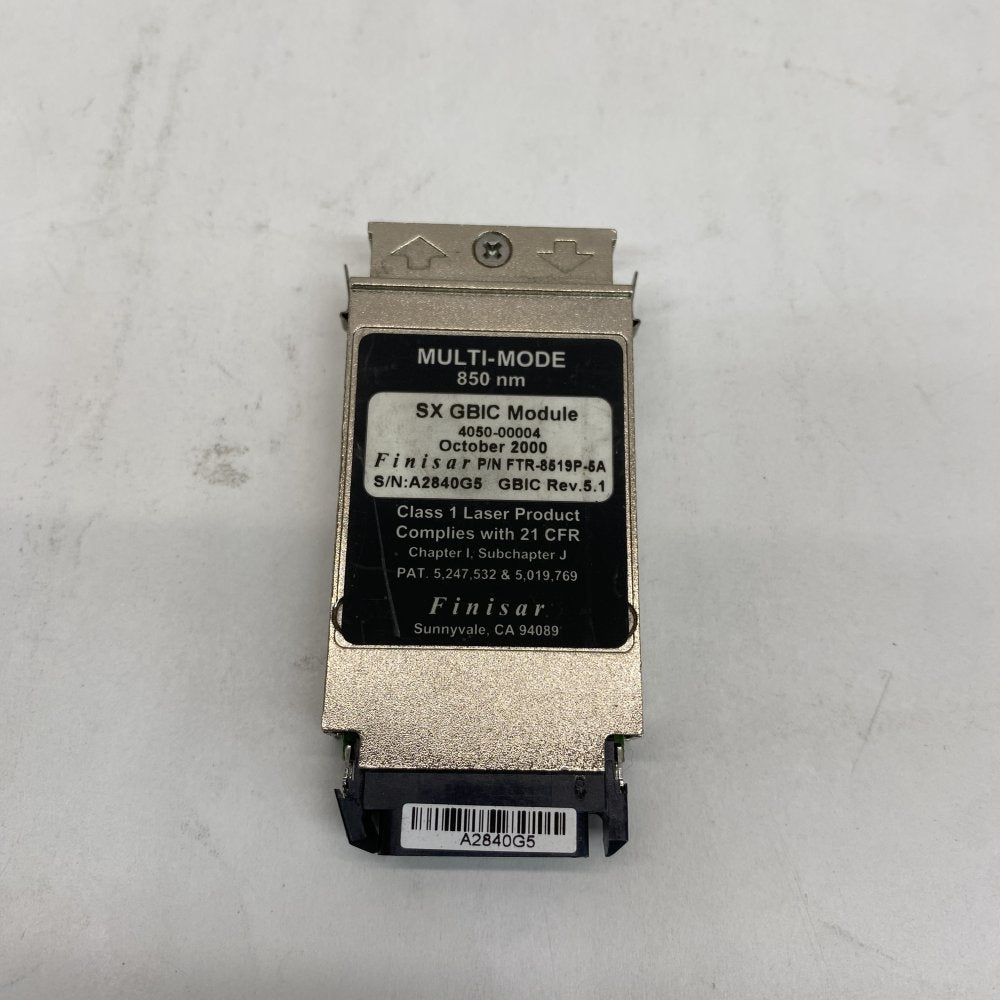

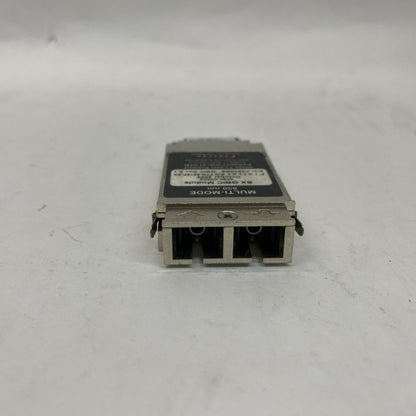

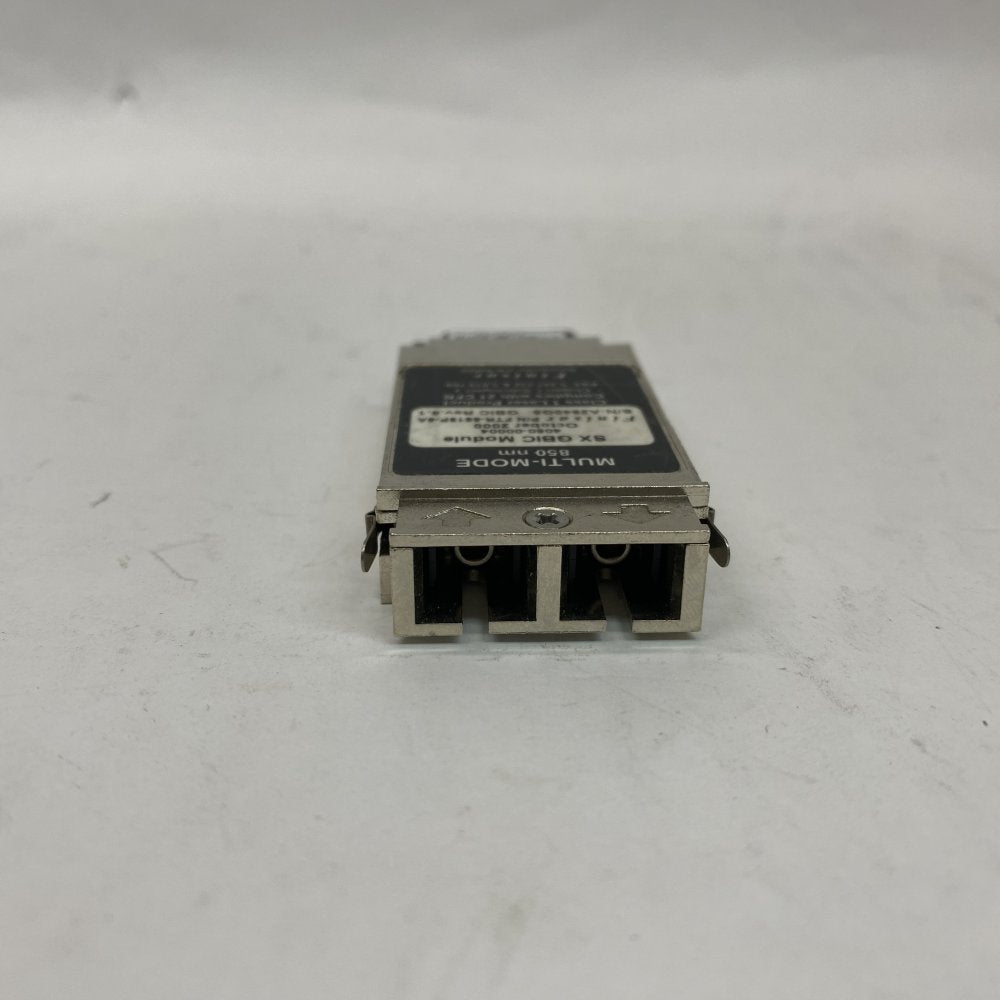

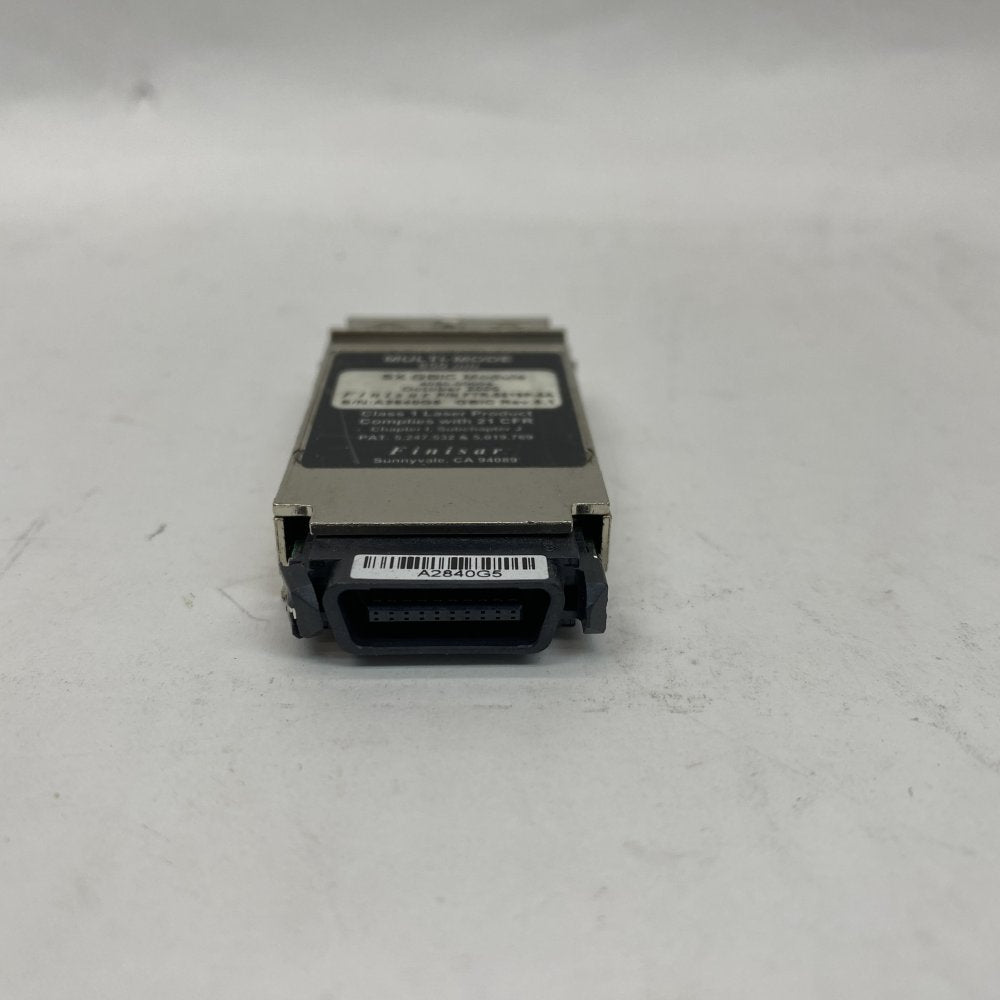

• 6 x Finisar 850 nm SX GBIC transceivers (multimode)

Features

• Dell backplane: designed for the PowerEdge R710 3.5" drive cage — accepts SAS and SATA drives and provides the drive-to-controller interconnects for a six-bay drive assembly.

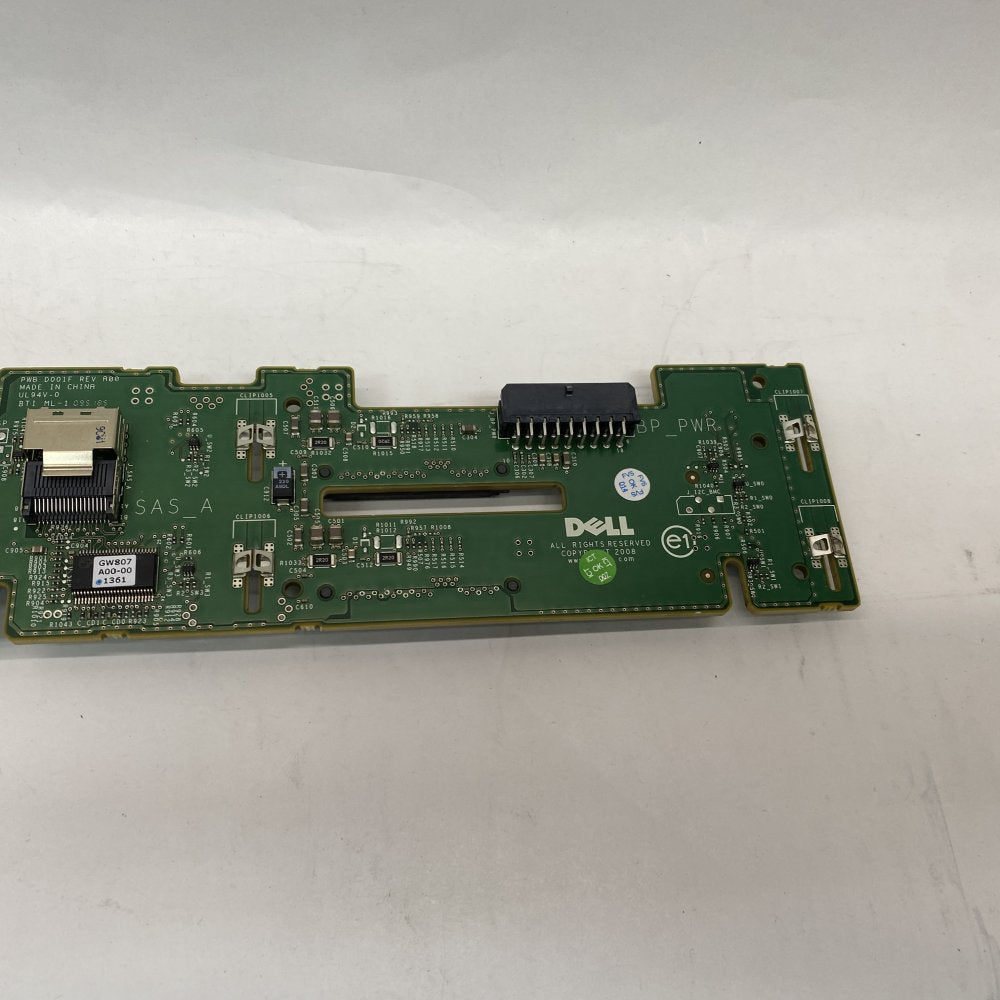

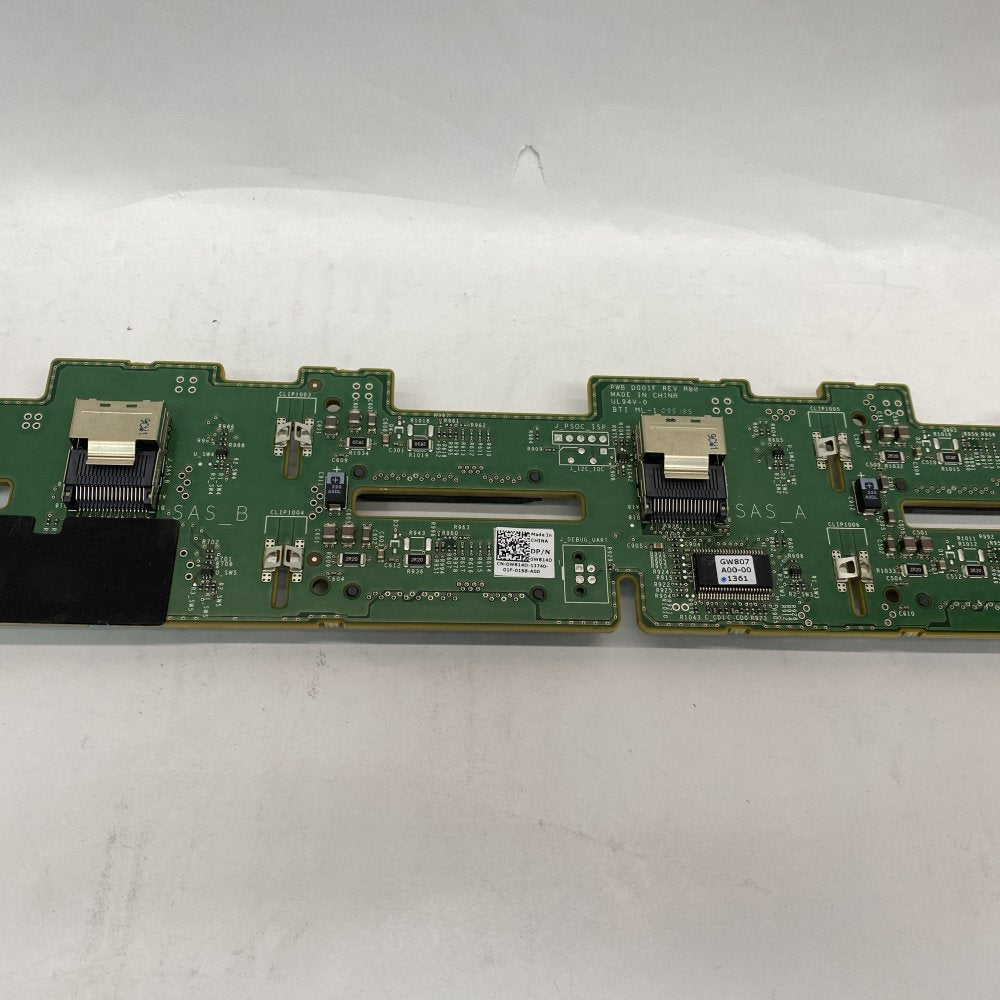

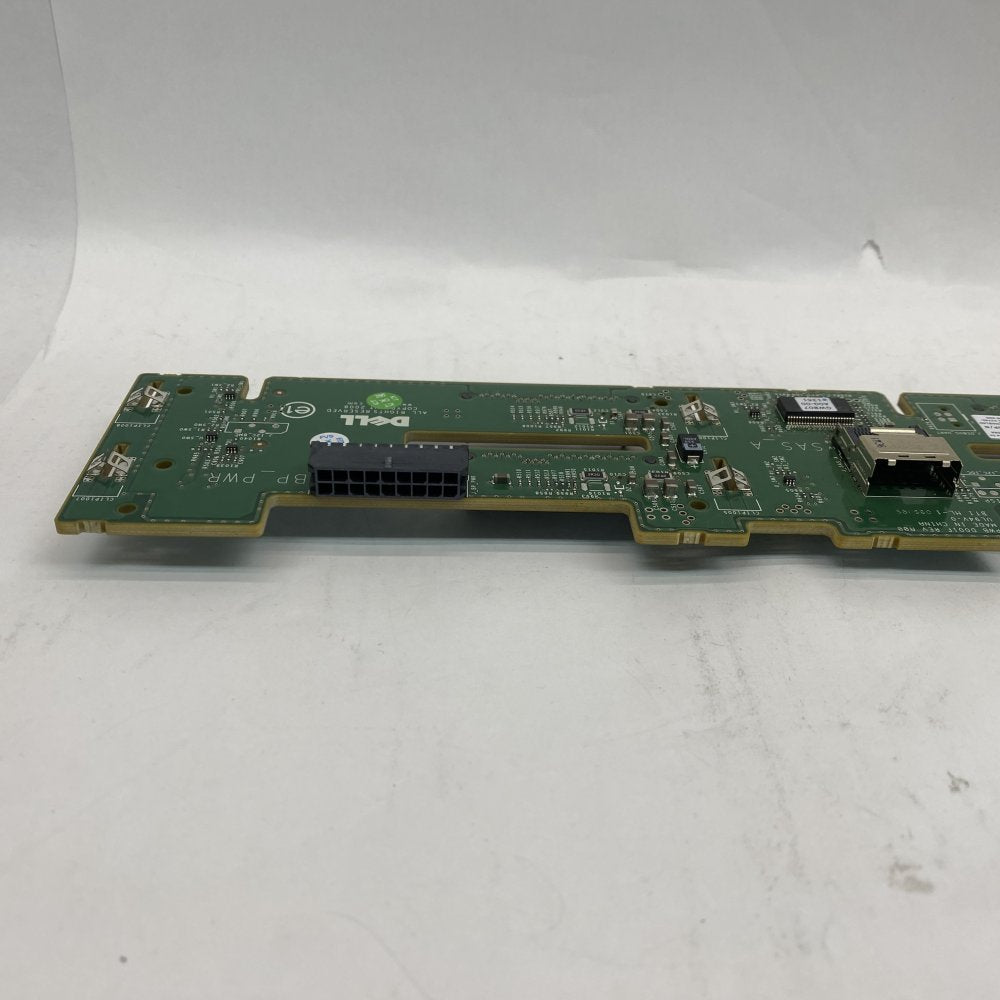

• Backplane includes multiple SAS connector sockets and a power header for drive power distribution (as marked on the PCB).
• Finisar GBICs: 850 nm multimode SX modules in GBIC form factor, intended for 1000BASE-SX (1 Gbit/s) multimode links.
• Robust mechanical connectors: GBIC modules use industry-standard duplex optical ports (check your cable type and host compatibility).
• Ideal for spares, repairs or lab/test environments where exact OEM parts are required.

Specifications

• Backplane compatibility: Dell PowerEdge R710 (3.5" drive chassis, 6 bays)
• Backplane markings: PWB D001F (REV A00) — manufactured in China (as marked)
• Drive interface (backplane): SAS / SATA (3.5" hot‑swap drive connectors)
• Transceiver manufacturer: Finisar
• Transceiver type: SX GBIC (multimode)
• Wavelength: 850 nm
• Data rate: 1 Gbit/s (1000BASE-SX)
• Form factor: GBIC
• Typical multimode reach: application- and fibre-dependent (generally up to a few hundred metres; check fibre grade and vendor specifications)

History

Details

• Quantity supplied: as listed above. No additional items are included.
• Condition: used; sold for parts or refurbishment — please inspect the photos carefully and ensure compatibility before purchase.
• Compatibility note: Confirm your host or switch accepts legacy GBIC modules; many modern systems use SFP/SFP+ modules instead.

Compatibility

• Primary: Dell PowerEdge R710 (backplane)
• Transceivers: compatible with systems that accept Finisar 850 nm SX GBIC modules and support 1000BASE-SX multimode links. Verify host firmware and vendor compatibility where required.

Notes

• Please review all photographs thoroughly — the images form part of the item description.
• No additional cables, screws or accessories are included unless explicitly listed above.
• These are used components; they have not been fully bench‑tested unless stated. For critical deployments, consider new or fully tested replacements.
