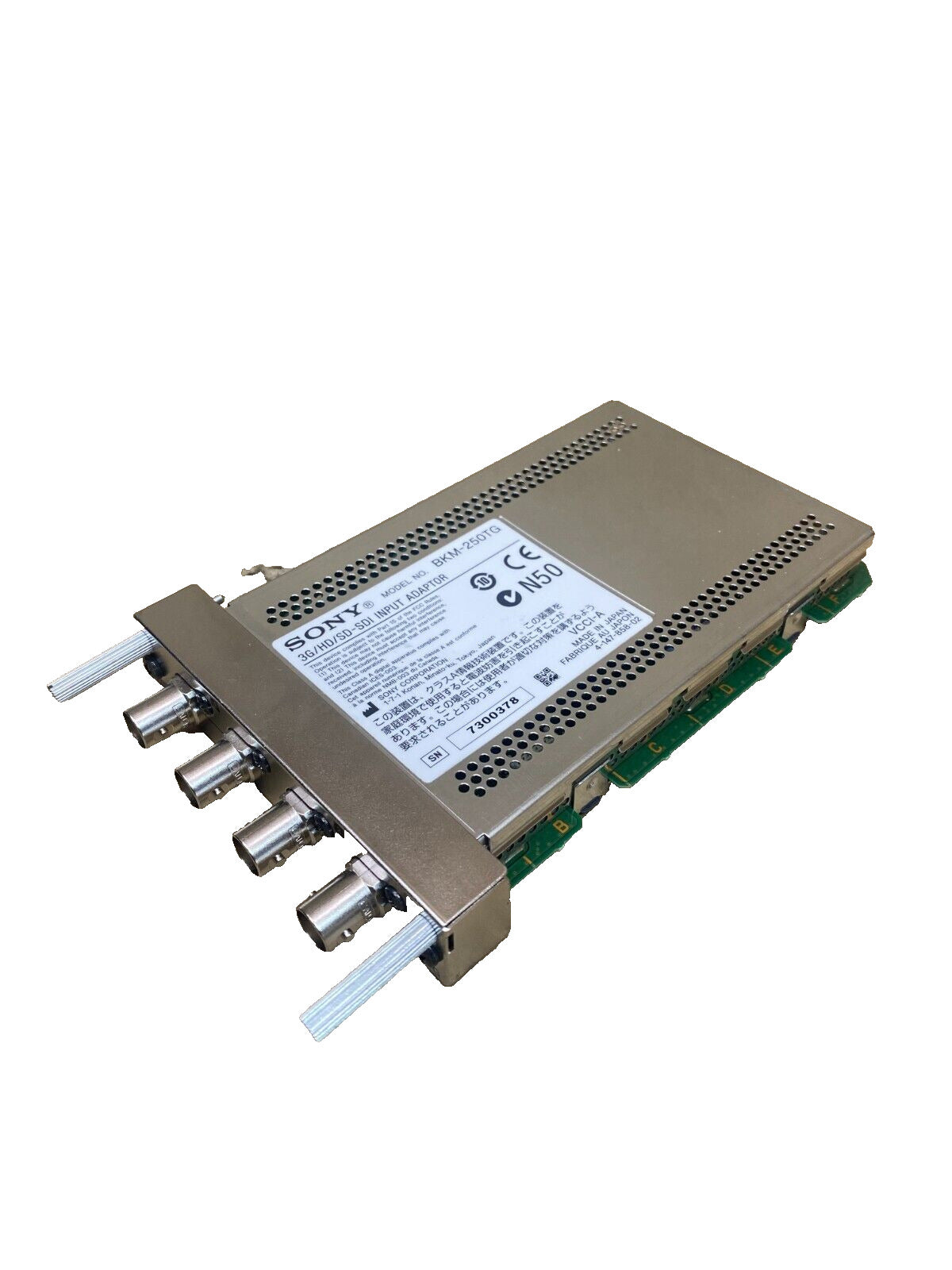

Sony BKM-250TG SDI Input Adaptor for BVM/PVM Monitors 3G/HD/SD-SDI

Name: Sony BKM-250TG SDI Input Adaptor for BVM/PVM Monitors 3G/HD/SD-SDI
Brand: Gear Haven
SKU: 06216
Price: 189.00 GBP
Availability: InStock

£189.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

The Sony BKM-250TG is a high-performance 3G/HD/SD-SDI input adaptor designed for use with Sony's professional monitors. This device is essential for transmitting high-quality video signals, facilitating the transfer of video signals up to 10-bit 4:2:2 1080P/60P through a single SDI cable, which significantly simplifies cabling in professional environments. It adheres to the SMPTE 425 standard, ensuring superior performance and reliability.

Features

Signal Compatibility: Supports 3G-SDI, HD-SDI, and SD-SDI signals, catering to a variety of broadcast standards.
Inputs and Outputs: Includes two BNC input connectors and two monitor output connectors for seamless integration with other video equipment.
Time Code and Audio Monitoring: Offers a time code display function for decoding embedded time codes as well as an audio level meter for monitoring embedded audio levels.

Specifications

Dimensions: 100 mm (W) x 20 mm (H) x 162 mm (D)
Weight: Approximately 270 grams
Power Consumption: Approximately 4 watts

The Sony BKM-250TG 3G/HD/SD-SDI Input Adaptor is compatible with specific Sony professional OLED and LCD monitors, particularly those used in broadcast and production settings. It enables these monitors to support SDI signals for high-quality video monitoring.

Primary Compatible Models Include:

Sony BVM Series:
- BVM-E250
- BVM-E170
- BVM-F250
- BVM-F170
Sony PVM Series:
- PVM-X Series
- PVM-A Series

These monitors benefit from the BKM-250TG adaptor for improved flexibility, allowing users to seamlessly integrate various 3G, HD, and SD-SDI signals without requiring additional converters. Compatibility may vary slightly by specific monitor model and firmware, thus it’s always advisable to confirm with Sony’s official compatibility chart or the monitor’s documentation.
