Tektronix WVR 5200 Video Waveform Monitor (Faulty)

Features

• Multi‑format SDI support (SD, HD and 3G‑SDI single‑link) for common broadcast resolutions and frame rates.
• Waveform, vectorscope and picture display modes with selectable measurement and display presets (WFM, Vector, Pict, Audio, Gamut, Meas, etc.).
• Front‑panel controls and rotary encoders for General, Vertical and Horizontal adjustments and quick access buttons for common functions.
• Front headphone output and front USB port for file transfer/firmware updates.
• Rear SDI outputs and SDI loop/ref inputs for routing and reference distribution.
• DVI output for monitor connection; Ethernet and RS‑232 remote control ports for integration into control systems and networked workflows.
• Compact enclosure suitable for integration into racks, OB vans and fixed installations.

Specifications

• Manufacturer: Tektronix
• Model: WVR 5200
• Product type: Video waveform/vector monitor

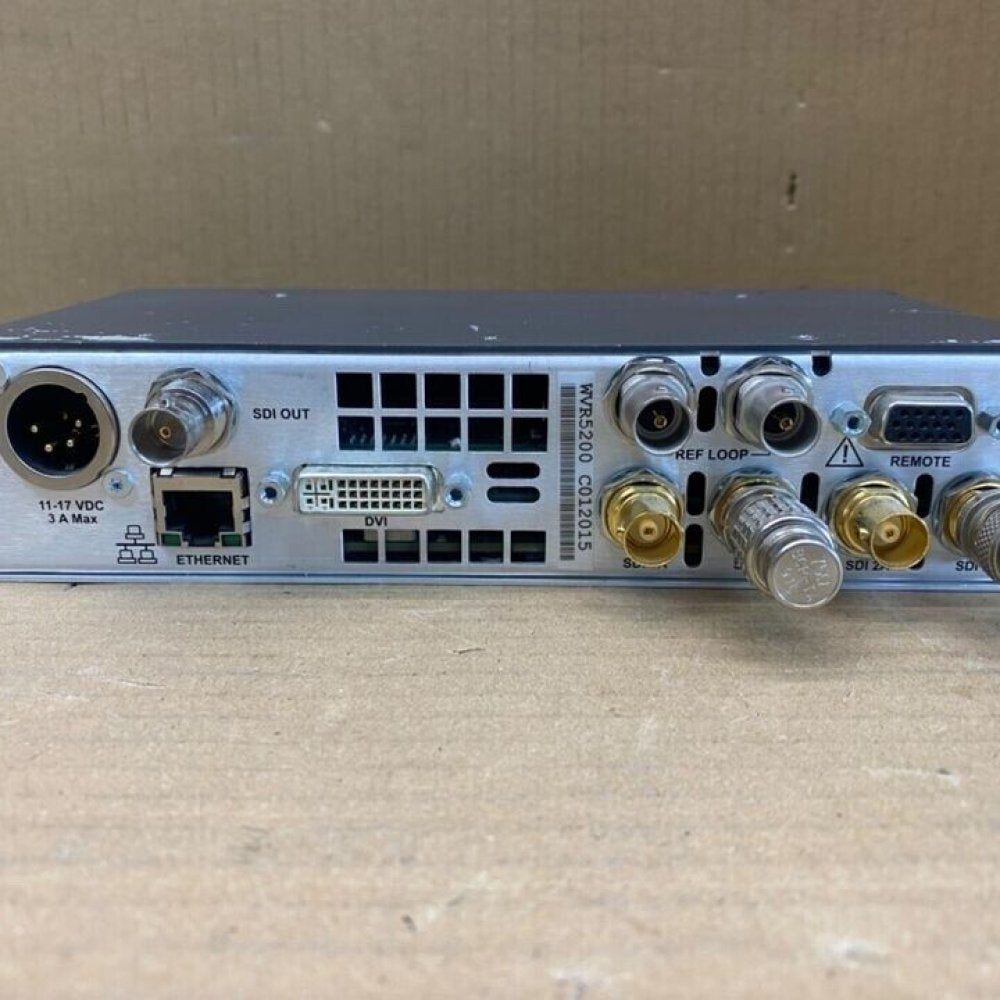

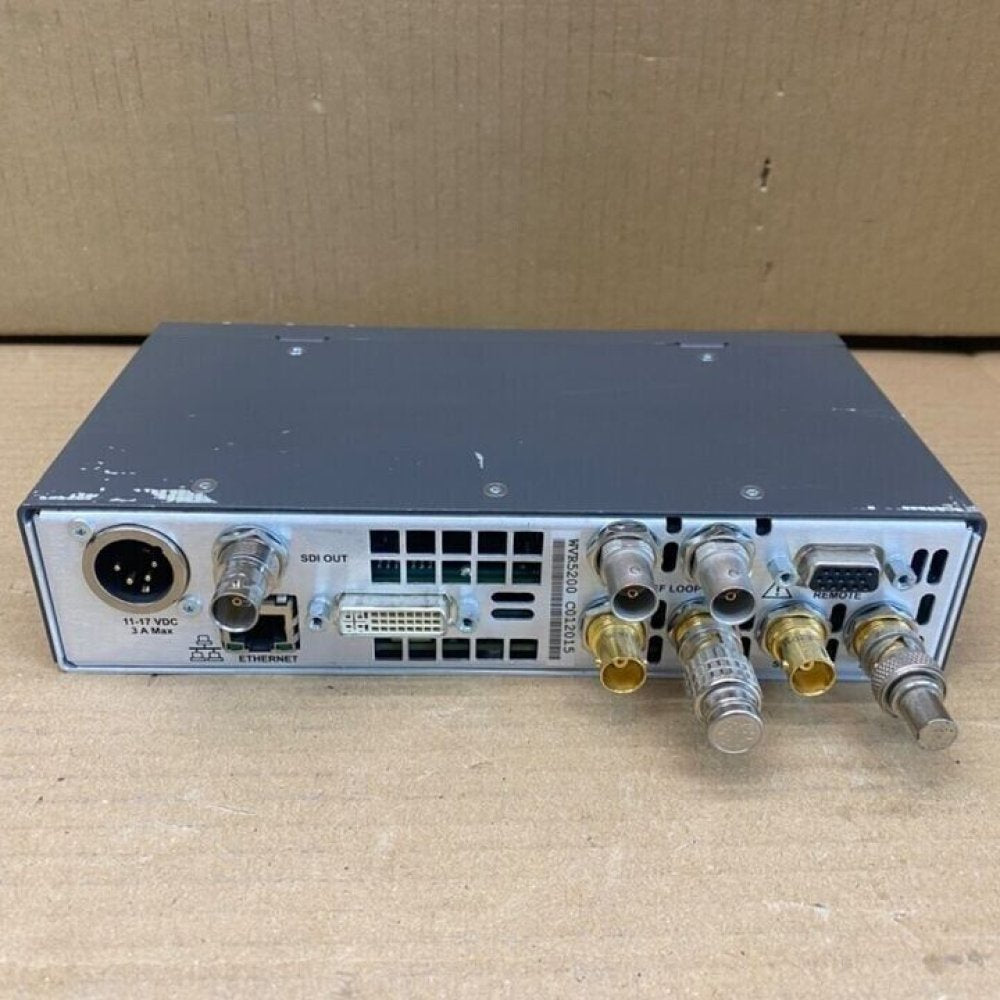

• Video inputs/outputs: BNC SDI inputs and loop, SDI output(s), DVI video output (as pictured)
• Supported signal formats: SD, HD and 3G‑SDI (single‑link up to 1080 resolutions; consult Tektronix documentation for full format list)
• Control/communication: Ethernet, Remote RS‑232 (DB‑9), front USB port

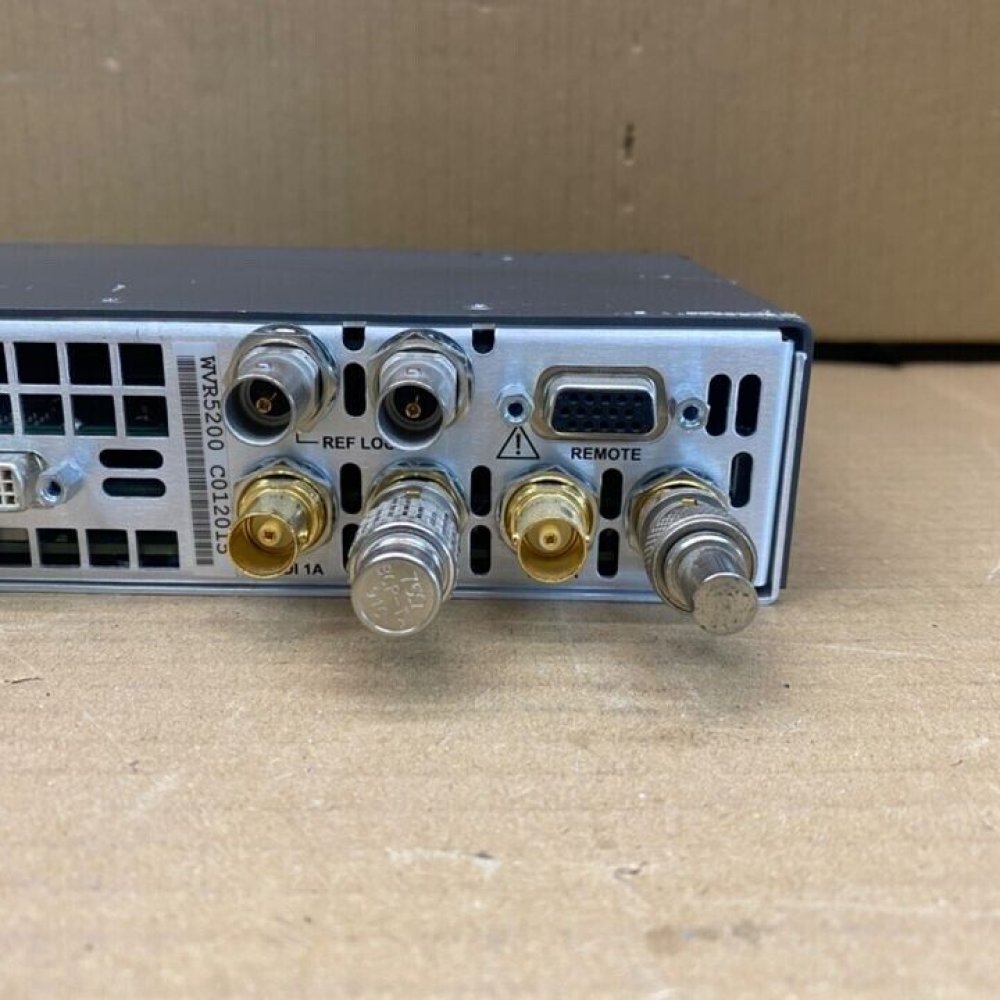

• Reference: REF LOOP BNCs for synchronisation with house reference

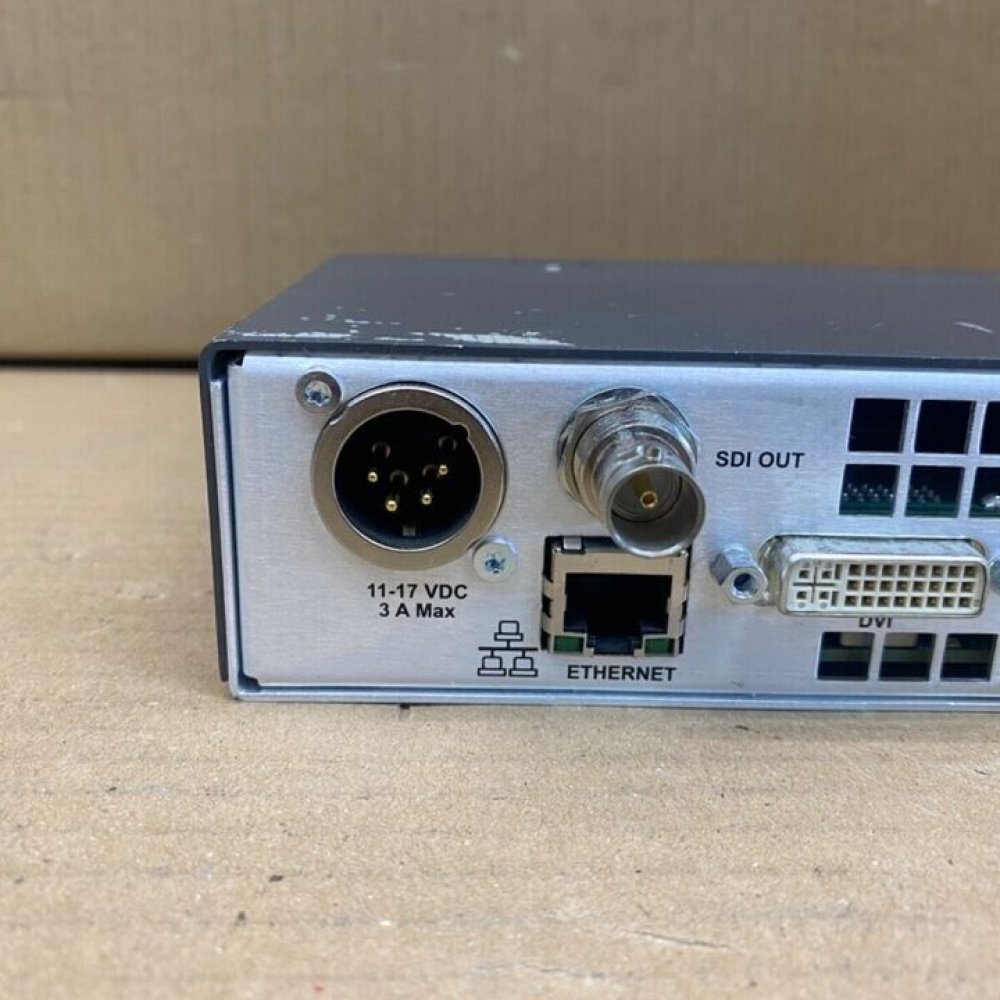

• Power: labelled 11–17 VDC, 3 A max (external supply or system power required)

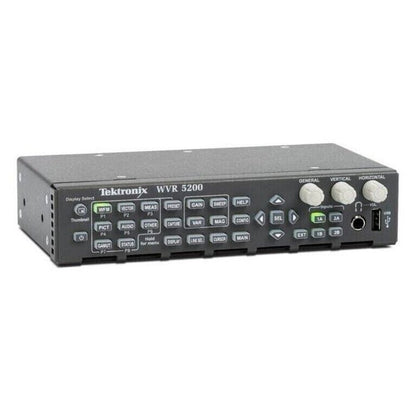

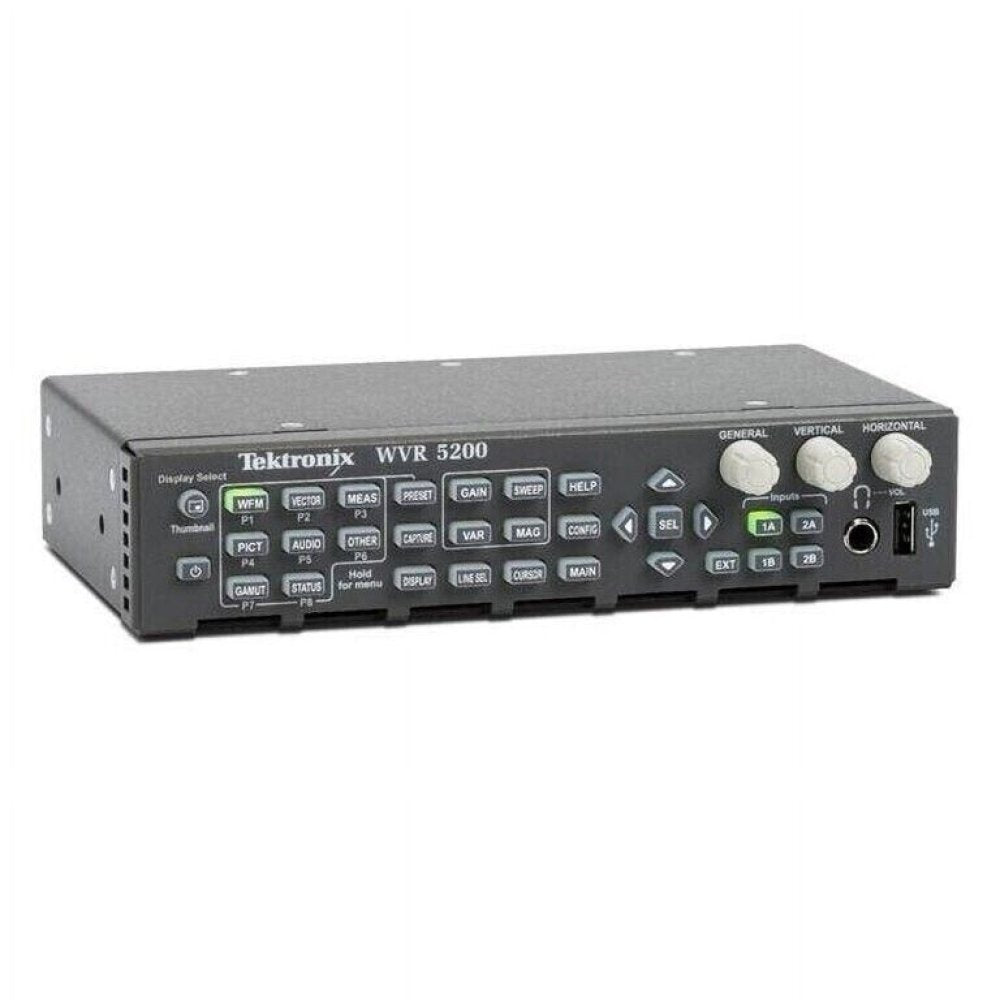

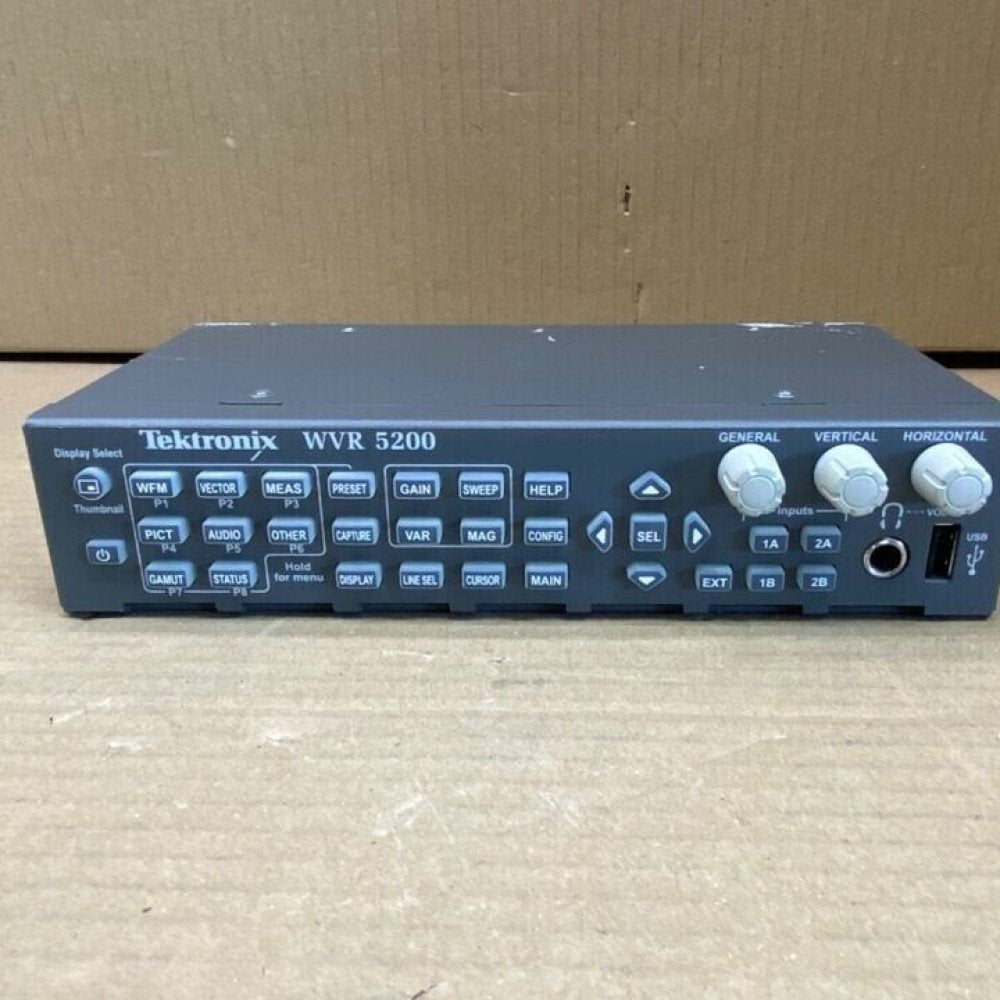

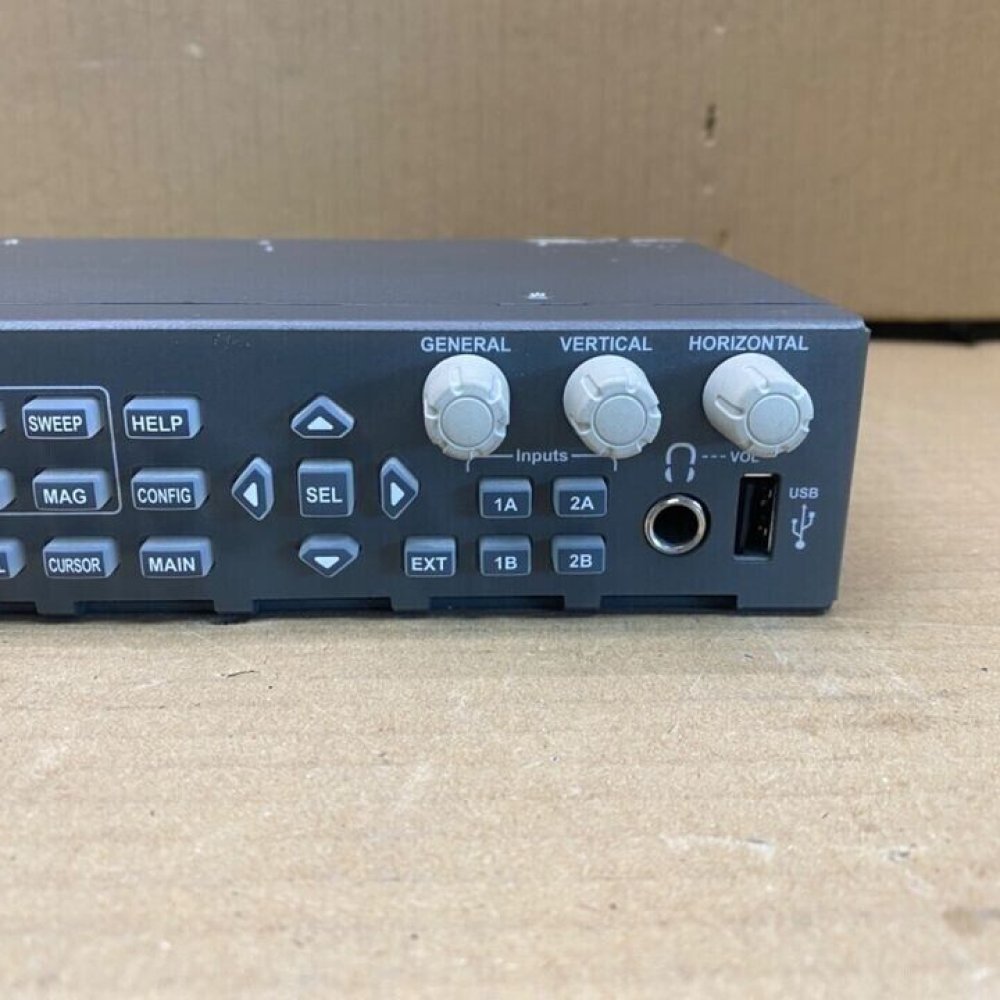

• Front features: headphone jack, front USB port, selection keys and rotary encoders

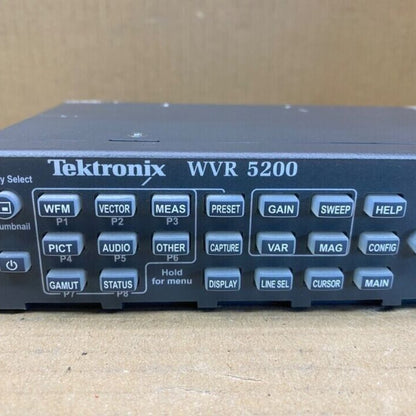

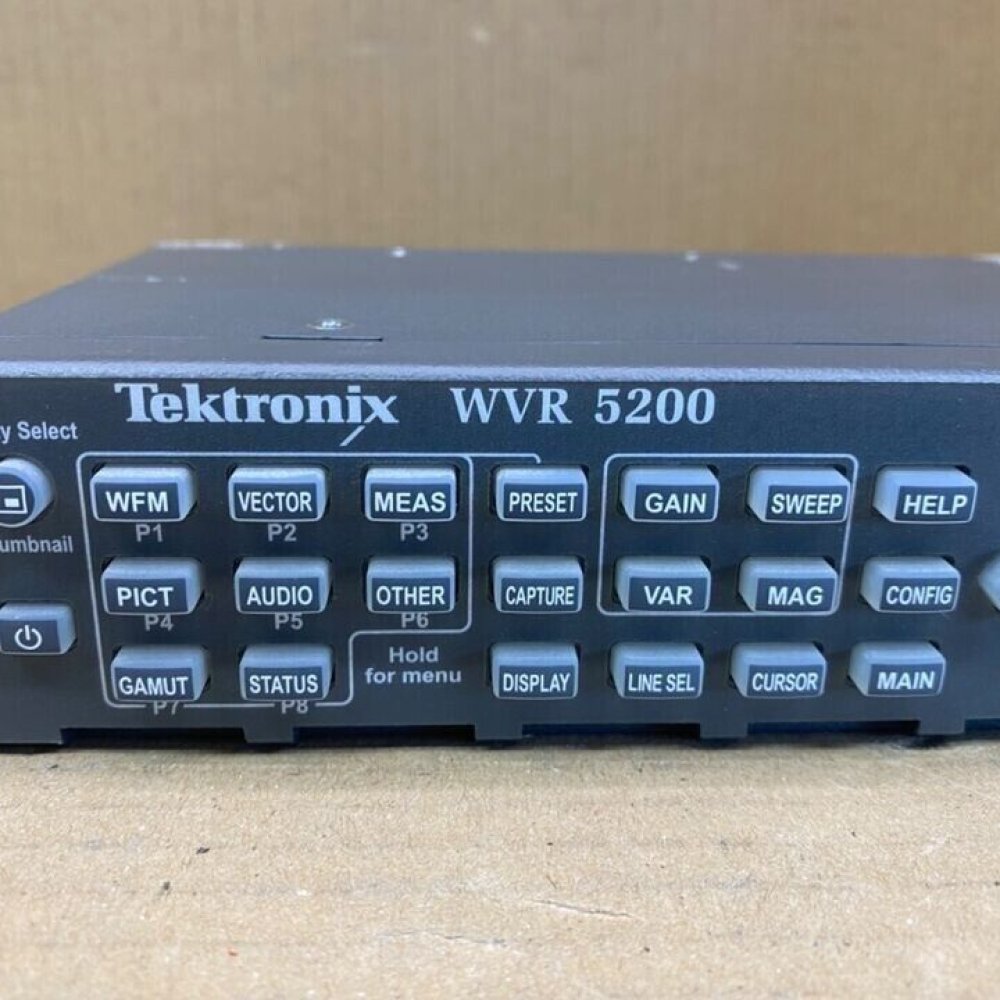

• Common front displays/functions: WFM (waveform), VECTOR (vectorscope), PICT (picture), AUDIO, GAMUT, MEAS, STATUS, CAPTURE, MAG, VAR, etc.
• Note: exact feature set can depend on fitted options and firmware level — refer to official Tektronix WVR 5200 documentation for full details.

What you get

• 1 x Tektronix WVR 5200 Video Waveform Monitor (as shown) — listed as faulty (sold for parts or repair)

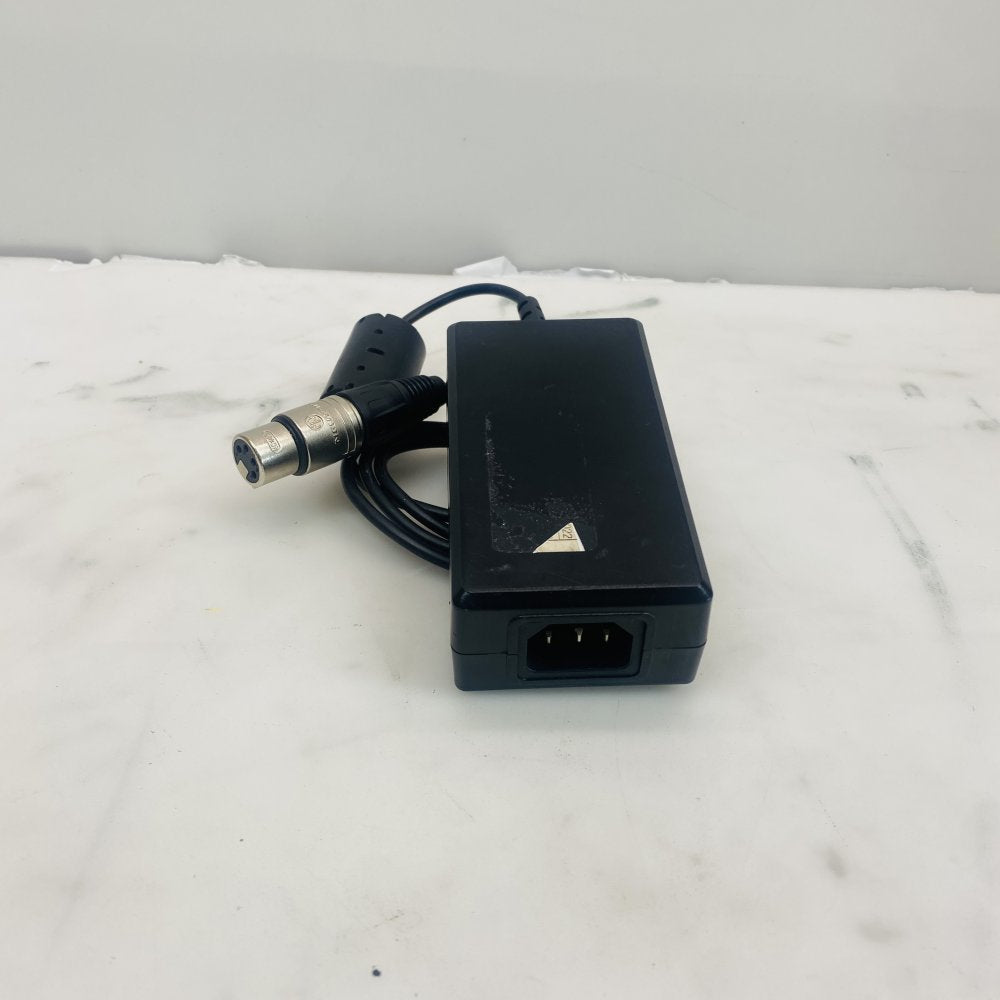

• 1 x Power Adapter Included
